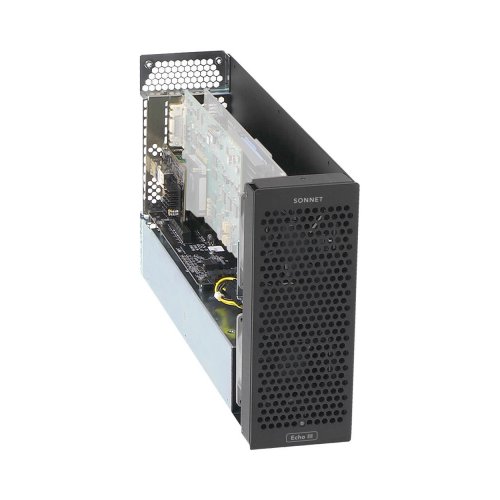

Sonnet DuoModo Echo III Module

About: Sonnet DuoModo Echo III Module

The DuoModo Echo III Module connects up to three PCIe cards to computers without card slots. The module supports three full-height, full-length Thunderbolt-compatible non-GPU PCIe cards; provides 400W of power for the most demanding of PCIe cards, including qualification from Avid for Pro Tools | HDX PCIe cards;  features quiet, dual temperature-controlled Noctua fans rated at 17 dbA; and connects through super fast 40Gbps Thunderbolt interface.

Features​

• Three Versatile PCIe Slots
  • Supports Three Full-height, Full-length PCIe Cards
  • One x16 Plus Two x8 PCIe 3.0 Slots
  • Supports Every Thunderbolt-compatible non-GPU Card
  • AVID QUALIFIED – Supports up to Three Avid Pro Tools | HDX PCIe Cards
  • View PDF of Supported PCIe Cards
• 400W of Power
  • Built-in 400W Power Supply with 75W Auxiliary Power Connector
  • Supports Power-hungry, non-GPU Cards Including Avid HDX
  • Powers On and Off Automatically with Connected Computer
• Quiet Fans
  • Dual Noctua Fans Offer Ultra-quiet Operation
  • Temperature-controlled, Variable-speed
  • Rated at 17 dbA
• 40Gbps Thunderbolt Interface
  • Two Thunderbolt 3 Ports
  • 40Gbps Thunderbolt Interface Offers 3000 MB/s of PCIe Bandwidth with Thunderbolt 4 computers; 2570 MB/s with Thunderbolt 3 computers
  • Thunderbolt Cable Included
  • ThunderLok 3 Thunderbolt Connector Retainer Clip Included
• Compatibility
  • Compatible with Mac, Windows, and Linux. See Product Page Tech Specs for Full Compatibility Information and Requirements.​
• Why Sonnet?
  • 2-year Product Warranty
  • Free Lifetime Customer Technical Support
  • Designed and Made In the USA

Add Your Module to a DuoModo Enclosure - Choose Your Enclosure

• Single-Module Desktop Enclosure - (Houses a Single DuoModo Module on the Desktop)
• Dual-Module Desktop Enclosure - (Houses Two DuoModo Modules on the Desktop)
• Dual-Module Rackmount Enclosure - (Houses Two DuoModo Modules in a Rack)
• Popular Pre-configured DuoModo Systems (Enclosures with Pre-installed Modules) also Available

Specifications

• Compatibility
  • Mac Compatibility
    • Mac (M series) with PCIe cards that have compatible drivers
    • Mac (Intel) with Thunderbolt 3 ports
    • Mac with a Thunderbolt 2 or Thunderbolt port with an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter plus a Thunderbolt 2 cable (both sold separately)
    • macOS 10.12.6+
    • macOS Monterey compatible
  • Windows Compatibility
    • Windows 10 computer with Thunderbolt 4 or Thunderbolt 3 ports
    • Windows 11 does not support multiple-slot Thunderbolt expansion systems. We are working with Microsoft to resolve the issue.
  • Linux Compatibility
    • Linux computer with Thunderbolt 3 ports
    • Linux Kernel 5.0+
  • PCIe Cards Compatibility
    • Click Here for a list of compatible PCIe cards
• Hardware
  • Form Factor - Expansion system module
  • External Connectors
    • Two Thunderbolt ports
    • Power (C14-type)
  • Internal Connector - 6-pin Mini-Fit Jr (same type as on legacy Mac Pro motherboard; provides up to 75W of power for PCIe cards that require supplemental power)
  • Expansion Slots (Facing Rear, Left to Right)(1)
    • One x8 mechanical (x8 electrical) PCIe 3.0
    • One x16 mechanical (x8 electrical) PCIe 3.0
    • One x8 mechanical (x4 electrical) PCIe 3.0
  • PCIe Cards Supported
    • One full-length, full-height, double-width PCIe card, plus one single-width card or
    • Three full-length, full-height, single-width PCIe cards
  • Power Supply - Universal 400W, 115-230V AC, 50-60 Hz(8)
  • Operating Temperature - 0ºC to 35ºC (32ºF to 95ºF)
  • Dimensions (WxDxH) - 3.3 x 16.6 x 8.5 in. (8.4 x 42.2 x 21.7 cm)
  • Weight - 4.95 lbs (2.25 kg)
  • Compliance
    • RoHS 3 (Directive 2015/863)
    • IEC62368-1 and IEC62368-2 Safety

Package Contents

• Echo III Module
• Region-specific power cable for US, Australia, Europe, Japan, Switzerland, or UK
• 6-pin auxiliary power cable
• Thunderbolt 3 cable
• ThunderLok 3 Thunderbolt connector retainer clip(2)
• Mounting screws
• Documentation
