Sonnet DuoModo Pre-Configured Rackmount w/ xMac mini + Echo III Modules
Model: DM-ZM-E3-R
About: Sonnet DuoModo Pre-Configured Rackmount w/ xMac mini + Echo III Modules

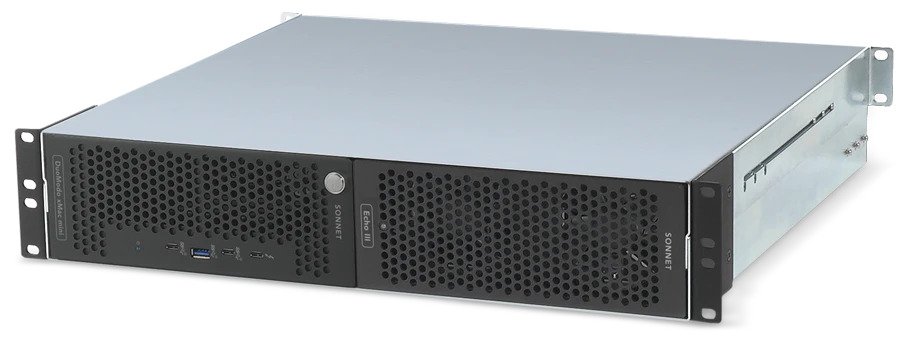

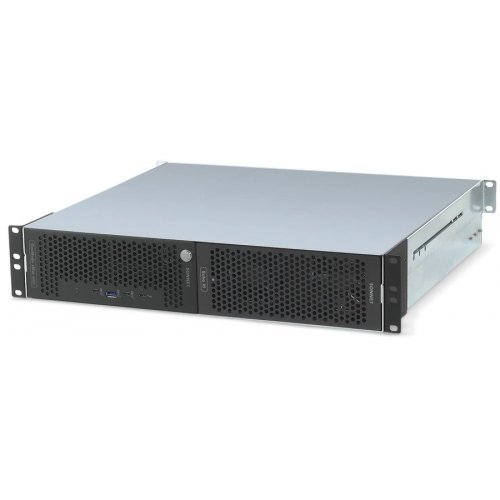

The pre-configured DuoModo™ xMac™ mini/Echo™ III Rackmount System integrates a Dual-Module Rackmount Enclosure with one xMac mini module and one Echo III module.
Key Features
System Configuration
- For Intel® or M1 Mac mini®
Dual-Module Rackmount Enclosure
- Dual-module 2U Rackmount Enclosure
- Rugged Steel Construction
- Same Enclosure Used in Echo III Rackmount
- 19 inches Wide x 16.5 inches Deep x 3.5 inches High
- Included Rack Rails Support Installation in Racks 16-24" Deep
xMac mini Module
- Securely Holds an Intel or M1 Mac mini (sold separately) in a Rugged Steel Frame
- Open Access to the Computer’s Ports in Back
- Built-in Thunderbolt™ 3 Dock
- Four Front Panel Ports Include One Thunderbolt 3 (40Gbps) Port, Two USB 3.2 (10Gbps) Type-C Ports, and One USB 3.2 (10Gbps) Type A Port
- Two Internal M.2 NVMe SSD Sockets – Add up to 16TB (SSDs sold separately)
- One Internal USB 3.2 (10Gbps) Type A port (for Securely Connecting an iLok USB-A, Thumb Drive, or Bus-powered USB Storage Drive)
- Internal Thunderbolt 3 (40Gbps) Port Connects Dock to the Mac mini
- Temperature-controlled, Variable-Speed Fan Offers Quiet Operation
- Power Cable Included
- Thunderbolt 3 (40Gbps) Cable Included
Echo III Module
- Three Versatile PCIe Slots
- One x16 plus Two x8 PCIe Slots
- Supports Three Full-height, Full-length Thunderbolt-compatible, non-GPU PCIe Cards ( View PDF of supported PCIe Cards)
- AVID QUALIFIED – Supports up to Three Avid Pro Tools | HDX PCIe Cards
- Built-in 400W Power Supply with 75W Auxiliary Power Connector
- Powers On and Off Automatically with Connected Computer
- Dual Temperature-controlled, Variable-speed Noctua fans rated at 17 dbA
- Two Thunderbolt 3 Ports
- 40Gbps Thunderbolt 3 Interface Offers 2750 MB/s of PCIe Bandwidth to the Installed PCIe Cards
- Power Cable Included
- Thunderbolt 3 (40Gbps) Cable Included
- ThunderLok 3 Thunderbolt Connector Retainer Clip Included
UPC: 732311013270
Videos: Sonnet DuoModo Pre-Configured Rackmount w/ xMac mini + Echo III Modules
Reviews: Sonnet DuoModo Pre-Configured Rackmount w/ xMac mini + Echo III Modules
There are currently no product reviews.
Warranty: Sonnet DuoModo Pre-Configured Rackmount w/ xMac mini + Echo III Modules
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
All new Sonnet Products purchased on or after January 1, 2019, have a Two Year Limited Warranty
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and Sonnet do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
