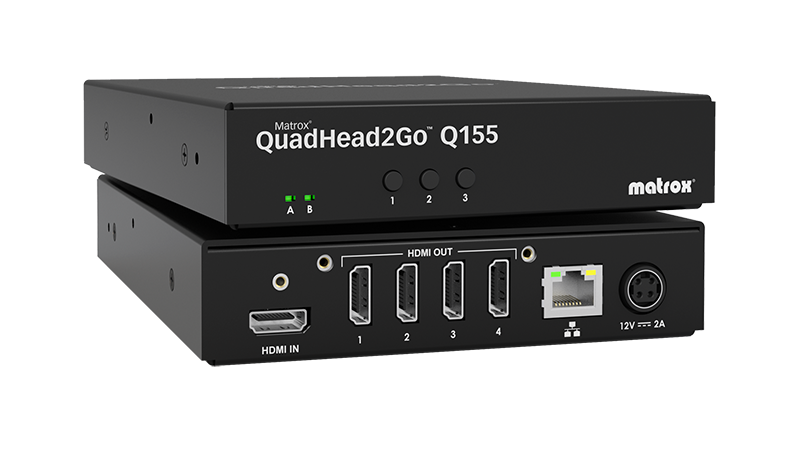

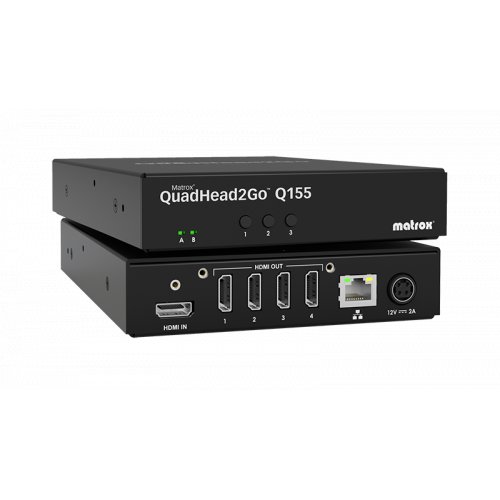

Matrox QuadHead2Go 4Kp60 HDMI Multi-Monitor Appliance

About: Matrox QuadHead2Go 4Kp60 HDMI Multi-Monitor Appliance

Capable of driving four displays from one signal, Matrox® QuadHead2Go™ Series multi-monitor controller appliances provide complete video wall scalability and flexibility. The system-independent QuadHead2Go appliance is designed to power any video wall configuration of any possible dimension, from any video source – reliably delivering flawless image quality across expansive video wall displays. QuadHead2Go’s on-device buttons and pre-set configurations ensure an out-of-the-box, trouble-free installation experience.

Drive up to four Full HD displays from a single video signal—of up to 4Kp60 and 8Kx8K—at full RGB 8:8:8 and YUV 4:4:4 color support. The system-independent Matrox® QuadHead2Go™ Series appliance is designed to power any video wall configuration of any possible dimension, from any video source—reliably delivering flawless image quality across expansive video wall displays. QuadHead2Go’s on-device buttons and pre-set configurations ensure an out-of-the-box, trouble-free installation experience.

Ready to deploy. Right out of the box.

• Set up without installing software or even connecting a video source, by using the default configuration of 2x2 in landscape.
• Reduce setup time by using QuadHead2Go’s pre-set configurations and built-in images.
• Eliminate physical handling by controlling and updating the cards remotely from anywhere on the network (LAN).
• Ensure compatibility with professional-grade graphics cards and media players with HDMI support.
• Create a video wall from any content source—professional graphics cards and integrated GPUs, video wall controllers, digital signage players, media players, decoders, laptops, NUCs, set-top boxes, gaming consoles, and more.

Build your wall with the touch of a button

On-device buttons make it easy to select and set the display layout—simply cycle through pre-set configurations. Set up display positions, fine tune bezels, and also troubleshoot with ease, by accessing the built-in or pre-saved images directly from the appliance, together with display identification information that includes the ID number and the resolution of each output.

Compact design fits anywhere

Fit three QuadHead2Go appliances horizontally or ten appliances vertically—in a standard 19-inch rack. Simply place the appliance on the desktop, workstation, or rack, and it’s ready to use. Need to mount your QuadHead2Go appliance to your monitor instead? Conveniently mount it to your display with the available VESA bracket.

Scale your video wall. Easily and infinitely.

Design modern and artistic video wall layouts with free rein—each output can have its own resolution, be independently rotated (90, 180, and 270 degrees), cropped, upscaled, downscaled, and positioned anywhere.

Create or expand large-scale video wall solutions

Expand to a video wall configuration of any size by using multiple QuadHead2Go appliances. Fashion countless forms of setups—arrange displays in 4x1, 1x4, 2x2, 3x1, 1x3, 2x1, or 1x2 rectangular configurations, in portrait or landscape, or other non-rectangular/artistic configurations—and combine/scale them to create large-scale video walls.

Proven video wall ecosystem

Drive up to 64 1920x1080p60 displays and create captivating video walls by pairing QuadHead2Go multi-monitor controllers with Matrox D-Series graphics cards.

Specifications:

• Number of Input channels: 1
  • Formats: HDMI
• Number of Output channels: 4
  • Formats: HDMI
• Network Connector: 1x RJ45
• Multi-Unit Support: Yes
• Memory: 1 GB
• Video Input Resolutions
  • 3840x2160 @60Hz
  • 3840x2160 @30Hz
  • 7680x1080 @60Hz
  • 7680x1080 @30Hz
  • 1920x4320 @60Hz
  • 1920x4320 @30Hz
  • Other input resolutions including 8Kx8K are supported. Contact Matrox for more details.
• Video Output Resolutions
  • 1920x1080 @60Hz
  • 1920x1080 @30Hz
  • 1920x1200 @60Hz
  • 1920x1200 @30Hz
  • Other output resolutions are supported. Contact Matrox for more details.
• Input:
  • RGB: 8:8:8 (24 bits per pixel)
  • YUV: 4:4:4, 4:2:2, 4:2:0 (8 bits per component)
• Output:
  • RGB: 8:8:8 (24 bits per pixel)
• Supported Configurations: 2x2 (default), 4x1, 3x1, 2x1, 1x2, 1x3, 1x4 in both landscape and portrait modes and other non-rectangular/artistic configurations
• Video Cropping: Yes
• Stretched Desktop Support: Yes
• HDCP Support: Yes
• Audio Output Format: AAC, PCM, Stereo, and Mono
