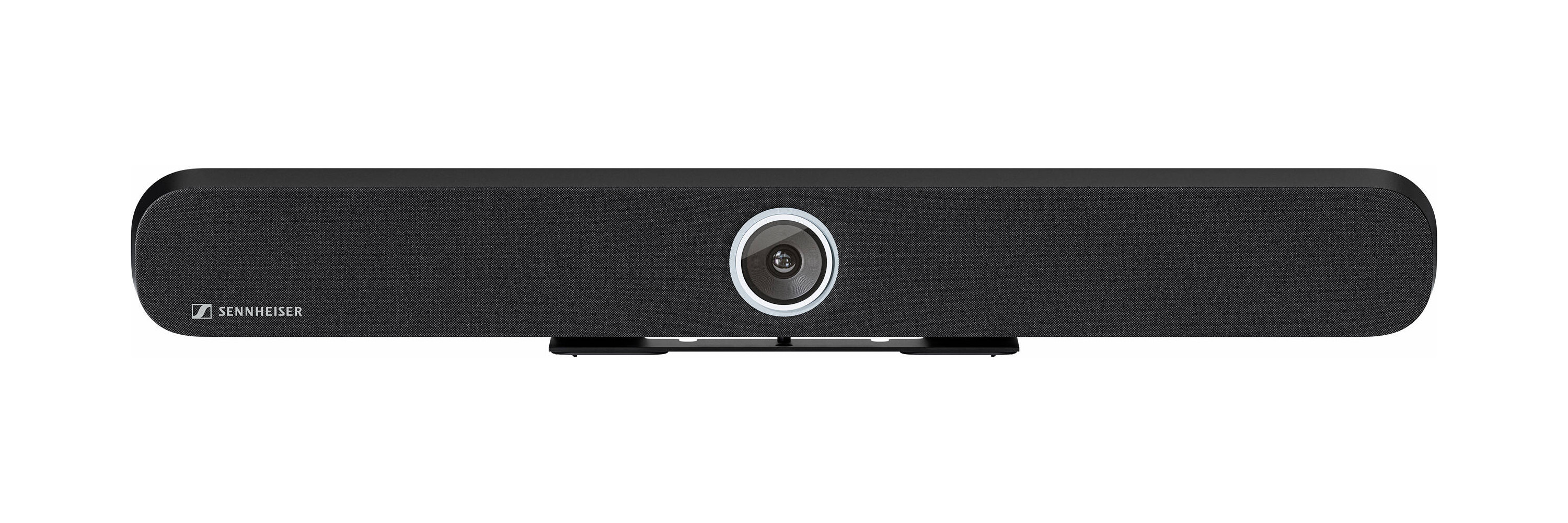

Sennheiser TeamConnect Bar Conferencing Device for Medium Rooms

About: Sennheiser TeamConnect Bar Conferencing Device for Medium Rooms

The TeamConnect Bar M is the most flexible all-in-one device for mid-sized meeting rooms and collaboration spaces. The TC Bar M features 6 microphones and 4 speakers to deliver Trusted Sennheiser Audio Quality to every meeting.

The TC Bar M is a true problem solver with benefits like easy setup, brand agnostic integration, easy management & control, high video quality, security and sustainability.

Features

• Plug and Play Device: Quick start via USB cable
• Integrated Beamforming Technology: Freedom of movement and seamless transition among presenters
• Flexible Extensions: Using Dante for adding extension mics and/or a 2nd external USB camera
• High Video Quality: 4K Ultra HD camera equipped with advanced AI features
• Full-Range Stereo Speakers: Natural speech and outstanding intelligibility
• Built-In DSP: Automatically optimizes room acoustics
• Multiple Mounting Options: Wall Mount, VESA Mount, Tabletop or Freestanding
• Autoframing and Person Tiling: Features to clearly see everyone in the room
• Control Management: Full remote-control access via Sennheiser Control Cockpit
• Brand Agnostic Integration: Certifications pending for 3rd party media control systems (Barco, Crestron, Extron, Q-Sys) and platforms (Microsoft Teams, Zoom, Tencent, etc.)
• Advanced Security Features: Encrypted control communication and password protected by default for secure content transmission

High Video Quality

Technology excels when it fades into the background and you almost forget it's there. In meetings, this means that both the audio and video has to be on point.

The TeamConnect Bar Solutions feature some of the latest advances in meeting technology to further enhance modern hybrid meetings and lectures - taking video to the next level. The 4K Ultra HD camera is further enhanced by AI features like "Auto Framing" and "Person Tiling", not only enabling all remote participants to clearly see everyone in the room, but also ensuring increased meeting inclusion and engagement.

Flexibility and scalability

The TeamConnect Bar Solutions give you unparalleled freedom and flexibility. Choose the right TeamConnect Bar for your room size - TeamConnect Bar S for smaller rooms and TeamConnect Bar M for mid-sized rooms. With built-in DSP and available single cable mode, you can reduce cables and complexity. Integrated features, like the tilting mechanism, cable guide, available PoE and the option of using Dante for adding extension mics and/ or a 2nd external USB camera make the device even more flexible and scalable.

Management and Control

While the TeamConnect Bar Solutions will work great out of the box for many spaces, we offer a variety of options for management and control. With the Sennheiser Control Cockpit, you can work with presets to make preconfigured adjustments based on mounting position. Exclusion Zones are designed to exclude unwanted noises, while Priority Zone can prioritize and highlight one presenter or a podium area. And thanks to our open and agnostic ecosystem philosophy, the TC Bars are also compatible with many major Media Control Systems and Platforms from our Alliance Partners.

Specifications

• General
  • Dimensions (LxWxH) - 750 x 71 x 95 mm
  • Weight - 2.5 kg
  • Operating temperature range - 0 °C to 40 °C (32 °F to 104 °F)
  • Storage temperature range - -25 °C to 70 °C (-13 °F to 158 °F)
  • Relative humidity (Operation) - 0 to 75 %, non-condensing
  • Relative humidity (Storage) - 0 to 95 %, non-condensing
  • DC IN - 18 V, max. 4 A
  • Max. power consumption - 72 W
  • Voltage range PoE (PSE) - 44.0 - 57.0 V (IEEE 802.3af Type 1, PoE)
• Power State Information
  • Standby Mode (all ports deactivated) - ≤ 0.50 W (Entered after <2.5 hours with no activity on any network port)
  • Networked Standby (all ports activated) - ≤ 2.00 W (Entered after <20 minutes of inactivity)
  • Networked Standby (all ports activated) - ≤ 2.00 W

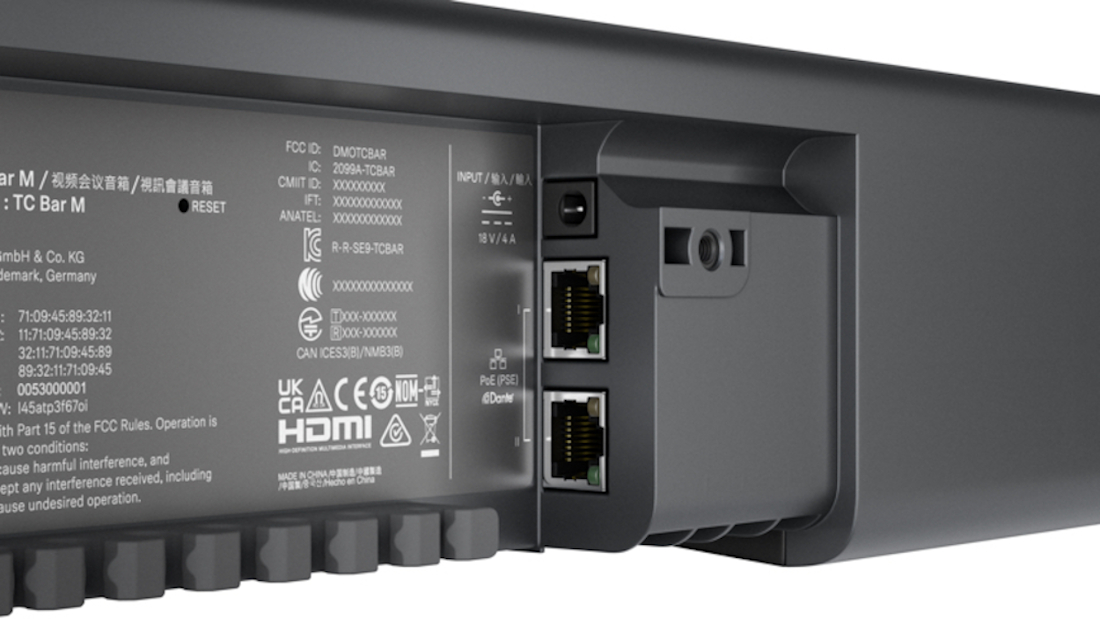

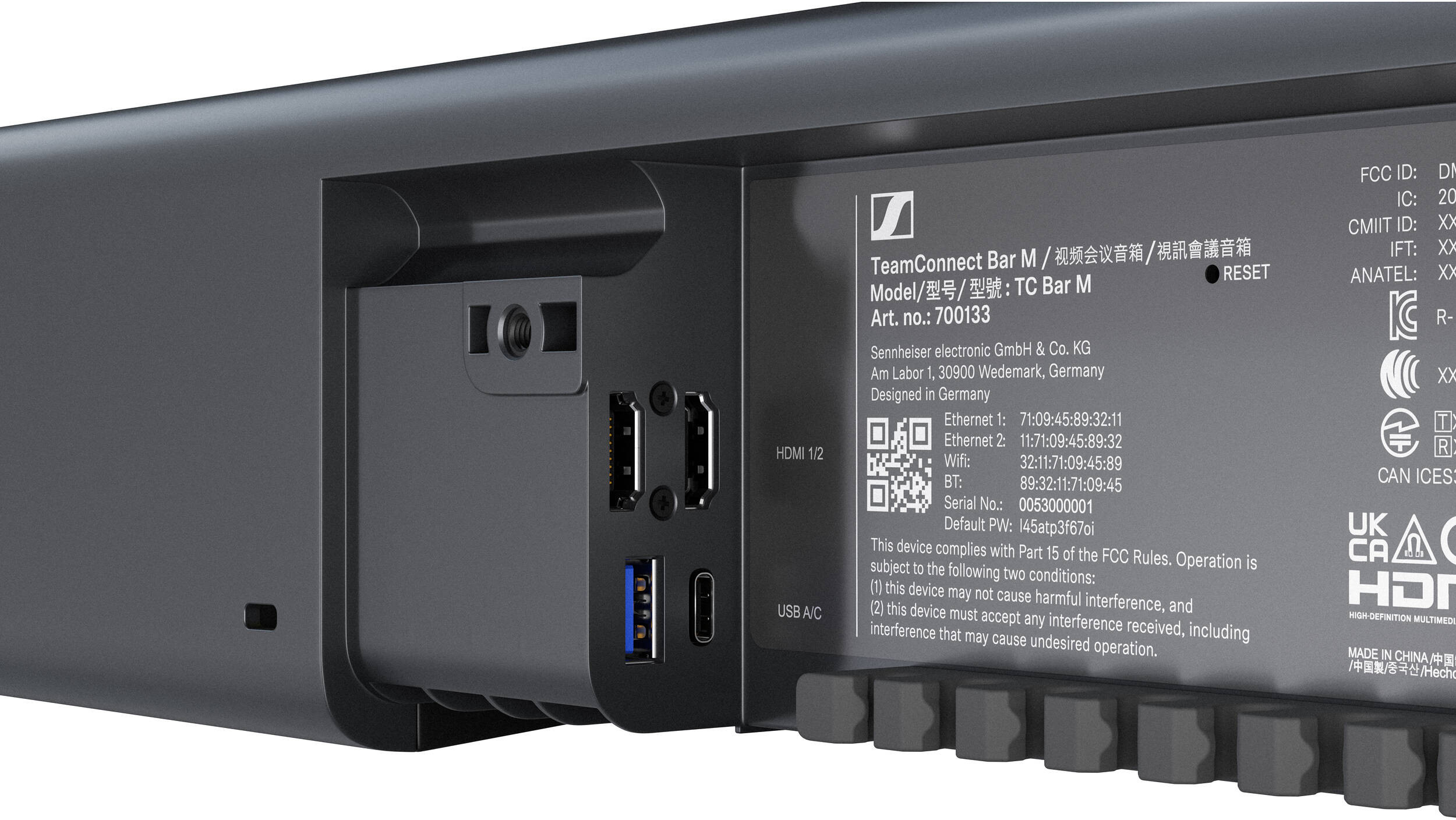

• Interfaces
  • HDMI out 1 - HDMI 2.0
  • HDMI out 2 - HDMI 2.0
  • USB-C - USB 3.1 (Gen 1)
  • USB-A / power output - USB 3.1 (Gen1) / 5 V, max. 900 mA
  • Ethernet - 2 x 1000/100/10 Mbit/s (RJ45)
    • Note: Only use network cables with the standard CAT5e (F/STP) or better.
  • DC IN dimension - 5.5 x 2.1 x 10.5 mm
• Wi-Fi
  • Standard - IEEE 802.11a /b /g /n /ac
  • Transmission system - SISO (Single-In, Single-Out)
  • Frequency ranges (max. RF output power)
    • 2412 MHz – 2472 MHz (max 20 dBm RF power)
    • 5150 MHz – 5350 MHz (max. 23 dBm RF power)
    • 5470 MHz – 5725 MHz (max. 23 dBm RF power)
    • 5725 MHz – 5850 MHz (max. 14 dBm RF power)
  • Modulation - 64QAM, 16QAM, QPSK, BPSK, CCK, DQPSK, DBPSK
• Bluetooth
  • Version - 5.1
  • Transmission frequency - 2402 MHz - 2480 MHz
  • Modulation - GFSK, π/4 DQPSK, 8DPSK
  • Profiles - A2DP, HFP, AVRCP
  • Max. RF output power - 10 dBm
  • Codec - SBC
• ​Loudspeaker
  • Number of speakers - 4 full range loudspeakers with passive radiator
  • Dimensions - 50 mm (2")
  • Frequency response - 100 Hz - 18 kHz
  • THD at max. output - < 5 %
  • Amplifier - Class-D
  • Max. SPL (output) - 84 dB SPL
  • Total Audio Power (RMS/PEAK) - 20 W / 40 W
• Microphones
  • Transducer principle - MEMS
  • ​Pick-up pattern - Beamforming Array
  • Number of microphone capsules - 6
  • Frequency range - 100 Hz to 14.5 kHz
  • Pickup range - 4.5 m
  • Dynamic range - 69 dB (A)
• Camera
  • Technology - ePTZ
  • Diagonal field of view - 120°
  • Horizontal field of view - 115°
  • Resolution - UHD 2160p (4K), 1080p, 720p, 960×480, 848×480, 640×480, 640×360, 432×240
  • Zoom - 5x digital

What's in the Box

• TeamConnect Bar M

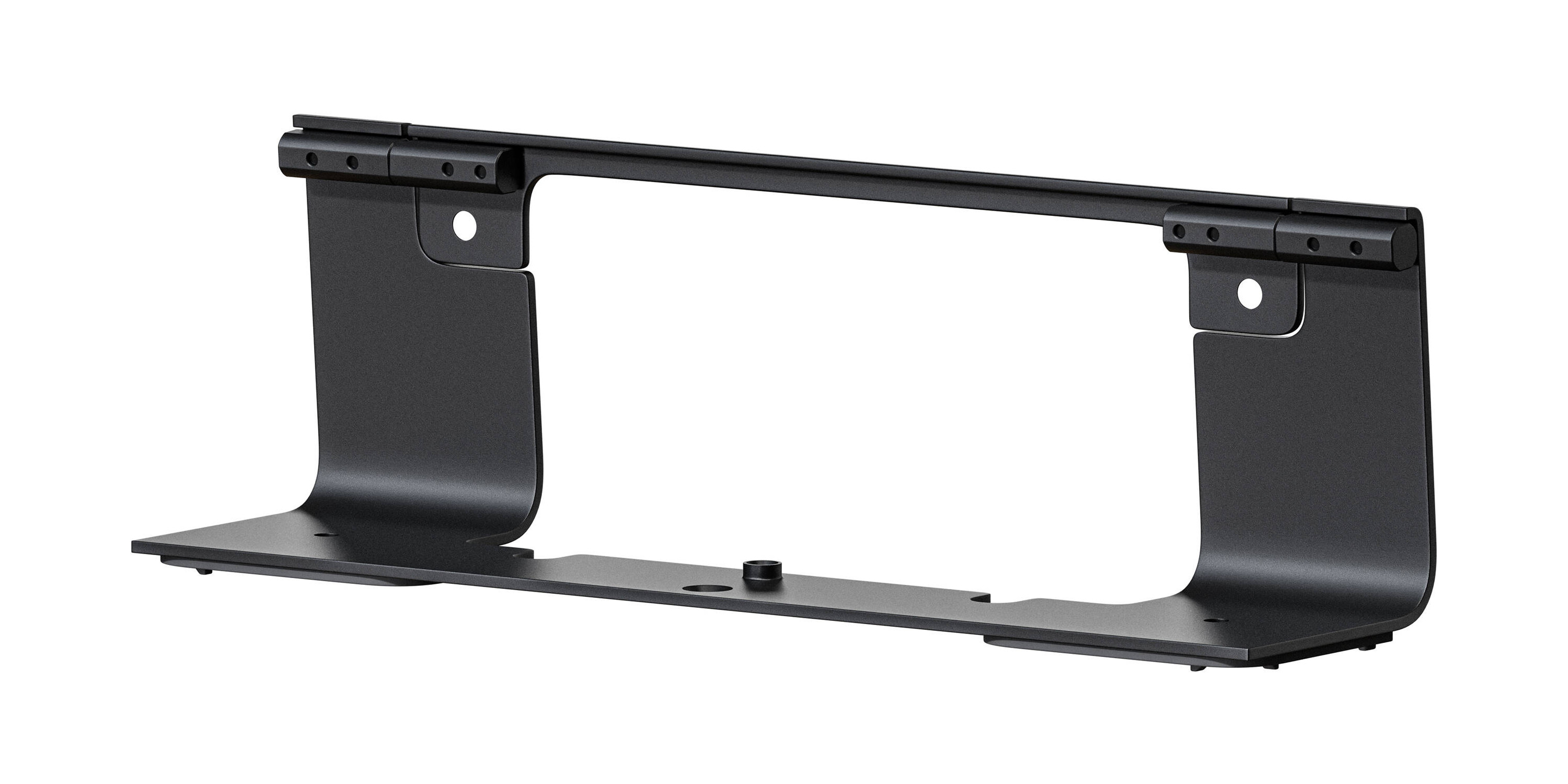

• Mounting Bracket
• Drilling Template
• Power Supply Unit + Power Cord

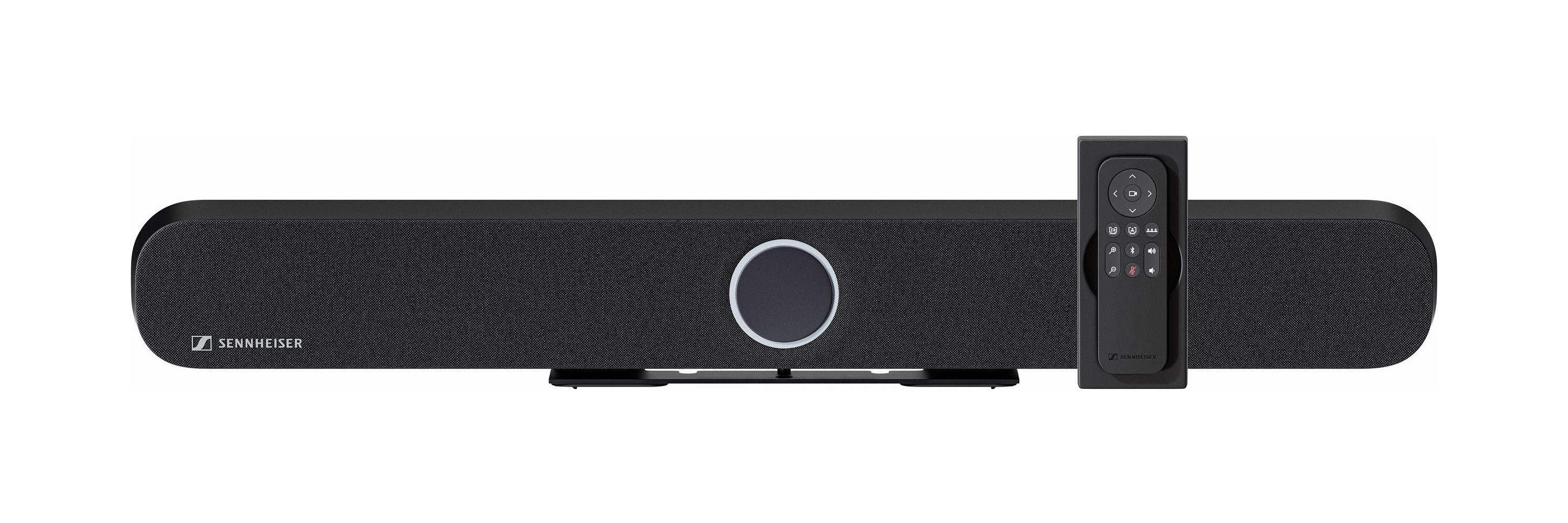

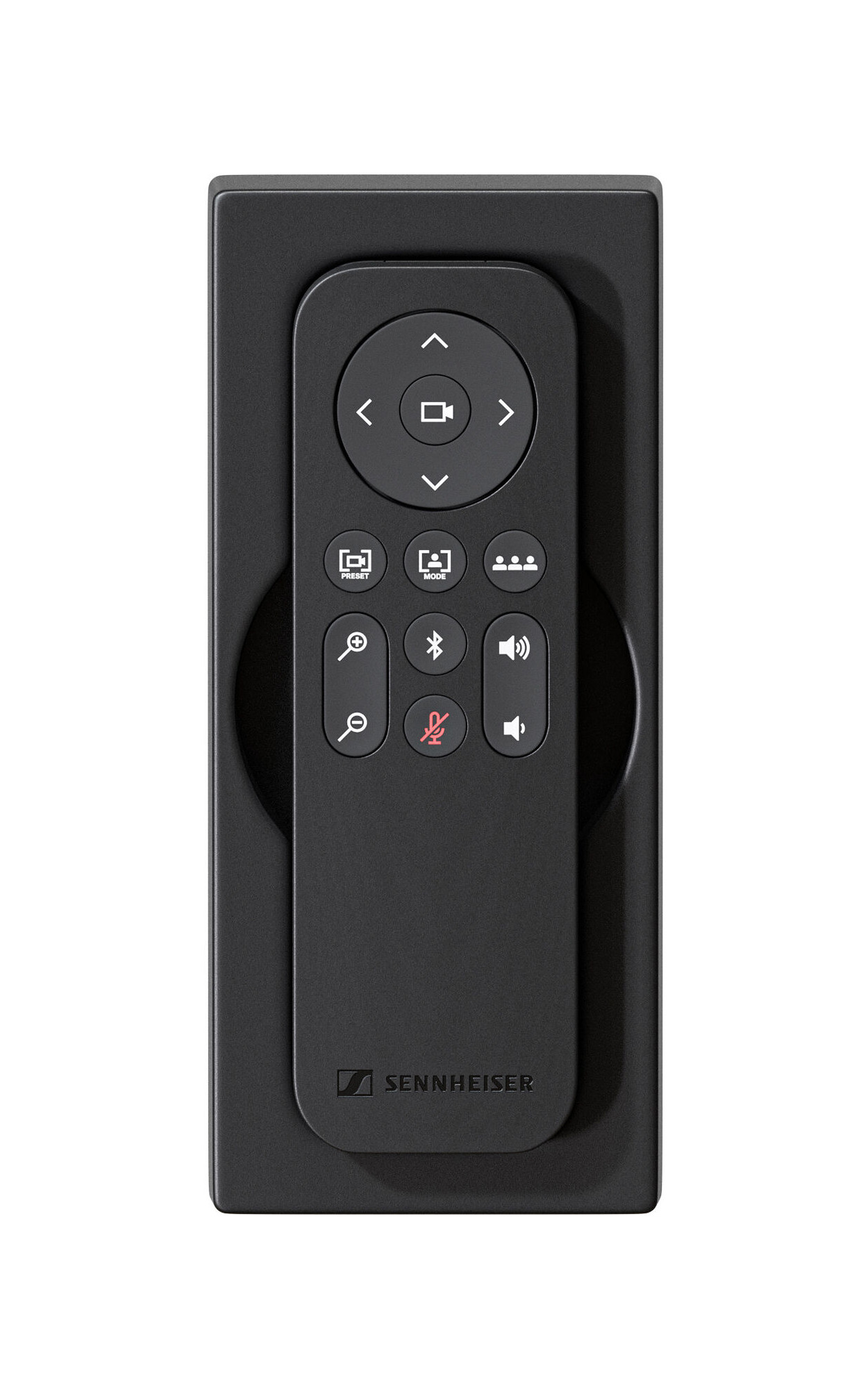

• Remote Control (incl. batteries, bracket & storage)
• Magnetic Lens Cap
• HDMI Cable
• USB-C to USB-C Cable
• Screws
• Quick Guide
• Safety Guide with manufacturer‘s declarations
