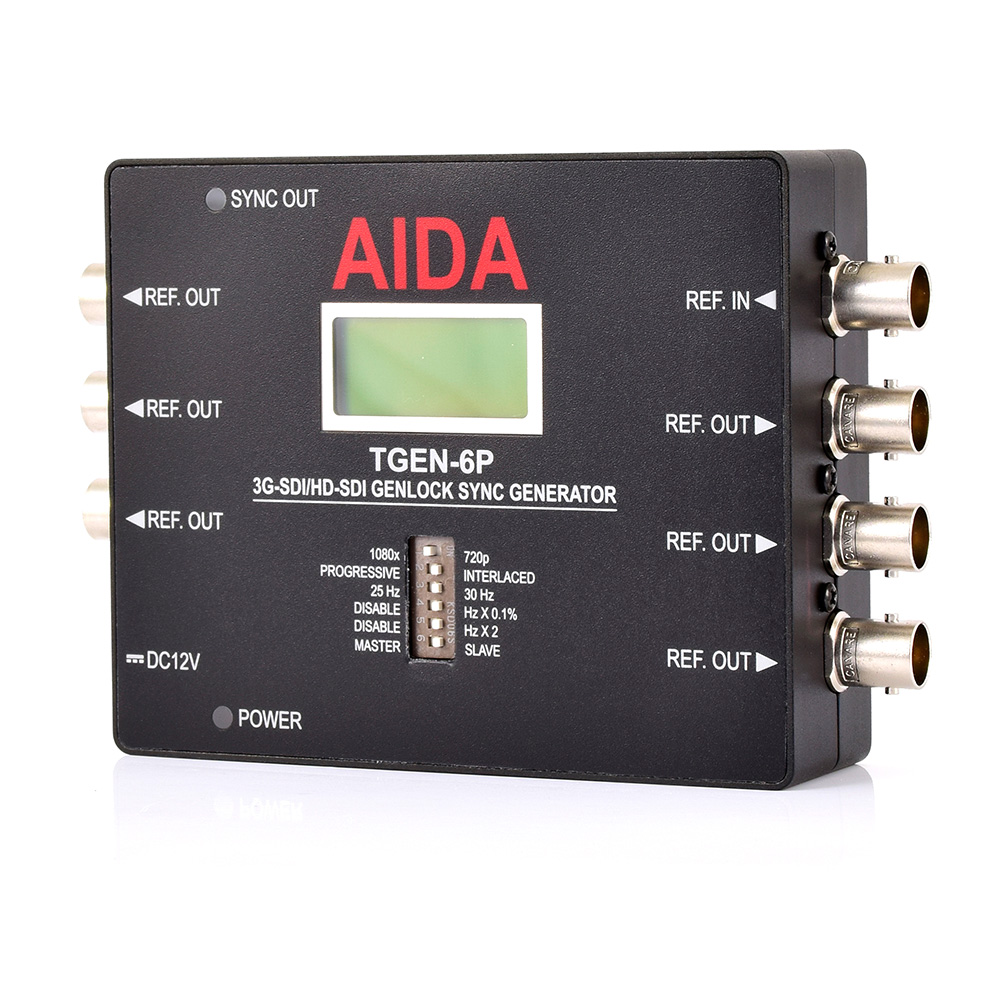

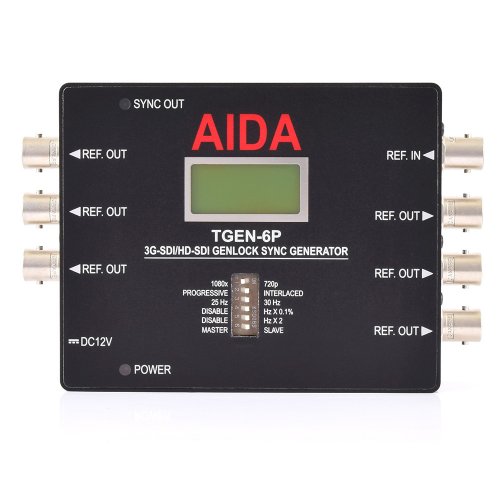

AIDA TGEN-6P GENLOCK Reference SYNC Generator
Model: TGEN-6P
About: AIDA TGEN-6P GENLOCK Reference SYNC Generator
Synchronize all your video sources to one master sync signal. The TGEN-6P generates 3G-SDI and HD-SDI Genlock Sync reference, it supports 15 different formats from 720p 25Hz up to 1080p 59.94/60Hz. The TGEN-6P can be operated as Slave mode and distribute external reference Sync signal. TGEN-6P has built-in LCD screen and dipswitches for convenient setting and status checking. Its compact and solid design helps users operate and maintain easily.
FEATURES
- Multi format HD Tri Level Sync up to 1080p60
- Both V Sync and H Sync generation for more accurate timing
- Up to 6 synchronized reference output per device
- Slave mode for cascading
- Built in LCD screen
- Built in setting dipswitches
- Versatile, compact, and rugged design.
SPECIFICATIONS
Synchronization
- Reference Out Tri-Level HD
- Format 1080p 60/59.94/50/30/29.97/25Hz
- 1080i 60/59.94/50Hz
- 720p 60/59.94/50/30/25Hz
- Accuracy 2ppm
- Reference In Tri-Level HD & Bi-Level SD
Standard
- SMPTE SMPTE 274M, SMPTE 296M
Physical
- Control Dipswitches & Text LCD
- Operation Temp 32°F - 104°F
- Dimension 129mm x 86m x 29mm / 5.07" x 3.38" x 1.10"
- Weight 278g / 0.61Lbs
- Power 12VDC (+9 - +15VDC)
UPC: 710928970551
