Electro-Voice TX1152FM Tour X-Series 500W Passive Floor Monitor - 15 Inch

About: Electro-Voice TX1152FM Tour X-Series 500W Passive Floor Monitor - 15 Inch

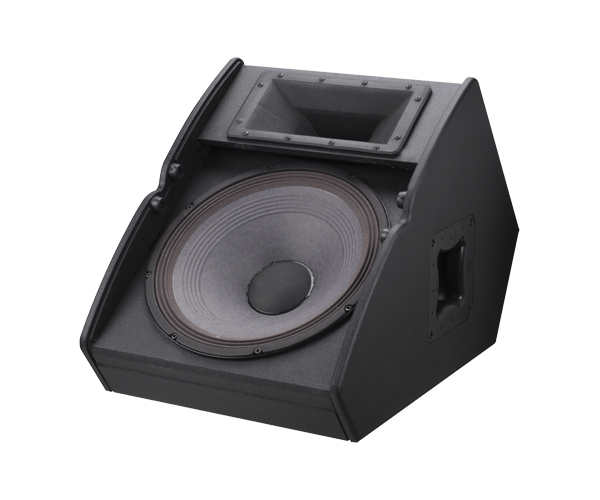

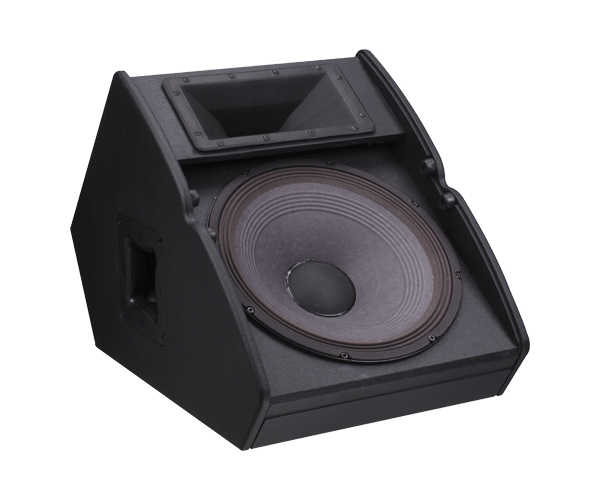

The Electro-Voice TX1152FM is a compact, high output dedicated floor monitor for use on small to mediumsized stages where high quality vocal and instrument applications are required in a lightweight package. The TX1152FM enclosure utilizes Signal Synchronized Transducers (patent pending), a design that aligns the woofer and compression driver by locating them on separate baffles, and integrates a low distortion port between the baffles. This offers tremendous advantages over traditional flat baffle construction: the acoustic centers of the woofer and compression driver are closer together, synchronizing arrival time; the voice coils of the compression driver and woofer are in the same plane, achieving linear phase response; and the size of both baffles are smaller than a single baffle; resulting in a smaller footprint.

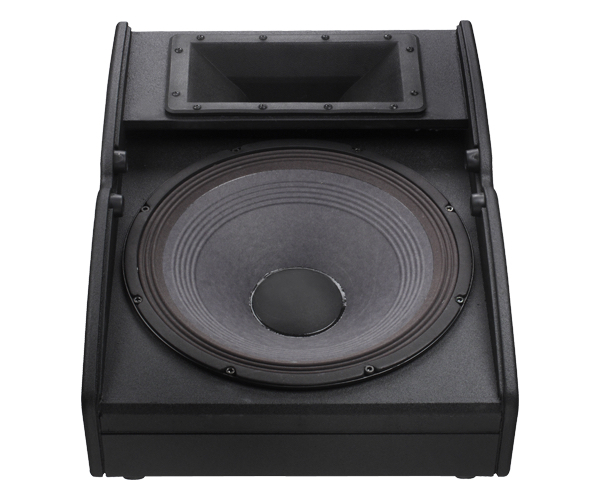

The TX1152FM utilizes the DH3, a high output 1.25” titanium compression driver, coupled to a Constant Directivity 90° x 50° horn. The SMX2151 15” woofer has an FEA optimized magnet structure and shorting ring for ultra low distortion. The crossover uses steep 24 dB/ octave slopes with equalization for very smooth response in vocal range, and has a built in protection circuit for long term reliability. The combination of the transducers, enclosure, and crossover result in a compact floor monitor that is capable of very high output levels before feedback.

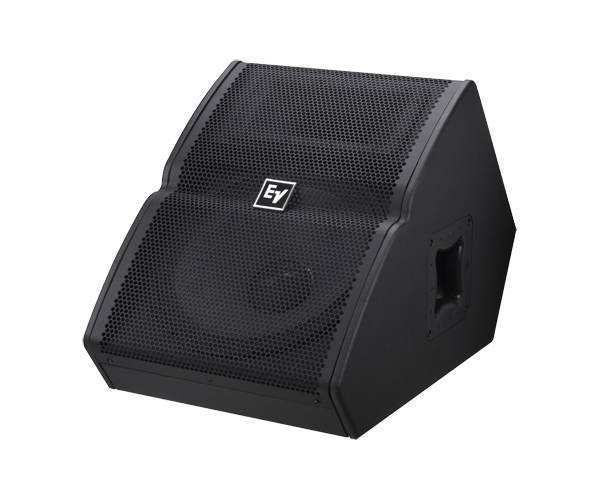

The TX1152FM has a variety of features that make it suited as a dedicated floor monitor. The internally braced enclosure is constructed out of a combination of plywood and MDF, and coated with EVCoatTM for maximum strength and durability. The unique grille design is very strong and dent resistant, and features a rotatable logo. Four way handles allow for gripping the TX1152FM in a variety of positions. The recessed input panel with dual NL4 connectors is located on the rear of the enclosure, which keeps the connectors hidden and away from the performers on stage.

• Two-way, high-output design
• Vented LF enclosure
• Neutrik Speakon paralleled pass-through connectors
• Two integrated handles
• Ideal for small-to-medium stages
• Signal Synchronized Transducers for woofer/tweeter alignment
• Ultra low-distortion SMX2151 woofer with fully symmetric drive
• 1.25-inch DH3/2010A titanium HF compression driver
• Constant-directivity 90º H x 50º V horn
• Integrated 24 dB/octave crossover with HF protection
• 100 dB sensitivity, 133 dB maximum SPL
• Power handling: 500 W continuous, 2000 W peak
• Black EVCoat finish

Specifications

• Frequency Range (-10 dB) - 45 - 20000kHz
• Flying - No
• Minimum Impedance - 6.4Ω
• Nominal Impedance (Passive) - 8Ω
• HF Transducer - DH3
• Speaker Type - Monitor
• Woofer Size - 15inch
• Powered or Passive - Passive
• Frequency Response (-3 dB) - 65 - 20000Hz
• Max. SPL/1m (calc) - 133dB
• Coverage (Nominal -6 dB) H - 90°
• Coverage (Nominal -6 dB) V - 50°
• LF Transducer - SMX2151
• Power Rating - 2000W
• System Power Handling (Continuous/Program/Peak) - 500 Watts
• Rotatable Horn - No
• Crossover Frequency - 1750Hz
• Enclosure Material - Ply Wood and MDF with EVCOAT
• Color - Black
• Sensitivity 1 W/1 m - 100dB
• Recommended High-Pass Frequency - 45Hz
• Internal Crossover - Yes
• Input Connections - Parallel Neutrik NL4
• Family - Tour X
• Dimensions (HxWxD) - 18.7 x 17.28 x 25.79 inch (475 x 439 x 655 mm)
• Net weight - 51.81 lb (23.5 kg)
