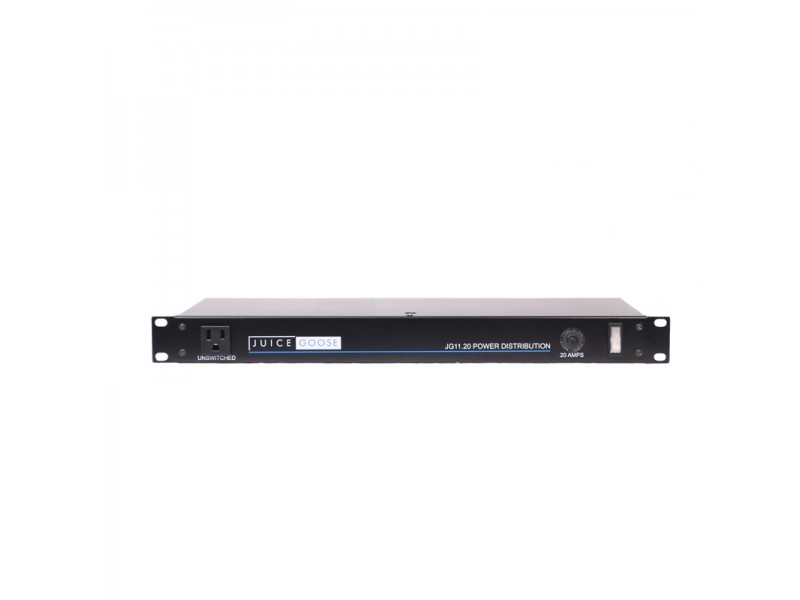

Juice Goose JG11-20 Power Conditioner 11-Outlet / 20A
Model: JG11.0-20A
About: Juice Goose JG11-20 Power Conditioner 11-Outlet / 20A
The JG11-20 has a twenty amp rating with more outlets: The twenty amp rating allows this unit to be used with more or higher powered equipment.

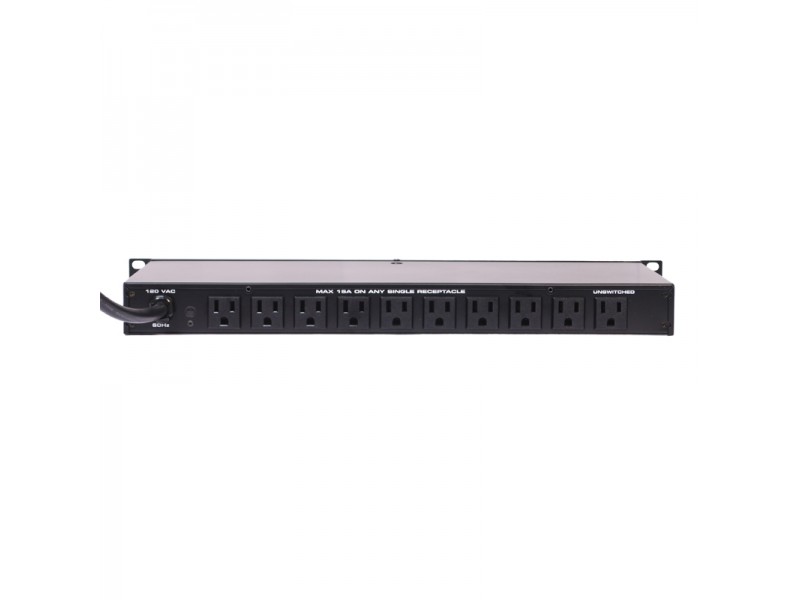

This very economical package has elevn AC receptacles, each rated for fifteen amps. Nine are switched and one unswitched receptacle in on each the front and back. In addition, the JG 11-20A has a front mounted circuit breaker and a fifteen foot long power cord to use in difficult to reach applications
The JG Series family of commercial grade power and light modules includes six high quality, economical models that are valuable accessories for any rack-mounted system. The switched outlets on the back of each unit provide power while the discreet components inside provide a basic level of protection to help clean up dirty and dangerous AC voltage.
The basic power conditioning includes a fast-acting metal oxide varistor (MOV) installed to clamp voltage spikes running between the incoming line and neutral leads. This level of conditioning also includes a capacitor to reduce the level of AC line interference that may be transmitted between the line and neutral leads.
Specifications:
- Voltage: 120 VAC 60Hz
- Current Capacity: 18A
- Overload Protection: 20A
- Power Cord: 15 Foot 12/3 NEMA 5-20P
- Power Outlets: 9x NEMA 5-15 (Rear), 1x NEMA 5-15 (Front)
- AC Line Filtration: Line Capacitor (Line & Neutral)
- Voltage Spike Protection: Metal Oxide Varistor (Line & Neutral)
UPC: 852560000286
