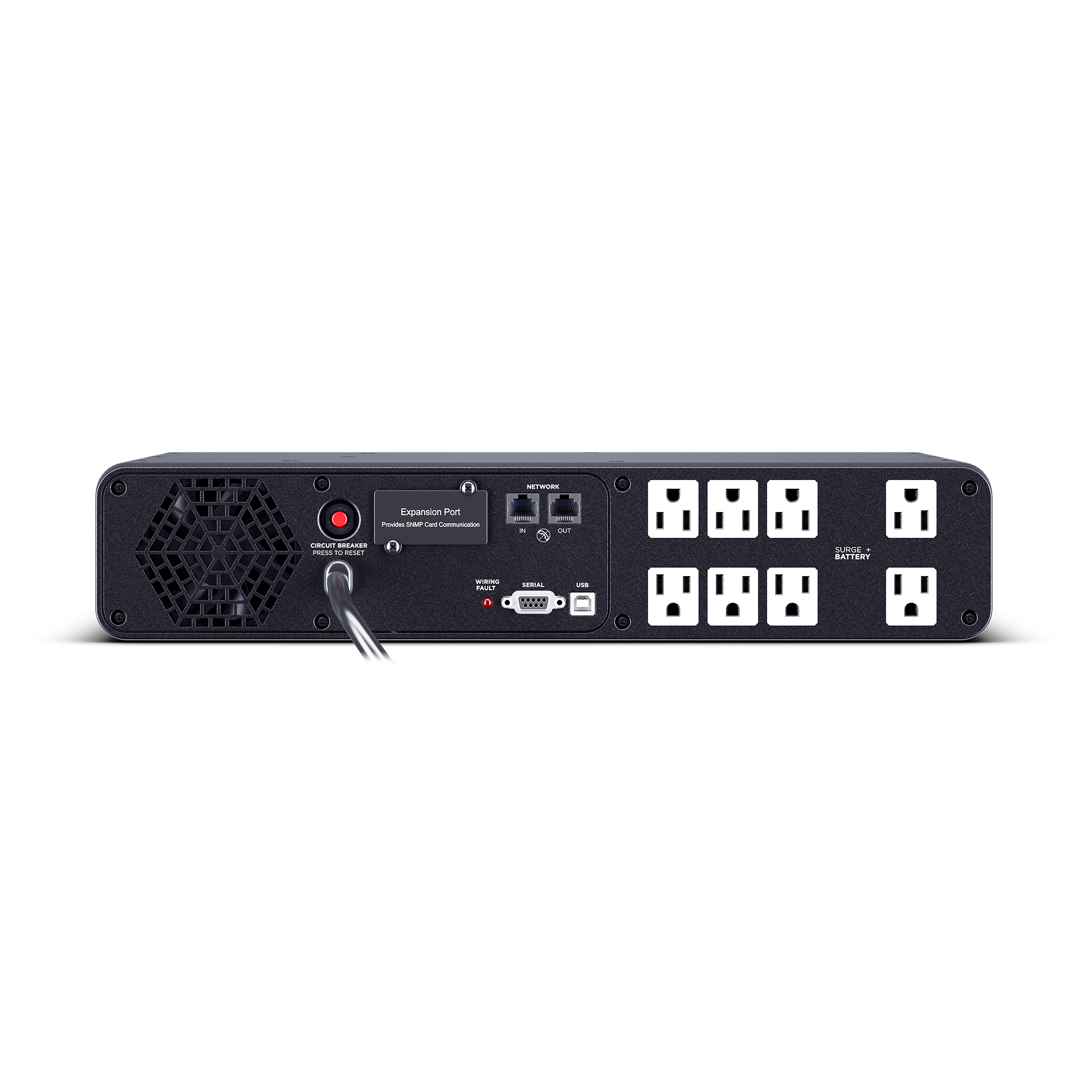

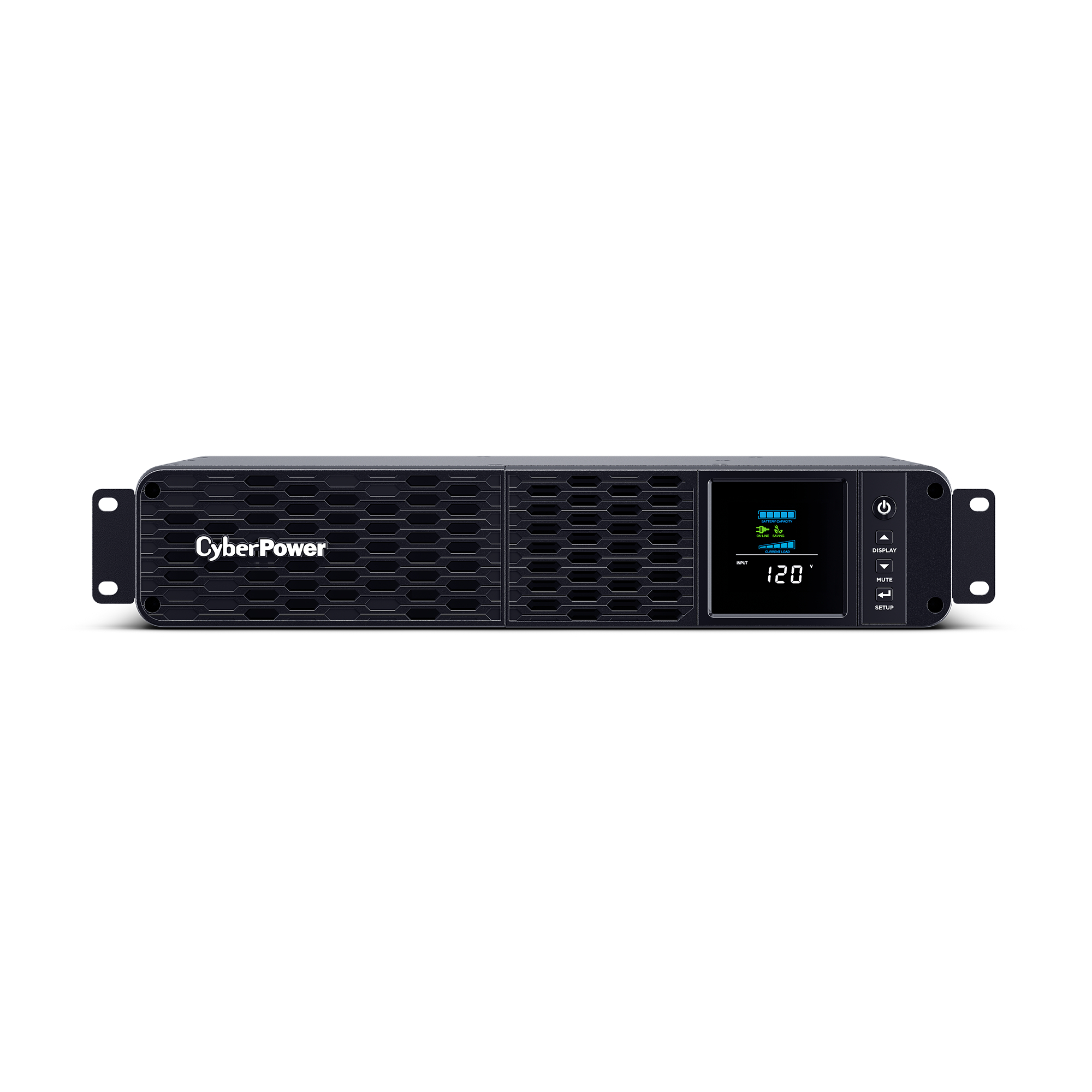

CyberPower 1500VA PFC Sinewave Rackmount UPS

About: CyberPower 1500VA PFC Sinewave Rackmount UPS

The CP1500PFCRM2U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility.

The CP1500PFCRM2U features Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power, and a multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. Remote management and/or monitoring is available with optional purchase of a Remote Network Management Card or Cloud Monitoring Card. At only 10.5 inches in depth, the CP1500PFCRM2U fits comfortably in short-depth rack installations where space is at a premium.

The CP1500PFCRM2U comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee.

Product Features

• Battery BackupSupplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
• Surge ProtectionDiverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
• Sine Wave OutputGenerates energy that is identical to, or cleaner than the utility company’s power grid. Benefits include low total harmonic distortion, minimal electrical noise, and optimal line clarity.
• Short Depth RackmountFits comfortably in racks as small as 14 inches in depth, which is ideal for situations where space is at a premium.
• EMI/RFI Noise FilterMaintains clean power for connected equipment by filtering out electromagnetic and radio frequency interference to improve picture and sound quality.
• Multifunction LCD Panel with Color DisplayDisplays immediate, detailed information on the UPS battery and power conditions. The color display quickly alerts users to potential problems before they can affect critical equipment and cause downtime.
• Automatic Voltage Regulation (AVR)Conserves battery life by increasing the AC power and maintaining a safe voltage level without switching to battery mode.
• Data Line ProtectionPrevents power surges that travel through Ethernet lines from causing damage to electronics.
• Widely Spaced Outlet(s)Accomodates transformer-sized plugs without blocking other outlets.
• Line Interactive TopologyExists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
• ENERGY STARThis model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
• GreenPower UPS™ Bypass DesignA patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
• Ultra Quiet DesignMinimizes noise during operation for a quieter work environment.
• PowerPanel® Business SoftwareProvides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available here.
• Three-Year WarrantyCyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
• Connected Equipment GuaranteeCyberPower will repair or replace properly connected equipment if it is damaged by a power surge.

Typical Applications

• Network and Storage Devices
• POS Systems
• Pro Audio Equipment
• Surveillance & Security Systems

Specifications

General

• Active PFC Compatible: Yes
• Energy Saving: GreenPower UPS™ Bypass Technology
• Energy Star Certified: Yes
• UPS Topology: Line Interactive

Battery

• Battery Quantity: 2
• Battery Size: 12 V / 9 Ah
• Battery Type: Sealed Lead-Acid Battery
• Hot Swappable: Yes
• Replacement Battery Cartridge: RB1290X2D
• Replacement Battery Cartridge Quantity: 1
• Runtime at Full Load: 3.1 min
• Runtime at Half Load: 10.2 min
• Typical Recharge Time: 8 Hours
• User Replaceable Battery: Yes

Input

• Circuit Breaker: 15 A
• Cord Length: 6 ft (1.8 m)
• Input Frequency Range: 57 Hz – 63 Hz
• Input Plug Type: NEMA 5-15P
• Input Voltage Range: 88 VAC – 144 VAC
• Nominal Input Voltage: 120 VAC
• Plug Style Right Angle: – 45° Offset

Output

• Automatic Voltage Regulation: Single Boost
• On AC WaveForm: Sine Wave
• On Battery Frequency: 60 Hz ± 1%
• On Battery Voltage: 120 VAC ± 5%
• On Battery Waveform: Sine Wave
• Outlet Type: 8 – NEMA 5-15R
• Outlets – Battery & Surge Protected: 8
• Outlets – Total: 8
• Outlets – Widely Spaced: 2
• Output Power Factor: 0.7
• Overload Protection: Internal Circuitry Limiting
• Typical Transfer Time: 4 ms
• Under/Over-Voltage Correction: +11%
• VA: 1500 VA
• Watts: 1000 W

Surge Protection & Filtering

• EMI/RFI Filtration: Yes
• Network Protection: RJ45 1-in / 1-Out (10/100/1000)
• Surge Suppression (Joules): 1500 J

Management & Communications

• Audible Alarms: Battery Mode, Low Battery, Overload, Fault
• HID Compliant USB Port: Yes
• LCD: Multifunction LCD
• LED Indicators: Wiring Fault
• Management Cable: USB Cable
• SNMP / HTTP Remote Monitoring: Yes – with optional RMCARD205
• Serial Port: 1 Dry Contact
• Software (Free Download): PowerPanel® Business

Physical

• Color: Black
• Form Factor: Rackmount
• Material of Construction: Plastic
• Rack Height: 2U

Dimensions

• Physical Dimensions – (WxHxD) (cm): 43.18 x 8.64 x 26.67 (cm)
• Physical Dimensions – (WxHxD) (in): 17 x 3.4 x 10.5 (in)
• Physical Dimensions – (WxHxD) (mm): 432 x 86 x 267 (mm)
• Physical Weight (kg): 12.16
• Physical Weight (lb): 26.8

Dimensions – Shipping

• Shipping – Weight (kg): 13.43
• Shipping – Weight (lb): 29.6
• Shipping Dimensions – (WxHxD) (cm): 37.34 x 16.26 x 52.32 (cm)
• Shipping Dimensions – (WxHxD) (in): 14.7 x 6.4 x 20.6 (in)
• Shipping Dimensions – (WxHxD) (mm): 373.38 x 162.56 x 523.24 (mm)

Environmental

• AC Mode Thermal Dissipation: 52 BTU/hr
• Operating Elevation: 0 – 10000 ft (0 – 3048 m)
• Operating Relative Humidity: 0 – 95 % (non-condensing)
• Operating Temperature: 32 – 104 °F (0 – 40 °C)
• Storage Elevation: 0 – 50000 ft (0 – 15239 m)
• Storage Temperature: 5 – 113 °F (-15 – 45 °C)

Certifications

• Environmental: RoHS Compliant
• Safety: UL1778
• FCC DOC: Class B

Warranty

• CEG Amount: $500000
• Connected Equipment Guarantee: Lifetime
• Extended Warranty Option: WEXT5YR-U2A
• Product Warranty: 3 Year Limited Warranty
