Shure SLXD4+ Digital Wireless Receiver - Single Channel

About: Shure SLXD4+ Digital Wireless Receiver - Single Channel

The SLXD4+ single channel half-rack receiver unlocks a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike, that delivers wireless excellence, wherever required. Wide-tuning SLXD+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.

Trusted by Professionals, Engineered for Everyone.

• Transparent 24-bit digital audio quality with >118 dB dynamic range
• Rock solid RF with 138 MHz wide-tuning range for greater geographical coverage:
  • Up to 11 simultaneous systems in 6 MHz TV bands
  • Up to 14 simultaneous systems in 8 MHz TV bands
• Automatic Setup – once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
• With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including:
  • Changing the transmitter frequency once open frequency is identified
  • Adjust power output level
  • Lock and unlock transmitter controls
  • Transmitter firmware updates
• Monitor RF status and control receiver and transmitter parameters with Wireless Workbench desktop software, or remotely with the WWB Mobile app over Wi-Fi or Bluetooth
• Patented Shure Digital Feedback Reducer software is embedded in every SLX-D+ receiver, to automatically reduce unwanted audio feedback, should it ever occur.
• Each SLX-D+ component and system ships with AES-256 Encryption installed, for complete and secure peace of mind

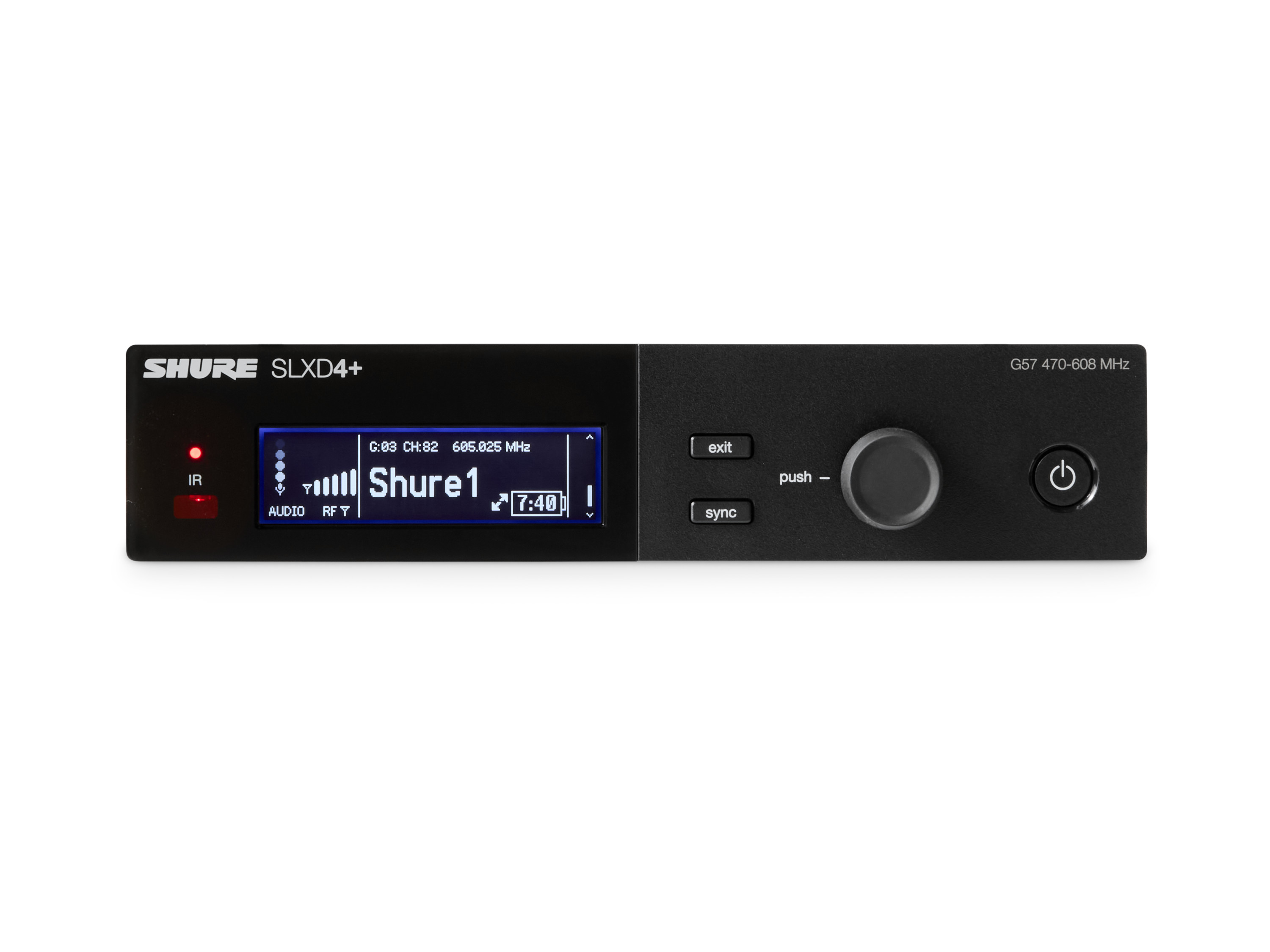

• Single channel half-rack design with rugged metal construction

Specifications

• RF INPUT
  • Spurious Rejection: >75 dB (Typical)
  • Connector Type: BNC
  • Impedance: 50 Ω
• AUDIO OUTPUT
  • Gain Adjustment Range: –18 to +42 dB in 1 dB steps
  • Configuration
    • 1/4" (6.35 mm): Balanced (Tip=audio +, Ring=audio –, Sleeve=ground)
    • XLR: Balanced (1=ground, 2=audio +, 3=audio –)
  • Impedance
    • 1/4" (6.35 mm): 1.1 kΩ (550 Ω Unbalanced)
    • XLR (line): 500 Ω (250 Ω Unbalanced)
    • XLR (mic): 150 Ω
  • Full Scale Output
    • 1/4" (6.35 mm): +18 dBV differentially (+12 dBV single)
    • XLR (LINE setting): +18 dBV
    • XLR (MIC setting): –12 dBV
  • Mic/Line Switch: 30 dB pad
  • Phantom Power Protection
    • 1/4" (6.35 mm): Yes
    • XLR: Yes
• NETWORKING
  • Network Interface: Single Port Ethernet 10/100 Mbps
  • Network Addressing Capability: DHCP or Manual IP address
  • Maximum Cable Length: 100 m (328 ft)
• GENERAL
  • Housing: Galvanized Steel
  • Power Requirements: 15 VDC @ 360 mA Supplied by external power supply (tip positive)
  • Dimensions (HxWxD): 1.65 x 7.76 x 5.98 in (42 x 197 x 152 mm)
  • Weight (without antennas): 2 lbs (900 g)
