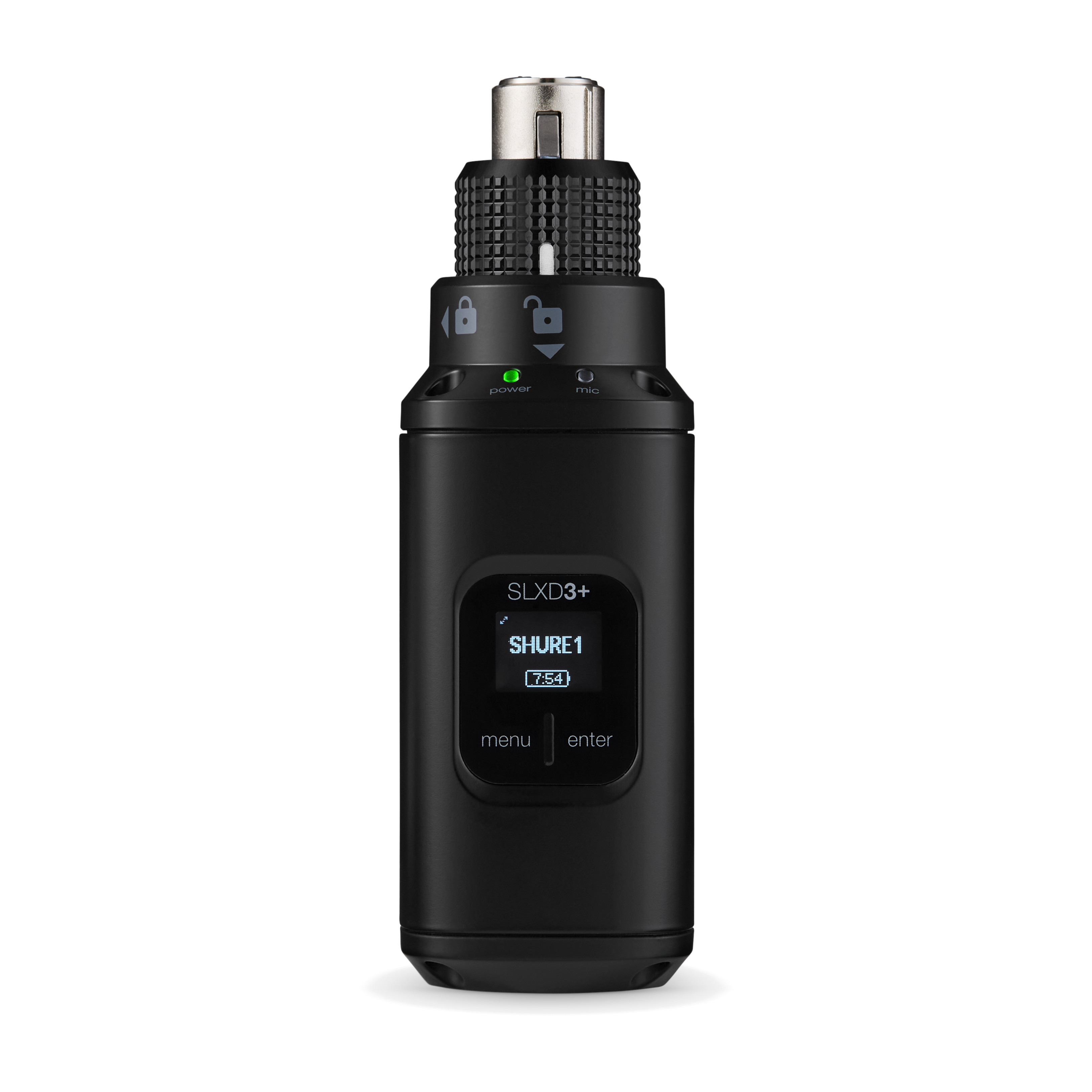

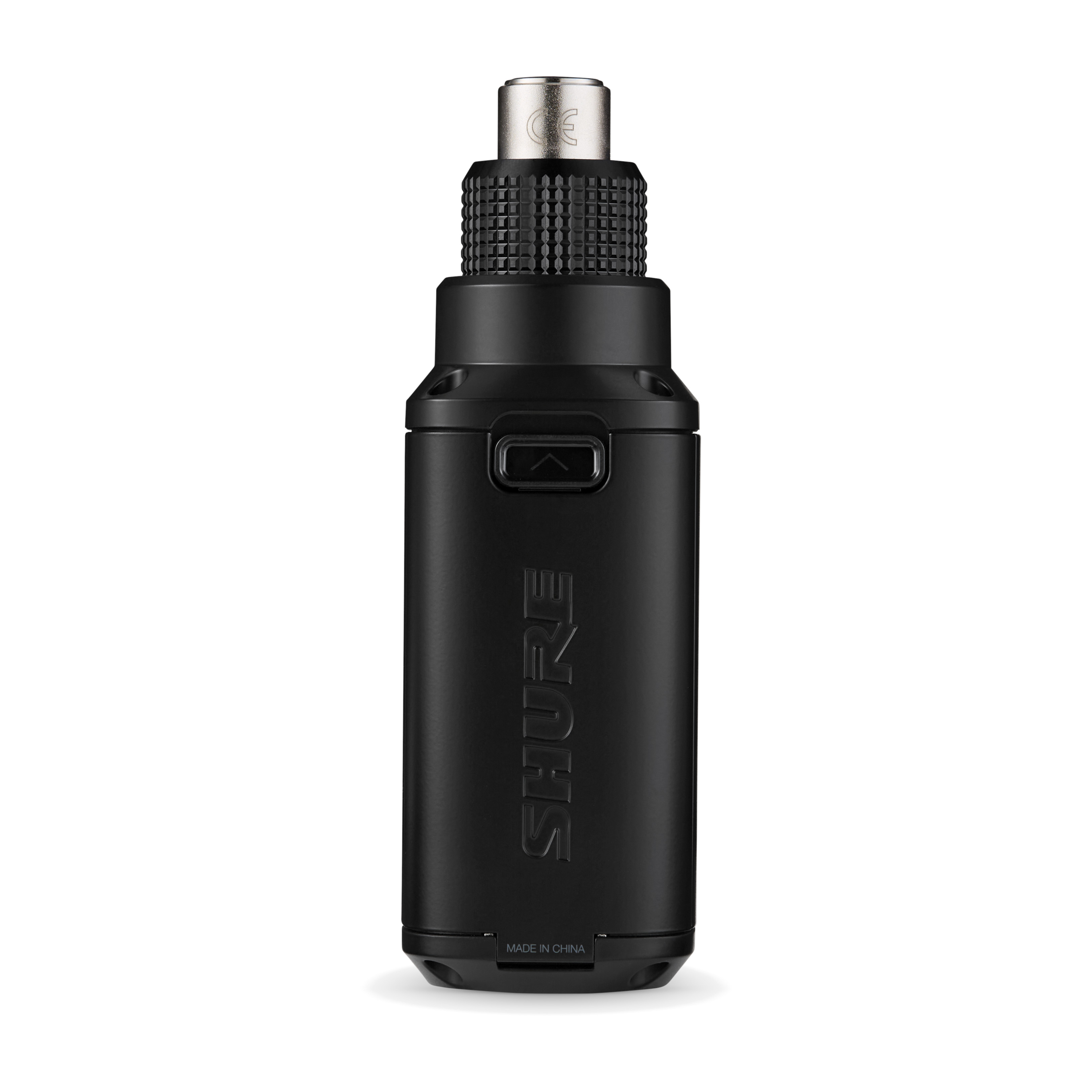

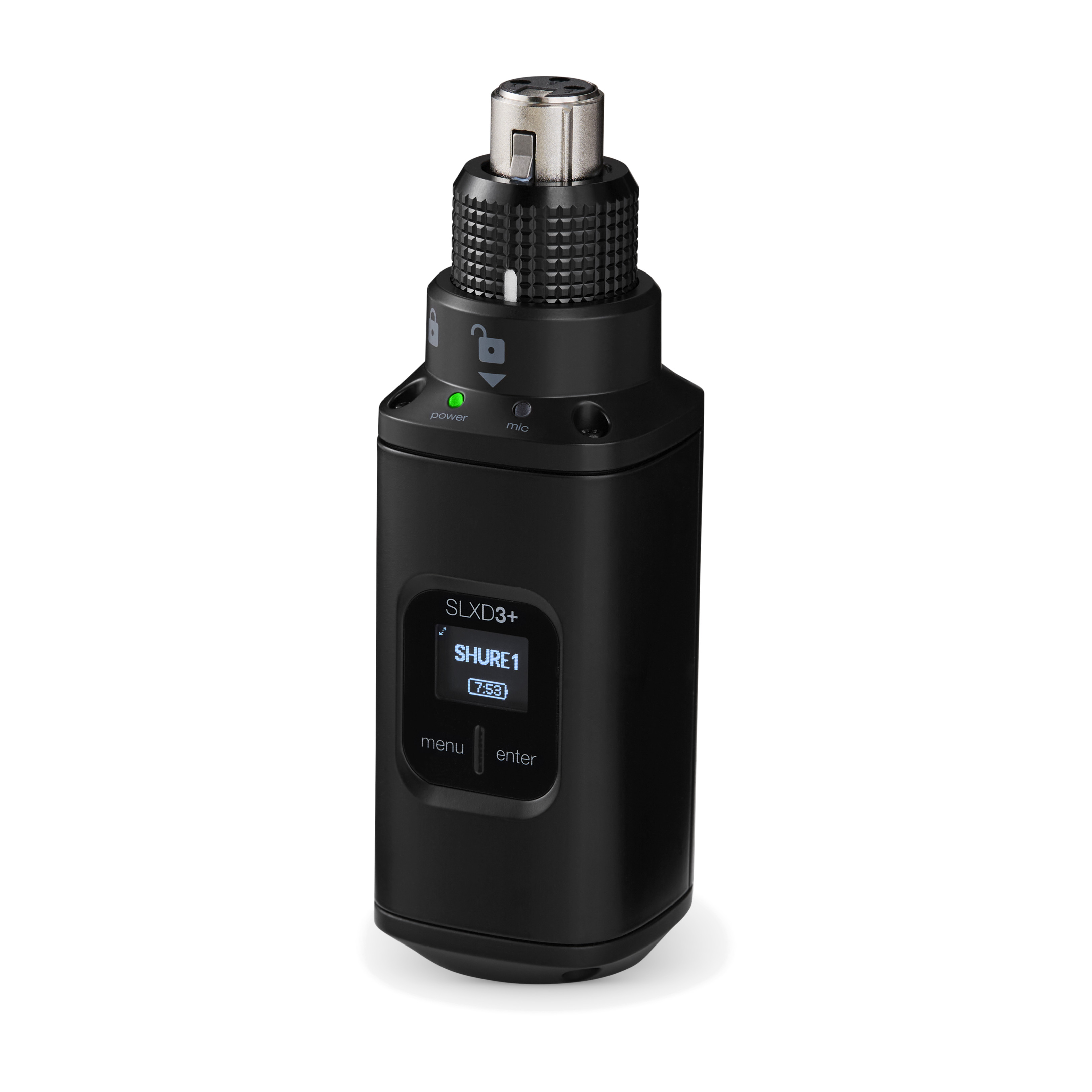

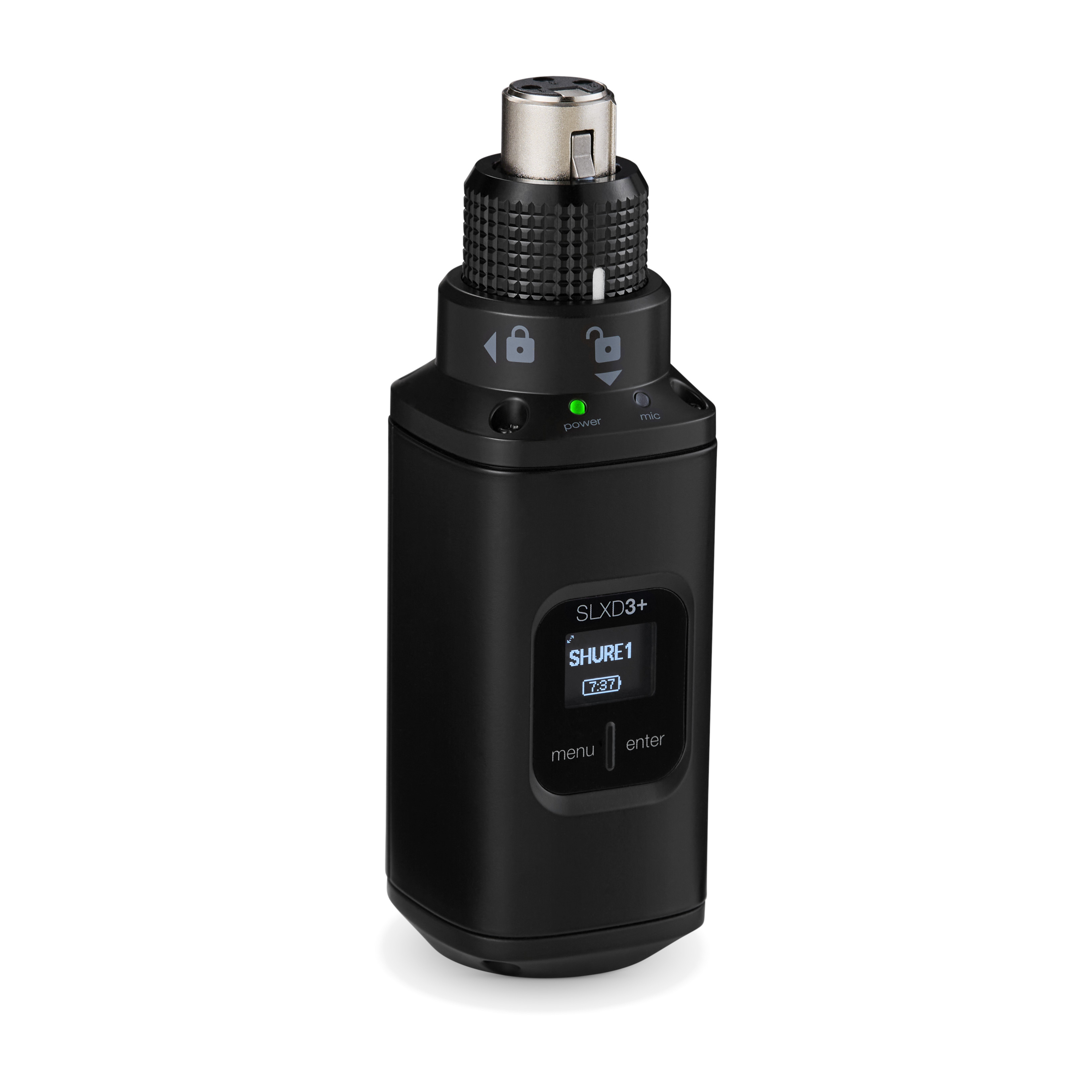

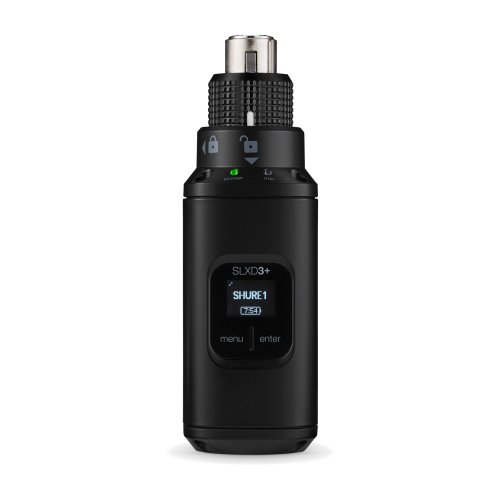

Shure SLXD3+ Wireless Plug-On Transmitter With XLR Connector

About: Shure SLXD3+ Wireless Plug-On Transmitter With XLR Connector

The SLXD3+ bodypack transmitter unlocks a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. Delivering wireless excellence, wherever required, wide-tuning SLXD+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.

Trusted by Professionals, Engineered for Everyone.

• Convert any XLR source for use within SLX-D+ wireless systems
• Provides +12–48 VDC phantom power for use with condenser microphones
• Patented locking mechanism for secure, wobble-free connection
• Transparent 24-bit digital audio quality with >118 dB dynamic range
• Rock solid RF with 138 MHz wide-tuning range for greater geographical coverage:
  • Up to 11 simultaneous systems in 6 MHz TV bands
  • Up to 14 simultaneous systems in 8 MHz TV bands
• Automatic Setup – once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
• With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including:
  • Changing the transmitter frequency once open frequency is identified
  • Adjust power output level
  • Lock and unlock transmitter controls
  • Transmitter firmware updates
• Monitor RF status and control receiver and transmitter parameters with Wireless Workbench desktop software, or remotely with the WWB Mobile app over Wi-Fi or Bluetooth
• Each SLX-D+ component and system ships with AES-256 Encryption installed, for complete and secure peace of mind

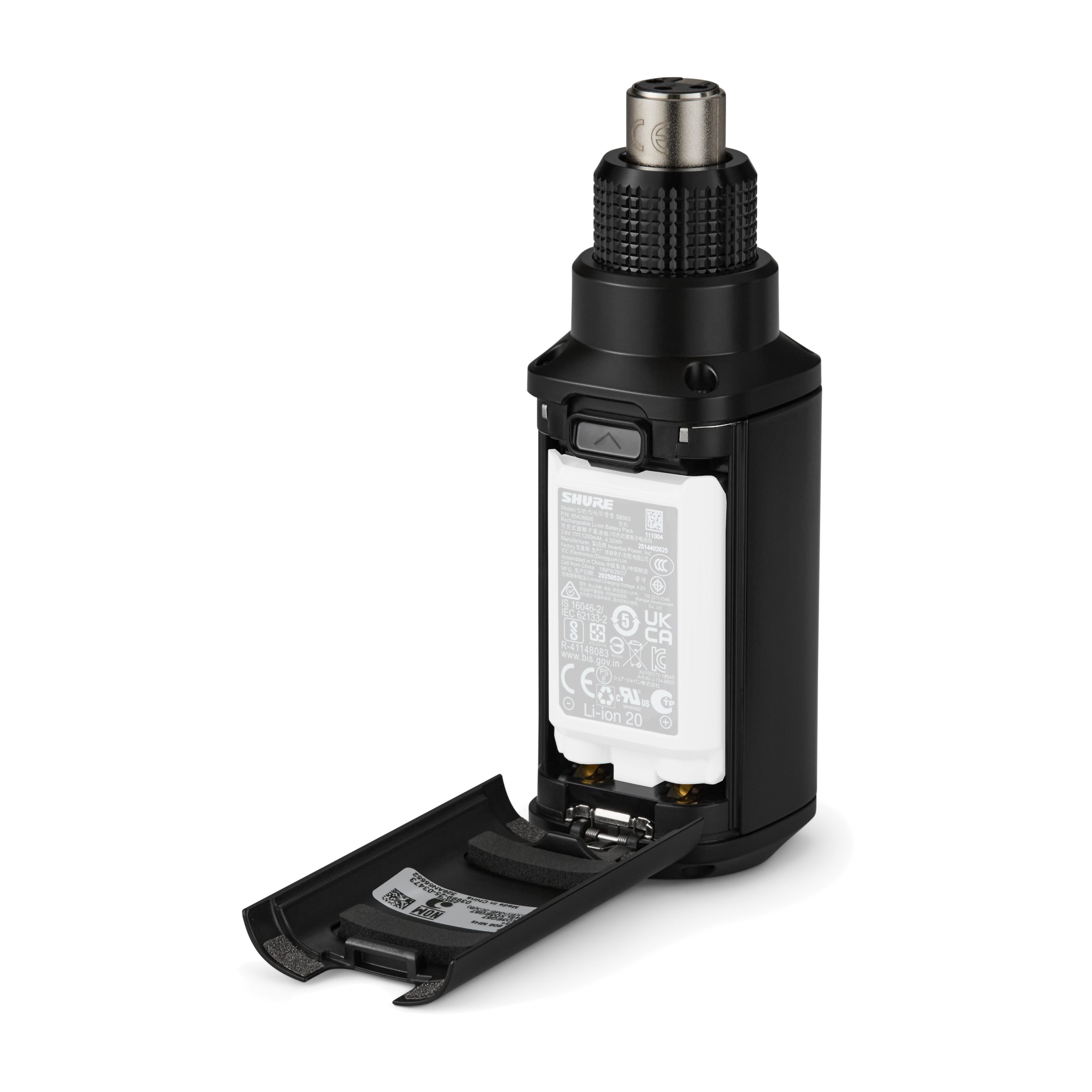

• Up to 8 hours of use from either 2 AA batteries (included) or optional Shure SB903 Li-ion rechargeable batteries and charging accessories
• Ergonomic and durable plastic construction

Specifications

• AUDIO INPUT

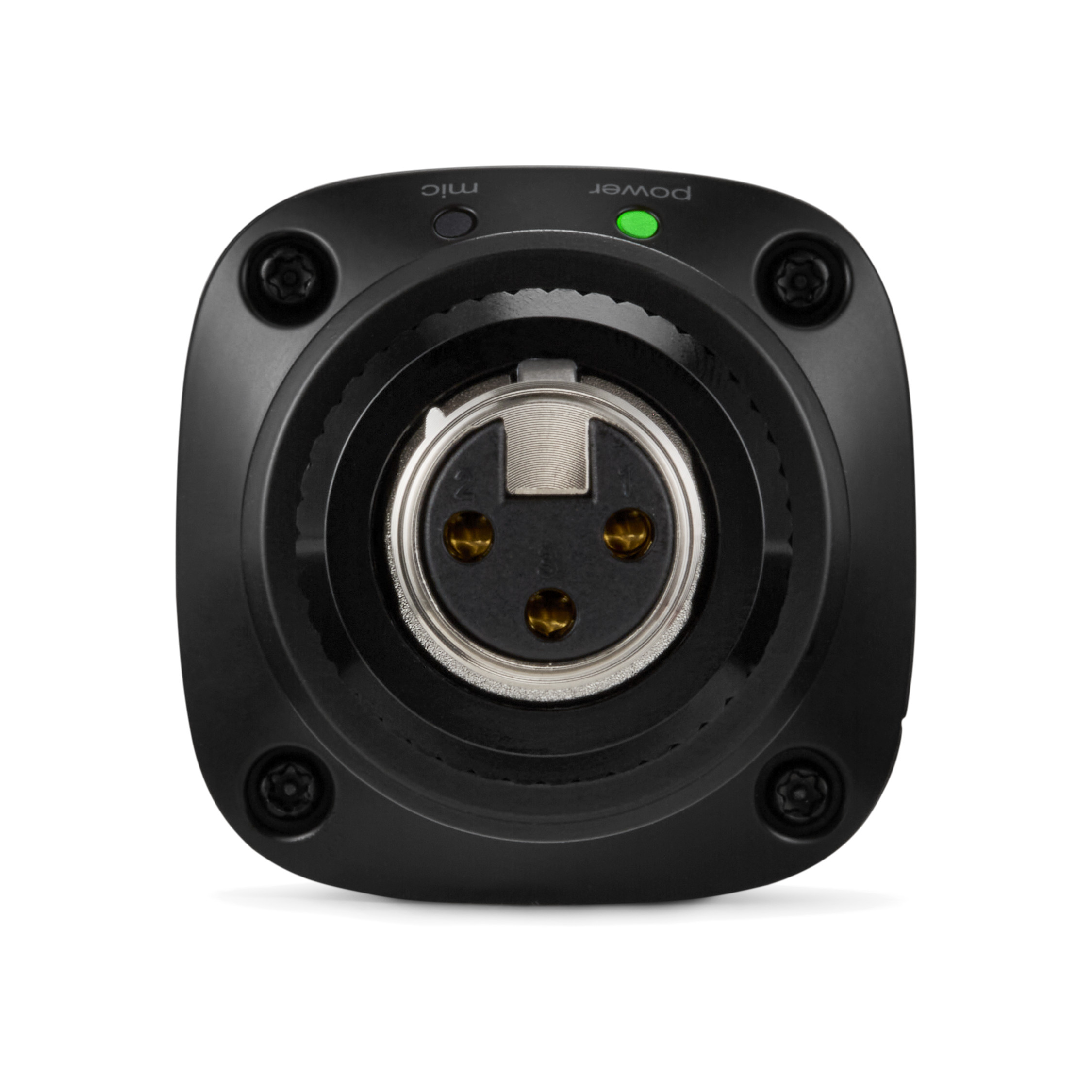

  • Configuration: XLR
  • Maximum Input Level (1 kHz @ 1% THD)
    • Pad -12 dB: 20.5 dBV
    • 0 dB: 8.5 dBV
    • Boost +12 dB: -3.5 dBV
      • Note: Dependent on Microphone Type
• RF OUTPUT
  • Antenna Type: Dipole
  • Occupied Bandwidth: <200 kHz
  • Modulation Type: Shure Propietary Digital
  • Power: 1 mW/10 mW
    • Varies by region
  • Specific Absorption Rate (SAR): <0.17 W/kg
• GENERAL
  • Housing: Aluminum, Zinc Alloy, PC/ABS
  • Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
  • Dimensions (LxWxD): 4.96 x 1.61 x 1.61 in (126 x 41 x 41 mm)
  • Weight: 0.44 lbs (200 g)
