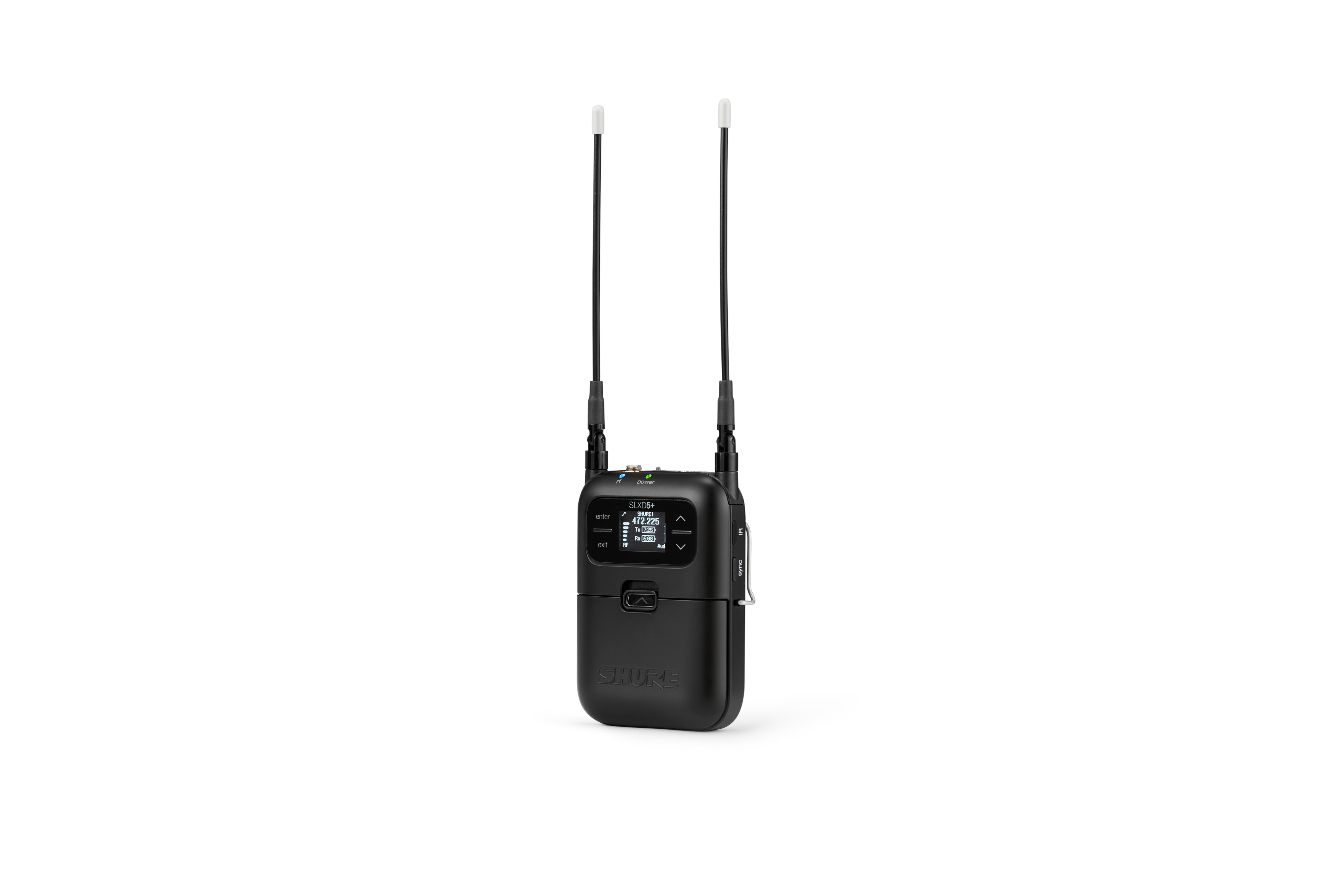

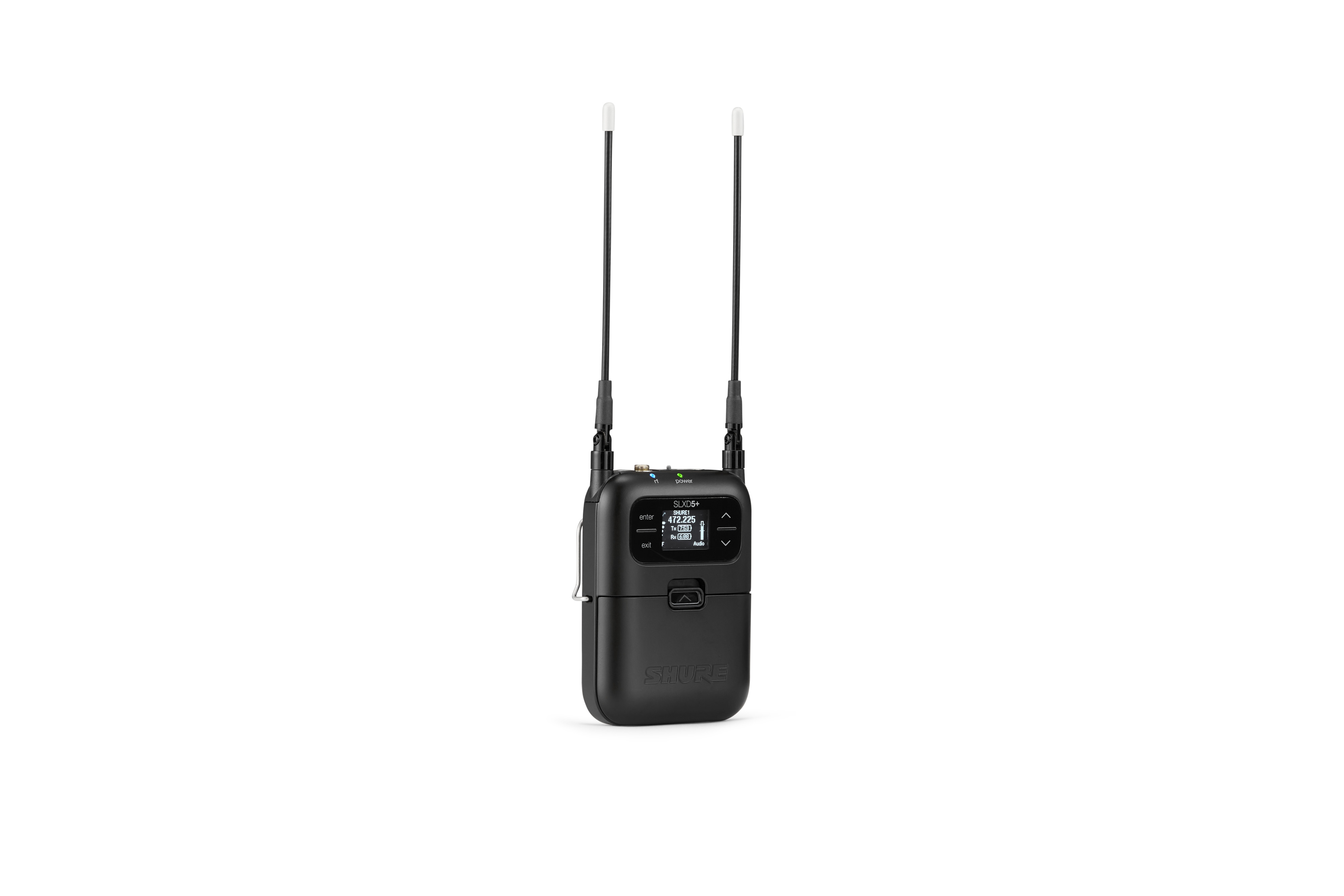

Shure SLXD5+ Portable Wireless Receiver

About: Shure SLXD5+ Portable Wireless Receiver

The SLXD5+ single channel portable wireless receiver is at home on top of your camera or in an audio bag providing efficient long-range UHF transmission and easy-to-use setup features to deliver wireless excellence, wherever required. Wide-tuning SLXD+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.

Trusted by Professionals, Engineered for Everyone.

• Powerful, portable digital wireless receiver for on-camera cold shoe mounting and audio bag use
• Transparent 24-bit digital audio quality with >118 dB dynamic range
• Rock solid RF with 138 MHz wide-tuning range for greater geographical coverage:
  • Up to 11 simultaneous systems in 6 MHz TV bands
  • Up to 14 simultaneous systems in 8 MHz TV bands

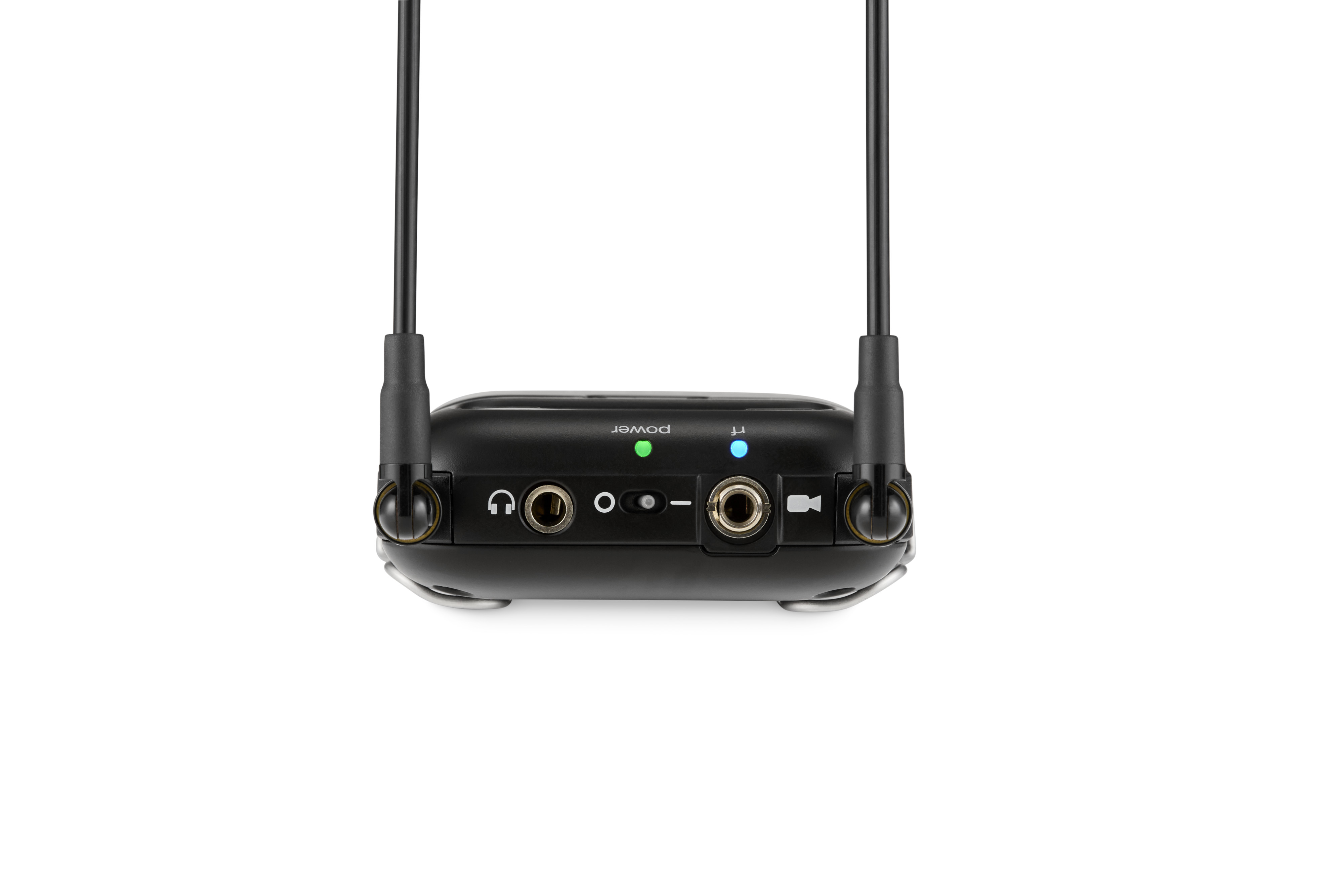

• Dual 1/8” outputs including a headphone monitor out and switchable line/mic output
• Automatic Setup – once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
• With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including:
  • Changing the transmitter frequency once open frequency is identified
  • Adjust power output level
  • Lock and unlock transmitter controls
  • Transmitter firmware updates
• Use Multi-Mic Mode to scan and sync over IR multiple clean frequencies, and monitor multiple sources from a single receiver with user-configurable front-panel controls
• Monitor RF status and control receiver and transmitter parameters with Wireless Workbench desktop software, or remotely with the WWB Mobile app over Wi-Fi or Bluetooth
• Patented Shure Digital Feedback Reducer software is embedded in every SLX-D+ receiver, to automatically reduce unwanted audio feedback, should it ever occur
• Each SLX-D+ component and system ships with AES-256 Encryption installed, for complete and secure peace of mind

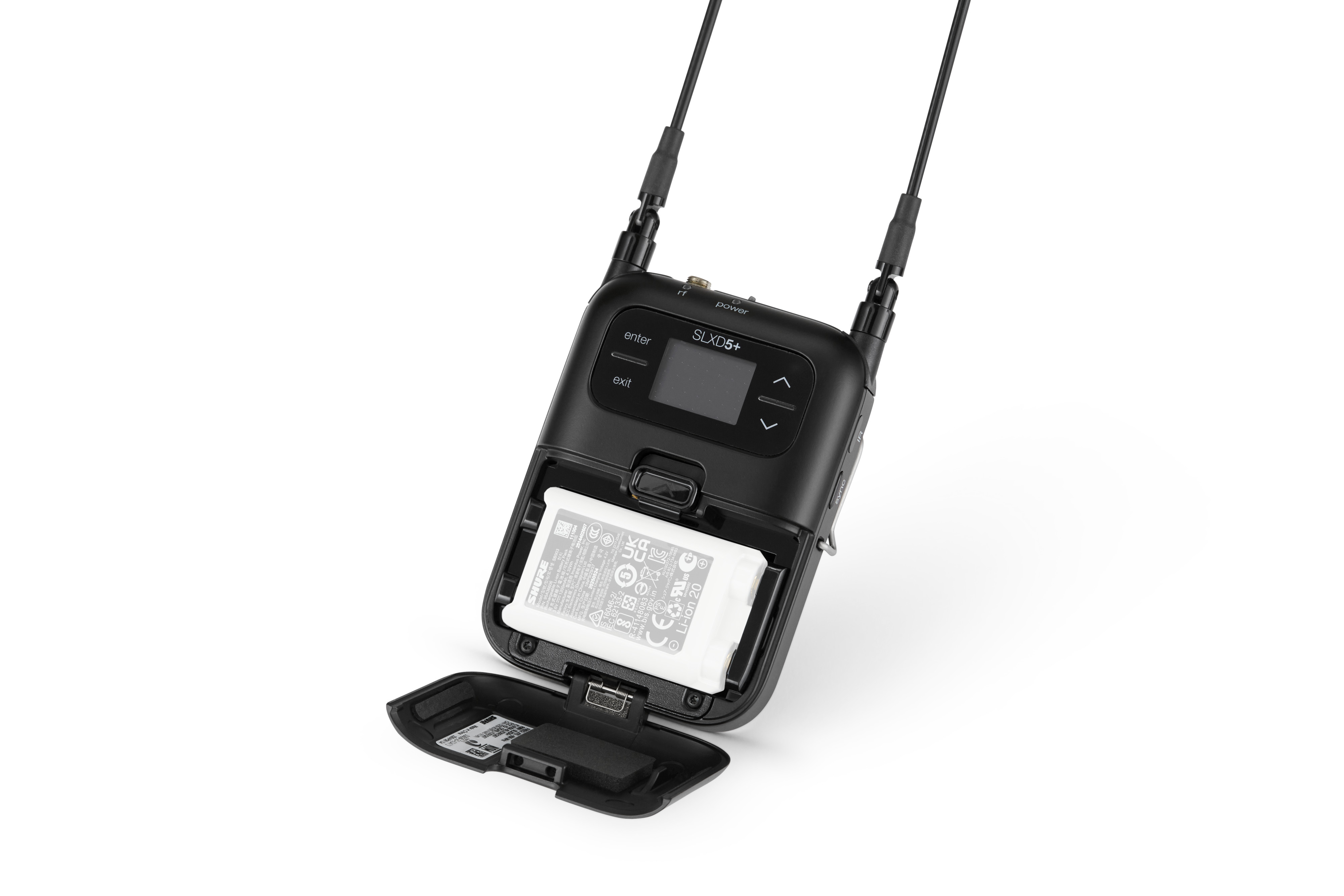

• Up to 5.5 hours of use from either 2 AA batteries (included) or optional Shure SB903 Li-ion rechargeable batteries and charging accessories
• Single-channel portable ergonomic design with rugged metal construction

Specifications

• ​RF INPUT
  • Spurious Rejection: >75 dB (Typical)
  • Impedance: 50 Ω
  • Phantom Power Protection: Yes
  • Antenna Type: 1/4 Wave Whip
• AUDIO OUTPUT
  • Audio Frequency Response: 20 Hz – 20 kHz (+1, -3 dB)
  • Connector Type: 1/8" (3.5 mm), x2
• Configuration
  • Balanced (Mono): Tip=audio +, Ring=audio –, Sleeve=ground
  • Dual Mono: Tip = left, Ring = Right, Sleeve = Ground
• Impedance (Camera)
  • Balanced (Mono) Line: 450 Ω
  • Balanced (Mono) Mic: 240 Ω
  • Dual Mono Line: 400 Ω
  • Dual Mono Mic: 200 Ω
• Full Scale Output
  • Camera (Balanced Line): 15 dBV
  • Headphone: 13 mW @ 64 Ω Load
• GENERAL
  • Housing Aluminum
  • Power Requirements
    • Battery: Rechargeable Li-Ion or 1.5 V AA batteries
    • Power Supply: SBC-DC-903 Battery Eliminator, or 5 VDC via USB-C
  • Dimensions (HxWxD): 4.21 x 2.68 x 1.0 in (107 x 68 x 25.3 mm)
  • Weight: 0.4 lb (182 g)
