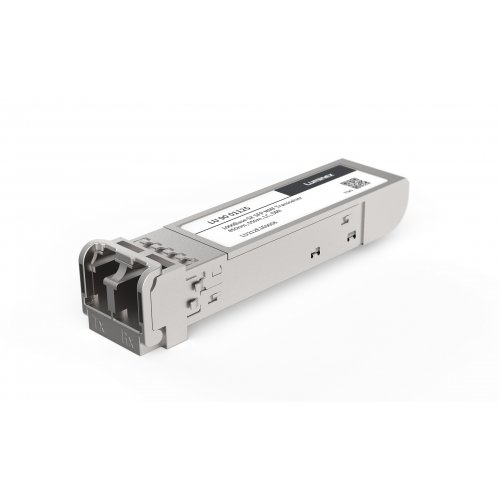

Luminex 1000Base Multi Mode Fiber Transceiver

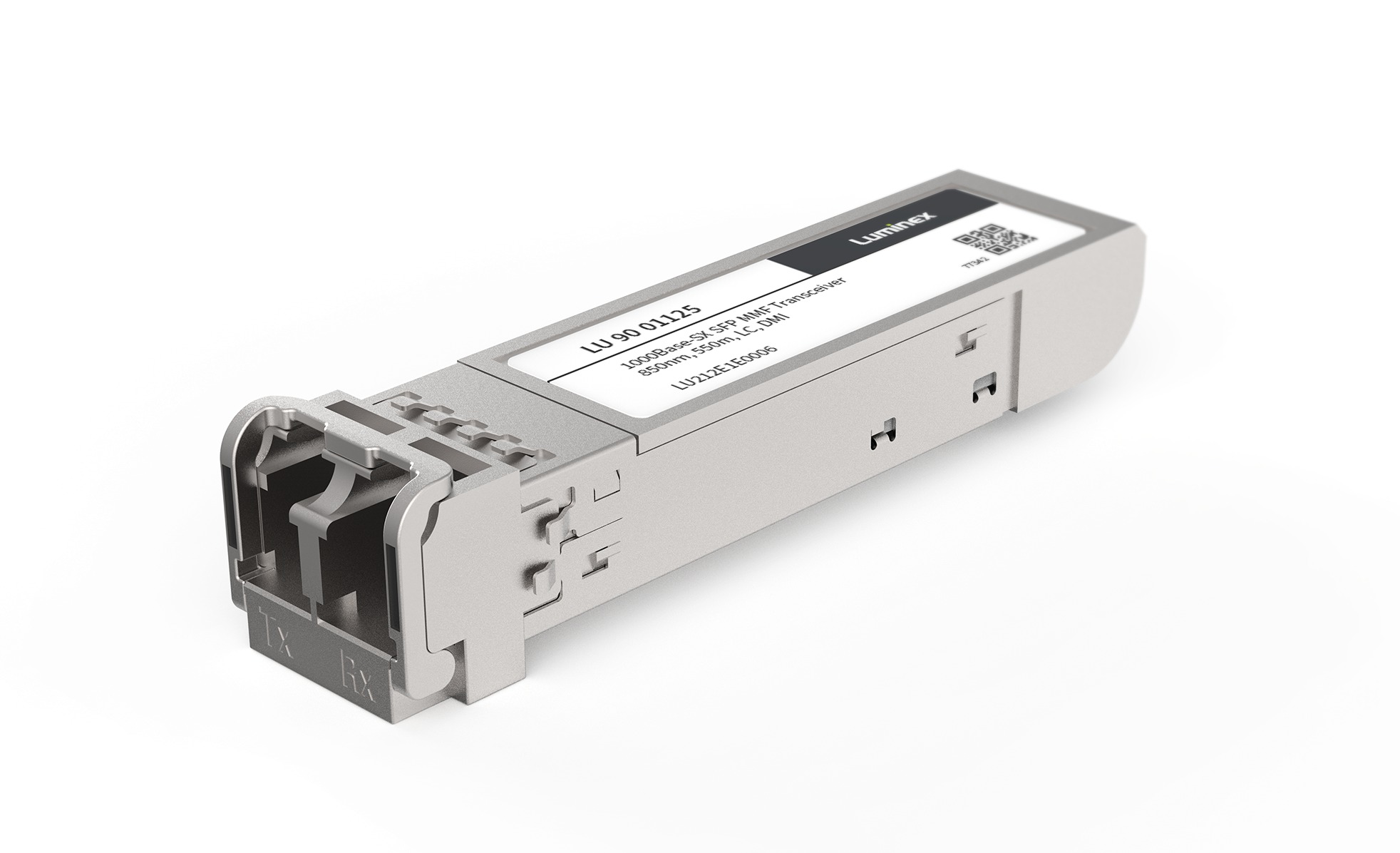

Model: LU9001125
About: Luminex 1000Base Multi Mode Fiber Transceiver
Luminex 1000Base-SX SFP MMF Transceiver 850nm, 550m, LC, DMI
This Multi mode fiber (MMF) SFP transceiver provides 1000Base-SX throughput to up to 550m making use of a wavelength of 850nm over a duplex LC connector.
This easy to install and hot pluggable/swappable transceiver is programmed and tested to be fully compatible with the real time analytics and diagnostics functions built into GigaCore and Araneo and compliant with IEEE 802.3ah specification.
Its wide temperature range ensures reliable operation in the most diverse applications.
Features
- INF-8074 compliant
- SFF-8472 compliant
- TAA compliant
- Duplex LC connector
- Multi Mode Fiber
- Hot pluggable
- Remote diagnostics with Araneo
- Industrial temperature range
Specifications
- ENVIRONMENTAL
- Operating temperature -40°C to 85°C
- Storage temperature -40°C to 85°C
- Humidity 5-85% RH
- CONNECTIVITY
- Duplex LC connector
- MAXIMUM BITRATE
- 1,25Gbps
- REGULATORY COMPLIANCE
- ESD to electrical pins - Compatible with MIL-STD-833E Method 3015.4
- ESD to LC receptacle - Compatible with IEC 61000-4-3
- EMI/EMC - Compatible with FCC Part 15 Subpart B EN55022:2210
- Laser Eye Safety - Compatible with FDA21CFR, EN60950-1, EN (IEC) 60825-1,2
- RoHS - Compliant with EU RoHS 2.0 directive 2015/863/EU
- MECHANICAL
- Compatible with MSA (SFP Multi Sourcing Agreement)
- Housing Material - Metal
- Dimensions - 2.21 x 0.53 x 0.33 in (56.2 x 13.4 x 8.5 mm)
- Weight - 18g
