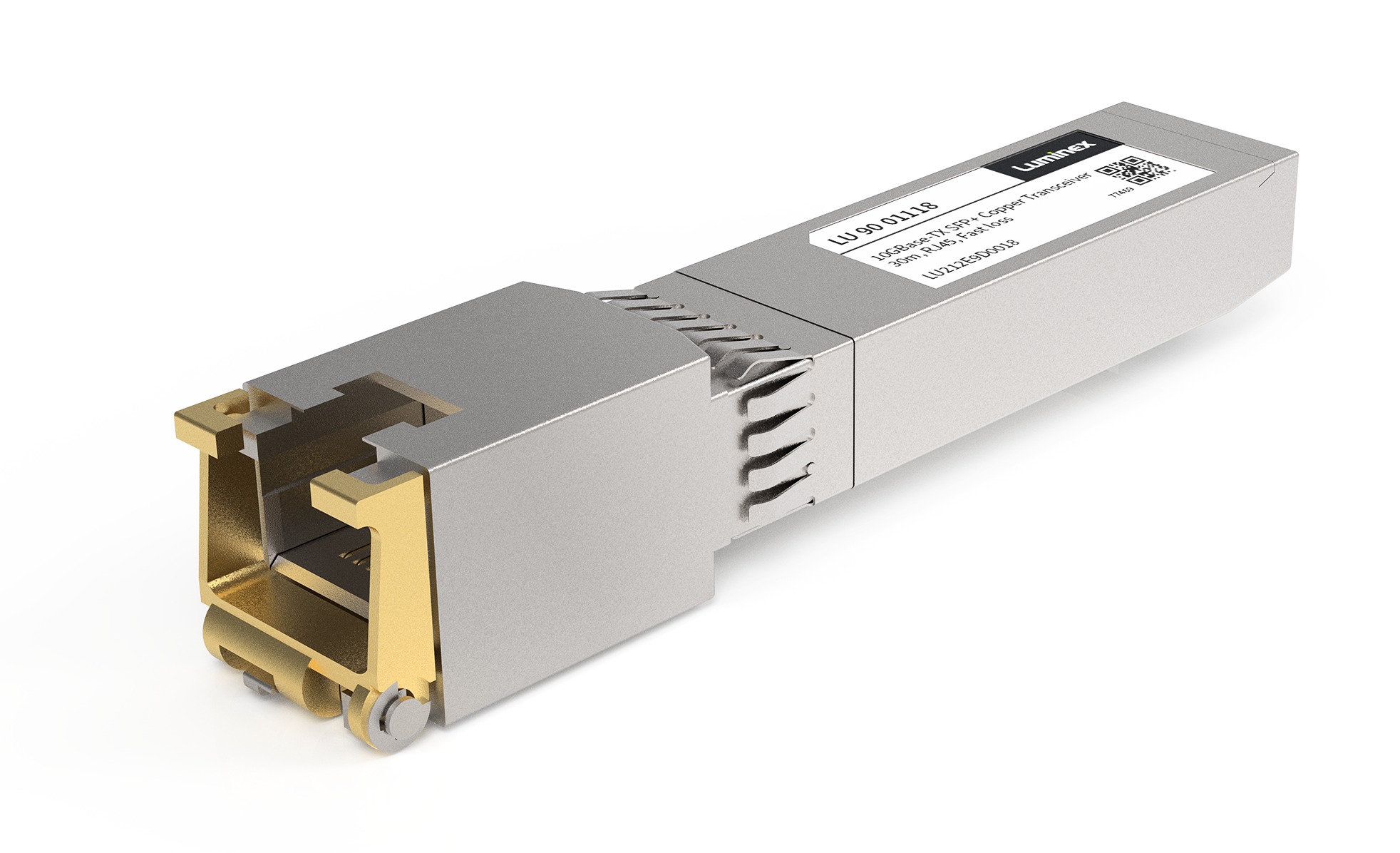

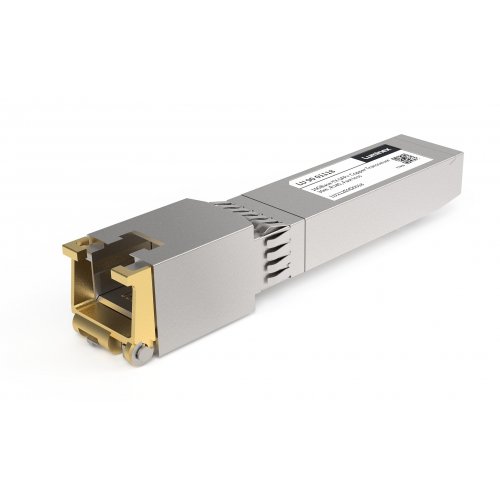

Luminex 10GBase Copper Transceiver
Model: LU9001118
About: Luminex 10GBase Copper Transceiver
Luminex 10GBase-T SFP+ Copper Transceiver 30m, RJ45, Fast loss
This MSA compliant SFP transceiver provides 10/100/1000/10G Base-T throughput to up to 30m over a copper connection with RJ45 connector. The module supports 10/100/1000/10G Base auto negotiation.
This easy to install and hot pluggable/swappable transceiver is built to MSA standards and is programmed and tested to be fully compatible with the real time analytics and diagnostics functions built into GigaCore and Araneo and compliant with IEEE 802.3ah specification.
Its wide temperature range ensures reliable operation in the most diverse applications.
Features
- INF-8074 compliant
- Copper media type
- TAA compliant
- RJ45 connector
- Hot pluggable
- Remote diagnostics with Araneo
- Industrial temperature range
Specifications
- ENVIRONMENTAL
- Operating temperature -40°C to 85°C
- Storage temperature -40°C to 85°C
- Humidity 5-85% RH
- CONNECTIVITY
- RJ45 connector
- MAXIMUM BITRATE
- 11,13Gbps
- DISTANCE SUPPORTED
- 30m
- MECHANICAL
- Compatible with MSA (SFP Multi Sourcing Agreement)
- Housing Material - Metal
- Dimensions - 2.77 x 0.53 x 0.33 in (70.3 x 13.4 x 8.5 mm)
- Weight - 24g
