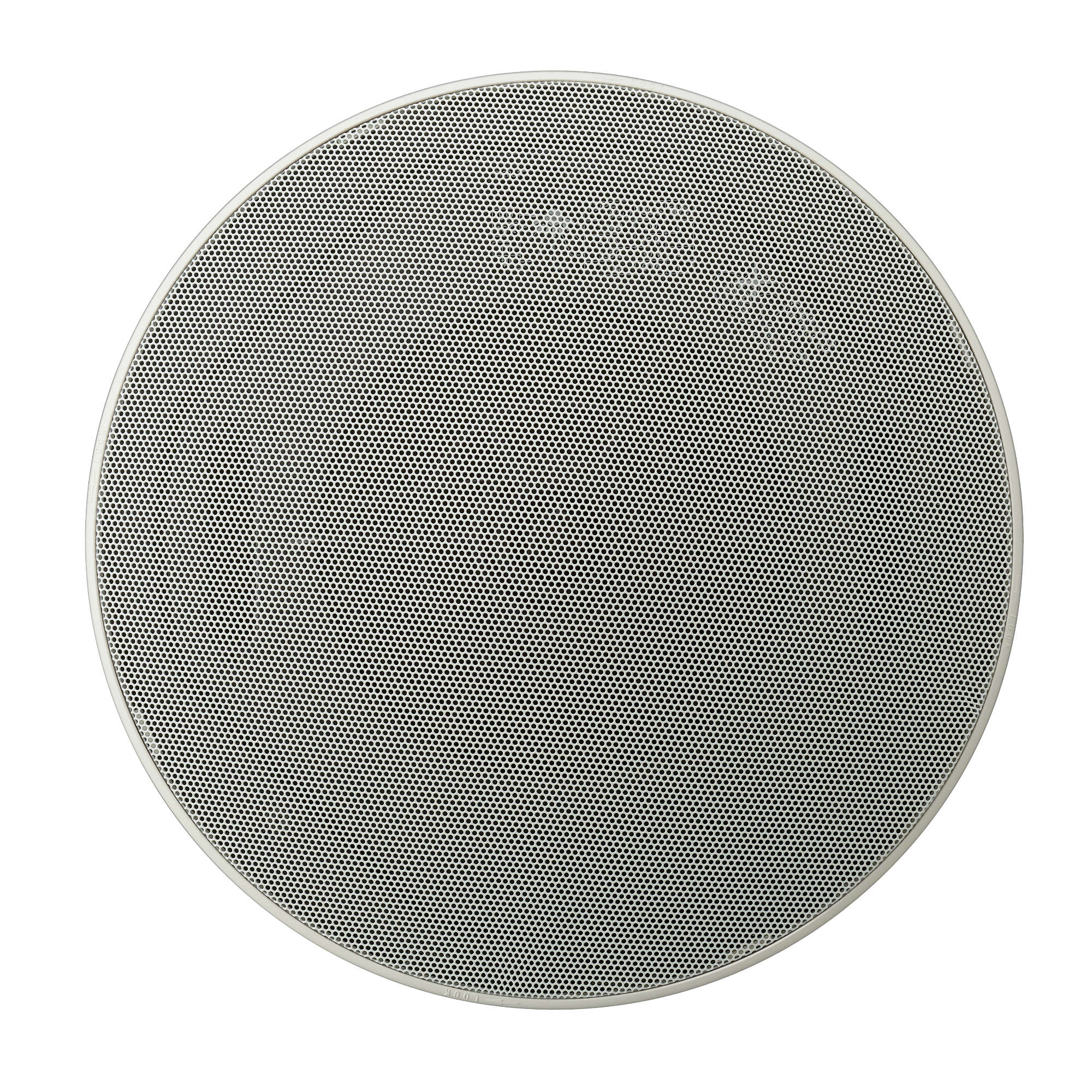

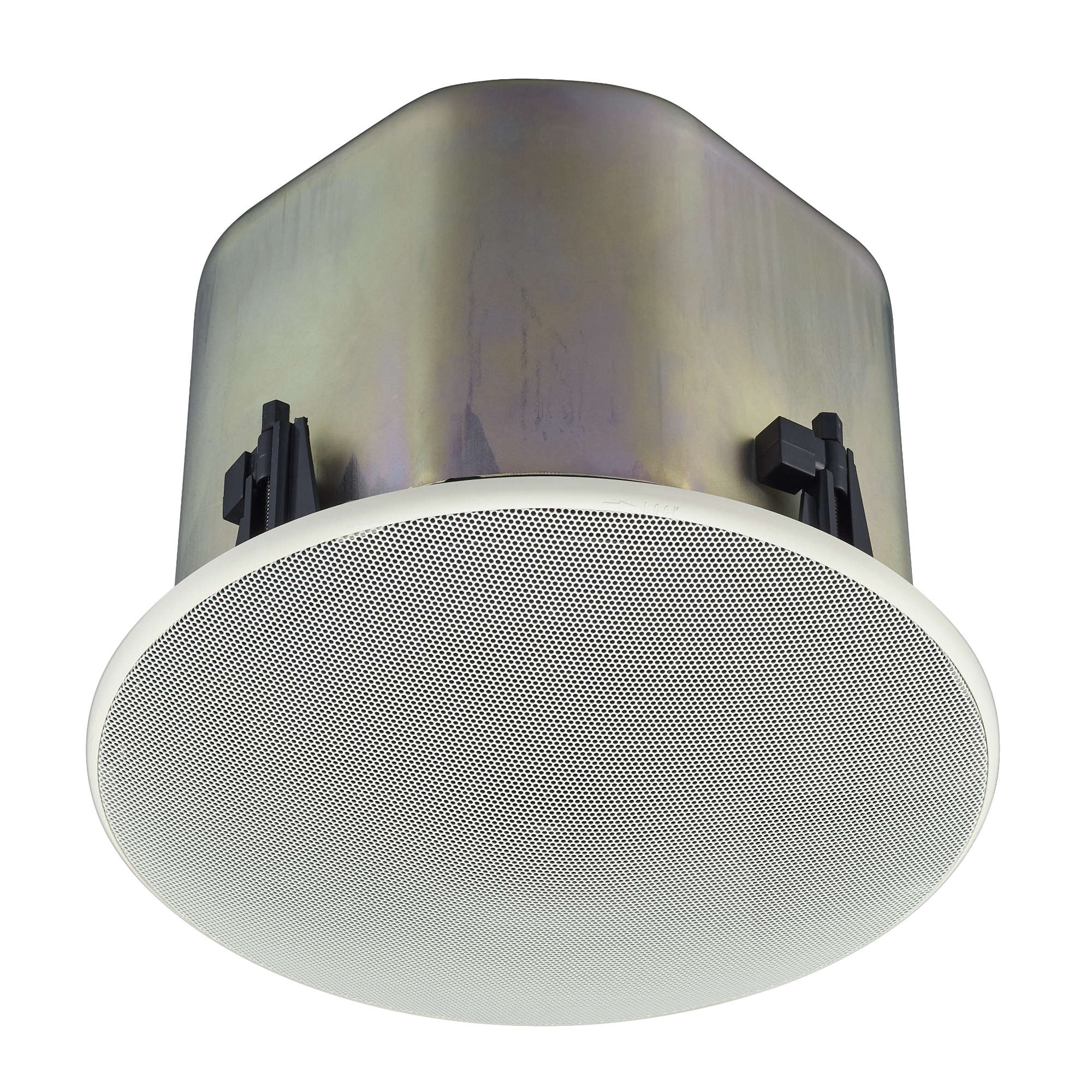

TOA F-2852CU2 Wide-Dispersion Ceiling Speaker (Pair)
Model: F-2852CU2
About: TOA F-2852CU2 Wide-Dispersion Ceiling Speaker (Pair)
The F-2852CU2 ceiling-mounted speaker covers a wide area and can be used for 25 and70 V line applications. Well-balanced sound can be heard uniformly at any location.
- Ideal for high ceiling applications
- Ported bass-reflex design
- Co-axial: 6.5” cone driver and dome tweeter
- Special diffuser provides wide off-axis high frequency response
- Metal back-can and safety cable
- UL-Listed for Fire Protective, General Purpose Signaling and Air-Handling Spaces (UL1480 UUMW/UEAY, UL2043)
- Removable terminal block with loop-through terminations
- Overload protection circuitry
Specifications
- Enclosure - Bass reflex type
- Rated Input - 60 W (High Impedance)
- Power Handling
- Continuous pink noise: 90 W (8 Ω)
- Continuous program: 180 W (8 Ω)
- Impedance
- 70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 3.3 kΩ (1.5 W)
- 25 V line: 83 Ω (7.5 W), 170 Ω (3.7 W), 330 Ω (1.9 W), 670 Ω (0.9 W), 3.3 kΩ (0.2 W)
- 8 Ω
- Sensitivity - 91 dB (1 W, 1 m)
- Frequency Response - 60 Hz - 20 kHz at installation in 1/2 free sound field
- (Measured by installing the unit in the center of a ceiling.)
- Speaker Component
- High frequency: Dome-type
- Low frequency: 16 cm (6) cone-type
- Mounting Hole - Ø250 mm (9.84) (Maximum ceiling thickness: 37 mm (1.46")
- Input Terminal - Removable locking connector with screw-down terminals
- (2 input terminals and 2 bridge terminals)
- Cable Requirements
- Solid copper wire: Ø1.0 - Ø1.6 mm (equivalent to AWG No. 18 - 14)
- Stranded copper wire: 0.75 - 2.5 mm² (equivalent to AWG No. 18 - 14)
- Compliance/Certifications - UL1480 (UEAY), UL2043, CAN/CSA C22.2 No.205 (UEAY7)
- Finish
- Enclosure: Steel plate, plating
- Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black
- Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint
- Punched net: Steel plate, white, paint
- Dimensions - Ø280 x 236 (D) mm (Ø11.02 x 9.29")
- Weight - 5.8 kg (12.79 lb) (including mounting accessories)
- Included Accessories
- 1x Front grille
- 1x Tile bridge
- 1x Safety wire (approx. 60 cm (23.62)
