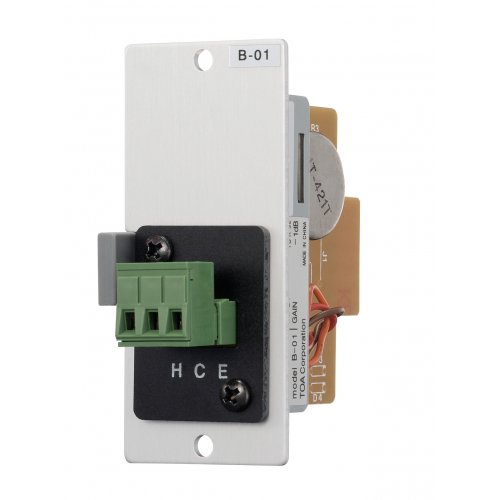

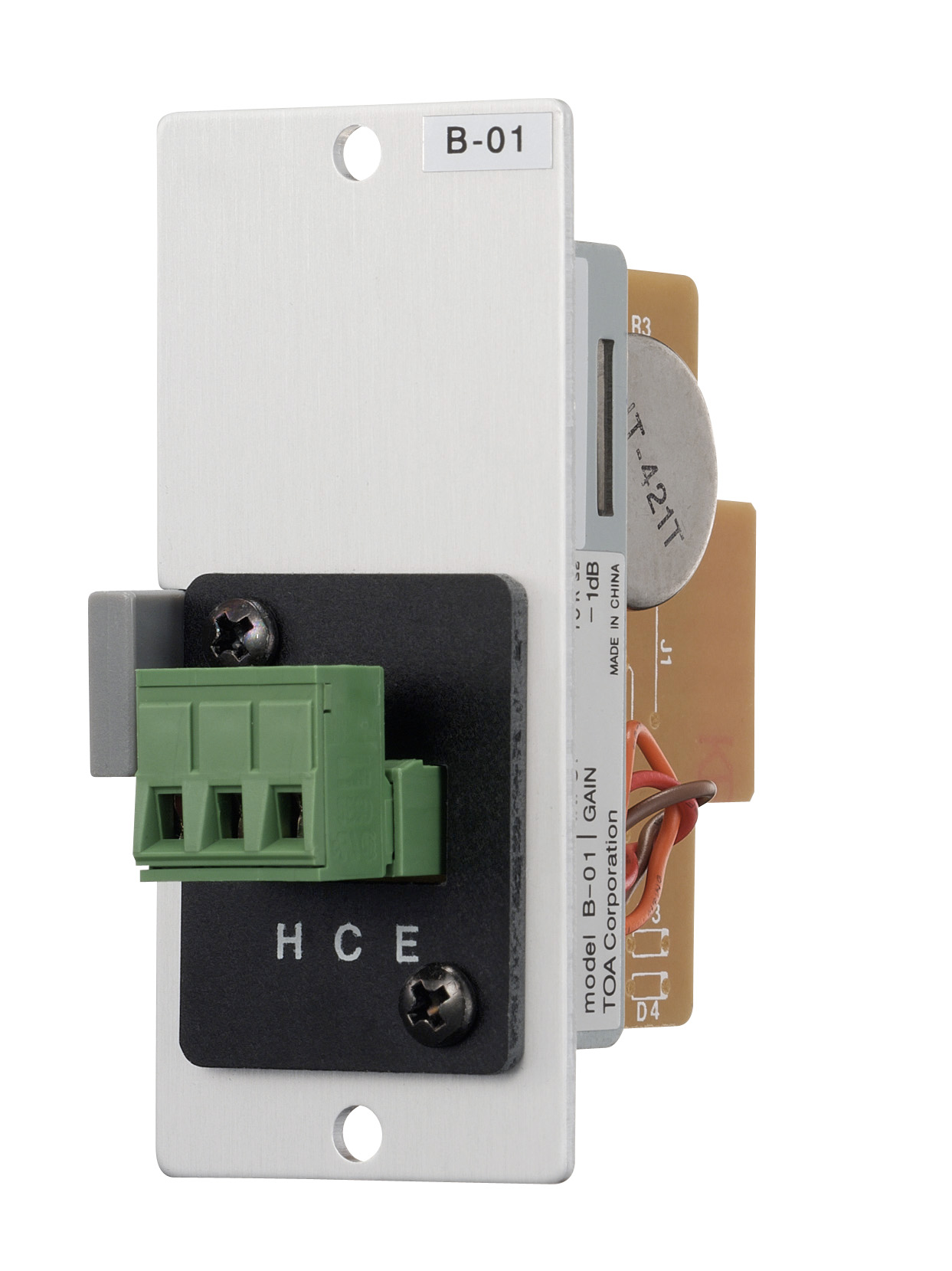

TOA B-01S T Line Input Module for 900 Series Amps
Model: B-01S T
About: TOA B-01S T Line Input Module for 900 Series Amps
The B-01S is a line input module to be used in conjunction with the 900 series components and other TOA's equipment. It has a transformer balanced line input with removable terminal block connector.
- Input Sensitivity: -18 dB* (Rated output: -20 dB*)
- Input Impedance: 10 kΩ, balanced transformer-isolated
- Frequency Response: 20 Hz - 20 kHz %%p1.5 dB
- Connector: Removable terminal block (3P)
- Dimensions: 35 (W) × 78 (H) × 88 (D) mm (1.38 × 3.07" × 3.46")"
- Weight: Max. 110 g (0.24 lb)
Reviews: TOA B-01S T Line Input Module for 900 Series Amps
There are currently no product reviews.
Warranty: TOA B-01S T Line Input Module for 900 Series Amps
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Audio - 5 Years
With the exception of Microphones (Headset, Lavaliere, etc., 5000 Series and Trantec Series) which are warranted for 90-days from the invoice date. All Batteries have a 1 year warranty
Intercom - 5 Years
All Batteries have a 1 year warranty
Parts
All parts have a 90-day warranty. All Batteries have a 1 year warranty.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
