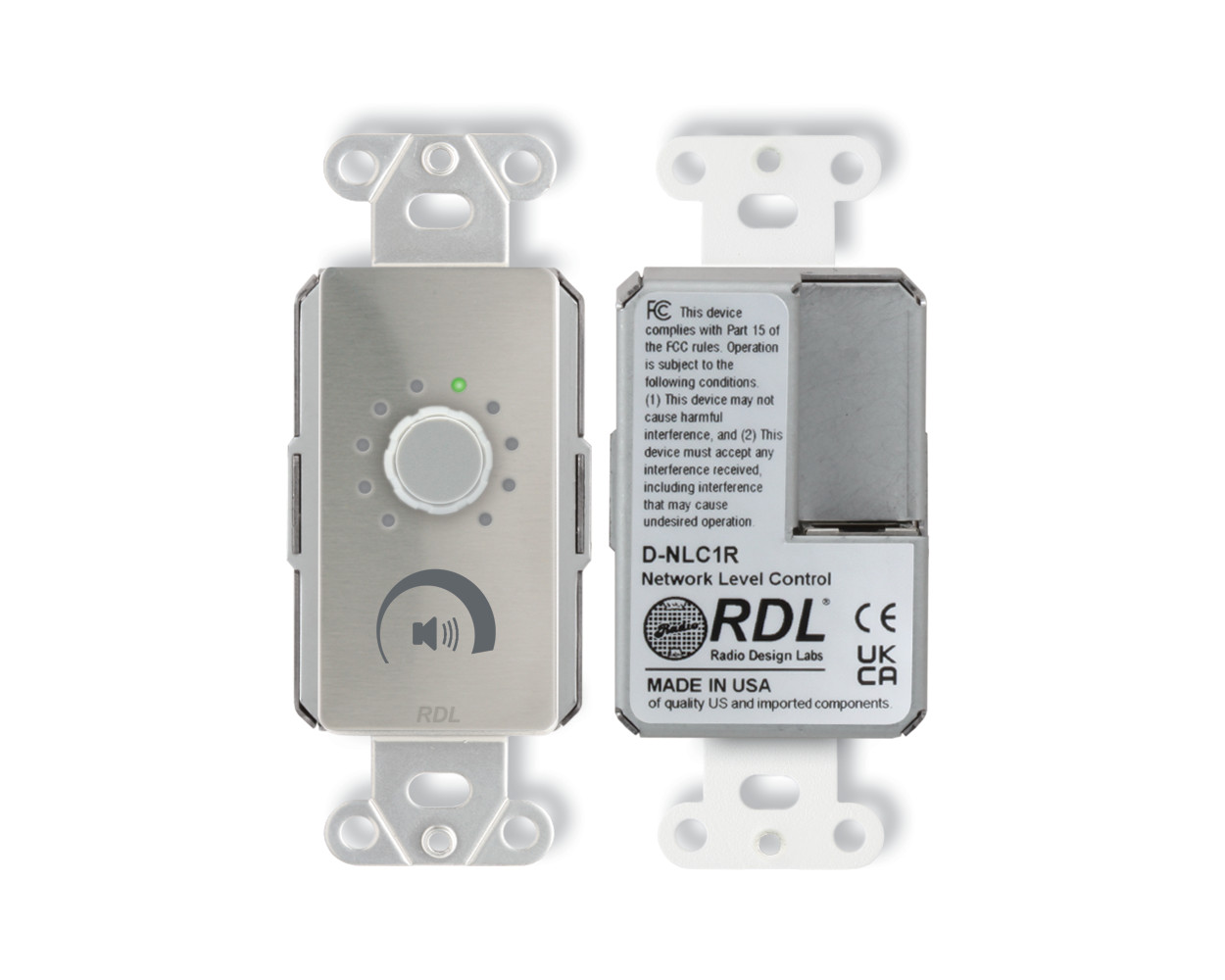

RDL NLC1R Network Remote Control with LEDs - Stainless Steel

Model: RDL DS-NLC1R

RDL NLC1R Network Remote Control with LEDs - Stainless Steel
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed

More models to choose from:

w/ LED, White$585.00
w/ LED, Steel$585.00
w/ LED, Black$585.00
w/ Screen, White$609.00
w/ Screen, Steel$609.00
w/ Screen, Black$609.00


About: RDL NLC1R Network Remote Control with LEDs - Stainless Steel

The D-SERIES NLC1R is a rotary remote control that provides volume control and muting at single or multiple user locations. The NLC1R connects to a local network that may include compatible RDL audio and control modules as well as Dante devices from RDL and other manufacturers. The unit provides level indication on a rotary LED string display. If multiple NLC1R units are assigned to control the same RDL product or group of products, the NLC1R units all remain active with tracking volume displays. The NLC1R may also be used as an auxiliary volume control in a zone where the primary control is an RDL NMC1R. Network bandwidth typically supports up to 4 of these remote controls per zone.

  • Rotary Encoder Remote Control with LED Rotary String Display
  • Knob Rotation Adjusts Audio Volume Up or Down
  • Attenuation Adjustment in 1 dB Steps From 0 to 64 dB
  • Each D-NLC1R Can Control One or Multiple RDL Products
  • Multiple D-NLC1Rs Can Control One or More RDL Products
  • Programmable Knob Action Acceleration
  • Momentary Knob Push to Mute/Unmute with LED Indication
  • Compatible with D-RN, DD-RN and Other RDL Products
  • PoE Powered
  • Available in Black (DB-NLC1R), White (D-NLC1R) and Stainless Steel (DS-NLC1R)

The NLC1R display shows the relative level using LEDs in a circular pattern. The level is adjusted by the user using the rotary encoder knob with mechanical detents. The knob rotation includes pre-programmed acceleration when the knob is turned quickly, such as to reduce an unexpectedly high level or feedback. The installer can refine the acceleration during the unit setup in RDL CONSOLE, RDL’s configuration software for networked endpoints and controls. A user can mute the audio by momentarily pushing the knob. The muted condition is shown on the display, as well as on the display of other NLC1R remote controls that are set to control the volume of the same device. While muted, the next momentary knob push will unmute the audio at its prior volume setting. If, instead, the user rotates the knob clockwise, the volume will ramp up, from fully “off”, according to the rotation of the knob.

After 30 seconds of adjustment inactivity, the NLC1R display is dimmed. It returns to normal intensity upon any knob activity.

The field-upgradable NLC1R provides a wide range of remote-control capabilities in an intuitive and attractive interface that is simple to operate.

Specifications

  • Network Connector: RJ45 with LED indicators
  • Transmission Rate: 100 Mbps
  • Indicators (12): Ethernet Link and Speed (2, rear panel); Level (10, front panel)
  • Rotary Control: Knob push: Mute/Unmute;
  • Knob rotation: Level Up/Down
  • Ambient Operating Environment: 0° C to 50° C
  • Power Requirement: PoE Class 0, IEEE 802.3af
  • Mounting: Mounts in standard US electrical box; cover plate available separately
  • Dimensions (WxHxD): 1.8 x 4.11 x 1.61 in (4.57 x 10.44 x 4.09 cm)
  • Weight: 0.37 lbs.
