Glensound GS-SW008 Sixteen Off Two Into One Switches
Model: GS-SW008A
About: Glensound GS-SW008 Sixteen Off Two Into One Switches
Glensound GS-SW008A is a professional-grade 1RU audio switching unit featuring sixteen independent 2-way relays. Designed for use in broadcast environments, it allows seamless switching between two balanced analogue audio sources per channel, ideal for routing between studios or transmitters. The unit supports GPI/loop control and offers both mains and 12V DC powering options.
Features
- Sixteen independent 2-input, 1-output audio relays
- Balanced analogue audio switching via AES59 (Tascam standard) D25 connectors
- Each relay has two input sources (normally open and normally closed) and one output
- Relay defaults to the normally closed input in the event of power loss
- 4 loop inputs for GPI control, assignable per relay via internal links

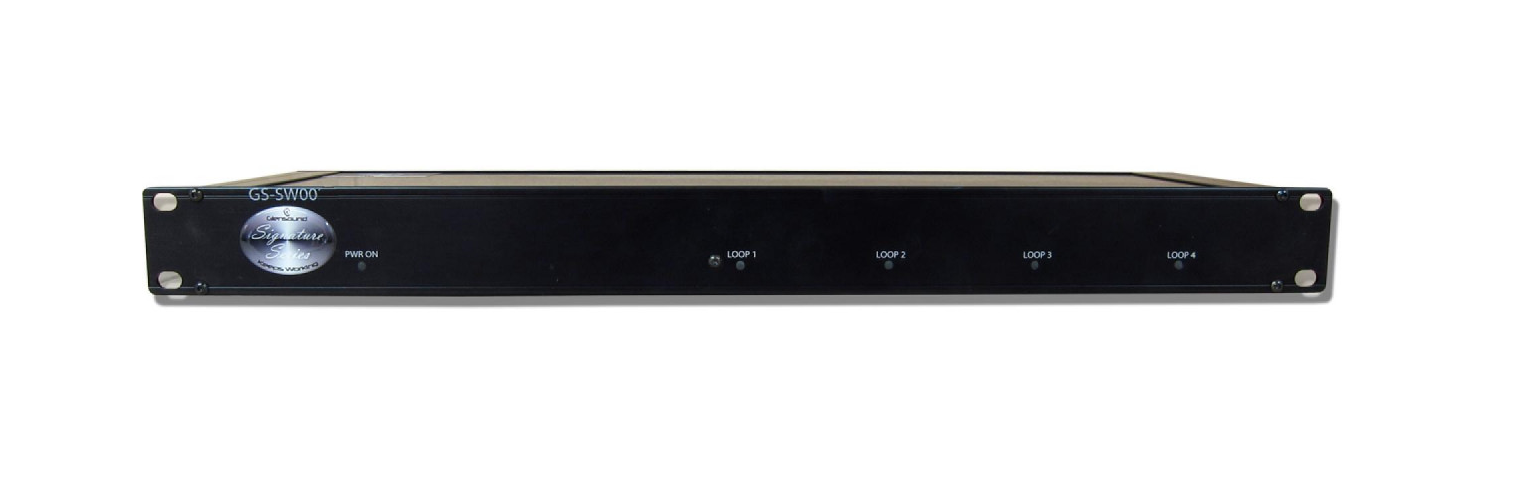

- Front panel LEDs indicate active loop inputs
- Tally output available to drive external indicators (e.g. studio lights)
- Powered by 100–240 VAC (internal PSU) or +12V DC (external input)
- Front panel power LED indicator
- Compact 1U rackmount form factor
- Not compatible with Glensound PS1 backup power supply
Specifications
| Relay Channels | 16 independent 2-way relays (2 inputs to 1 output each) |
|---|---|

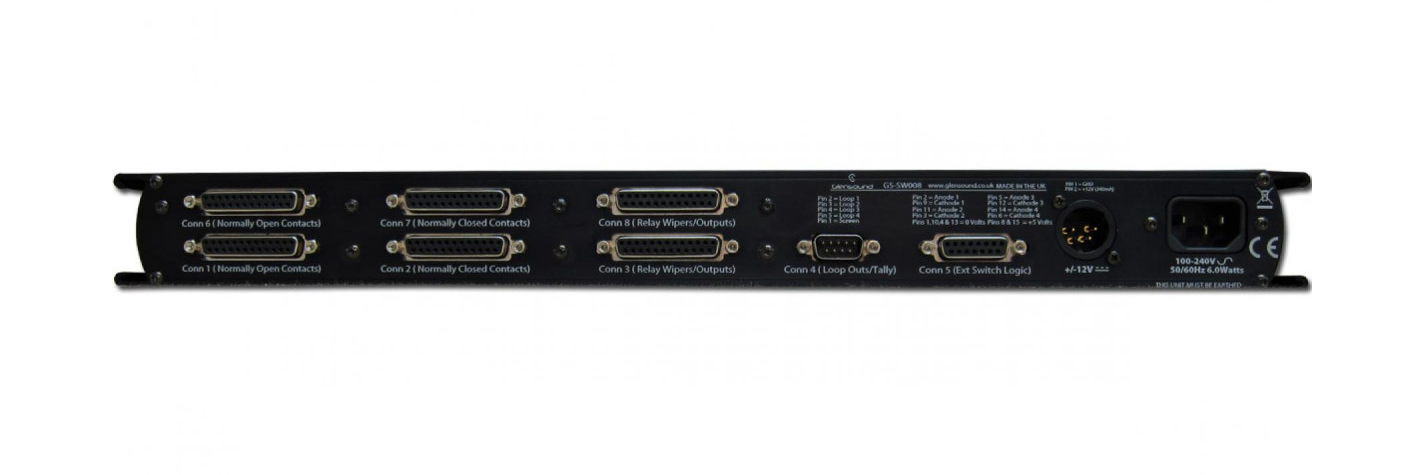

| Audio Inputs | 4 x D25 connectors (balanced audio, AES59 standard) |
| Audio Outputs | 2 x D25 connectors (balanced audio, AES59 standard) |
| Control | 4 loop (GPI) inputs, internally linkable to each relay |
| Tally Output | Available from loop input indicators for external cueing |
| Power Input | 100–240 VAC internal PSU and 12V DC external input |
| Power Failure Mode | Defaults to normally closed input |
| Indicators | Front panel LEDs for power and loop input status |
| Form Factor | 1U 19-inch rackmount |
