Glensound MINFERNO/3 Single Commentator's Box For Dante Audio Networks
Model: MINFERNO/3
About: Glensound MINFERNO/3 Single Commentator's Box For Dante Audio Networks
Glensound MinFerno/3 is a compact, single-user commentary box designed for seamless integration into Dante® (AES67 compliant) audio networks. It offers high-quality audio performance and robust features, making it ideal for professional broadcasting applications.
Features
- Single low-noise mic/line input with 48V phantom power support
- Integrated Referee compressor/limiter ensures natural sound quality
- Headphone mixer with up to four inputs from the Dante network, plus local sidetone
- Each headphone input features left/both/right switching
- Up to three configurable talkback circuits

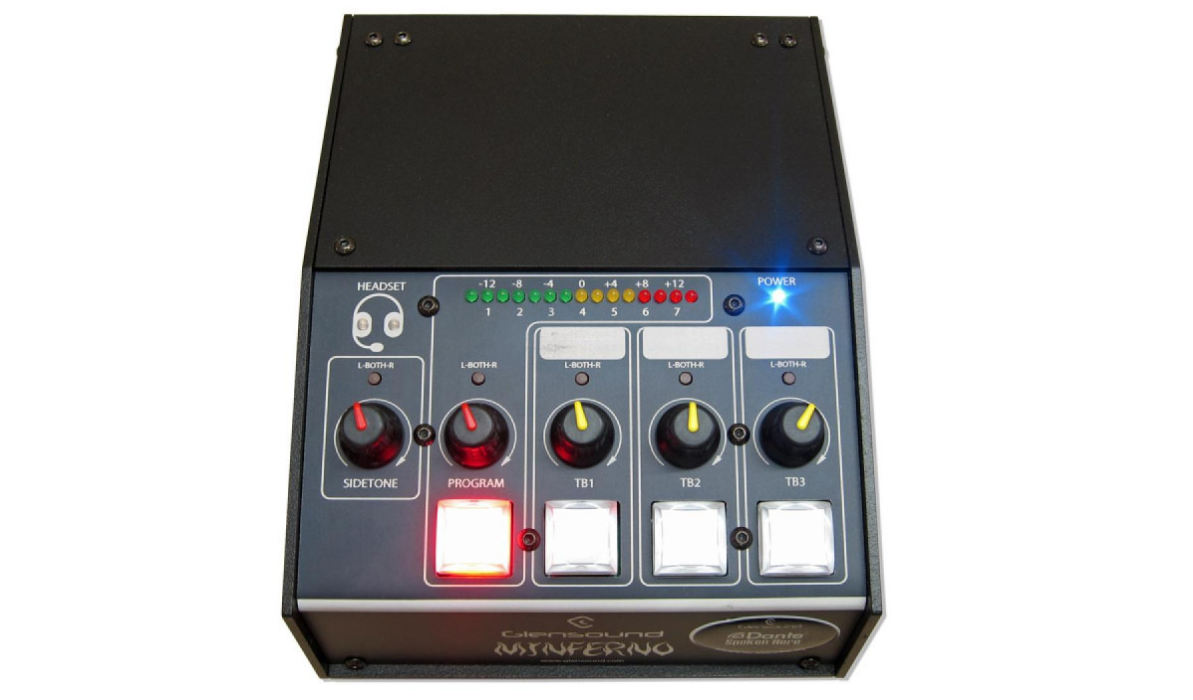

- Large illuminated on-air and talkback switches for clear operation
- Multiple power options: Power over Ethernet (PoE) on primary and secondary network links, and external 12V DC
- Network connectivity via Copper (Cat5) and Fibre (SFP slots) interfaces
- Primary and secondary network connections allow for glitch-free redundancy
- Bright PPM level meter for accurate audio level monitoring
- Built-in web server for setup and remote control of mic gain and on/off switching via web browser
Specifications
| Microphone Input | 1 x balanced XLR, switchable between mic and line level, with 48V phantom power |
|---|---|
| Headphone Outputs | 1 x 6.35mm jack with individual level controls |
| Talkback Circuits | Up to 3, configurable via built-in web server |

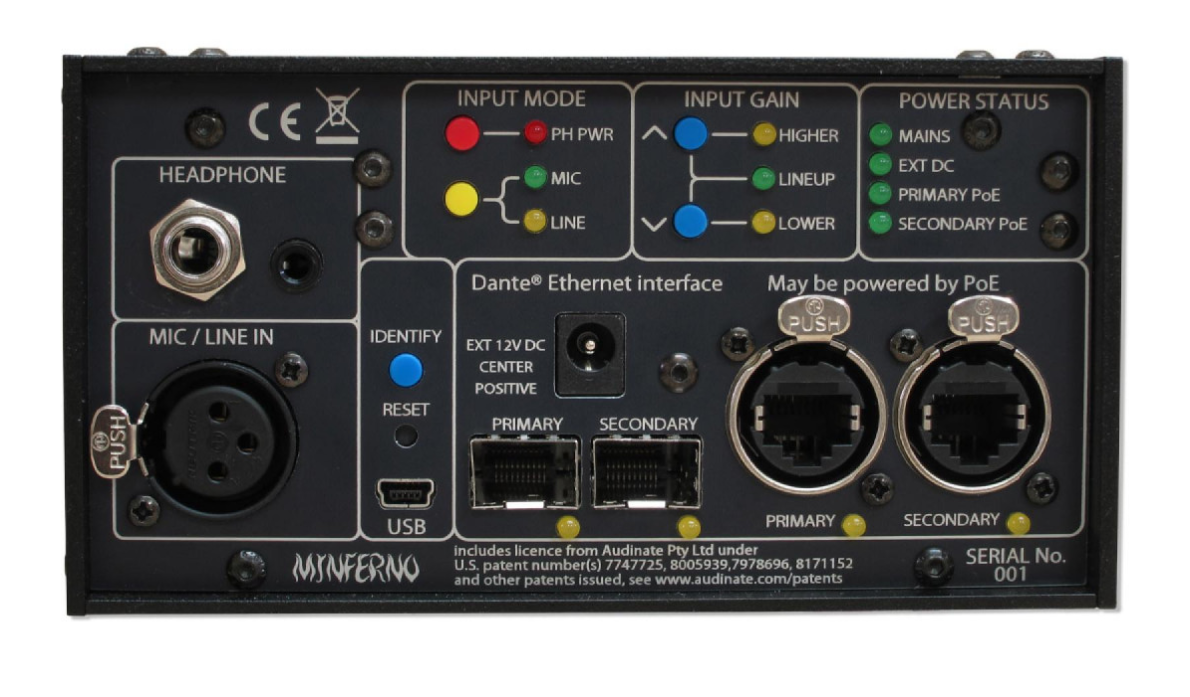

| Network Interfaces | 2 x Copper (Cat5) on Neutrik Ethercon; 2 x Fibre (SFP slots) |
| Power Options | PoE on primary and secondary network links; external 12V DC input |
| Dimensions | Compact desktop form factor |
| Weight | Approximately 1.5 kg |
