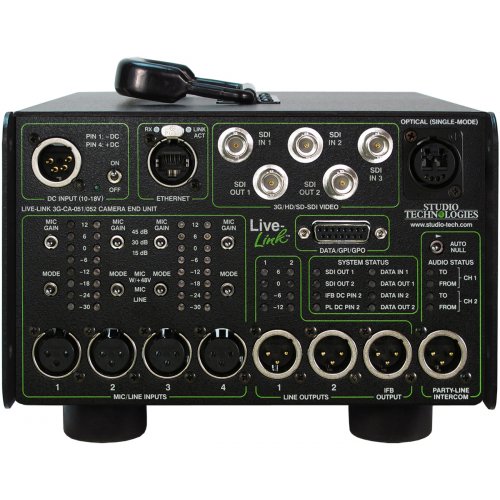

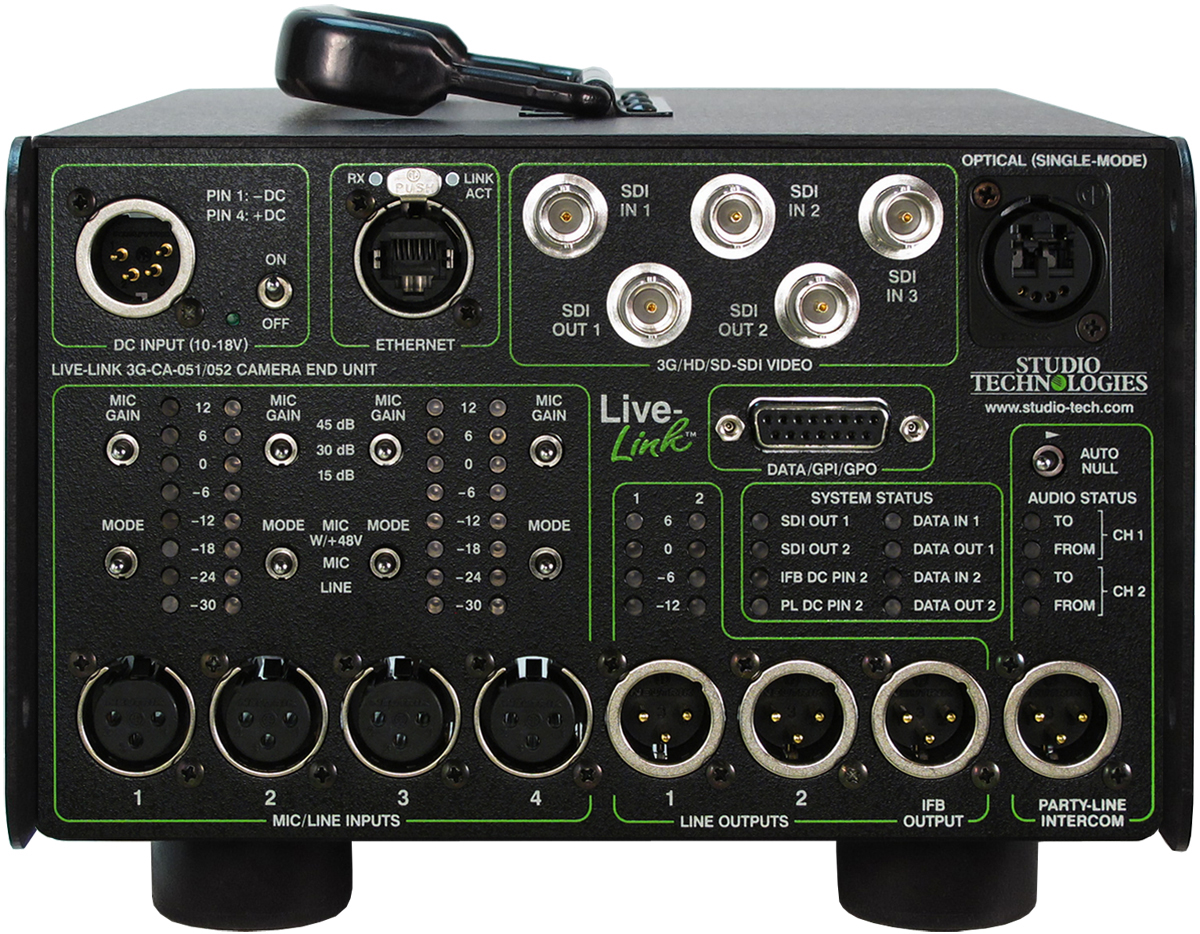

Studio Technologies LL-3G-CA-051 Live-Link Sr. Camera End Unit Portable Version

About: Studio Technologies LL-3G-CA-051 Live-Link Sr. Camera End Unit Portable Version

Designed to handle news, sports, and other day-to-day remote interfacing needs with ease, the Live-Link™ Sr. Remote Camera Interface System offers a comprehensive fiber-optic-connected solution for transporting digital video, audio, intercom, and data between a remote camera location and a truck or control room. The point-to-point system consists of a portable Camera End Unit and either a portable or rack-ready Control Room Unit. Both use industry-standard connectors that are clearly labeled for fast, intuitive setup.

Live-Link Sr. provides two digital video paths in each direction that support the 3G/HD/SD-SDI SMPTE®-standards. In addition, the system provides connectivity for mic/line level signals, talent cueing, 2-channel party-line intercom, GPI/GPO, RS-232/RS-422 asynchronous data, and Gigabit Ethernet. A full complement of status LEDs simplifies monitoring and troubleshooting. Live-Link Sr. systems are suitable for remote production or permanent installation and can be powered by a DC supply or battery.

Live-Link Sr. is a reliable and convenient way of linking a production camera crew to an ENG or OB van, SNG vehicle, or production trailer. The system's portability and ease-of-deployment make it an ideal infrastructure solution for studio complexes, arenas, and campus environments. Live-Link Sr. units interconnect using two strands of single-mode fiber-optic cable and provide a transmission distance of at least 10 km (per SMPTE 297). Featuring the rugged opticalCON® DUO fiber-optic connectors from Neutrik®, units can also be ordered with ST optical connectors.

Key Features

• Transports digital video, audio, and data over two single-mode optical fibers
• Supports standard 3G/HD/SD-SDI digital video formats
• Four mic/line inputs with selectable gain and +48 V phantom power
• Two line-level audio paths for IFB or general-purpose use
• Party-line intercom interface with 28 V beltpack power
• 2-wire-to-4-wire auto nulling hybrids for excellent intercom audio
• 10/100/1000 (Gigabit) Ethernet
• RS-232 and RS-422 for camera control
• Available with Neutrik opticalCON DUO for fast, reliable fiber connectivity
• Anton/Bauer® battery mount standard on both units
• Low power consumption allows extended battery operating time
• Industry-standard connectors for all inputs and outputs
• Available in portable or rack-ready versions

Specifications:

• Live-Link Sr. "05X" Series Camera End Specifications
• Optical Connector(s): Neutrik® opticalCON® DUO or two ST (UPC polish), factory installed, selectable at time of order
• Digital Video Inputs: 3
• Connector: BNC
• Type: unbalanced
• Impedance: 75 ohms
• Digital Video Outputs: 2
• Connector: BNC
• Type: unbalanced
• Impedance: 75 ohms
• Level: 800 mV p-p
• Mic/Line Audio Inputs: 4
• Connector: 3-pin female XLR
• Type: electronically balanced
• Impedance: 2 k ohms
• Level: +24 dBu maximum including mic gain
• Gain: 0 dB, 15 dB, 30 dB, 45 dB, selectable
• Phantom Power: P48 (+48 VDC nominal), selectable on/off
• Non-Powered IFB Audio Outputs: 2
• Connector: 3-pin male XLR
• Type: electronically balanced
• Impedance: 100 ohms
• Level: +4 dBu nominal, +24 dBu maximum
• Powered IFB Output: 1, 2-channel
• Connector: 3-pin male XLR
• Type: DC power with two channels of unbalanced audio ("wet" IFB)
• Impedance: 200 ohms
• Audio Level: –10 dBu nominal
• Power Source: 28 VDC nominal, 120 mA maximum
• Party-Line (PL) Intercom Interface: 1, 2-channel
• Connector: 3-pin male XLR
• Type: 2-wire party-line (PL)
• Impedance: 200 ohms
• Audio Level: –10 dBu nominal
• 2-Wire Power Source: 28 VDC nominal, 230 mA maximum
• Compatibility: single- and dual-channel intercom systems such as those from RTS® and Clear-Com®
• Dimensions (Portable w/protective bumpers/handle) (WxHxD): 8.36 x 6.54 x 13.33" (21.2 x 16.6 x 33.9cm)
• Weight (Portable): 10.9Lbs (5.0 kg)

Ethernet

• Connector: RJ45 (auto MDI/MDI-X)
• Rate: 10/100/1000 auto sensing
• RS-232, RS-422, GPI, GPO, and Auxiliary Power Source:
• Connector: 15-pin D-subminiature female (DA-15F)

Power

• DC Input Range: 10 to 18 V
• Requirement: 30 watts maximum
• DC Input Connector: 4-pin male XLR
• Battery Mount: Anton/Bauer® Gold Mount System (V-Mount optional)
