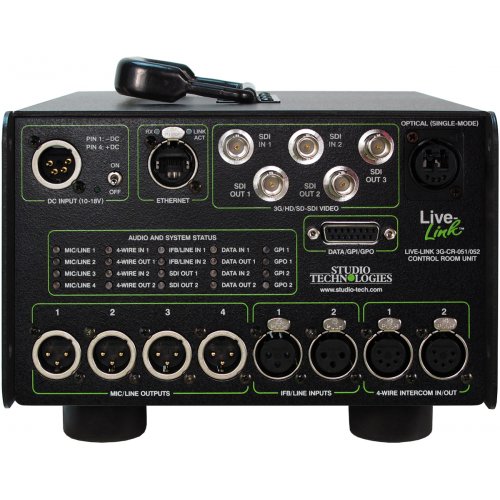

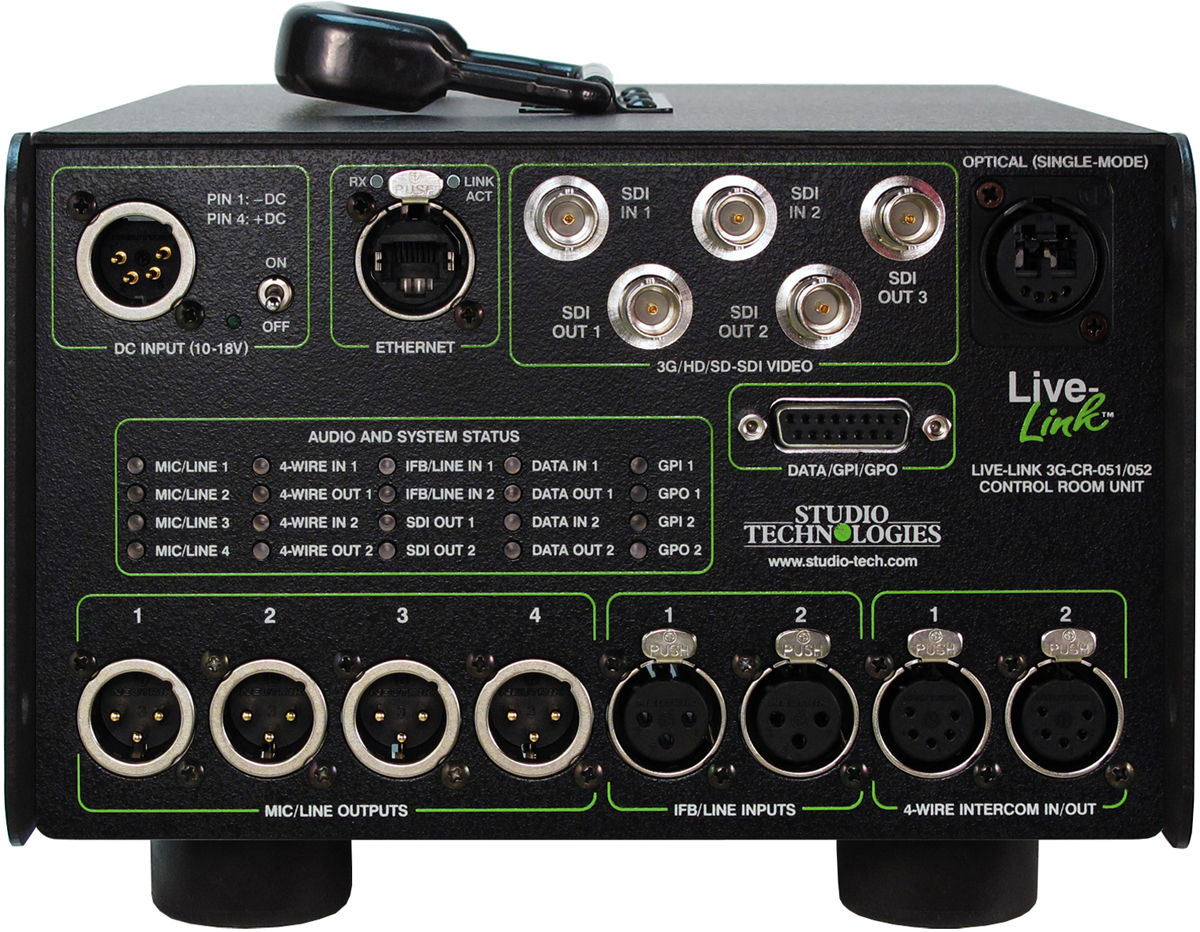

Studio Technologies LL-3G-CR-052 Live-Link Sr. is a Control Room Unit Rack-Ready Version with opticalCON® DUO Optical Connector (two fibers). Live-Link Sr. "05X" Series versions interconnect using two strands of single-mode fiber-optic cable (not included) and provide support for the following:

Digital Video: three 3G/HD/SD-SDI sends (camera to control room) and two 3G/HD/SD-SDI returns (control room to camera)
Mic/Line Audio: four analog mic/line sends (camera to control room) with selectable gain and 48 V phantom power
Line/IFB: two analog line-level audio returns (control room to camera) and one 2-channel IFB output (camera) with 28 V beltpack power
Intercom: 4-wire (control room) to 2-wire (camera) with auto nulling and 2-channel party-line interface with 28 V beltpack power
Data/Remote Control: 10/100 Ethernet, RS-232, RS-422, and GPI/GPO
Portable Version units include universal input (100-240 V, 50/60 Hz)/12 VDC output power supply, Anton/Bauer battery mount system (battery not included), handle, and rubber feet. Rack-Ready Version units include universal input (100-240 V, 50/60 Hz)/12 VDC output power supply and are normally installed with a Live-Link Rack Mounting Enclosure

Designed to handle news, sports, and other day-to-day remote interfacing needs with ease, the Live-Link™ Sr. Remote Camera Interface System offers a comprehensive fiber-optic-connected solution for transporting digital video, audio, intercom, and data between a remote camera location and a truck or control room. The point-to-point system consists of a portable Camera End Unit and either a portable or rack-ready Control Room Unit. Both use industry-standard connectors that are clearly labeled for fast, intuitive setup.

Live-Link Sr. provides two digital video paths in each direction that support the 3G/HD/SD-SDI SMPTE®-standards. In addition, the system provides connectivity for mic/line level signals, talent cueing, 2-channel party-line intercom, GPI/GPO, RS-232/RS-422 asynchronous data, and Gigabit Ethernet. A full complement of status LEDs simplifies monitoring and troubleshooting. Live-Link Sr. systems are suitable for remote production or permanent installation and can be powered by a DC supply or battery.

Live-Link Sr. is a reliable and convenient way of linking a production camera crew to an ENG or OB van, SNG vehicle, or production trailer. The system's portability and ease-of-deployment make it an ideal infrastructure solution for studio complexes, arenas, and campus environments. Live-Link Sr. units interconnect using two strands of single-mode fiber-optic cable and provide a transmission distance of at least 10 km (per SMPTE 297). Featuring the rugged opticalCON® DUO fiber-optic connectors from Neutrik®, units can also be ordered with ST optical connectors.

Features:

Transports digital video, audio, and data over two single-mode optical fibers
Supports standard 3G/HD/SD-SDI digital video formats
Four mic/line inputs with selectable gain and +48 V phantom power
Two line-level audio paths for IFB or general-purpose use
Party-line intercom interface with 28 V beltpack power
2-wire-to-4-wire auto nulling hybrids for excellent intercom audio
10/100/1000 (Gigabit) Ethernet
RS-232 and RS-422 for camera control
Available with Neutrik opticalCON® DUO for fast, reliable fiber connectivity
Anton/Bauer® battery mount standard on both units
Low power consumption allows extended battery operating time
Industry-standard connectors for all inputs and outputs
Available in portable or rack-ready versions

Specifications:

• Live-Link "05X" Series Control Room Specifications
• Optical Connector(s): Neutrik® opticalCON® DUO or two ST (UPC polish), factory installed, selectable at time of order
• Digital Video Inputs: 2
• Connector: BNC
• Type: unbalanced
• Impedance: 75 ohms
• Digital Video Outputs: 3
• Connector: BNC
• Type: unbalanced
• Impedance: 75 ohms
• Level: 800 mV p-p
• Mic/Line Audio Outputs: 4
• Connector: 3-pin male XLR
• Type: electronically balanced
• Impedance: 100 ohms
• Level: +4 dBu nominal, +24 dBu maximum
• Line-Level Audio Inputs: 2
• Connector: 3-pin female XLR
• Type: electronically balanced
• Impedance: 10 k ohms
• Level: +4 dBu nominal, +24 dBu maximum
• 4-Wire Intercom Version–Audio Inputs: 2
• Connector: 3-pin female XLR
• Type: electronically balanced
• Impedance: 10 k ohms
• Level: +4 dBu nominal, +24 dBu maximum
• 4-Wire Intercom Version–Audio Outputs: 2
• Connector: 3-pin male XLR
• Type: electronically balanced
• Impedance: 100 ohms
• Level: +4 dBu nominal, +24 dBu maximum
• Party-Line (PL) Intercom Interface Version: 1, 2-channel
• Connector: 3-pin male XLR
• Type: 2-wire party-line (PL)
• Audio Level: –10 dBu nominal
• Power Source and Impedance: 28 VDC nominal, 315 mA maximum, 200 ohms, selectable on/off
• Compatibility: single- and dual-channel intercom systems such as those from RTS® and Clear-Com®
• Dimensions (Portable w/protective bumpers/handle) (WxHxD): 8.36 x 6.54 x 13.33" (21.2 x 16.6 x 33.9cm)
• Dimensions (Rack-Ready w/protective bumpers/handle) (WxHxD): 8.36 x 5 x 12.60" (21.2 x 12.7 x 32cm)
• Weight (Portable): 10.9Lbs (5.0 kg)
• Weight (Rack-Ready): 7.7Lbs (3.5kg)

Ethernet

• Connector: RJ45 (auto MDI/MDI-X)
• Rate: 10/100/1000 auto sensing
• RS-232, RS-422, GPI, GPO, and Auxiliary Power Source:
• Connector: 15-pin D-subminiature female (DA-15F)

Power

• DC Input Range: 10 to 18 V
• Requirement: 20 watts maximum
• DC Input Connector: 4-pin male XLR
• Battery Mount: Anton/Bauer Gold Mount System (Portable Version only) (V-Mount optional)
• Specifications subject to change without notice.
