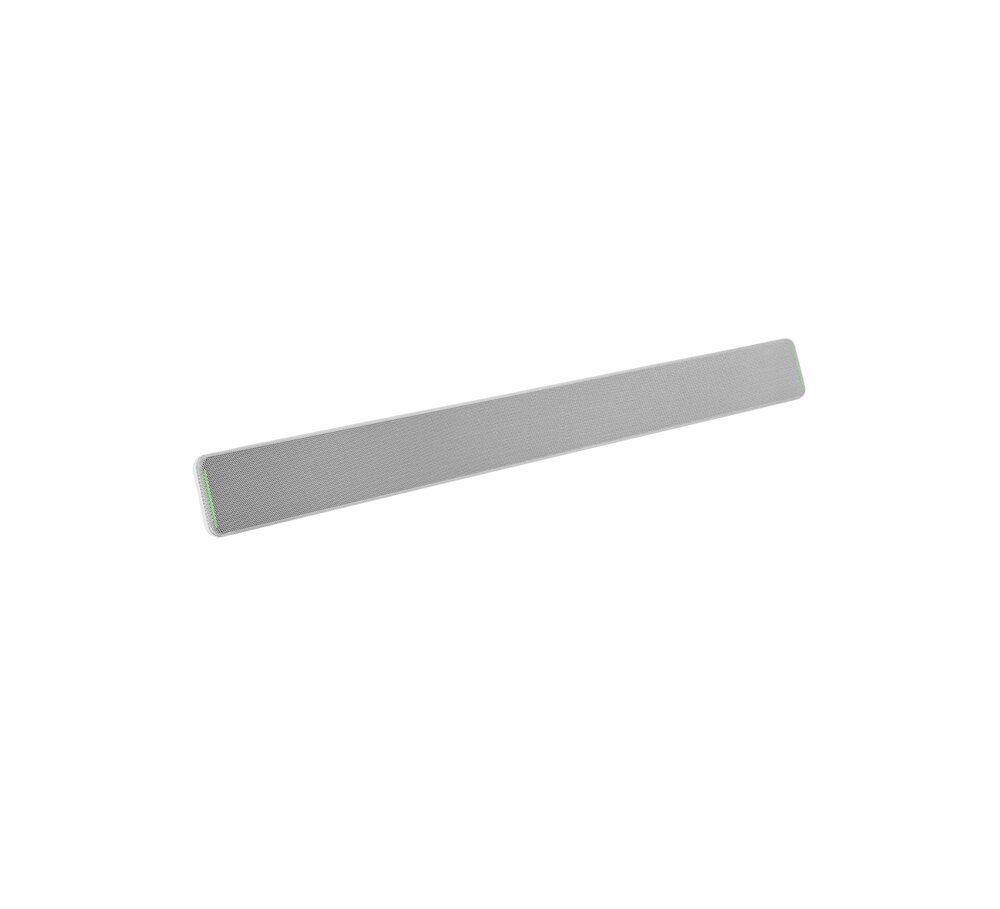

Shure Microflex Advance MXA710 Linear Array Microphone, 2 Foot - White

About: Shure Microflex Advance MXA710 Linear Array Microphone, 2 Foot - White

The MXA710 Linear Array Microphone represents the next evolution in Shure array microphone technology, designed for high-quality audio capture in premium AV conferencing environments. The sleek, linear form factor of the MXA710 allows for placement virtually anywhere in a meeting space, including on a wall, around a display, ceiling, or into a conference room table. Available in two lengths and three colors, the MXA710 includes proprietary Shure IntelliMix DSP and Autofocus technology that provides all the processing needed for echo and noise-free conference audio

Features

• Wide variety of available installation accessories for flexible mounting, including:
• Wall mount: horizontal or vertical orientation, either on or flush to wall surface
• Ceiling mount: on ceiling, suspended, or flush
• Table: flush with table surface
• A710-DS desktop stand for placement on credenza or shelf
• A710-MSA mic stand adapter for use with microphone stand
• Available in two sizes - 2 ft (60 cm) and 4 ft (120 cm) and three colors (white, black, aluminum)
• Dante Domain Manager / Device Lock compatible
• UL 2043 plenum rated and IP5X rated
• Dual LED status bars with configurable colors and brightness

How it Works

With a sleek design available in two sizes and three colors, the MXA710 linear array provides high quality audio capture for AV conferencing without sacrificing aesthetics of today’s modern spaces. Time-saving deployment with seamless connectivity to the broader Shure networked systems product ecosystem.

Why it's Better

• Collaboration re-imagined - With Steerable Coverage and onboard IntelliMix digital signal processing, you can capture every voice. Patent-pending Autofocus technology fine-tunes the audio pickup in real time, for consistent sound even if participants shift in their seats.
• Well Connected - Intuitive, programming-free LED mute sync functionality with leading third-party software codecs solutions including Zoom Rooms, Microsoft Teams and Cisco and Skype for Business when connected to the IntelliMix P300 or ANIUSB-MATRIX Audio Network Interface.
• Enterprise-wide Deployment - Unprecedented flexibility to meet varying room requirements from small to large, the MXA710 provides premium audio capture at scale that’s easier than ever to configure with Shure Designer software.
• Encryption - Shure Audio Encryption can be enabled when used with the IntelliMix P300 Audio Conferencing Processor or Shure Audio Network Interfaces, which utilizes AES-256 encryption to protect confidential content.

Specifications

• General
  • Lobe Width (adjustable) -  Narrow 30 degrees, Medium 40 degrees, Wide 70 degrees
  • Connector Type -  RJ45
  • Power Requirements -  Power over Ethernet (PoE), Class 0
  • Power Consumption -  10 W maximum
  • Control Software -  Shure Designer
  • Plenum Rating -  UL2043 (Suitable for Air Handling Spaces)
  • Dust Protection -   IEC 60529 IP5X Dust Protected
  • WEIGHT
    • MXA710-2FT -  2 lbs (0.91 kg)
    • MXA710-4FT -   3.7 lbs (1.67 kg)
• PRODUCT DIMENSIONS
  • MXA710-2FT -  0.87 x 2.36 x 25.04 in. (22.09 x 60 x 636 mm) H x W x L
  • MXA710-4FT -  0.87 x 2.36 x 49.12 in. (22.09 x 60 x 1247.76 mm) H x W x L
  • Operating Temperature Range -   −6.7°C (20°F) to 40°C (104°F)
  • Storage Temperature Range -  −29°C (-20°F) to 74°C (165°F)
• AUDIO
• Frequency Response -  100 Hz to 20 kHz
• AES67 or Dante Digital Output
  • Channel Count MXA710-2FT -  6 total channels (4 independent transmit channels, 1Automix output, 1 AEC refer- ence in channel)
  • Channel Count MXA710-4FT -  10 total channels (8 independent transmit channels, 1 Automix output, 1 AEC reference in channel)
• Sampling Rate -  48 kHz
• Bit Depth -  24
