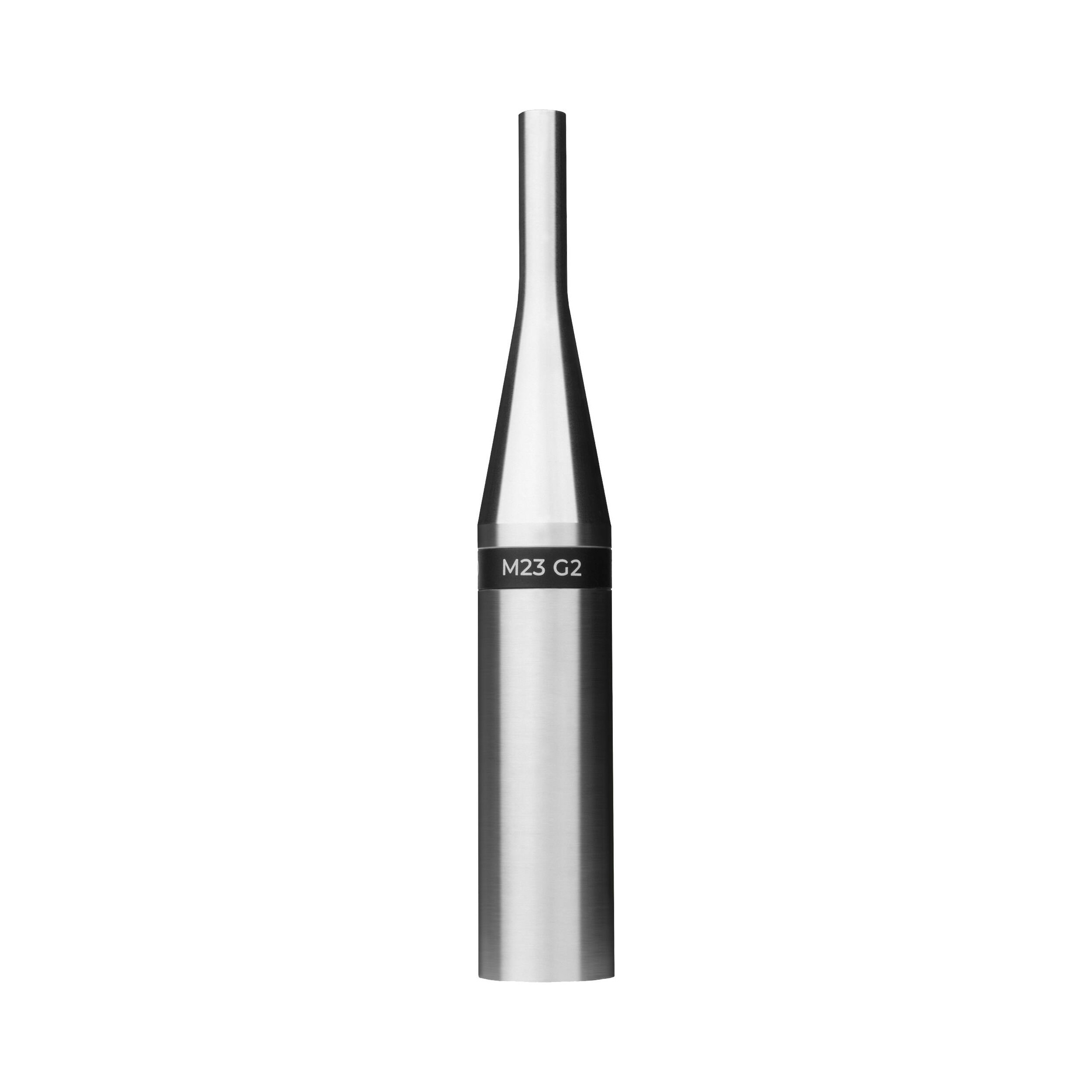

Earthworks M23 G2 23kHz Omni Measurement Microphone
Model: M23 G2
About: Earthworks M23 G2 23kHz Omni Measurement Microphone
M23 G2 23kHz Measurement Microphone
Specifications
- Capture Type
- Microphone Type: Pre-polarized condenser
- Polar Pattern: Omnidirectional
- Diaphragm Size: 6 mm
- Audio Performance
- Flat Frequency Range (+/- 1dB): 5 Hz to 23 kHz
- 1 kHz Sensitivity: -40 dBV/Pa (10 mV/Pa) +/- 2dB
- Low Frequency Cutoff (-3dB): ≤ 3 Hz
- High Frequency Cutoff (-3dB): ≥ 30 kHz
- A-weighted Self-noise: 23 dBA
- Maximum SPL (3% THD)
- P48: 140 dBSPL
- P12: 133 dBSPL
- Minimum Load Impedance: 1 kΩ
- Power Requirements
- P48 (48V Phantom Power): 7.2 mA
- P12 (12V Phantom Power): 4.8 mA
- Physical
- Construction: Machined Stainless Steel
- Color: Silver
- IP rating: IP54
- Dimensions (L x W): 5.5 x 0.86 Inches (138.6 x 21.8 mm)
- Weight: 0.31 lbs (0.14 kg)
Included Accessories
- Carrying Case
- Calibration Chart
- MC1 Microphone Clip
- OMW2 Windscreen
- ADP1 Calibrator Adapter
- Mic Stand Thread Adapter
UPC: 827517726083
Reviews: Earthworks M23 G2 23kHz Omni Measurement Microphone
Warranty: Earthworks M23 G2 23kHz Omni Measurement Microphone
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
2 Year Warranty for microphones manufacturered after 1/31/2023
Preamplifiers are covered by a 2 year warranty, unless the unit is damaged by abuse or modification.
Accessories are covered by a 90 day warranty, unless the unit is damaged by abuse or modification. KickPads and LevelPads are covered by a 2 year warranty, unless the unit is damaged by abuse or modification.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
