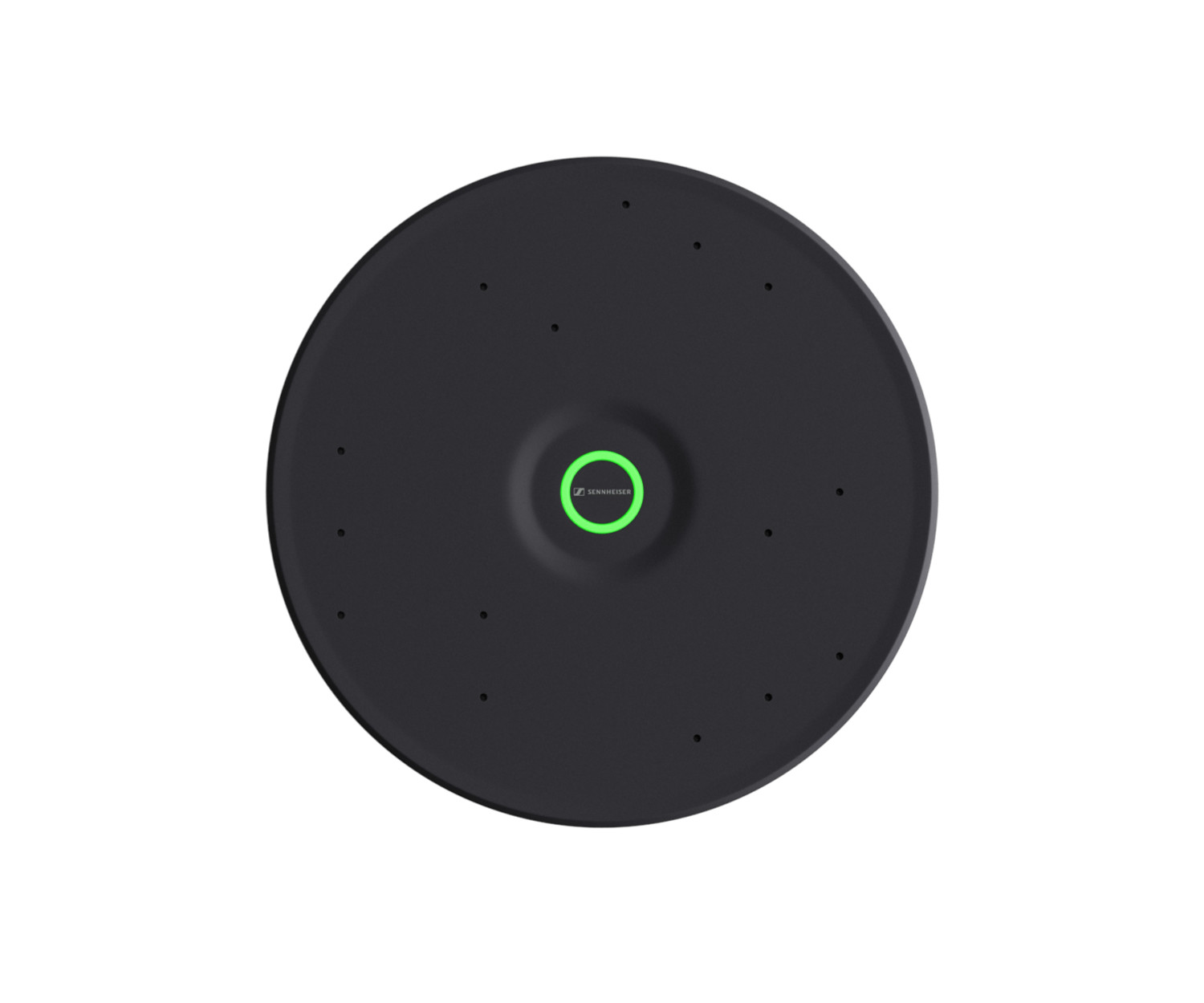

Sennheiser TeamConnect Ceiling M Plus Microphone Array w/ Flush Mount, Black

About: Sennheiser TeamConnect Ceiling M Plus Microphone Array w/ Flush Mount, Black

With a coverage of up to 60 m² (645ft²), the Sennheiser TeamConnect Ceiling M Plus ceiling microphone is the best choice for everyday medium and large collaboration spaces that need flexibility and scalability.

The TCC M Plus offers a range of new features such as PartnerLink and DeviceHub that make it the most straightforward ceiling microphone to set up, commission and use. TeamConnect Ceiling M Plus delivers perfect audio through enhanced beamforming technology, ensuring seamless sound every time, whilst also offering a new configurable standby mode for predictable power management to support sustainability goals and enterprise operational requirements.

Brand agnostic integration, multiple installation options and a sleek design in both a circle and square designs of course still remain.

• Centralized Device Management (DeviceHub)
• Browser-Based Setup and Control (LUI)
• Seamless integration with trusted partner solutions (Partnerlink)
• Patented automatic dynamic beamforming
• Reliable voice pickup up to 4.3 m across spaces up to 60 m²
• Built with 15 precision German-engineered capsules for accurate voice capture
• Reduces background noise for clearer speech intelligibility
• Energy-Saving Standby Mode
• TruVoiceLift – Natural In-Room Voice Lifting
• Automatic Speaker-Position detection for Camera Tracking
• Multiple connection options (Single Cable, Split Mode, Daisy-Chain)

​Specifications

• Product properties
  • Dimensions (Ø x H): 16 x 1.8 inch (407 x 46 mm)
  • Weight: 10.8 lbs (4.9 kg)
  • Audio Output
    • 1x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81)
    • 1x Digital Network AoIP (RJ-45)
  • Ethernet / Control: 1 x RJ-45 Ethernet Port for PoE power supply and data/control communication
  • Supply voltage: PoE IEEE 802.3af Class 3 or PoE IEEE 802.3at / Type 2 / Class 4 (when cascaded)
  • Power consumption: approx. 8 W
  • Safety certification: Tested according to UL 2043
• Acoustic properties
  • Transducer principle: Pre-polarized condenser microphone
  • AF frequency response: 100 Hz - 16.000 Hz
  • Sensitivity: 2 dBV/Pa (1 kHz)
  • Signal-to-noise ratio: 82 dB (A)
  • Equivalent noise level: 12 dB (A)
  • Number of microphone capsules: 15
  • Pick-up pattern: Beam Pattern
  • Max. sound pressure level: 98 dB SPL
  • Dynamic range: 86 dB (A)
• Ambient conditions
  • Temperature
    • Operation: 0 - 40°C (32 - 104 °F)
    • Storage: –10 - 60°C (14 - 140 °F)
  • Relative air humidity: 20 - 95 %, non-condensing

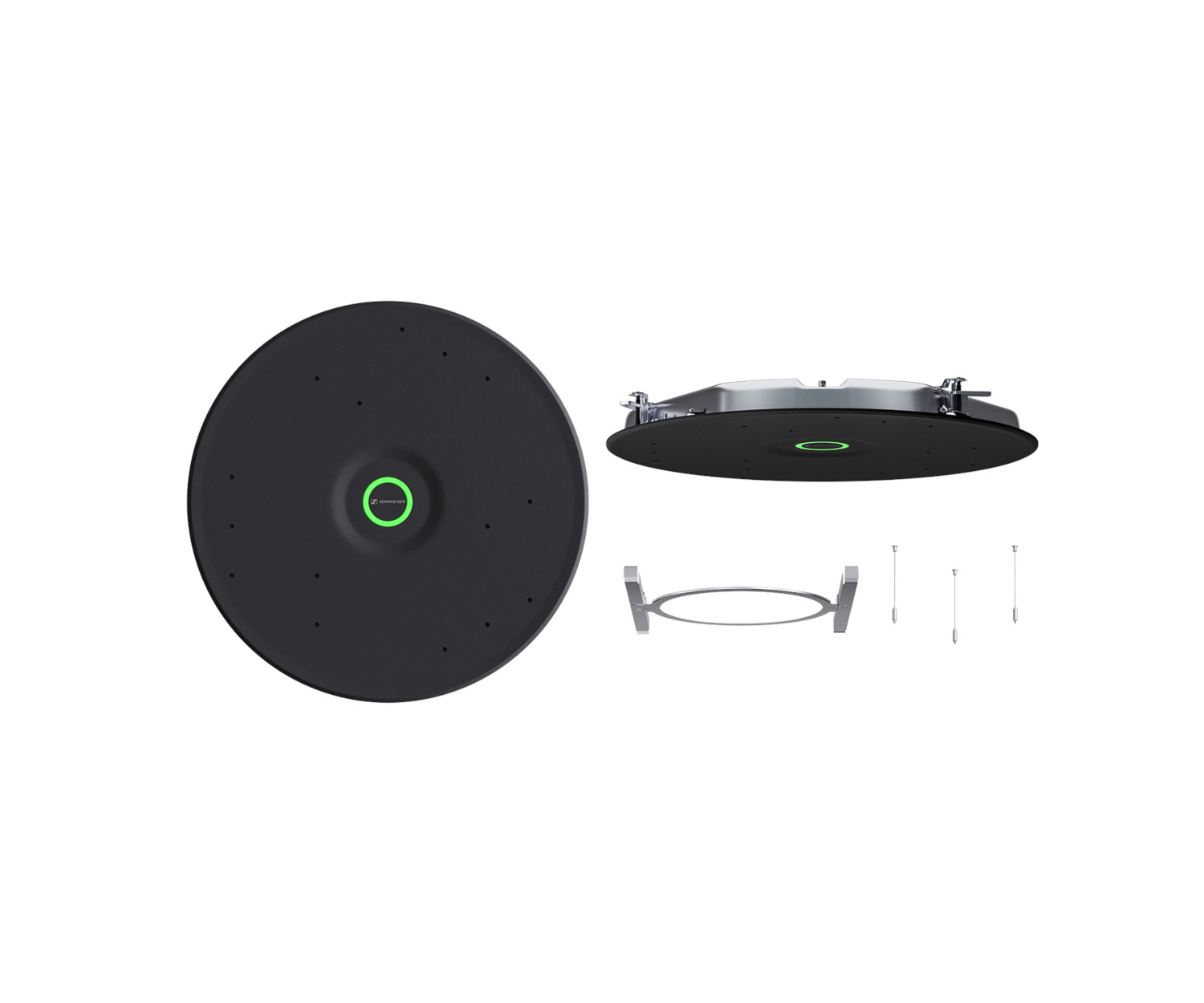

What's in the Box

• TCC M Plus Conferencing microphone
• Front plate (black)

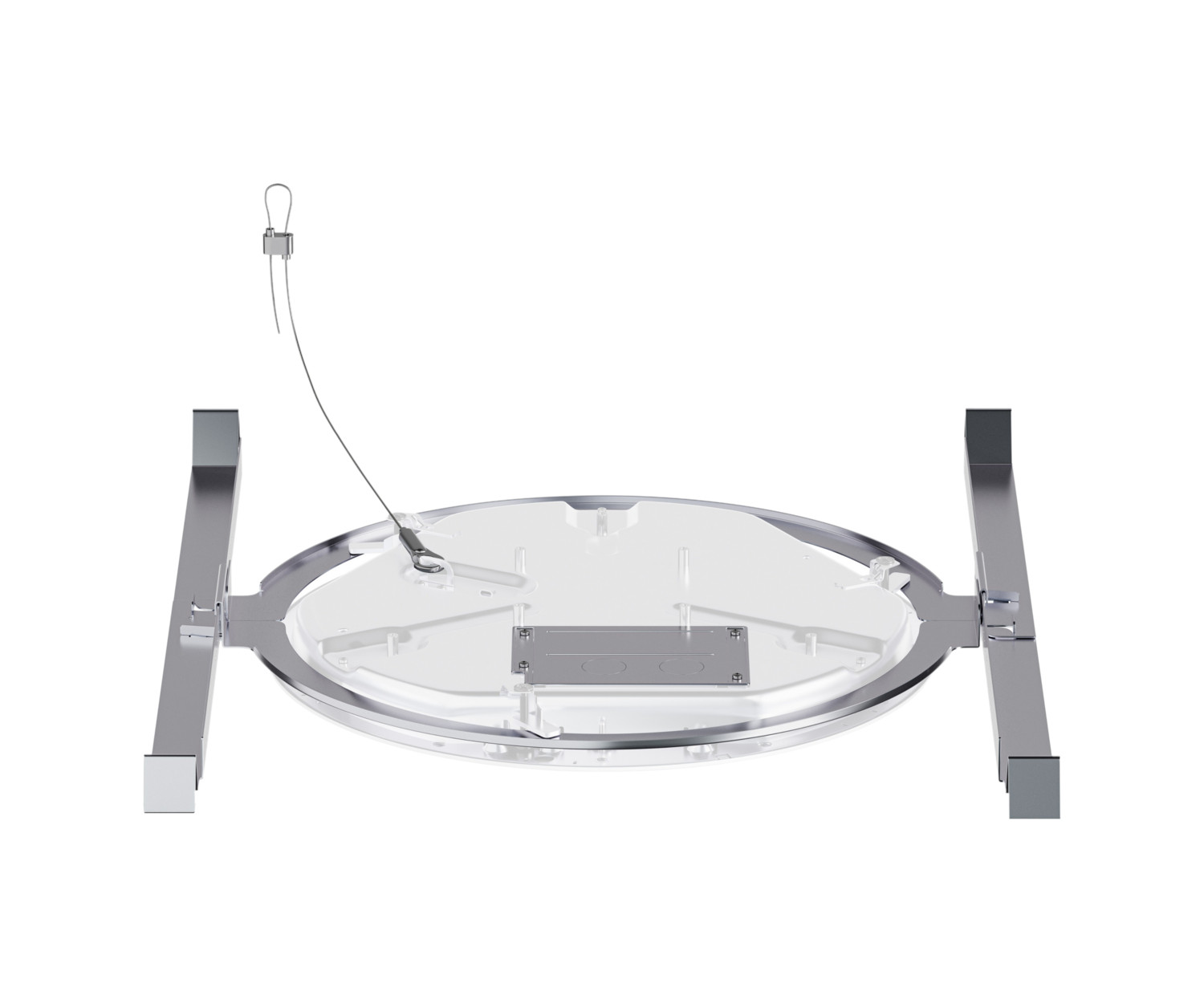

• Flush mount kit
• Chicago plenum connection box cover plate
• Drilling templates
• Phoenix connector
• Safety rope

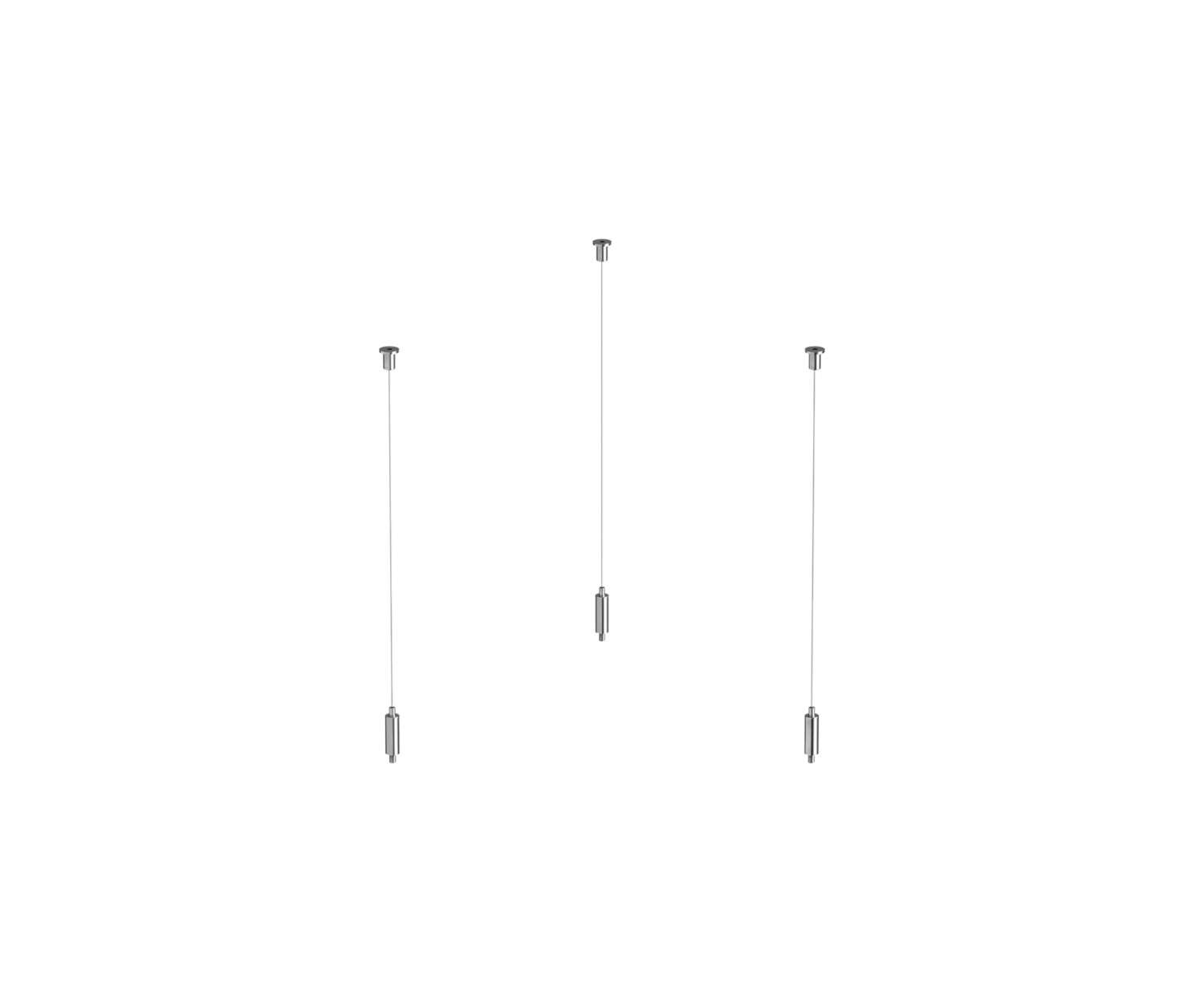

• Suspension kit
