Allen & Heath CC 7-Inch Custom Control Touchpanel
Model: CC-7
About: Allen & Heath CC 7-Inch Custom Control Touchpanel
Powered by the Allen & Heath Custom Control app, CC-7 and CC-10 are control touch panels for desktop or wall mount use. They can operate as fixed control devices or complementing a BYOD solution. From simple music source selection to level control, preset recall or paging, they offer an alternative to our range of IP remote controllers for applications where a touchscreen interface is preferred.

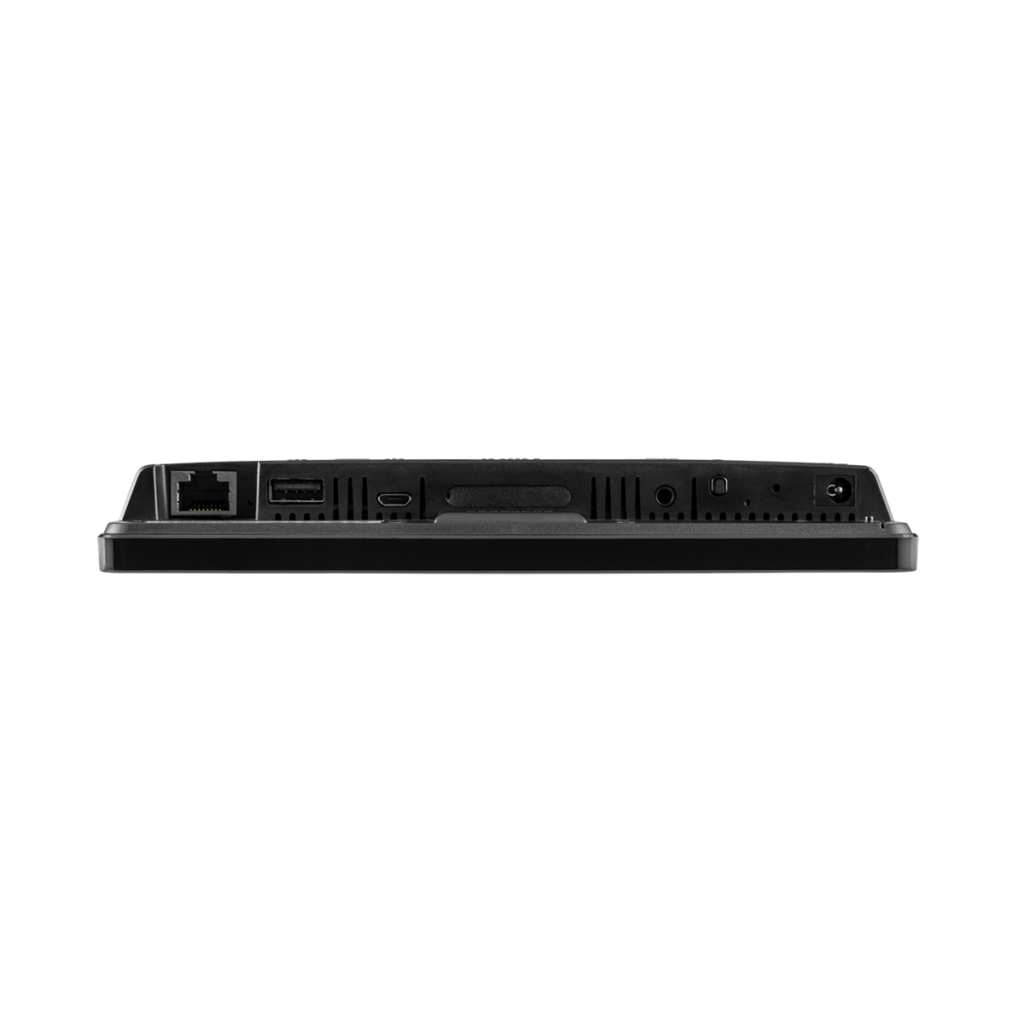

- PoE or DC 12V powered
- Gigabit Ethernet port
- USB-A port for Custom Control updates
- VESA 75×75 mounting
Two Size Options

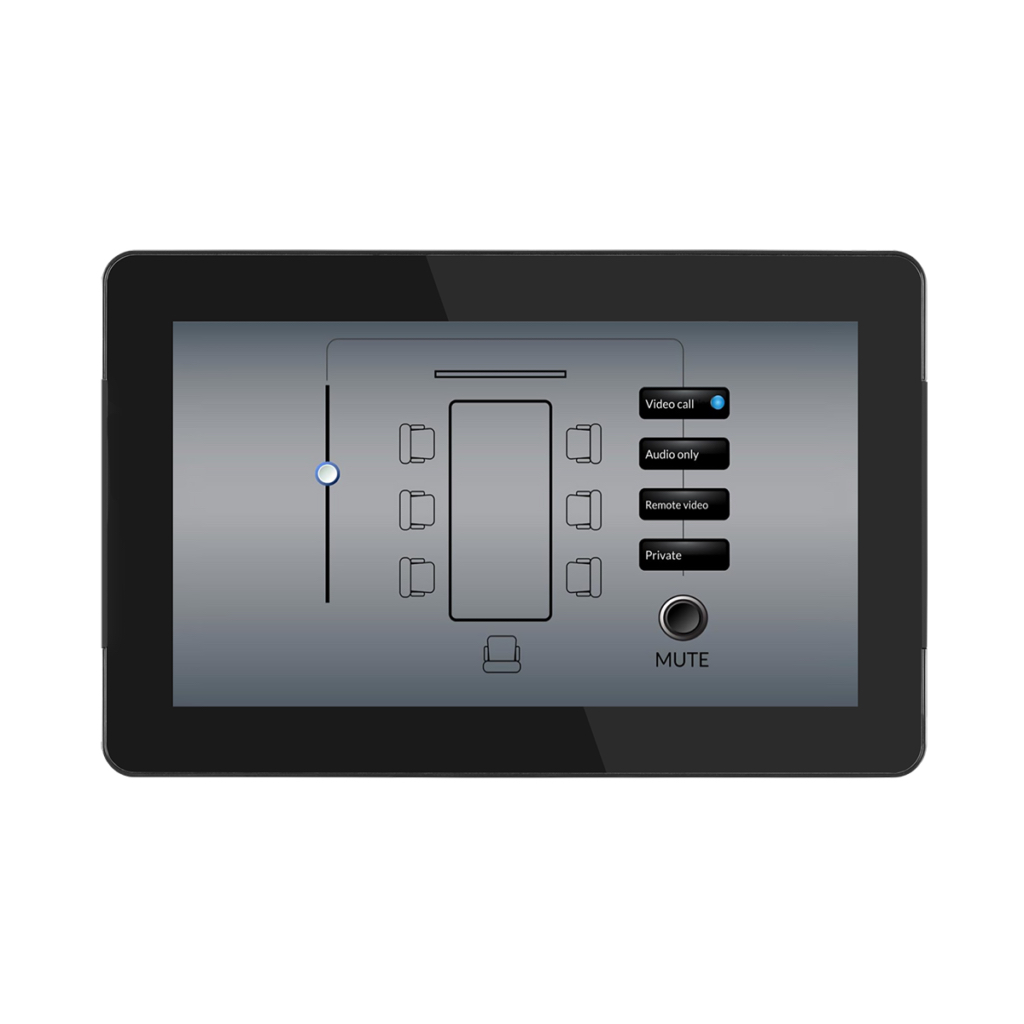

The CC-7 features a 7″ 1024×600 touchscreen and the CC-10 offers a 10″ 1280×800 touchscreen.
Easy to Mount

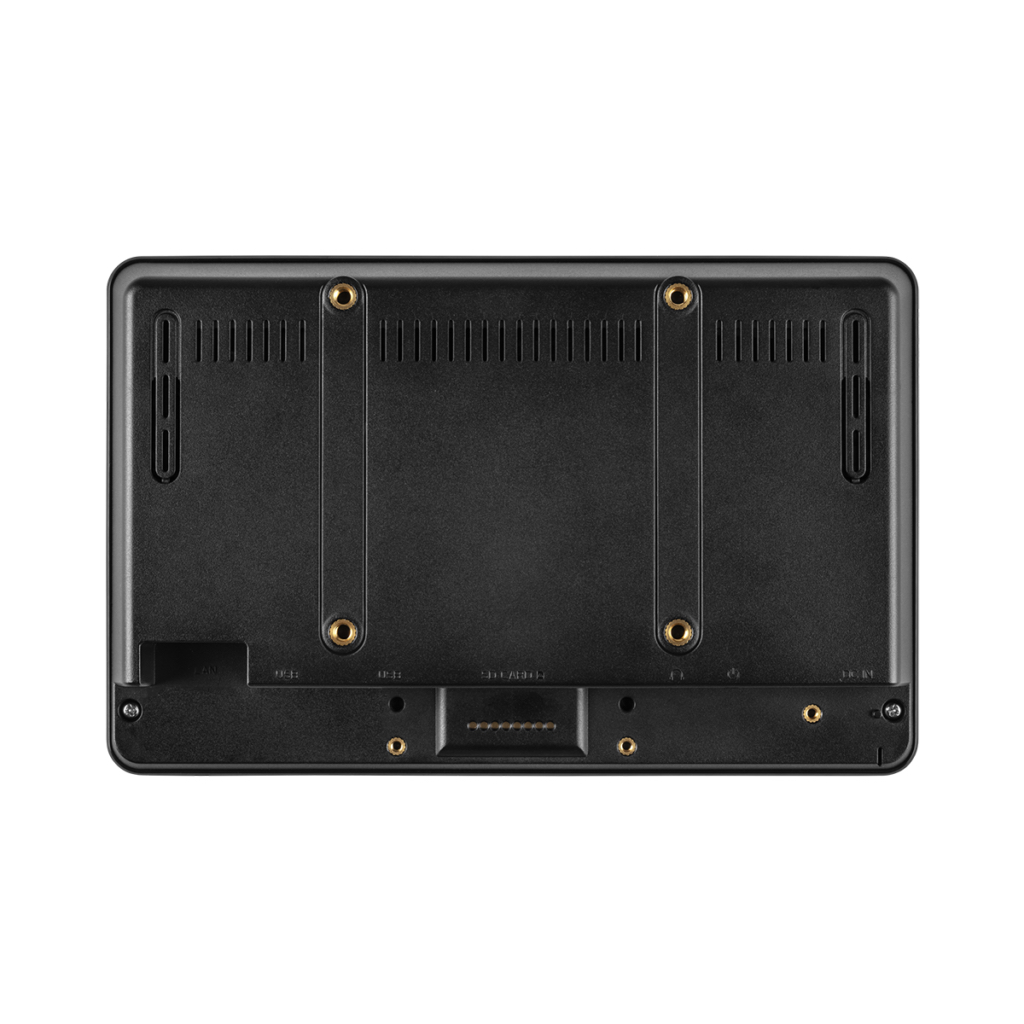

CC-7 and CC-10 have threaded inserts for standard VESA 75x75mm mounting, and optional desktop stand and wall/glass mount brackets are available.
Power Up
Both models can be powered via a 12V DC PSU or via PoE for a neater install.
Safe & Secure
Running Custom Control in kiosk mode, the app prevents unauthorised operation, securing the settings of the panel. The installer, integrator or system admin can exit the app to change the touch panel settings such as IP address or brightness, or to update the software.
System Design - Multiple User Interfaces
The integrator can freely design multiple user interfaces, tailored to different user levels and/or device types. For example, a bartender can be presented with a simple phone interface, while the AV operator can access uncluttered levels and routing on their tablet, but more comprehensive control when using their laptop.
Powered by Custom Control
Custom Control is a customisable, cross-platform control app, providing elegant, bespoke control over AHM, dLive and Avantis installed audio systems.
Specifications
- Power and Temperature
- DC Input - +12V DC 2A
- Operating Temperature Range - 0°C to 40°C (32°F to 104°F)
- PoE Requirements - 802.3af 15W
- CC-7 screen - Capacitive, 10 point touch projected
- Resolution - 1024x600
- Brightness - 240 cd/m2
- Viewing Angle - H 140° / V 130°
- Contrast Ratio - 600:1
- Aspect Ratio - 17:10
What's in the Box
- Touch panel CC-7
- 12V power supply unit
- Safety sheet
UPC: 6938122251427
