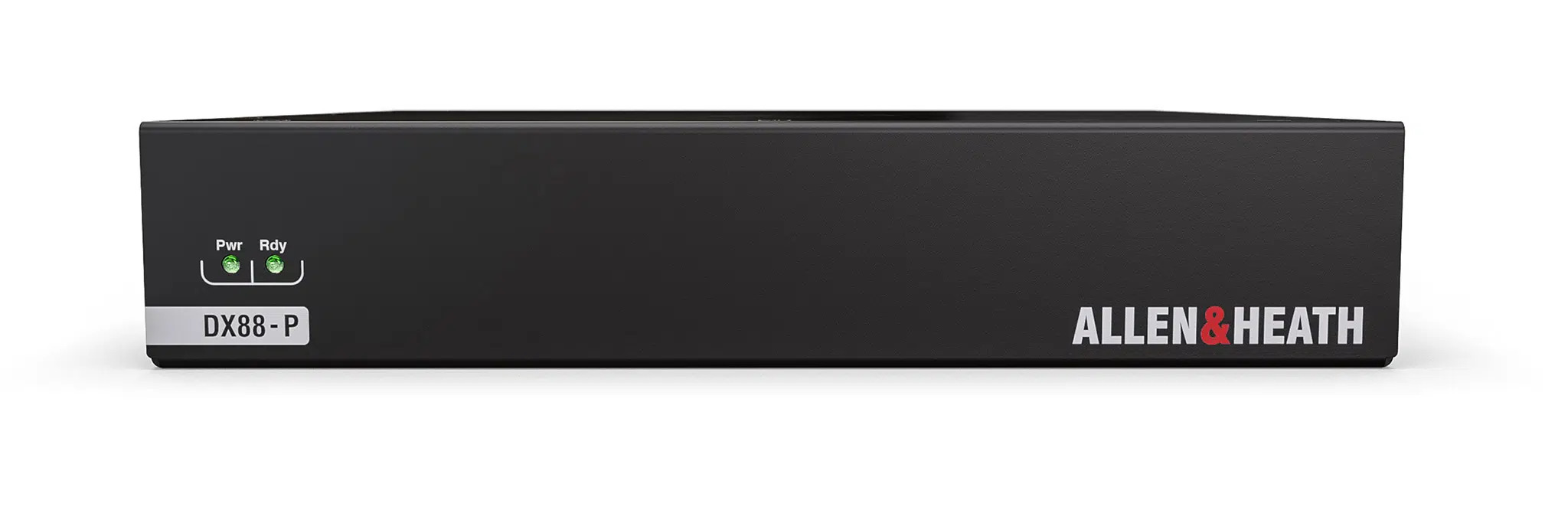

Allen & Heath DX88-P 8in / 8out 96kHz Expander
Model: DX88-P
About: Allen & Heath DX88-P 8in / 8out 96kHz Expander
The DX88 provides 8 inputs and 8 outputs on Phoenix / Euroblock connectors for fixed installations and is an easy way to add local or remote expansion to AHM Audio Matrix Processors.
- 8 Ins + Outs - Eight mic/line inputs with +60dB of gain, phantom power and -20dB pad, and eight line outputs, all on Phoenix/Euroblock connectors.
- Rackmountable - A rackmount kit is available for installing two DX88 expanders together. DX88 can also be installed alongside a GPIO or DX Hub with an additional kit.
- Cascade Mode - Cascade mode allows daisy-chaining of up to 2 DX Expanders on each DX port.
- Plug-and-Play - No configuration required, just connect to your mixer and you’re ready to go. Firmware updates are handled automatically by the mixer.
Easily Add Phoenix / Euroblock Inputs and Outputs via a DX Connection
DX88 is a 96kHz DX expander enabling convenient placement of 8 mic/line inputs and 8 line outputs – via standard Phoenix / Euroblock connectors – wherever you need to get additional analogue audio in and out of a fixed install.
Put It Where You Need It
The DX88-P can be placed up to 100m away from the mixer for maximum flexibility of positioning.

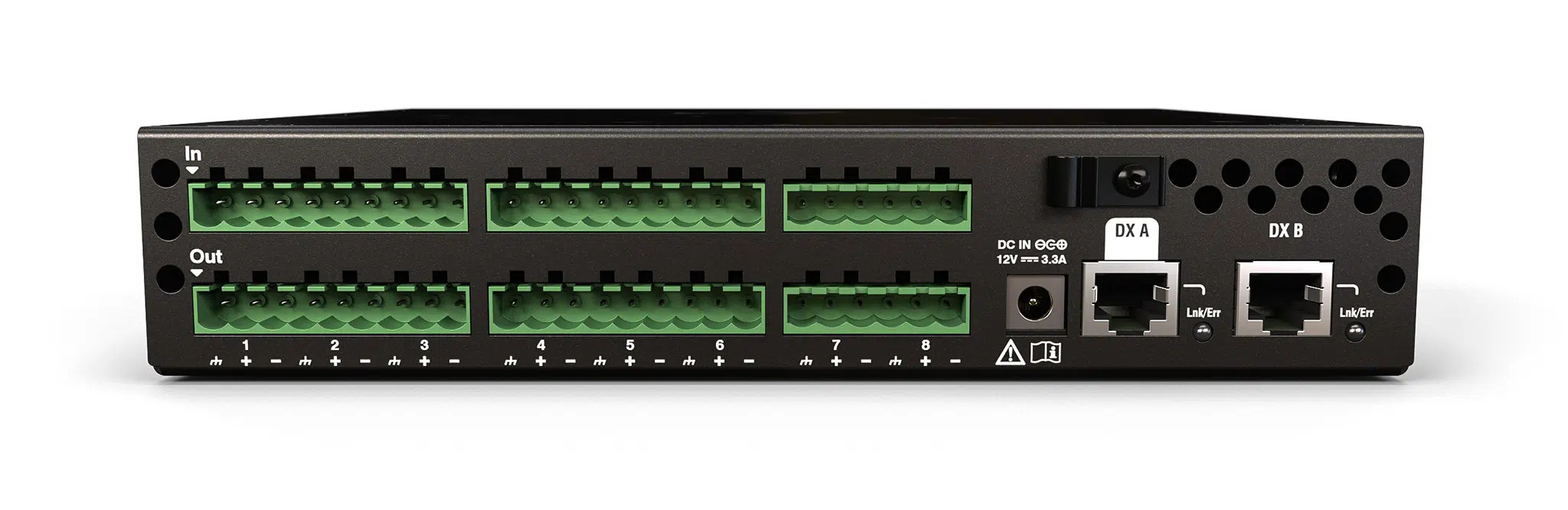

The expander connects via a single Cat5e cable to the mixer or upstream DX Expander via the DX A port. A second RJ45 port, DX B, is provided for daisy-chaining to a downstream DX Expander for additional remote I/O.
Optional Rack Mount Kit
An optional rack mount kit is available for installation of up to two DX88-P units in a 1U 19″ slot to interface with analogue equipment such as an AV switcher.
The DX88-P can also be rack mounted alongside a DX Hub or GPIO module by combining the optional rack kit with the DX Hub / GPIO rack kit.
UPC: 6938122253612
Reviews: Allen & Heath DX88-P 8in / 8out 96kHz Expander
Warranty: Allen & Heath DX88-P 8in / 8out 96kHz Expander
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Limited One Year Warranty on most products. See user manual for details.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
