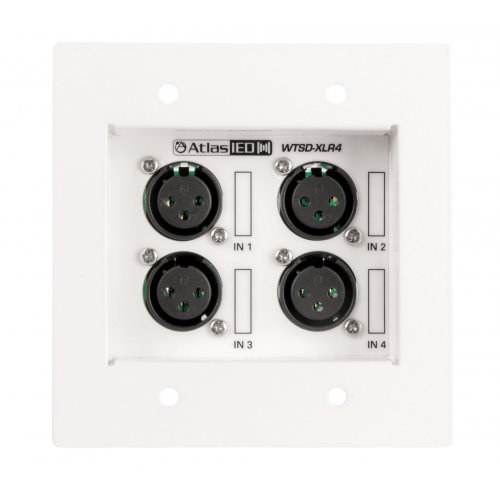

AtlasIED 2-Gang 4 Input XLR Passive Wall Plate

About: AtlasIED 2-Gang 4 Input XLR Passive Wall Plate

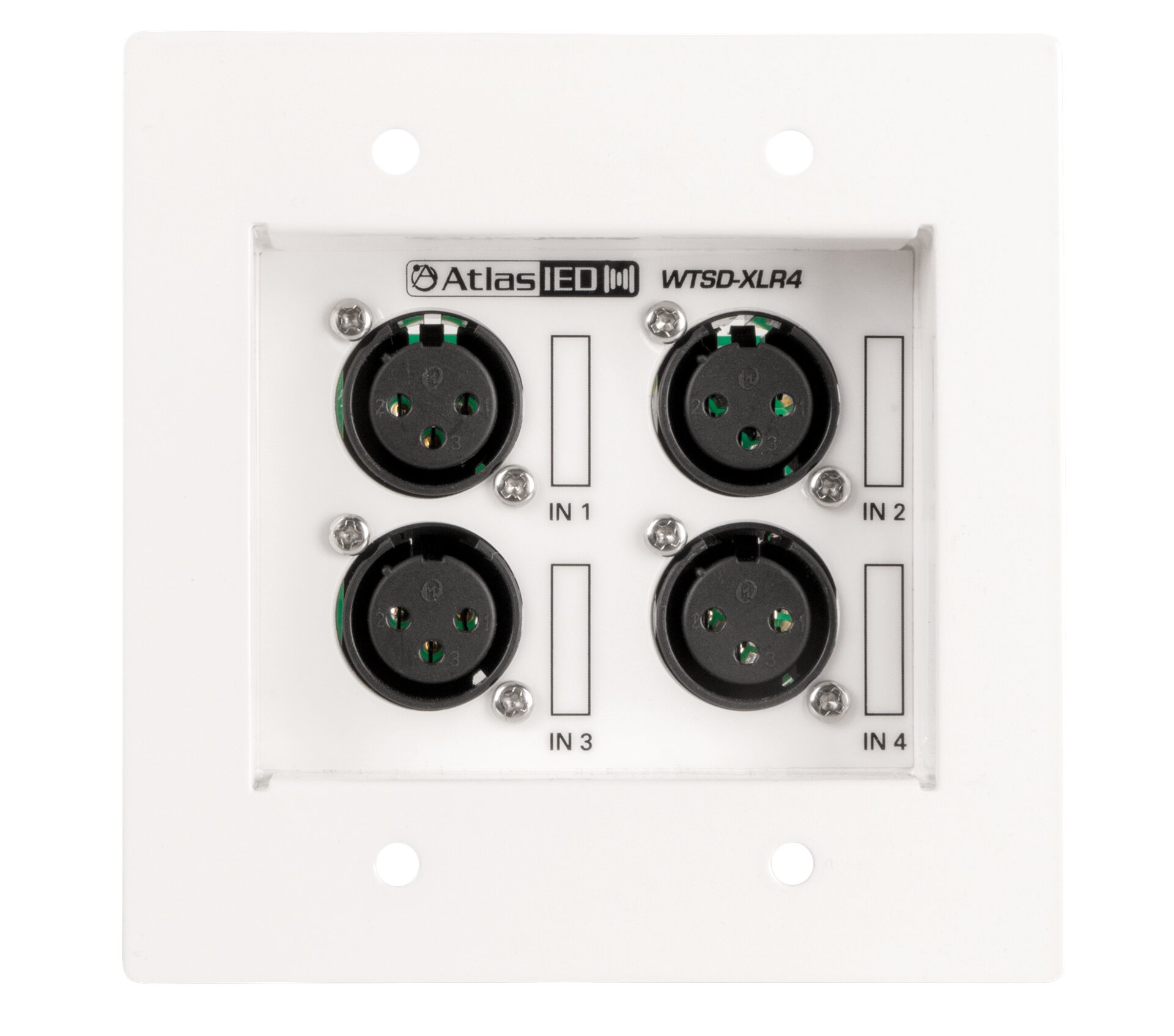

The WTSD-XLR4 is a 2-gang, 4-input XLR passive wall plate designed to be used in conjunction with the WTSD-MIX41K. The WTSD-XLR4 can also be used as a stand-alone wall plate for any balanced mic / line system that requires a remote input plate. Each XLR has a 3-way removable connector (G – +) for terminating standard 2-conductor w/shield wire. The WTSD-XLR4 includes 25' of 2-conductor + shield hook up wire (3mm diameter). The WTSD-XLR4 can be used with the stainless steel WTSD-COVER in indoor / outdoor applications where a weather-resistant, security cover is required.

Features

• 4 x XLR Inputs in a 2-Gang Standard Wall Plate Form

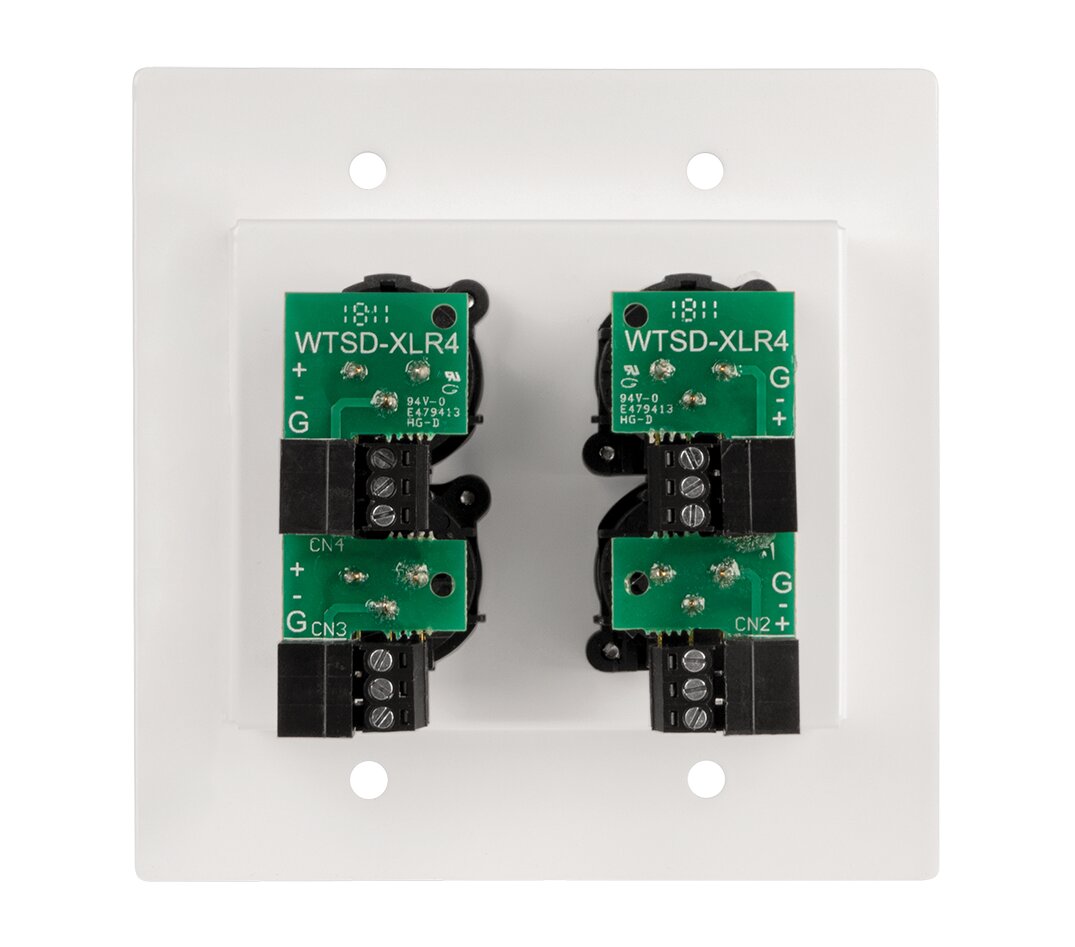

• Individual 3-Way Removable Connectors for Each XLR
• Strain Relief Tie-Down on PCB
• Provides XLR Mic / Line Inputs for WTSD-MIX41K
• Can Be Used to Add XLR Inputs to Any Balanced Audio Equipment
• 25' of 2-Conductor + Shield Hook Up Wire (3mm Diameter), Included
• Compatible with Indoor / Outdoor Security Cover, WTSD-COVER

Specifications

• Inputs
  • Input Type -  Balanced Mic or Line
    • Connection -  Panel Mount Female XLR, Qty 4
    • Impedance -  Passive
• Outputs
  • Output Type -  Pass-through Balanced Mic or Line, Qty 4
    • Connection -  Removable 3 Position Captive Screw 3.5mm Spacing Euro-block
• Ambient Operating Conditions
  • Maximum Temperature -  104°F / 40°C
  • Minimum Operating -  Temperature N/A
  • Maximum Humidity -  90%
• Mounting
  • Wall Plate -  2-Gang Electrical Box (Fits Most Standard, See Approved List and Dimensions)
• Mechanical
  • Chassis Finish -  White
  • Chassis Material -  Steel
  • Product Dimensions (HxWxD) -  4.37" x 4.34" x 1.98" (111mm x 110mm x 50mm)
  • Unit Weight -  0.53 lbs. (0.24kg)
  • Electrical Box Required -  2-Gang, Deep Box Required, 2.6" Minimum Depth (Note 1)

Accessories

• Wiring 25' of 2-Conductor + Shield Hook Up Wire (3mm Diameter), Included
• Screws 6/32 x 3/4" White Pan Head Screws, Included (Qty 4)
