Shure ANIUSB-MATRIX USB Audio Network Interface w/Matrix Mixing

About: Shure ANIUSB-MATRIX USB Audio Network Interface w/Matrix Mixing

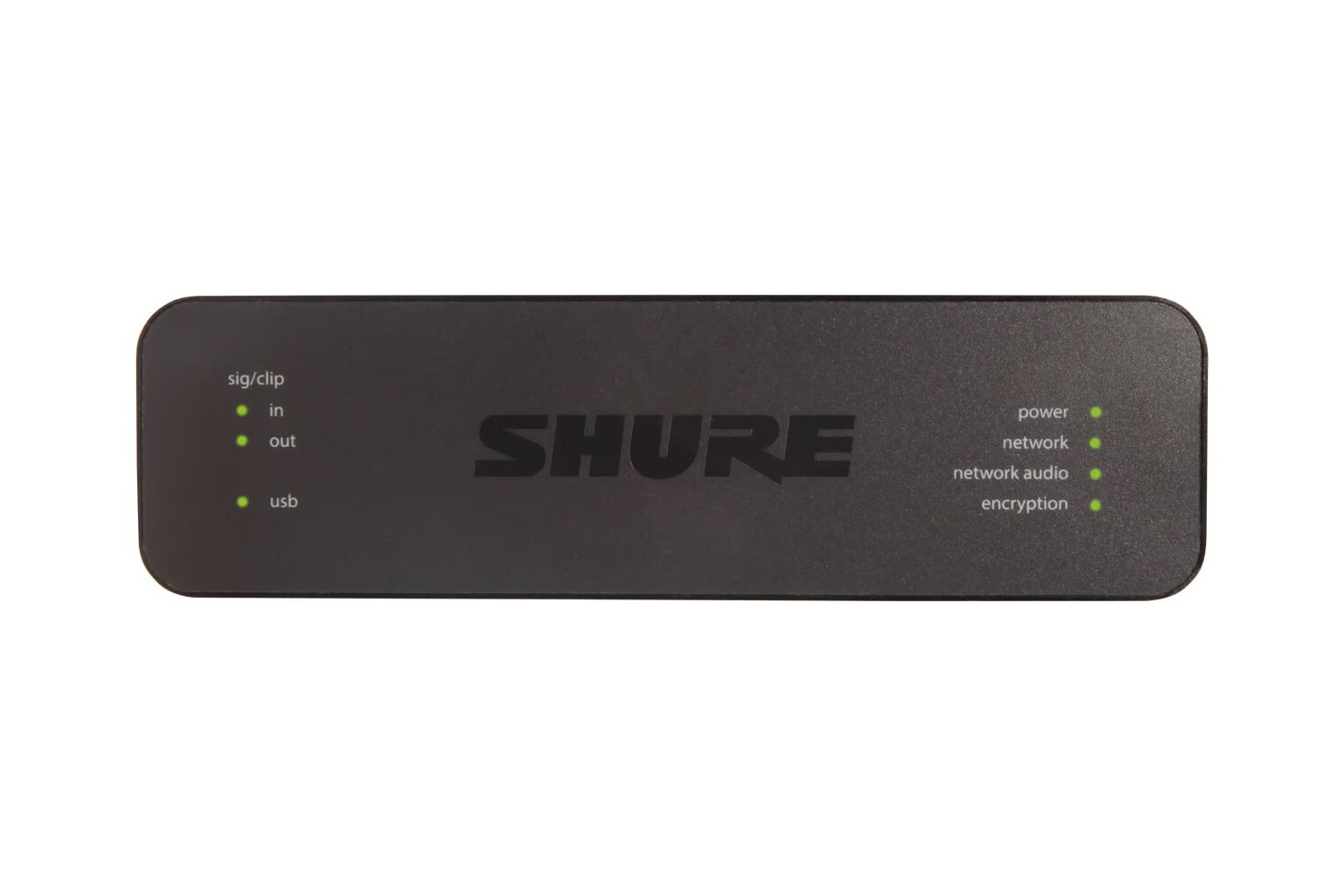

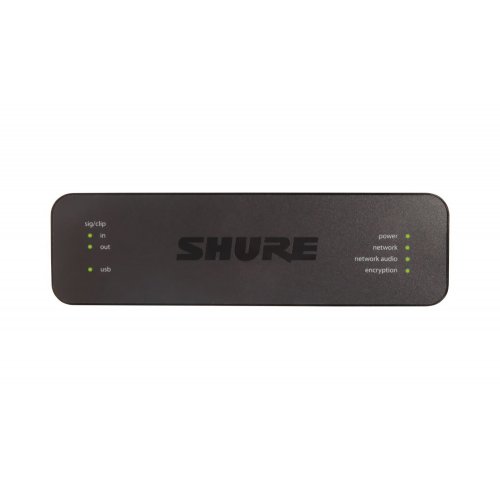

The ANIUSB-MATRIX Audio network interface connects up to 4 Dante channels and 1 analog output to a room's audio and video conferencing system via USB connection. Internal matrix mixer offers flexible routing, allowing users to route any input to any output.

• Connects 4 Dante audio inputs and 1 analog input to an A / V conferencing system or a PC-based videoconferencing application
• Flexible signal routing and connectivity: analog audio (1 block in / 1 block out) to room A / V conferencing system; USB (1 in / out) to connect to laptop or room PC
• Power-over-Ethernet (PoE) eliminates the need for an outboard power supply
• Compact form factor is easy to mount without equipment rack

The ANIUSB-MATRIX USB Audio Network Interface complements the existing ANI4IN, ANI4OUT, and ANI22 products. It offers the ideal performance, connectivity, and affordability for audio/video conferencing installations in small and medium-size meeting rooms when a premium microphone solution is desired, and acoustic echo cancellation of an A / V conferencing codec will be used.

The ANIUSB-MATRIX connects 4 Microflex® Advance™ or Microflex® Wireless microphone channels via Dante (4 in / 2 out), and provides analog connectivity (1 block in / 1 block out) to a room audio / video conferencing system or a PC-based A / V conferencing application via USB (1 in / out).

An internal matrix mixer offers flexible routing, allowing users to route any input to any output. A 4-band parametric EQ filter is also available on the analog and USB outputs.

The ANIUSB-MATRIX supports standards-based security protocols to manage access and protect data, including 802.1x, secure boot/storage, and AES encryption for control and audio data.

Specifications

• General
  • Analog Connections
    • Input (1) 3-pin block connector (Active Balanced)
    • Output (1) 3-pin block connector (Impedance Balanced)
  • USB Connections
    • (1) USB 2.0, Type B
    • Single port carries 1 input and 1 output channel (Summed mono)
  • Network Connections (Dante Digital Audio)
    • (1) RJ45
    • 4 input channels, 2 output channels
  • Polarity: Non-inverting, any input to any output
  • Power Requirements: Power over Ethernet (PoE), Class 0. (PoE Plus compatible).
  • Power Consumption: 6.5W, maximum
  • Control Software: Shure Designer
  • Operating Temperature Range: −6.7°C (20°F) to 40°C (104°F)
  • Storage Temperature Range: −29°C (-20°F) to 74°C (165°F)
  • Thermal Power Dissipation
    • Maximum 6.8W ( 23.0BTU/hr)
    • Typical 6.0W ( 20.8BTU/hr)
  • Dimensions (HxWxD): 4 x 14 x 12.8 cm (1.6 x 5.5 x 5.0 in.)
  • Weight: 668  g (1.5 lbs)
• Audio
  • Frequency Response
    • +1, -1.5  dB
    • 20 to 20,000 Hz
  • Dante Digital Audio
    • Sampling Rate: 48 kHz
    • Bit Depth: 24
  • USB Audio
    • Sampling Rate: 48 kHz
    • Bit Depth: 16, 24
  • Latency
    • Does not include Dante latency
      • Analog to Analog: 0.98 ms
      • Analog to Dante: 0.39 ms
      • Dante to Analog: 0.72 ms
      • Dante to Dante: 0.14 ms
  • Dynamic Range
    • 20 Hz to 20 kHz, A-weighted, typical
      • Analog-to-Dante: 113 dB
      • Dante-to-Analog: 117 dB
  • Equivalent Input Noise
    • 20 Hz to 20 kHz, A-weighted, input terminated with 150Ω
      • Line -86 dBV
      • Aux -98 dBV
  • Total Harmonic Distortion
    • @ 1 kHz, 0 dBV Input, 0 dB analog gain
    • <0.05%
  • Common Mode Rejection Ratio
    • 150Ω balanced source @ 1 kHz
    • >70 dB
  • Impedance
    • 10.6 kΩ
  • Input Clipping Level
    • Line +27 dBV
    • Aux +15 dBV
  • Output Clipping Level
    • Line +20 dBV
    • Aux +0 dBV
    • Mic -26 dBV
  • Built-in Digital Signal Processing
    • Per Channel: Equalizer (4-band Parametric, Analog and USB output channels only) , Mute, Limiter, Gain ( 140 dB range)
    • System: Matrix mixer
• Networking
  • Cable Requirements: Cat 5e or higher (shielded cable recommended)
