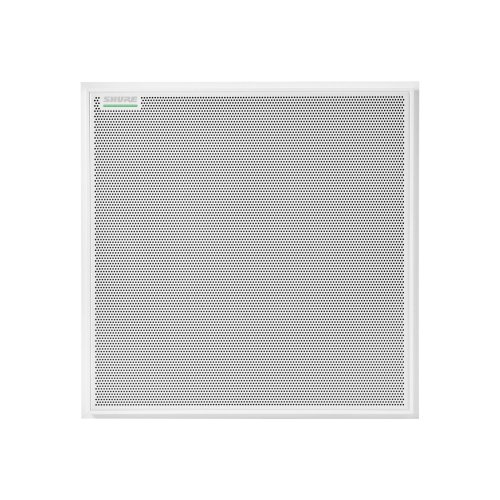

Shure MXA902 Ceiling Array Microphone with Integrated Loudspeaker

About: Shure MXA902 Ceiling Array Microphone with Integrated Loudspeaker

Introducing the first-of-its-kind MXA902 Integrated Conferencing Ceiling Array – a complete ceiling-mounted audio solution for AV conferencing, ideal for delivering premium audio capture and reproduction for small to medium-sized meeting spaces, and with minimal setup required.

The MXA902 combines a next generation array microphone for enhanced directional voice capture with an integrated wide-dispersion loudspeaker for natural sounding far-end speech reproduction plus onboard IntelliMix digital signal processing in a single ceiling unit, for the ultimate blend of superior sound quality and streamlined deployment.

The Fastest Way to Better Sound

• Array microphone and loudspeaker in one unit for premium sound with minimal installation time
• Single Zone Automatic Coverage technology to capture audio from a 20 by 20 foot (6 by 6 meter) area out of the box
• Integrated 2.5-inch wide-dispersion loudspeaker for clear, intelligible speech reproduction
• Onboard IntelliMix DSP with Acoustic Echo Cancellation, Noise Reduction, automatic mixing, AGC, EQ for echo- and noise-free audio
• Square form factor available in 2 ft or 60 cm sizes with paintable white finish

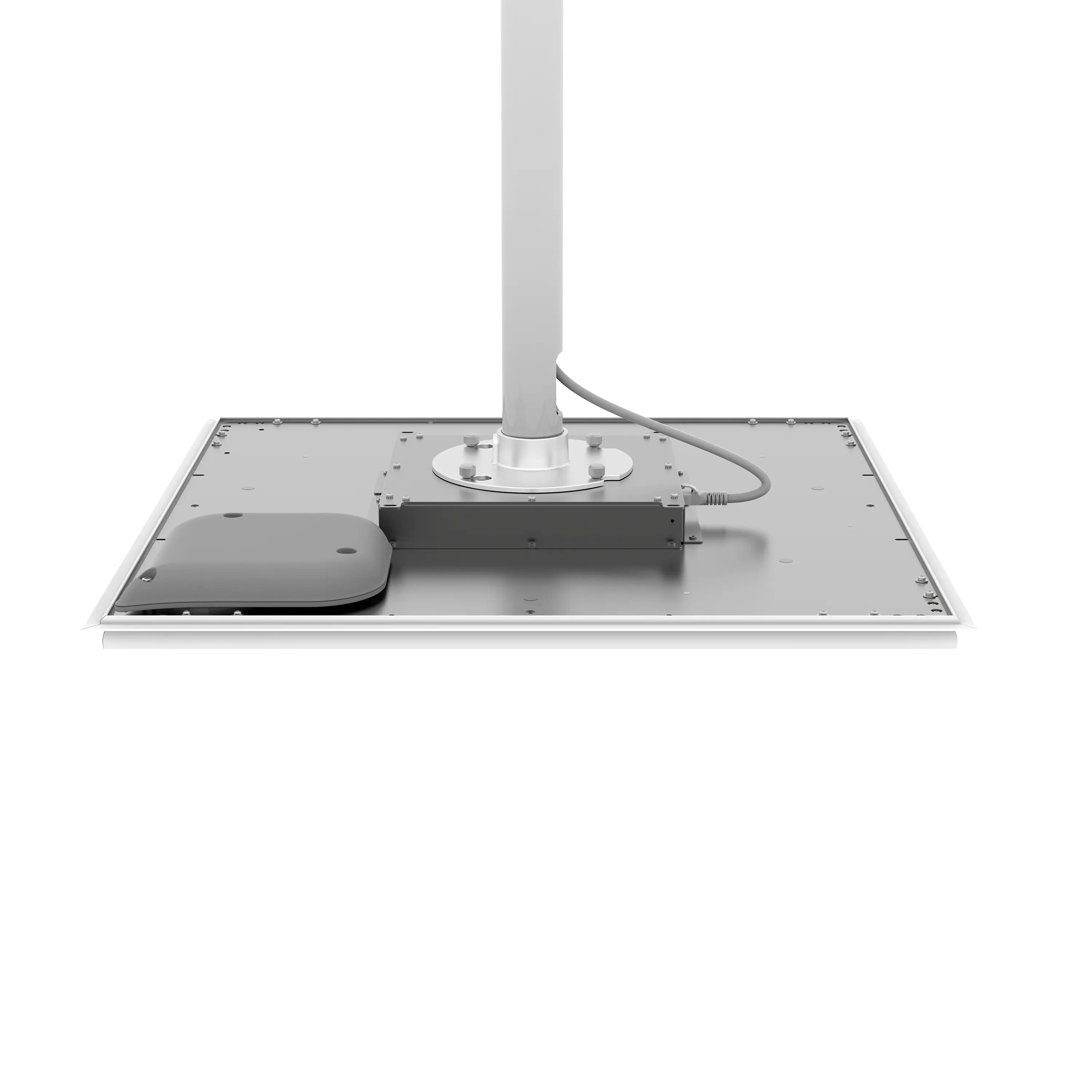

• Versatile options for ceiling, pole, or wire rope suspension mounting

How it Works

• An advanced array microphone, wide-dispersion loudspeaker and powerful signal processing combined into one unit for premium sound.
• Single Zone Automatic Coverage technology captures every talker in a 20 by 20 foot (6 by 6 meter) area while avoiding conversations and noises from other areas.
• High-output loudspeaker is optimized for voice reproduction to ensure effortless collaboration.
• Onboard IntelliMix DSP applies automatic mixing, echo cancellation, noise reduction, and automatic gain control for a pristine audio mix.

Why it's Better

• A single device requires only one network cable, minimizing installation time compared to separate components.
• An integrated ceiling device reduces clutter on tables and walls for a cleaner interior design.
• Next generation array architecture delivers enhanced low frequency directionality and the most natural speech quality.
• Unlike wall-mounted soundbar devices, a ceiling-mounted array mic and loudspeaker provide more consistent sound quality for every participant.

Quality that's in the Details

• Certified for use with Microsoft Teams, Zoom and compatible with popular collaboration tools.
• Square form factor available in 2 ft or 60 cm sizes with paintable white finish to meet the architectural needs of today’s meeting spaces.
• Audio, PoE+ power, and control signals connect via Dante/AES67 digital audio networking over a single cable.
• Shure Audio Encryption keeps meeting content secure between the MXA902 and other Microflex Ecosystem devices in the room.
• LED status bar with configurable colors and brightness.
• Command strings enable seamless integration with third-party room control systems.

Specifications

• General
  • Coverage Area Size -  20 x 20 ft (6.1 x 6.1 m)
  • Coverage Type -  Single-zone automatic
  • Power Requirements -  Power over Ethernet Plus (PoE+), Class 4
  • Power Consumption -  24 W maximum
  • Control Software -  Designer
  • Cable Requirements -  Cat5e or higher (shielded cable recommended)
  • Connector Type -  RJ45
  • Plenum Rating -  UL2043 (Suitable for Air Handling Spaces)
  • Dust Protection -  IEC 60529 IP5X Dust Protected
  • Operating Temperature Range -  −6.7°C (20°F) to 40°C (104°F)
  • Storage Temperature Range -  −29°C (−20°F) to 74°C (165°F)
• Microphone
  • Frequency Response -  125 Hz to 20 kHz
  • AES67 or Dante Digital Output
    • Channel Count -  1 output channel
    • Sampling Rate -  48 kHz
    • Bit Depth -  24
  • Sensitivity (at 1 kHz) -  ​−1.74 dBFS/Pa
  • Maximum SPL -  Relative to 0 dBFS overload 95.74 dB SPL
  • Signal-to-Noise Ratio -  Ref. 94 dB SPL at 1 kHz 75.76 dB A-weighted
  • Latency -  Does not include Dante latency 26.6 ms
  • Self Noise -  18.24 dB SPL-A
  • Dynamic Range -  77.5 dB
  • Digital Signal Processing -  Automatic mixing, acoustic echo cancellation (AEC), noise reduction, automatic gain control, compressor, delay, equalizer (4-band parametric), mute, gain (140 dB range)
  • Acoustic Echo Cancellation Tail Length -  Up to 250 ms
• Loudspeaker
  • AES67 or Dante Digital Input Channel Count -  2 input channels
  • Frequency Range (−10 dB) -  120 Hz to 20 kHz
  • Maximum Output Level (At 1 meter)
    • Pink noise -  86 dB SPL
    • 1 kHz sine tone -  88 dB SPL
  • Coverage Angle (Average of 1 octave band centered on 4 kHz) -   80°
  • Digital Signal Processing -  Delay, compressor, signal generator, equalizer (4-band parametric)
  • Latency (Not including Dante latency) -  6.3 ms
• Dimensions
  • Flange -  0.41 in. (10.5 mm)
  • Edge to edge -  23.77 in. (603.8 mm)
  • Height -  2.2 in. (56.04 mm)
  • Weight -  12.7 lb. (5.8 kg)

What's in the Box

• 1x MXA902W-S array microphone with loudspeaker
• 1x Hardware kit includes:
• 8x Cable ties
• 3x Strain relief tabs
• 1x Rubber pad set
