RDL RU-MX5ML 5-Channel Mic/Line Audio Mixer

About: RDL RU-MX5ML 5-Channel Mic/Line Audio Mixer

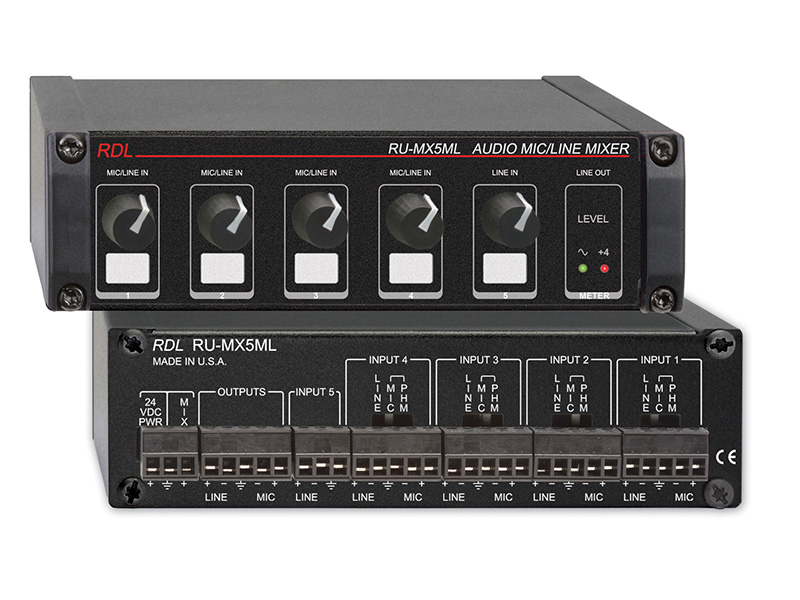

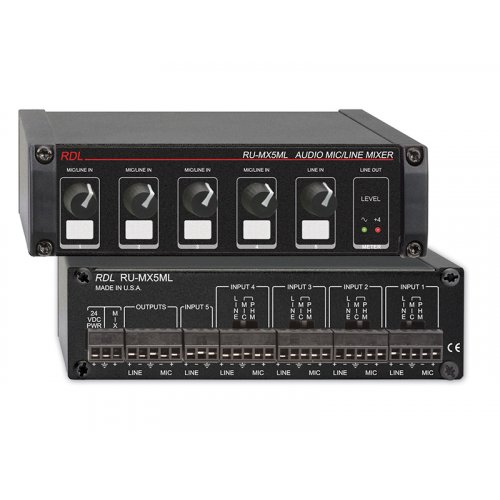

The RU-MX5ML is the ideal choice in many applications where a combination of balanced mic and/or balanced or unbalanced line-level signals needs to be mixed with the ability for additional expansion. All connections are made using detachable terminal blocks on the rear panel. Four of the RU-MX5ML inputs can accept either mic or line inputs. The fifth input is for line level sources.

24 V phantom is individually switch selectable for each mic input. The output from one RU-MX5ML may connect to the MIX input of another RU-MX5ML to expand mixing capabilities. The output section provides both a balanced line (+4 dBu) and balanced microphone level (-45 dBu) output. Both outputs may be used at the same time. Audio levels are adjustable on the front panel. The output is equipped with a front-panel dual-LED VU meter that follows standard VU ballistics.

• Inputs (6): 4 selectable mic or line level; 1 line level; 1 direct MIX; detachable terminal block
• Input Impedance: Mic: >1.2 kΩ balanced; Line: >10 kΩ balanced
• Maximum Input Level: Mic: -20 dBu; Line: +24 dBu
• Phantom: Switch-selectable 24 V (IEC 61938: 2013)
• Gain: Mic: Off to 65 dB; Line: Off to 15 dB
• Outputs (2): Mic: -45 dBu balanced; Line: +4 dBu balanced; detachable terminal block
• Output Impedance: 150 Ω balanced
• Frequency Response: Mic: 80 Hz to 40 kHz (±1 dB, < -6 dB at 20 Hz with integral high-pass filter); Line: 10 Hz to 35 kHz (± 0.5 dB)
• THD+N: Mic: < 0.03%; Line: <0.003%
• Headroom: 20 dB (above +4 dBu output)
• Noise: < -70 dB below +4 dBu output (20 Hz to 20 kHz, all mic channels at 50 dB gain; or one mic channel active at 60 dB gain); < -90 dB below +4 dBu (20 Hz to 20 kHz, all channels off)
• CMRR: Mic: > -65 dB (10 Hz to 10 kHz); Line: > -45 dB
• Metering: Dual-LED VU Meter (calibrated to +4 dBu)
• Dimensions: Height: 1.7 in. 4.3 cm; Width: 5.8 in. 15.0 cm; Depth: 4.8 in. 12.2 cm
• Ambient Operating Environment: 0° C to 55° C
• Power Requirement: GROUND-REFERENCED, 24 Vdc @ 75 mA (120 mA max. including phantom); detachable terminal block
• Package Type: Cardboard Box
• Package Dimensions: 6 x 6 x 2.625 in.
• Shipping Weight: 1.385 lbs.
• WEEE weight: 1.13 lbs.
• Tariff code: 8543.70.9860
