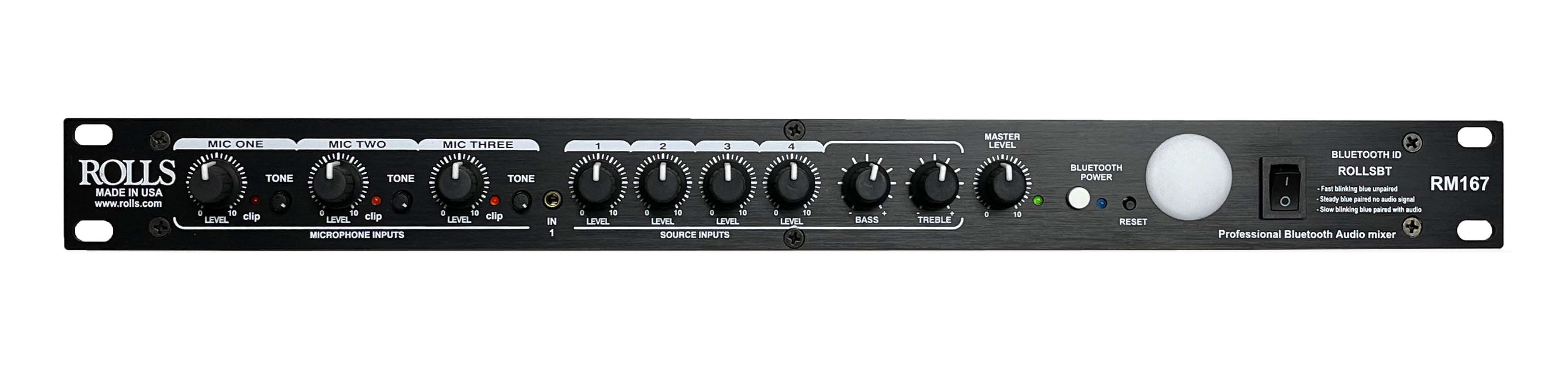

Rolls RM167 Professional Bluetooth Audio Mixer

About: Rolls RM167 Professional Bluetooth Audio Mixer

Introducing the RM167 - the ultimate single rack space mixer meticulously crafted for the install/contractor market, now equipped with Bluetooth connectivity. This versatile unit brings together three balanced microphones and four stereo sources, seamlessly blending them into mono or stereo balanced outputs.

Featuring XLR Microphone Inputs with Mic/Line level switches, a convenient send/return Insert jack, and individually switchable +12 VDC phantom power, the RM167 ensures effortless integration and exceptional audio performance.

Experience enhanced functionality with priority talkover capabilities, complemented by adjustable Duck Sensitivity on microphone one for seamless paging, perfect for jukebox, telephone systems, and more.

Enjoy complete control over your audio with dedicated level and tone controls for each Microphone input, as well as individual level controls for Source inputs. Fine-tune your sound with Bass and Treble controls, conveniently available for all sources, while the Master Output Level control allows precise adjustment of all mixed signals.

Discover the added convenience of Source One′s front-panel 3.5mm input, offering even more options for connecting your preferred devices. Capture your audio with ease using the pre-Master RCA output for recording purposes.

For effortless, on-the-fly adjustments, the RM167 also provides a Remote Volume output jack, allowing seamless connection to a 100K ohm linear taper potentiometer for use as an external master level control (not included).

Immerse yourself in a world of top-tier audio mixing with the RM167, where seamless integration, versatile controls, and impeccable sound quality redefine the standards of the industry.

Specifications

• Input Impedance
  • Mic: 600 Ohms XLR balanced
  • Line: 22K Ohms
  • Source: 22K Ohms gold plated RCA
  • Mic Insert: 22K Ohms 1/4”TS unbal
• Max Input Level
  • Mic
    • -14 dBV Mic level
    • +20 dB Line level
  • Source: 24 dBV
• Connectors: 3: XLR, 6: Stereo RCA, 3: 1/4”TRS, 1: 1/4”TS, 1: 3.5mm
• Phantom Power: +12 VDC
• Output Level: +17 dBV max
• Output Impedance: 51 Ohms
• Max Gain
  • Mic: 60 dB
  • Source: 26 dB
• Tone Controls
  • +/-12 dB 100 Hz Bass
  • +/-12 dB 11kHz Treble
• Noise Floor: - 80 dB, THD: <.025%, S/N Ratio: 96 dB
• Size: 19 x 1.75 x 6 in (48.3 x 4.5 x 15 cm)
• Weight: 5 lbs. (2.3 kg)
