AudioPressBox APB-216 C-D Portable, Active, Dante-Enabled Pressbox

About: AudioPressBox APB-216 C-D Portable, Active, Dante-Enabled Pressbox

Professional portable, active, Dante-enabled pressbox with 2 Line/Mic & 1 ch Dante inputs and 16 Line/Mic outputs. It is suitable for both indoor and outdoor press conferences due to built-in rechargeable accu pack and heavy duty Nanuk case.

• 2 MIC (phantom power) / LINE Inputs – balanced with gain control and 26dB PAD
• 1 Channel DANTE Input - RJ45 ethercon
• 16 balanced and individually transformer isolated outputs
• Each Output is switchable between MIC or LINE output level
• Built-in Compressor and Limiter for each Input
• Li-Ion AccuPack with microprocessor controlled battery management
• 20 hours battery operation time. Note: AccuPack is placed (built-in) inside the unit
• On unit printed QR code for online access to manual, user guide and video guide

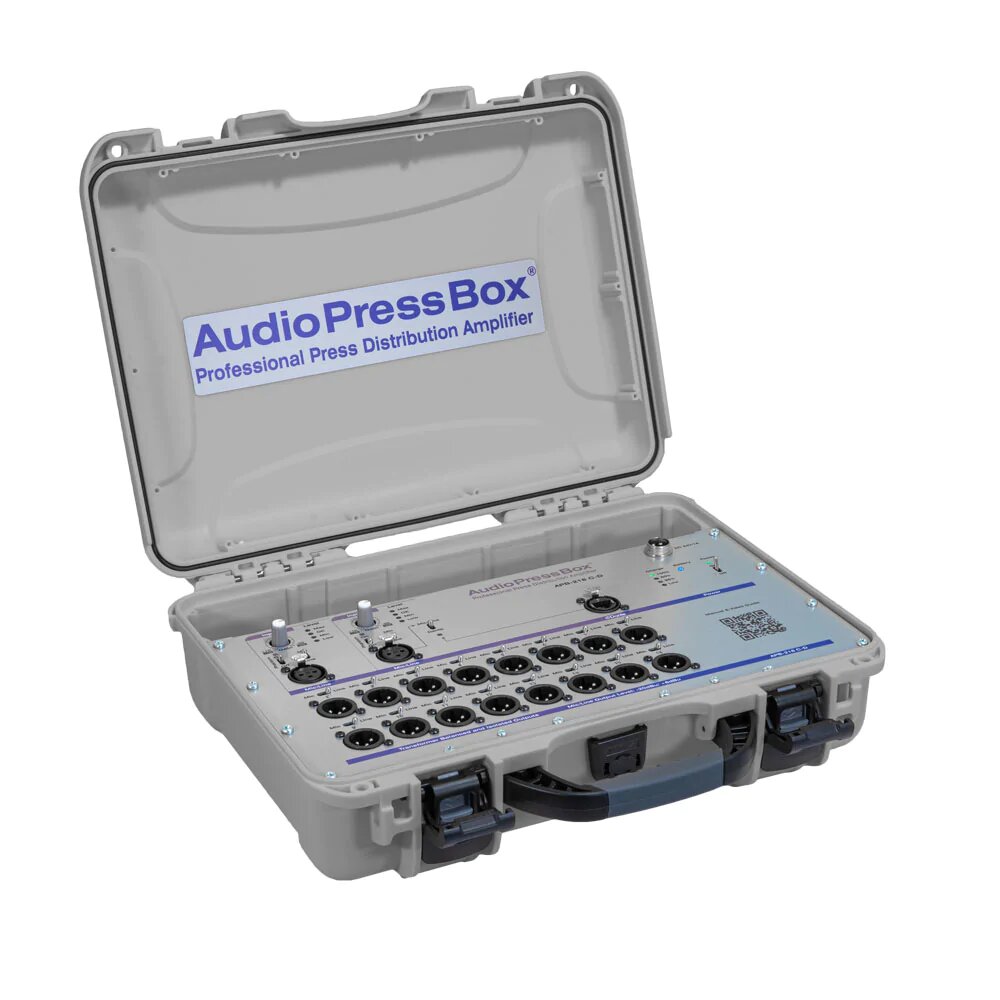

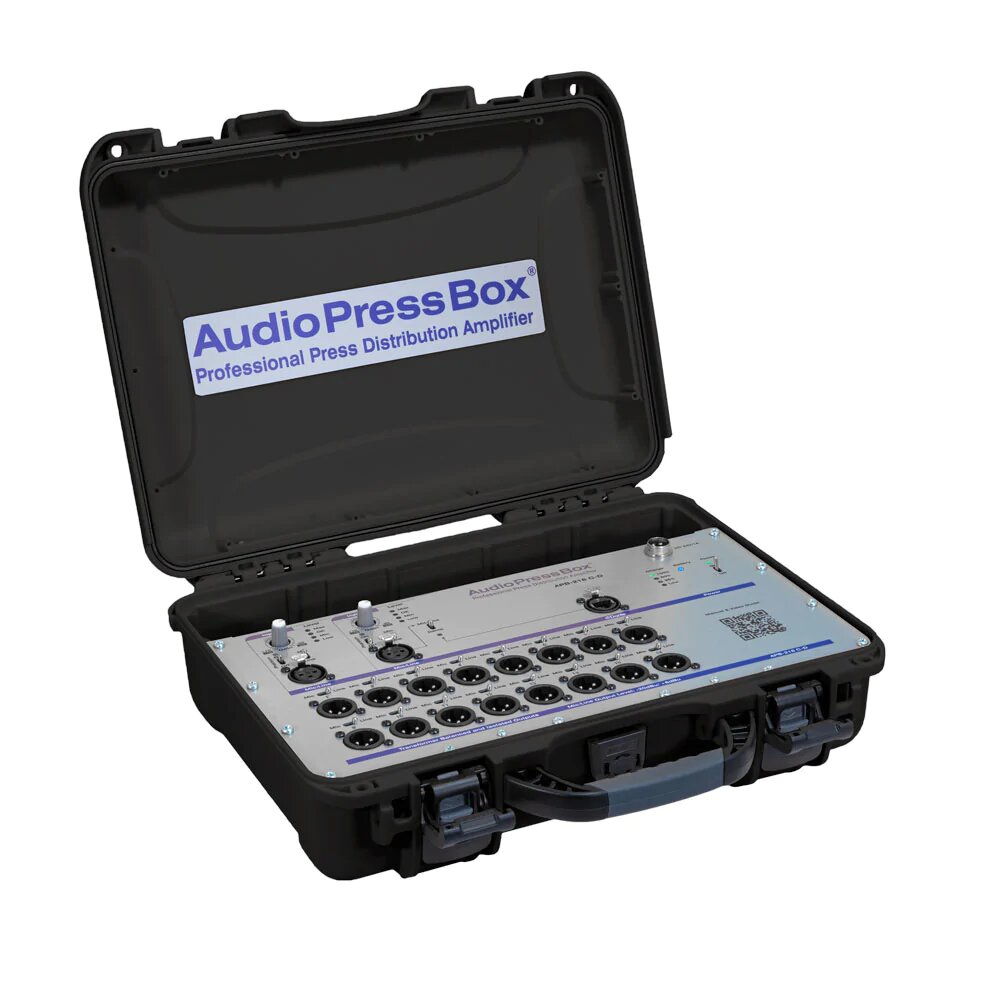

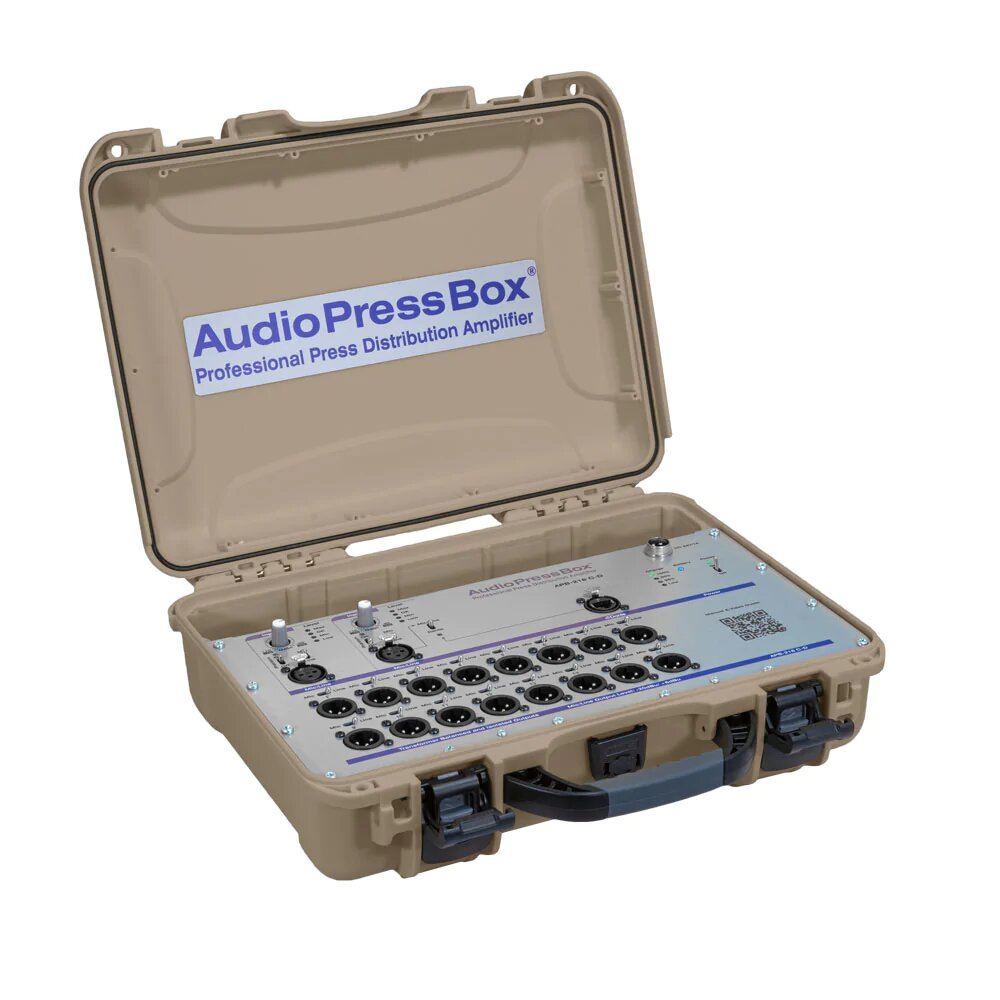

• Available in 6 Colours: Yellow, Tan, Orange, Black, Lime, and Silver

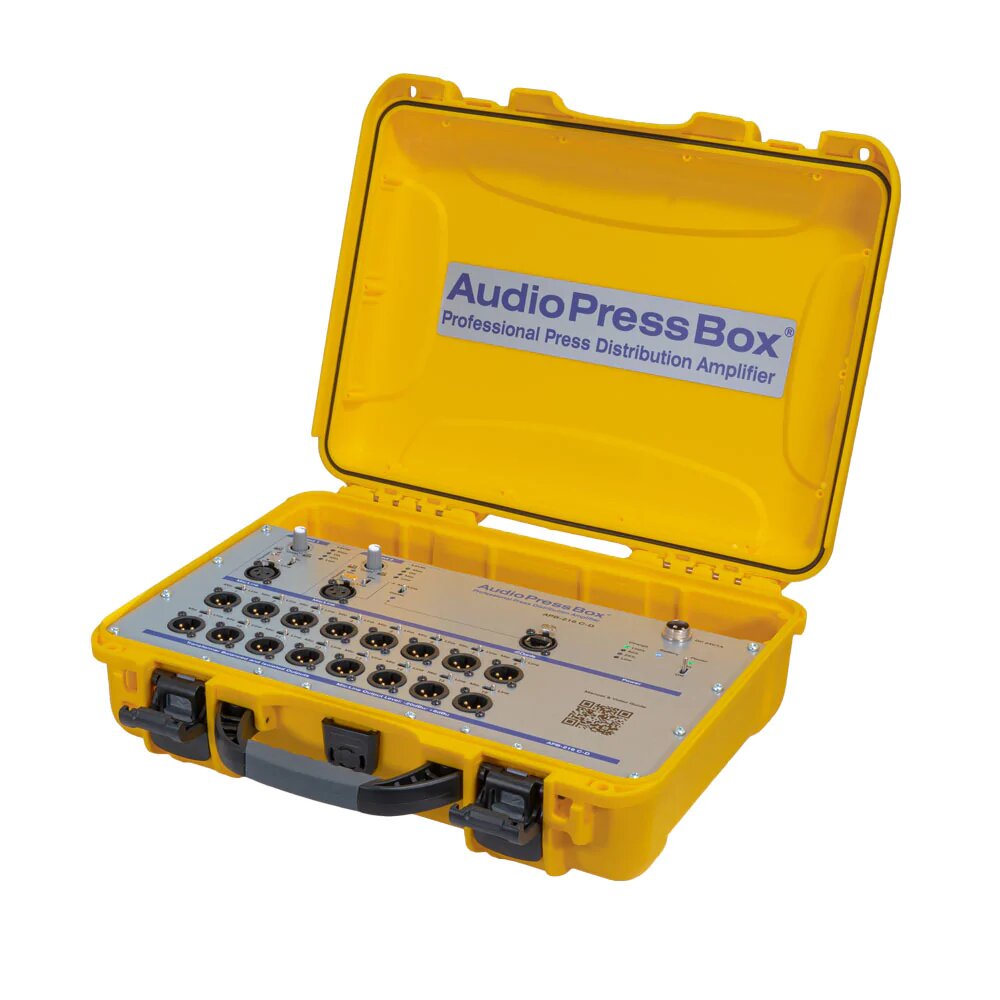

  • NOTE: The default colour of the case is YELLOW. If you wish to order it in different colour please Contact Us.

Specification

• Audio Press Box APB-216 C-D
  • Type -  2 in 16 out with Dante
  • Groups -  1
  • Input section
  • Inputs -  2 analog, 1 Dante
• Analog
  • Input connectors -  Balanced, XLR
  • Input Gain -  Mic: +22/+62dB,  Line: -4/+36dB
  • Max. input level -  Mic: -10/-30dBu,  Line: +36/-4dBu
  • Phantom Voltage -  48V
  • Input Impedance -  Mic: 2,4 kΩ,  Line: 3,5 kΩ
• Dante
  • Number of channels -  1
  • PoE Requirement -  No
  • Reference level -  -18dBFS
  • Input connector -  RJ45
• Output section
  • Outputs -  16 Line/MIC level
  • Output connectors -  Balanced, XLR
  • Nominal Output Level -  +6dBu
  • Maximum Output Level -  +20dBu (no load),  +14dBu (600Ω)
  • Output impedance -  Mic: 220Ω,  Line: 600Ω
  • Transformer isolated outputs -  Yes (each output)
  • SNR -  86dB
  • Frequency Response -  120Hz to 30kHz/ -1dB
• Controls
  • Input section -  26dB PAD, Input gain, Phantom, Input 2/ Dante switch
  • Output section -  Power switch, Output PAD
• Indicators
  • Input section -  Phantom power, Input level
• Power

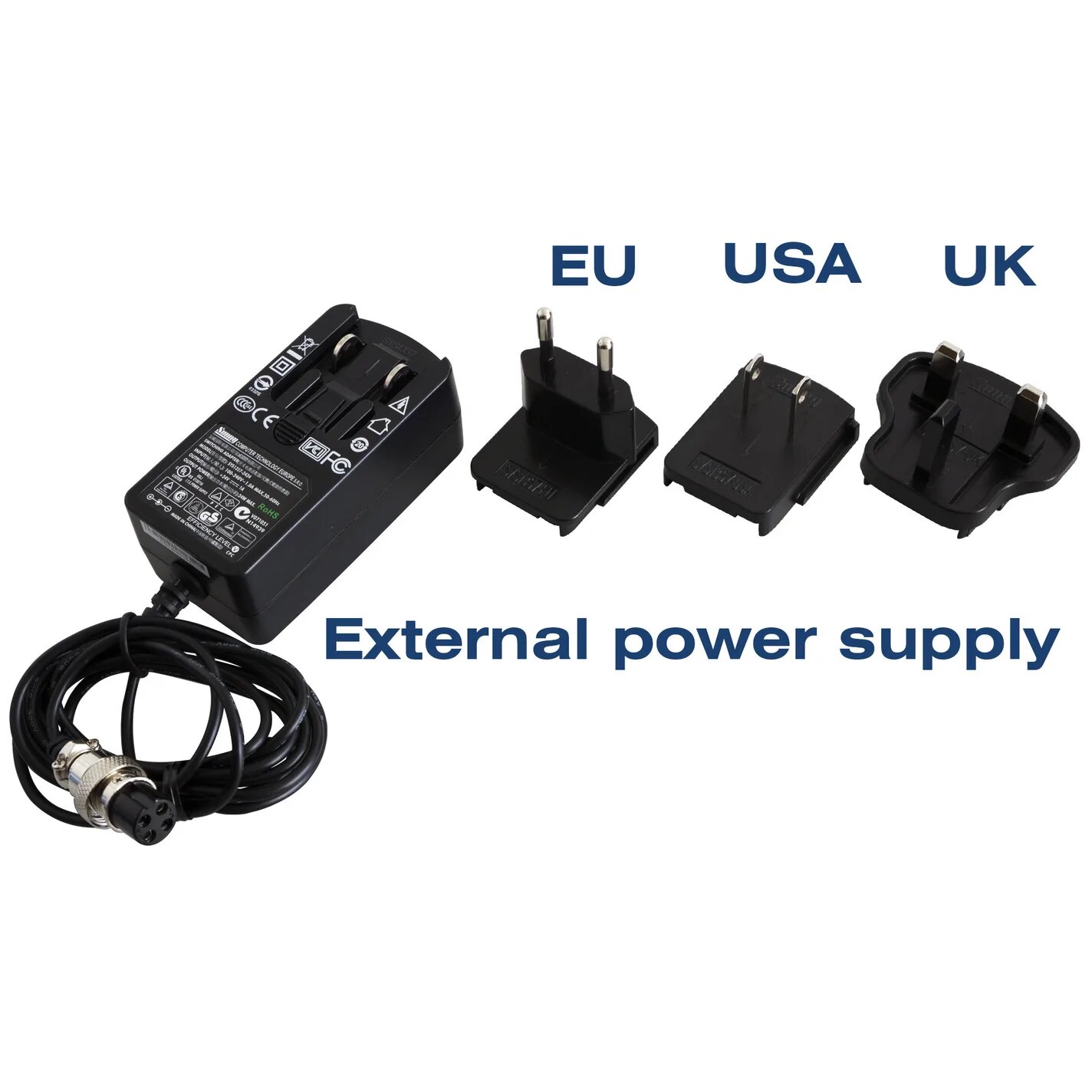

  • Power Supply -  24V DC, 1A external adaptor
  • Battery -  Li-Ion, 14,4V 2200mAh
  • Battery operation time -  up to 20 hours
• Mechanical
  • Dimensions (WxHxD) -  370x 120x 300mm
  • Weight -  4.8kg
