AudioPressBox APB Mini Active Portable Pressbox w/ USB-C

About: AudioPressBox APB Mini Active Portable Pressbox w/ USB-C

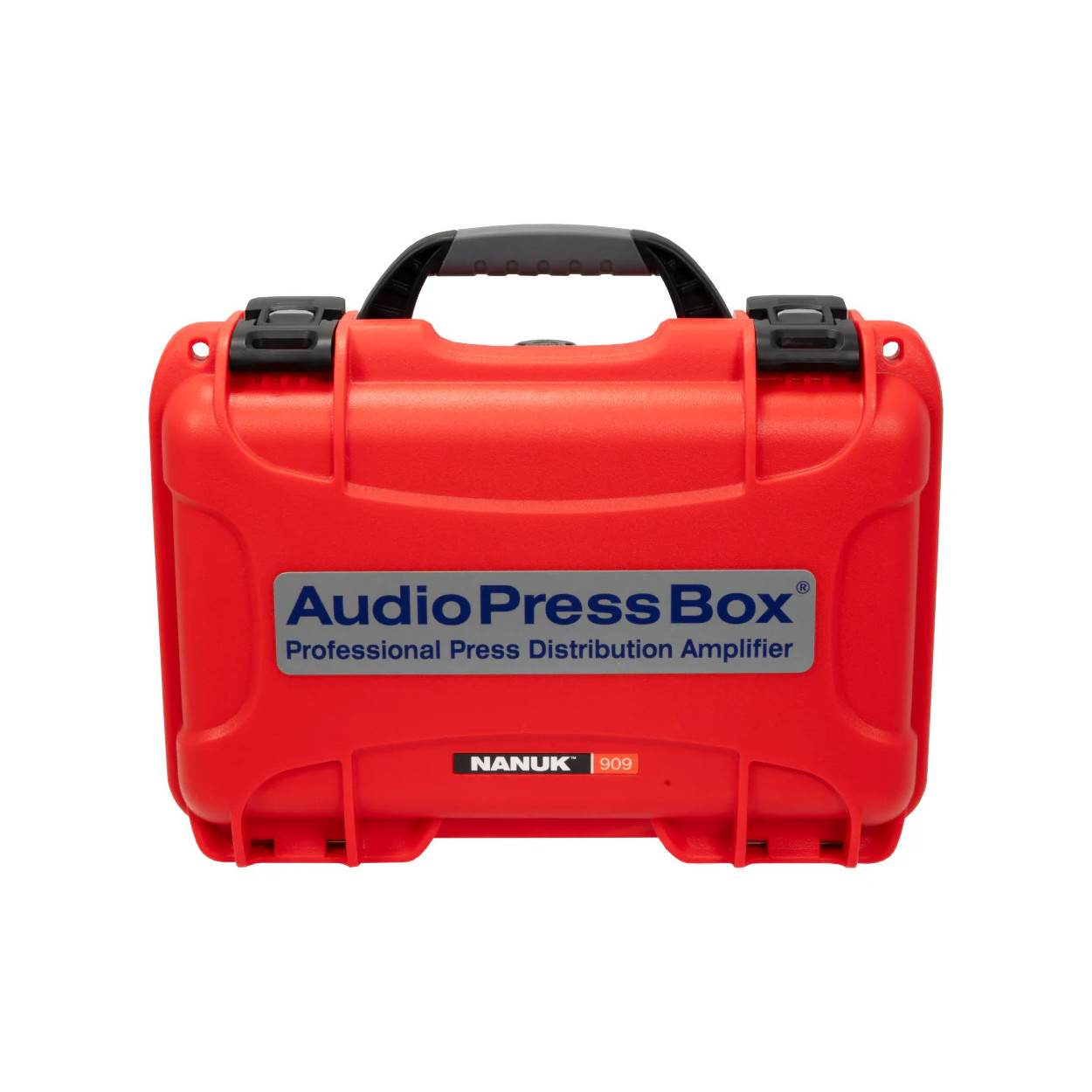

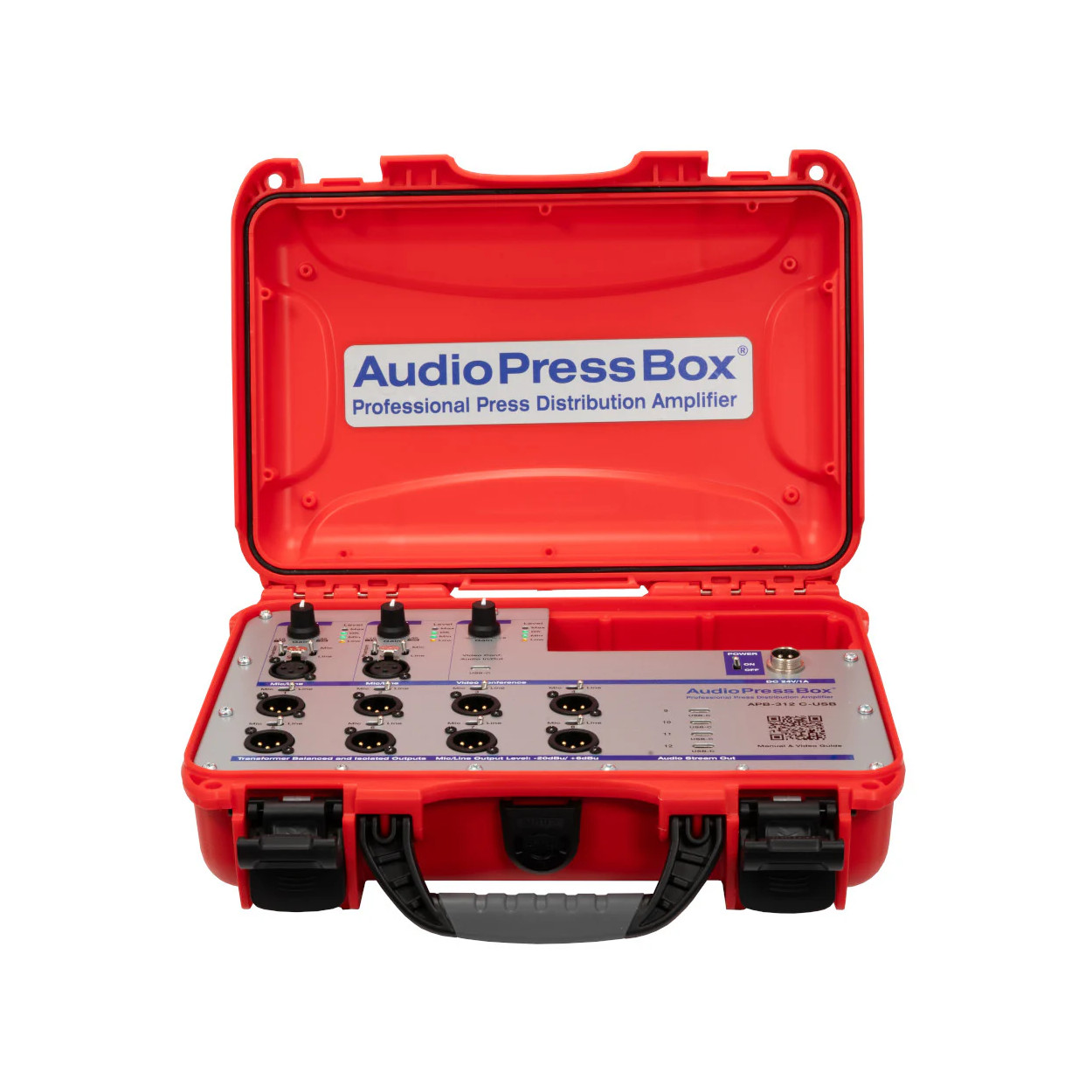

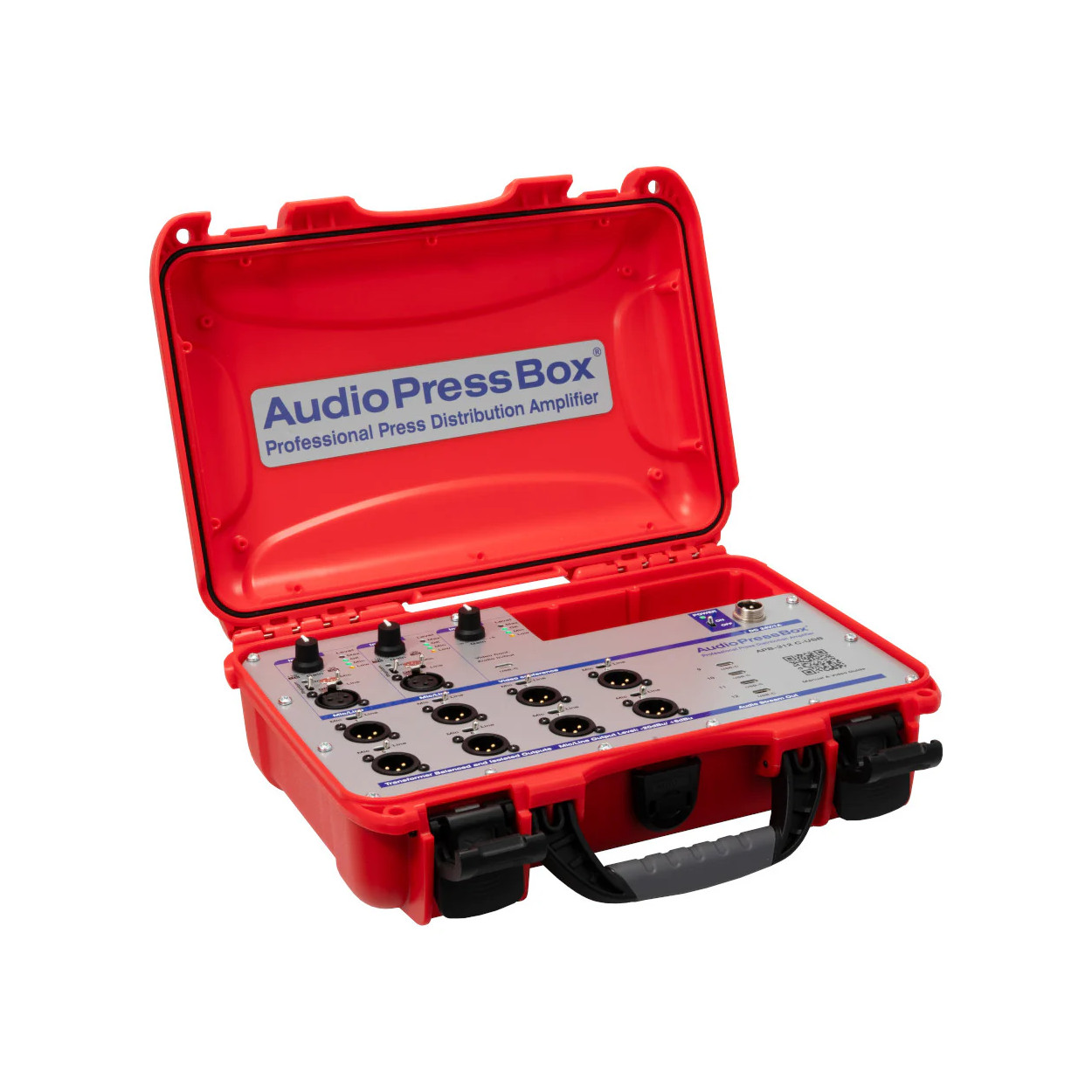

The APB Mini is a professional portable, active, pressbox with 2 Analog Line/Mic inputs, 1 Digital USB-C input & output and 8 Analog Line/Mic & 4 Digital USB-C outputs. It is suitable for both indoor and outdoor press conferences due to heavy duty Nanuk case. The USB-C also allows a video conference in & out connection for a hybrid press conference.

• 2 Analog MIC (phantom power) / LINE inputs – balanced with gain control and 26dB PAD
• 1 Digital USB-C input & output
• 8 Analog XLR balanced and individually transformer isolated outputs
• XLR outputs are switchable between MIC or LINE output level
• 4 Digital USB-C outputs
• Built-in Compressor and Limiter for Analog (XLR) inputs
• On unit printed QR code for online access to manual, user guide and video guide
• AudioPressBox delivers audio in broadcast quality

Specifications

• Type: 3 in / 12 out
• Groups: 1
• Inputs: 2 analog, 1 digital
  • Analog Inputs
    • Input connectors: Balanced, XLR
    • Input Gain
      • Mic: +22/+62dB
      • Line: -4/+36dB
    • Max. input level
      • Mic: +10/-30dBu
      • Line: +36/-4dBu
    • Phantom Voltage: 48V
    • Input Impedance
      • Mic: 2,4 kΩ
      • Line: 3,5 kΩ
  • Digital Input / Output
    • Input connector: USB Type C
    • Compliant USB Specificaion: USB 2.0
    • Input Gain: -∞/ +6 dB
    • Supported Sampling Rates: 32kHz, 44.1kHz, 48kHz
    • Bit Depth: 16-Bit
    • Interface Powering: Bus Powered*
    • Charging capability: No
• Outputs: 8 Analog with Line/ MIC level switch, 4 Digital
  • Analog Outputs
    • Output connectors: Balanced, XLR
    • Nominal Output Level: +6dBu
    • Maximum Output Level: +10dBu (no load, internally limited by limiter)
      • +4dBu (600Ω)
    • Output impedance
      • Mic: 220Ω
      • Line: 600Ω
    • Transformer isolated outputs: Yes (each output)
    • SNR: >79dB
    • Frequency Response: 120Hz to 30kHz/ -3dB
  • Digital Outputs
    • Output connector: USB Type C
    • Compliant USB Specification: USB 2.0
    • Supported Sampling Rates: 8kHz, 11.025kHz, 16kHz, 22.05kHz, 32kHz, 44.1kHz, 48kHz
    • Bit Depth: 16-Bit
    • Interface Powering: Bus Powered*
    • Charging capability: No
• Controls
  • Input section: 26dB PAD, Input gain, Phantom
  • Output section: Power switch, Output PAD
• Input Indicators: Phantom power, Input level
• Power
  • Power Supply: 24V DC, 1A external adaptor
  • Battery: None
  • Battery operation time: X
• Dimensions (WxHxD): 12.64 x 9.06 x 4.37 in (321 x 230 x 111 mm)
• Weight: 6.61 lbs (3 kg)
