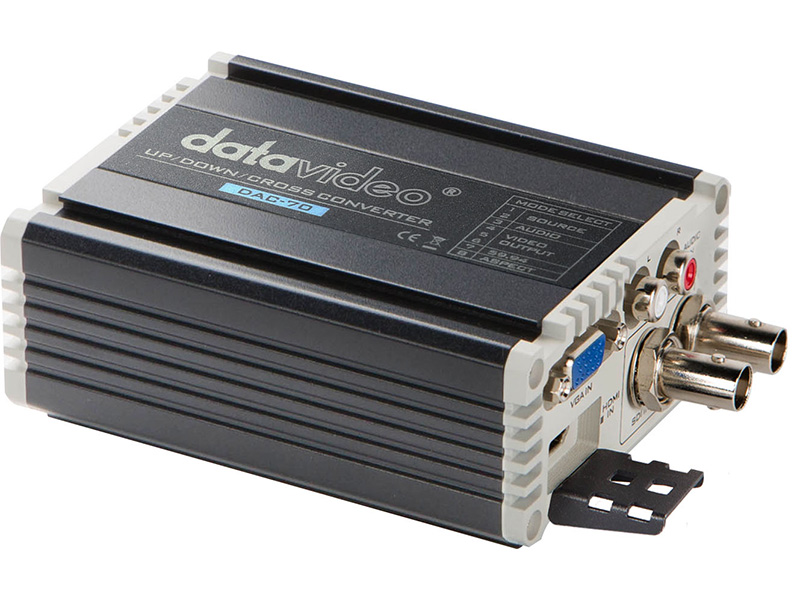

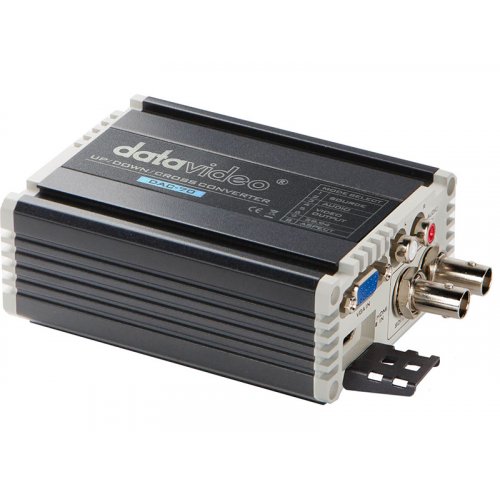

Datavideo DAC-70 Up / Down / Cross Converter
Model: DAC-70
About: Datavideo DAC-70 Up / Down / Cross Converter
Datavideo DAC-70 up/down/cross converter is designed to convert video signals from VGA, HDMI, SDI with Audio input to 3G/HD/SD SDI ouptuts.
Perfect for connecting a VGA/HDMI output from computer to SDI devices over long distance SDI cable. Solutons like lecture theater, church, auditorium room and conference hall.
Features:
- 3G/HD/SD Up/Down/Cross convert

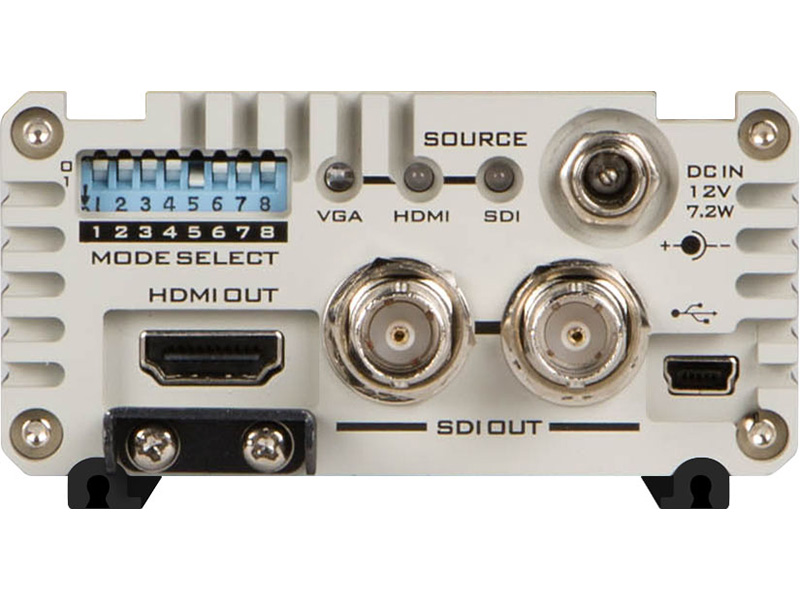

- Audio/HDMI/SDI/VGA input
- 3G/HD/SD SDI and HDMI output
- Can be rackmounted using optional RMK-2 2RU Rack solution
- DC 12V, 3.6 watts
Video Input formats
- SD-SDI: 525i, 625i
- 3G-SDI: 1080p60/50, 1080p59.94 (Level A)
- HD-SDI: 1080i60/50, 1080p30/25/24, 1080p29.97, 1080p23.98, 1080i59.94, 720p60/50, 720p59.94
- HDMI: (YUV/RGB): 1080p60/50, 1080p59.94, 1080p30/25/24, 1080p29.97, 1080p23.98, 1080i60/50, 1080i59.94, 720p59.94, 720p60/50, 576p, 480p, VGA, 1600x1200@60Hz, 1400x1050@60Hz, 1366x768@60Hz, 1280x1024@60Hz, 1024x768@60Hz, 800x600@60Hz
Video Output formats
- SDI / HDMI (YUV: 4:2:2): 1080p60/50, 1080p59.94, 1080p23.98/29.97/24/25/30, 1080i60/50, 1080i59.94, 720P60/50, 720P59.94, 525i, 625i
Supported Audio formats
- SDI embedded Audio: Up to 8-CH, PCM 48KHz
- HDMI embedded Audio: up to 8-CH, PCM 96KHz
- - Stereo audio input: 2-CH, PCM 48KHz
* USB interface for firmware upgrade
UPC: 672255004326
