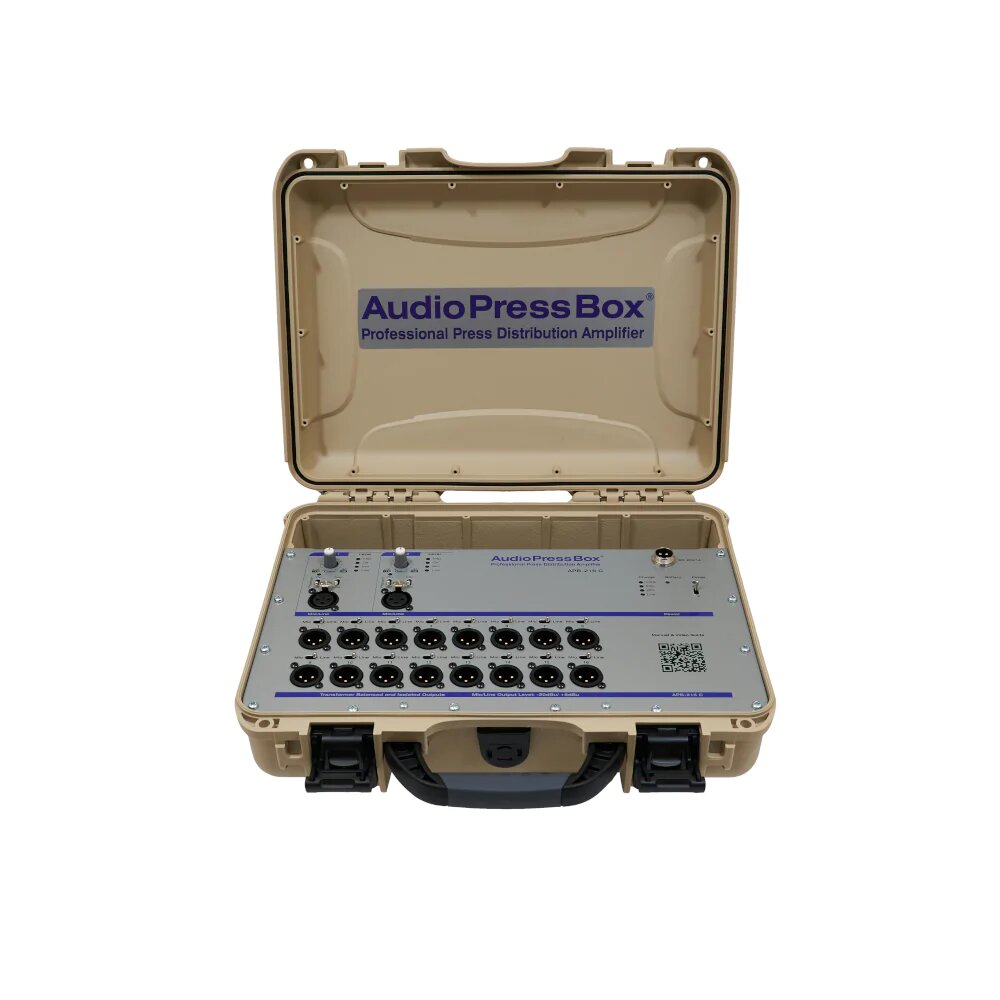

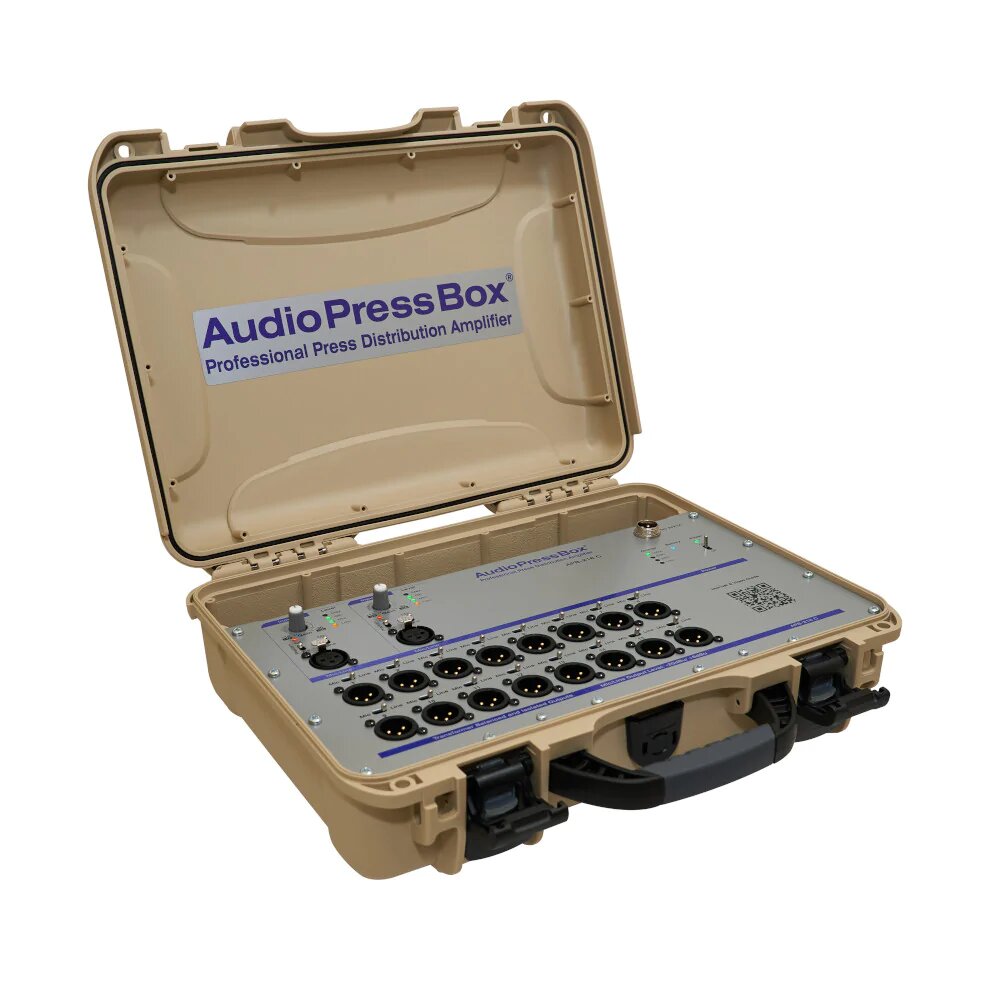

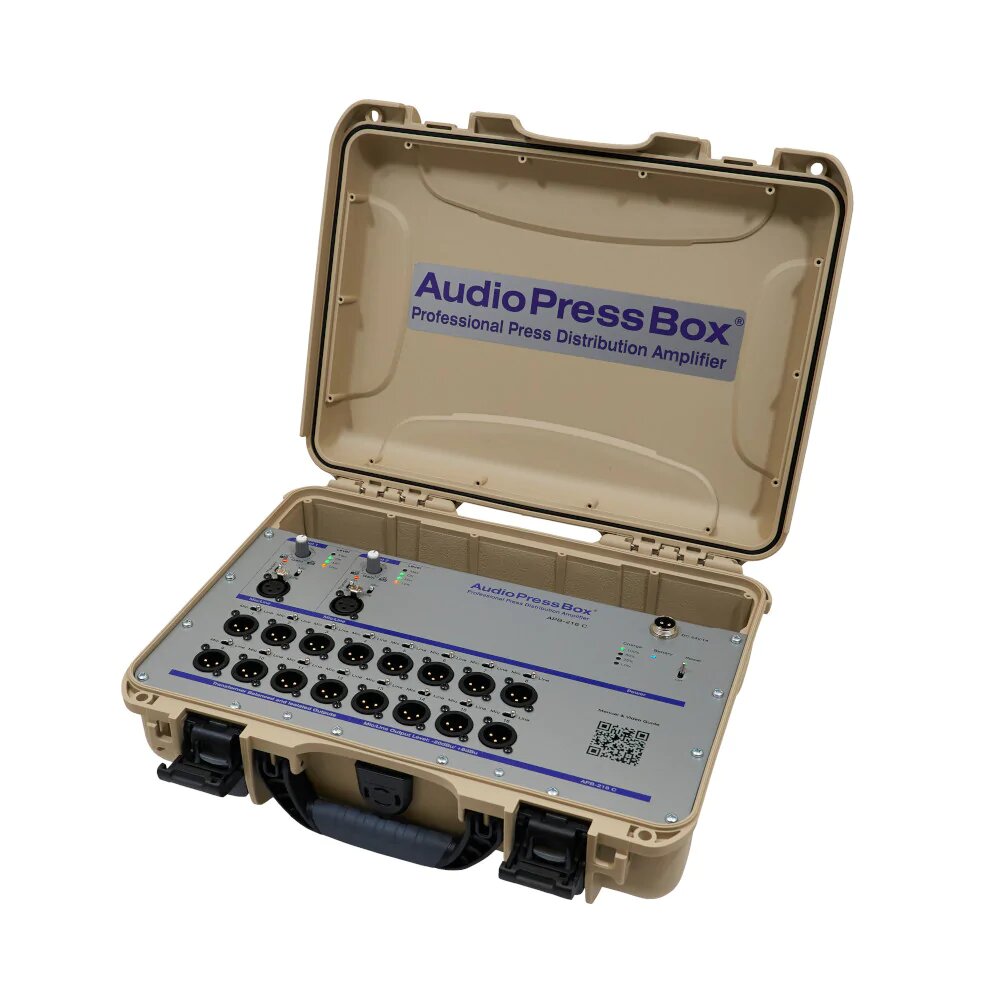

AudioPressBox APB-216 C Portable 1 Channel Active Pressbox

About: AudioPressBox APB-216 C Portable 1 Channel Active Pressbox

Professional portable 1 channel active pressbox with 2 Line/Mic inputs and 16 Line/Mic outputs. It is suitable for both indoor and outdoor press conferences due to built-in rechargeable accu pack and heavy duty Nanuk case.

• 2 MIC (phantom power) / LINE Inputs – balanced with gain control and 26dB PAD
• 16 balanced and individually transformer isolated outputs
• Each Output is switchable between MIC or LINE output level
• Built-in Compressor and Limiter for each Input
• Li-Ion AccuPack with microprocessor controlled battery management
• 20 hours battery operation time.
  • Note: AccuPack is placed (built-in) inside the unit

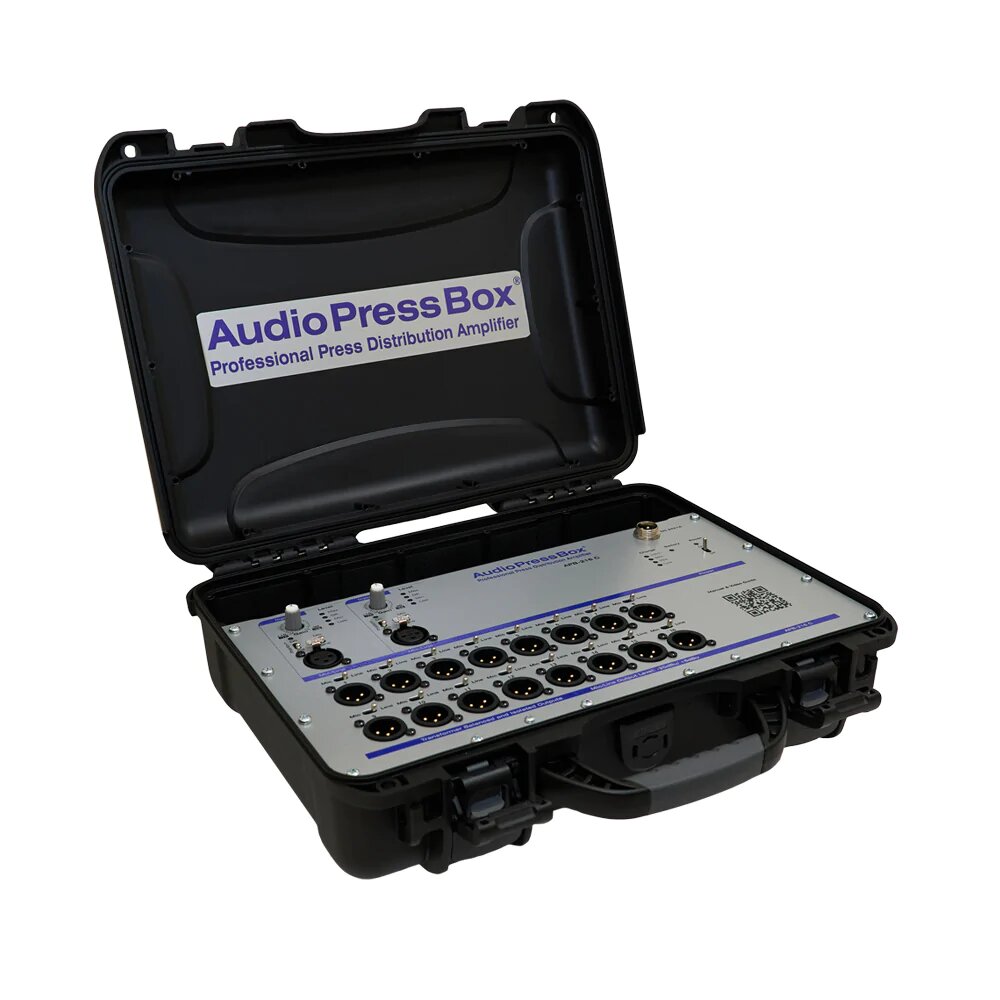

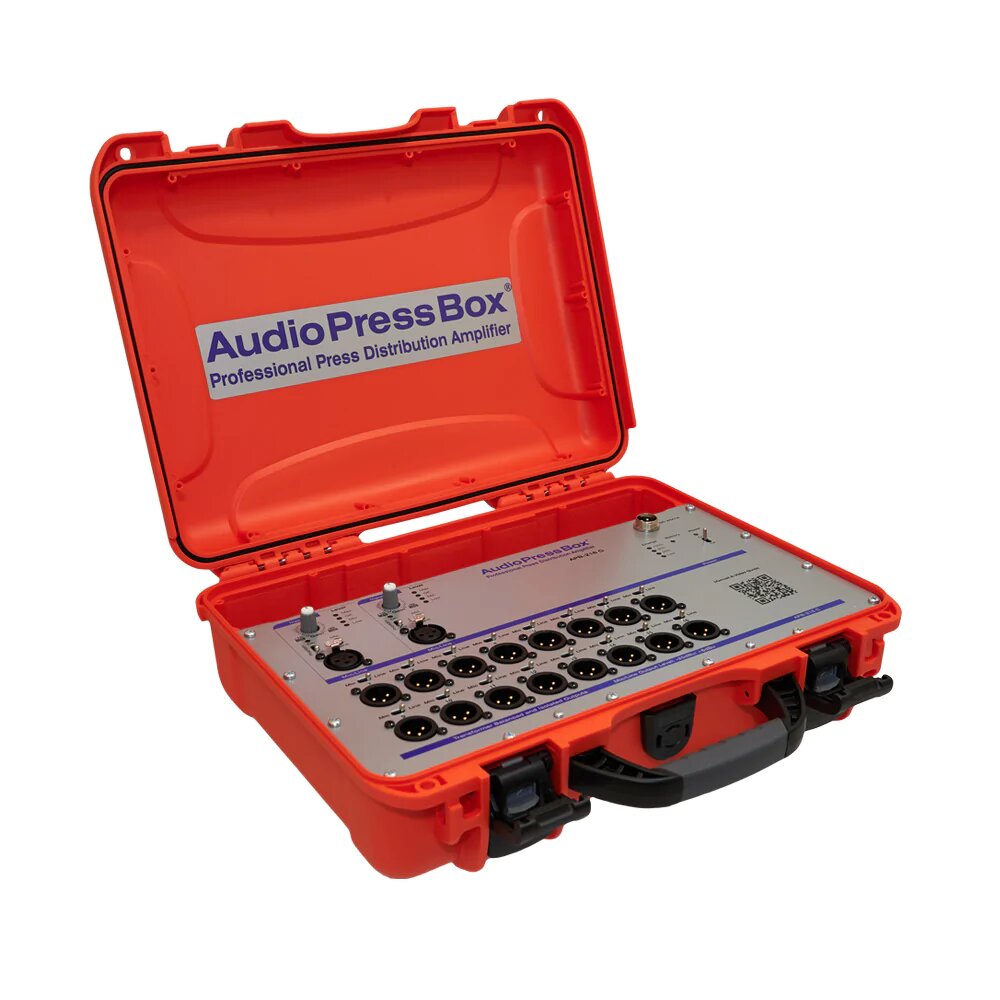

• Available in 6 Colours: Yellow, Tan, Orange, Black, Lime, and Silver
  • NOTE: The default colour of the case is TAN. If you wish to order it in different colour please Contact Us.

Specification

• ​Audio Press Box APB-216 C
  • Type -  2 in 16 out
  • Groups -  1
• Input section
  • Inputs -  2
  • Input connectors -  Balanced, XLR
  • Input Gain -  MIC +22/ +62dB,  LINE -4/ +36dB
  • Max. input level -  Mic: -10/ -30dBu,  Line: +36/ -4dBu
  • Phantom Voltage -  48V
  • Input Impedance -  Mic: 2,4kOhm,  Line: 3,5kOhm
• Output section
  • Outputs -  16 Line/ MIC level
  • Output connectors -  Balanced, XLR
  • Nominal Output Level -  +6dBu
  • Maximum Output Level -  +20dBu (no load),  +14dBu (600Ohm)
  • Output impedance -  Mic: 220Ohm,  Line: 600Ohm
  • Transformer isolated outputs -  Yes (each output)
  • SNR -  86dB
  • Frequency Response -  120Hz to 30kHz/ -1dB
• Controls
  • Input section -  26dB PAD, Input gain, Phantom
  • Output section -  Power switch, Output PAD
• Indicators
  • Input section -  Phantom power, Input level
  • Power

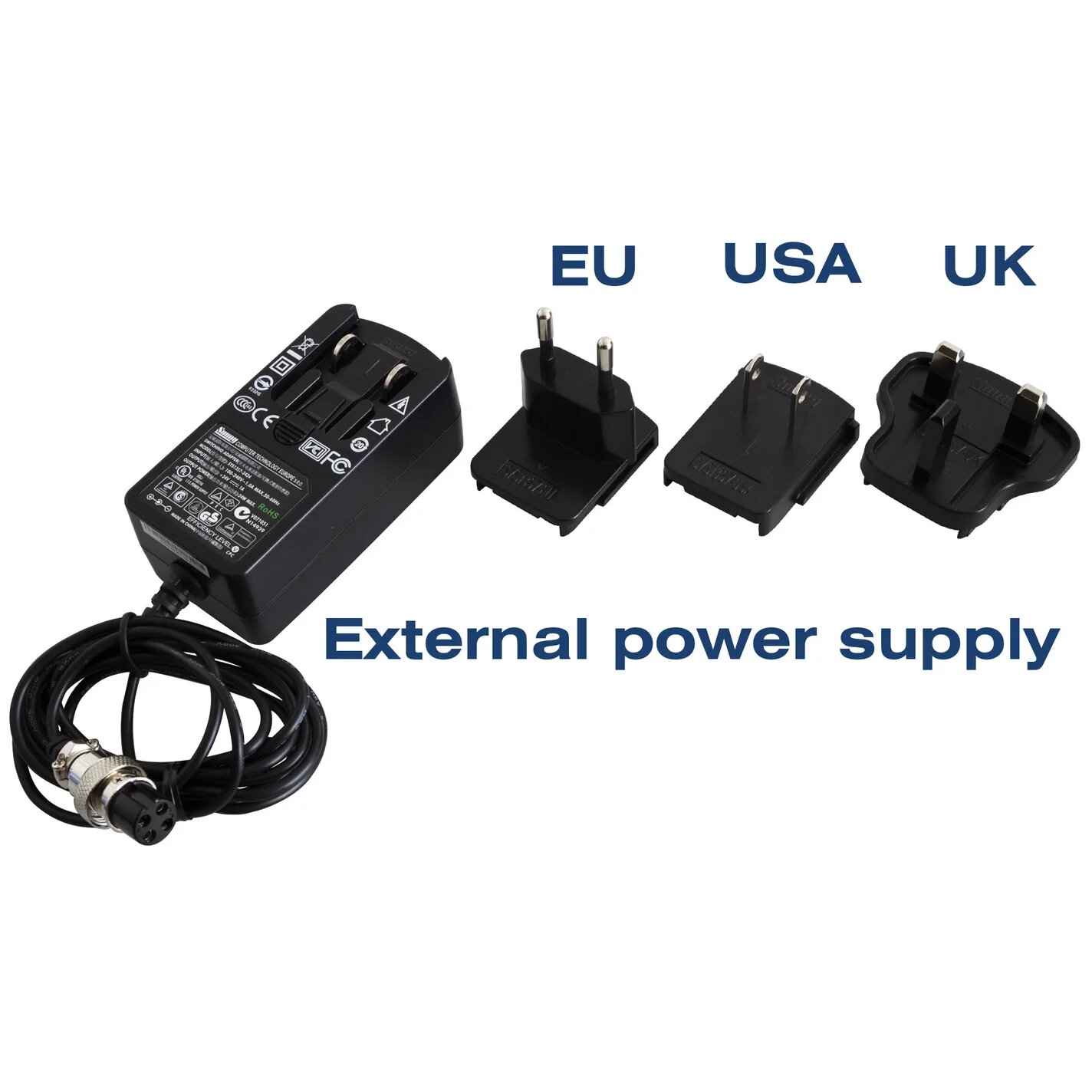

  • Power Supply -  24V DC, 1A external adaptor
  • Battery -  Li-Ion, 14,4V 2200mAh
  • Battery operation time -  up to 20 hours
• Mechanical
  • Dimensions -  (WxHxD) 370x 120x 300mm
  • Weight -  4.7 kg
