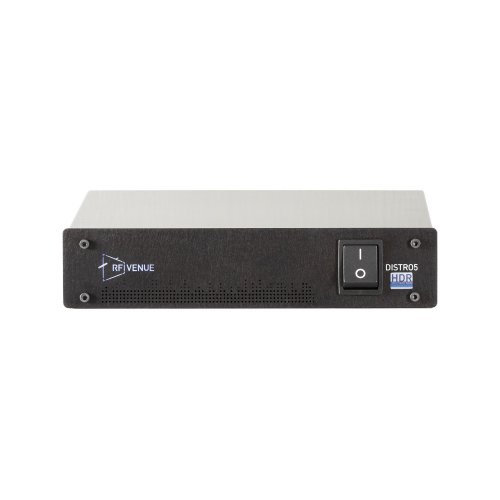

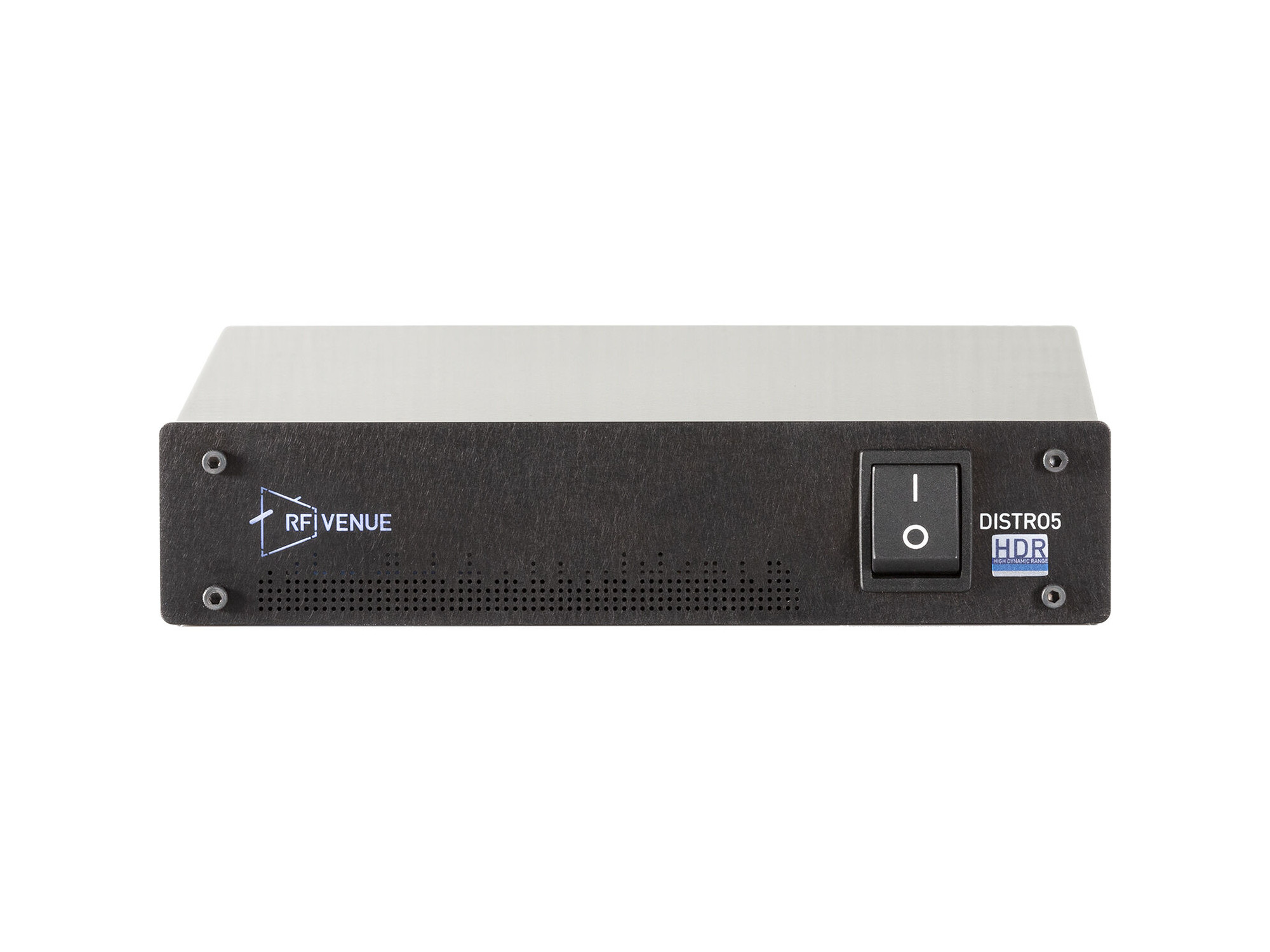

RF Venue DISTRO5 HDR 5-Channel Antenna Distribution

About: RF Venue DISTRO5 HDR 5-Channel Antenna Distribution

The DISTRO5 HDR is RF Venue's newest and highest performance antenna and power distribution platform for any brand wireless microphone system. Building on the success of the DISTRO4, the DISTRO5 HDR delivers even better RF performance in a compact half-rack footprint. Multiple DISTRO5s can be cascaded together using the included joining plate hardware and available premium interconnect cable packages for up to 9 channels of wireless mics in a 1RU space.

• 470-698 MHz Operating Band
• 5A 12V DC Power Output
• 1/2 Rack with Connecting Plate
• 5 Pairs of Diversity RF Outputs

More Mic Channels, Higher Performance, in Less Rack Space

In addition to clean, low noise RF signal distribution across the 470-698 MHz band, the DISTRO5 HDR is a highly capable power distribution system for powering wireless microphone receivers or other 12V DC rack equipment. The available Octopus power cable uses the DISTRO5's robust internal power supply to provide up to 5 amps of DC power to rack devices, eliminating wall warts and the need for dedicated rack power distribution. The DISTRO5 HDR also features a 12V DC power input for battery power operation for mobile sound cart applications. [Made in USA]

The DISTRO5 HDR is a part of RF Venue's new High Dynamic Range (HDR) series of products designed and built in the company's new US manufacturing facility.

• Enjoy crystal-clear signal distribution: The DISTRO5 HDR ensures reliable and clean distribution for all your wireless microphones across the 470-698 MHz band.
• Expand your setup seamlessly: Connect up to 9 wireless mics in a single 1RU space by cascading two DISTRO5 HDR units with the included hardware and optional interconnect cables.
• Unleash 5 amps of clean DC power: Utilize the optional Octopus cable to power up to 8 of your wireless microphone receivers and other compatible 12V DC rack equipment.
• Battery ready: Power your system seamlessly with the 12V DC power input

Specifications

• Frequency Range: 470 – 698 MHz

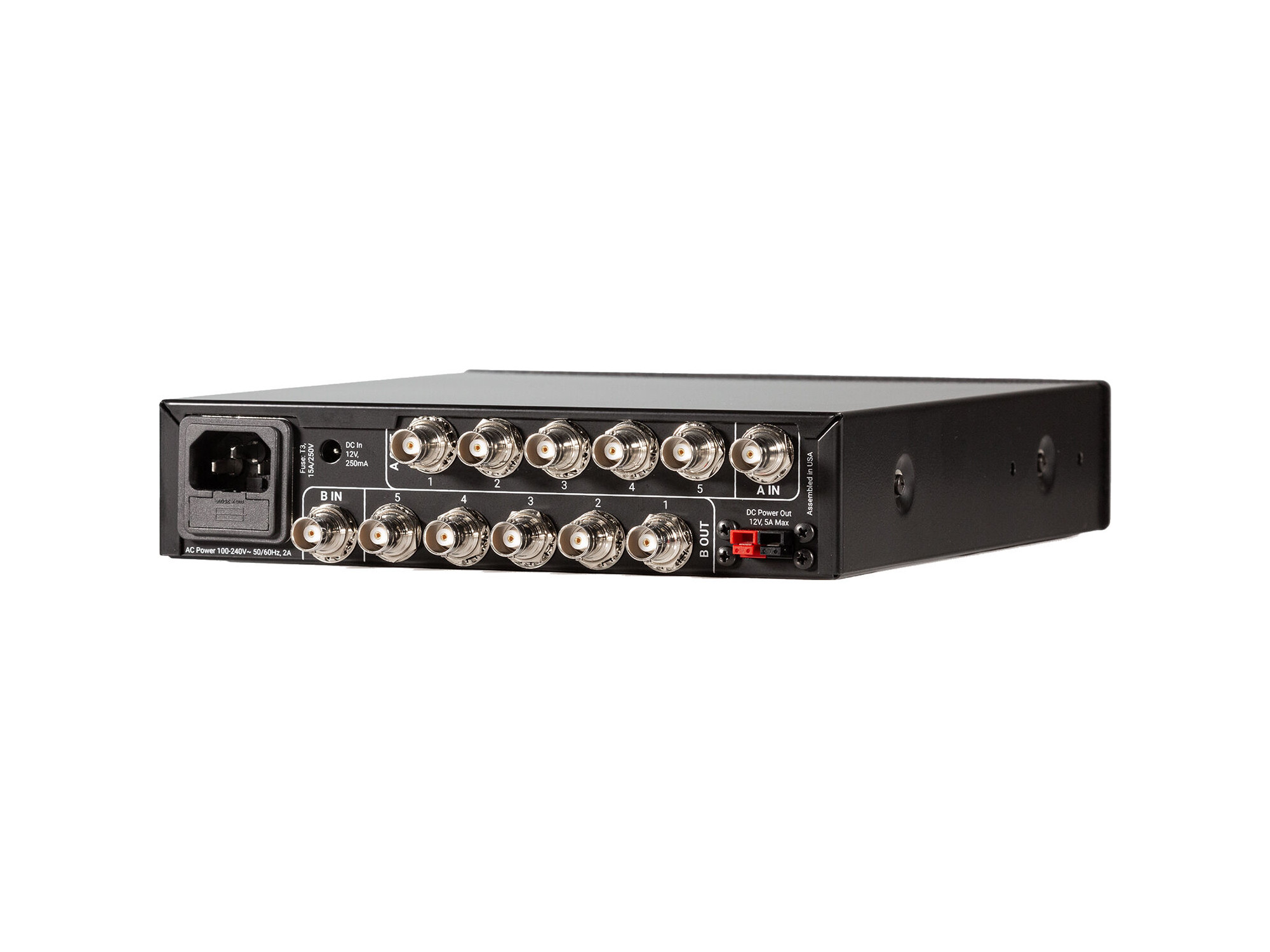

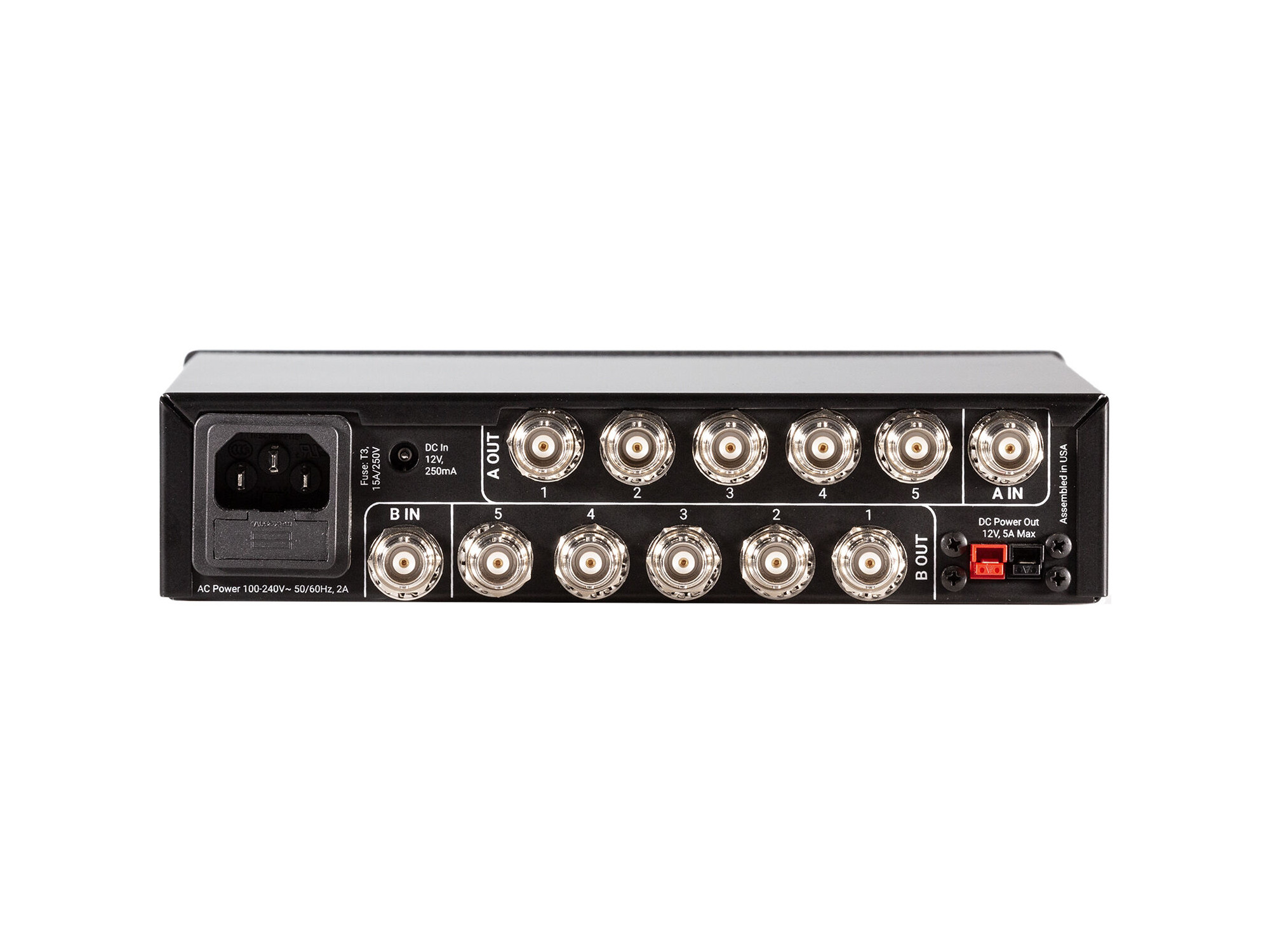

• Inputs: 1 Diversity pair BNC
• Outputs: 5 Diversity pairs BNC
• Power supply: Internal, 100 – 240 VAC 50/60 Hz 2 A
• DC In (optional): 12 V DC, 250 mA
• Impedance: 50 Ω
• DC Out Connector: Anderson Powerpole®
• DC Out: 12 V DC, 5 A
• Fuse: T3 5A 240V
• Dimensions (DxWxH): 8.8 x 8.27 x 1.75 inch (223.5 x 210 x 44.5 mm)
• Weight: 3.75 lb (1.7 kg)

What’s in the Box

• DISTRO5 HDR
• IEC Power Cord
• Rack Ears (Short and Long)
• Half Rack Connecting Plate and Mounting Hardware
  • Premium interconnect coaxial cable packages and antenna cables available separately and are included in RF Venue product bundles.
