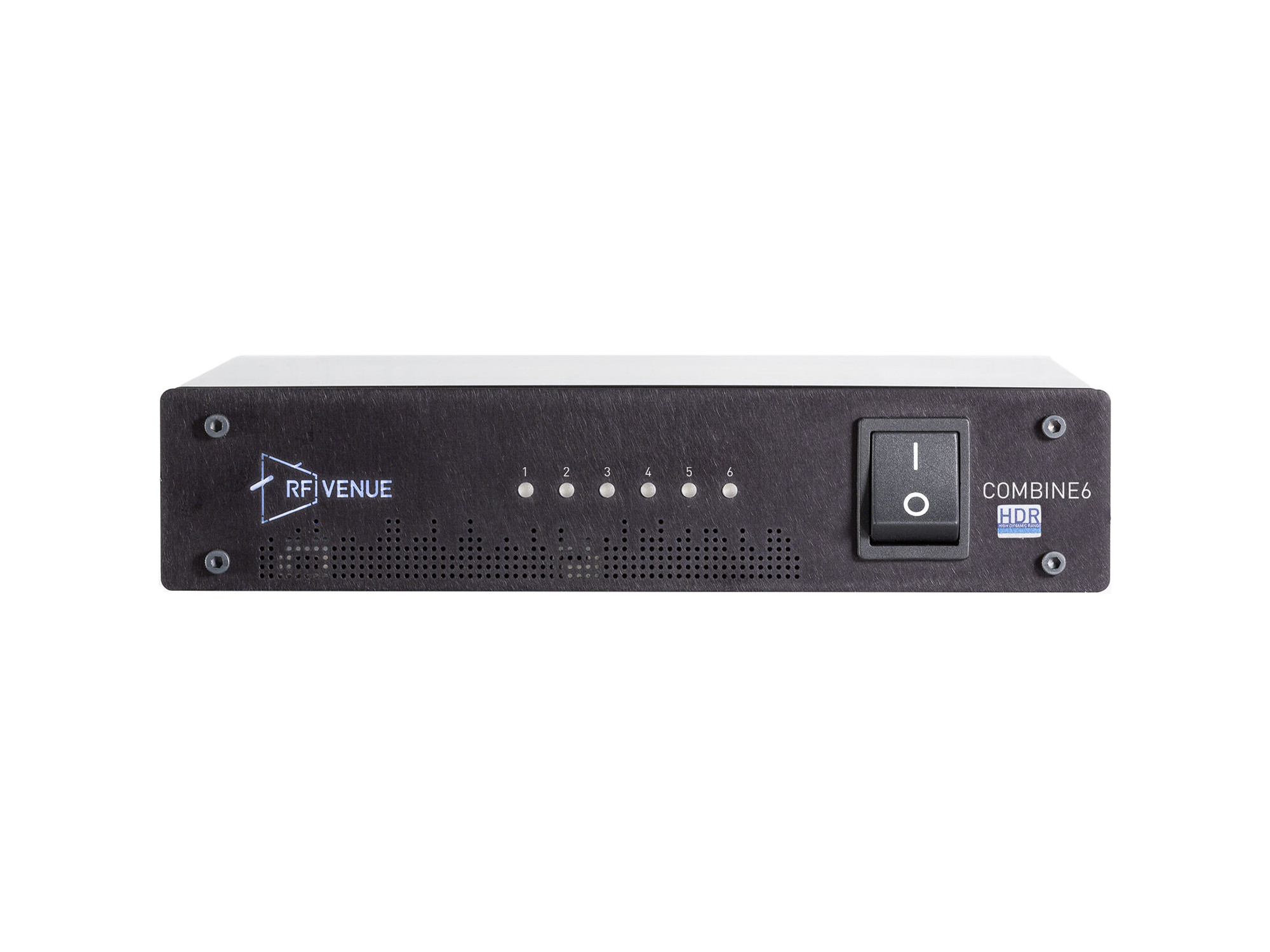

RF Venue COMBINE6 HDR 6-Channel IEM Transmitter Combiner

About: RF Venue COMBINE6 HDR 6-Channel IEM Transmitter Combiner

For performers, in-ear monitors (IEMs) are a lifeline, but RF dropouts and interference can turn them into a nightmare on stage when you need them the most. The culprit?  Antenna farms, where multiple IEM transmitters can create a chaotic mess of signals and excess noise.

Enter the COMBINE6 HDR, a compact, half-rack unit that streamlines your IEM setup. It combines up to 6 IEM signals into one, eliminating the "antenna farm" problem. Say goodbye to troubleshooting monitors, COMBINE6 HDR provides the confidence and consistency needed for performers, in a flypack-friendly package.

• 6 In-Ear Monitor Transmitter Inputs
• 1 Antenna Output
• 1/2 Rack Enclosure with Joining Plate Hardware
• Passive RF In and RF Out Expansion Ports

More IEM Channels, Higher Performance, in Less Rack Space

Whether installed in churches or used by bands with flypacks on the road, the COMBINE6 HDR delivers big RF performance in a compact package. Tested to rigorous standards, the COMBINE6 HDR boasts excellent IMD specifications, reducing noise in your system and enhancing the performance of wireless mics sharing the same spectrum as your IEMs.

Room for the Whole Band

The COMBINE6 HDR stands out with its built-in passive expansion circuit. This innovative design lets you connect a second unit for a total of 12 IEM channels in a single rack unit (1RU). Scale your system effortlessly to accommodate more channels as your needs grow, or be prepared for guest bands and larger events without additional equipment.

The COMBINE6 HDR is a part of RF Venue's new High Dynamic Range (HDR) series of products designed and built in the company's newUS manufacturing facility.

Unlock the full potential of your band's IEM system. Experience unrivaled signal clarity, expansion versatility - and most importantly - confidence in your wireless on stage with the COMBINE6 HDR.

Specifications

• Frequency Range USA + CAN: 470 – 608 MHz
• RF Inputs: 6 BNC inputs
• Maximum Input Power: 60 mW (+18 dBm) per port
• Input Port Isolation: 50 dB, typical
• Signal Overload Threshold: 17 dBm, typical
• Passive Circuit Loss: 4 dB, typical
• DC Power Supply: External, 100 – 240 VAC, 50/60 Hz, 1 A
• DC Power In: +12 V, 3 A
• Dimensions (DxWxH): 223.5 × 210 × 44.5 mm / 8.8 × 8.25 × 1.75 in
• Weight: 1.6 kg / 3.56 lb

What’s in the Box

• COMBINE6 HDR
• 12V 40 Watt Power Supply
• IEC Power Cable
• Rack Ears (Short and Long)
• Half Rack Connecting Plate and Mounting Hardware
  • Premium interconnect cable packages and antenna cables available separately and are included in RF Venue product bundles.
