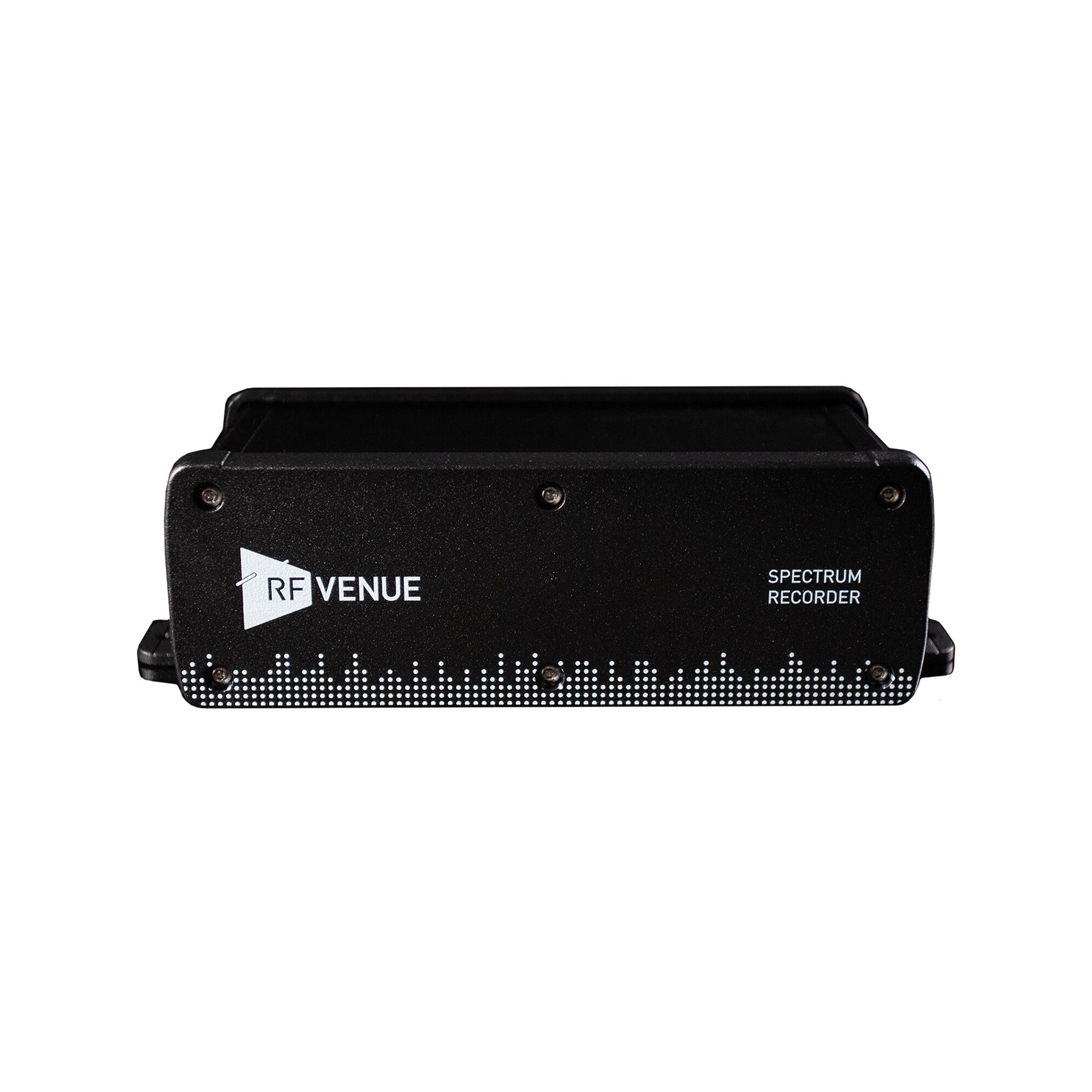

RF Venue Spectrum Recorder Data Logger for UHF Wireless Audio Devices

About: RF Venue Spectrum Recorder Data Logger for UHF Wireless Audio Devices

The RF Venue Spectrum Recorder simplifies monitoring and optimizing wireless microphone and in-ear monitor systems. It continuously captures RF activity in the 400-700 MHz band, saving data as time-stamped CSV files on its internal storage. These files can be retrieved directly via USB drive or accessed remotely over a local network.

• Automatic Spectrum Recording
• 24 Hour Scan Data Capture
• Active Frequencies Scan
• Power Over Ethernet (PoE) Capable
• Battery Power Ready
• No Software Installed, No Subscription Fees

Connect Spectrum Recorder directly to your wireless microphone antenna system or use the included whip antenna to capture spectrum for a site survey before your system is installed or loaded-in. PoE capable and battery ready, the Spectrum Recorder is small and lightweight enough to easily ship to a remote location or deploy across many rooms on a fixed installation.

Spectrum Recorder's data can be uploaded to RF Venue's free web-based Wireless System Builder tool for system design and frequency coordination, or imported natively to third party software like Shure® Wireless Workbench and Audio-Technica® Wireless Manager.

• No software installation is needed, and no cloud subscriptions are required for Spectrum Recorder.

Spectrum Recorder data files are natively compatible with Shure Wireless Workbench, RF Venue's Wireless System Builder, and other popular tools for managing wireless systems.

Specifications

• Scan Range: 400 – 700 MHz
• Resolution Bandwidth: 25 kHz
• Impedance: 50 Ω
• Dynamic Range: -130 to +10 dBm
• Average Noise Floor: -120 dBm
• Data Port Connector: USB Type A
• LAN and PoE Connector: RJ45
• Power Connector: USB Type C
• Power Requirement: 5V DC 1 A (via USB-C) or PoE
• Dimensions: 178 × 61 × 87 mm / 7 × 2.4 × 3.4 In
• Weight: 670 g / 1.48 lb

What's in the Box

• Spectrum Recorder
• UHF Whip Antenna
• 5V USB-C Power Supply
