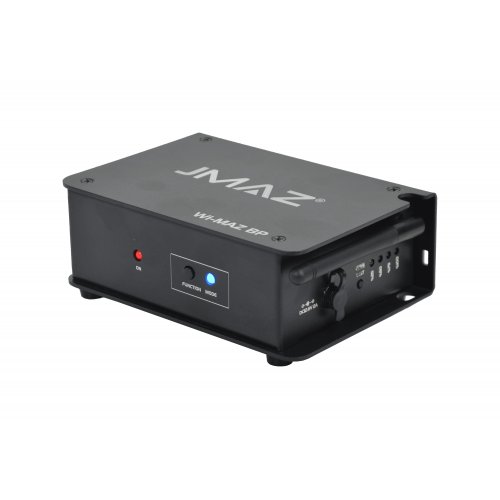

JMAZ Wi-MAZ Battery Powered Wireless DMX Transceiver

About: JMAZ Wi-MAZ Battery Powered Wireless DMX Transceiver

The JMAZ Wi-MAZ is a versatile, battery-powered wireless DMX transceiver built for professional lighting setups on the go. Designed to operate as either a transmitter or receiver, it supports Wireless DMX512 over a stable 2.4GHz frequency with auto-select frequency hopping for interference-free performance. With 7 selectable DMX ID groups, multiple units can run simultaneously without signal overlap.

• Extended Wireless Range: Transmit DMX signals up to 1600 feet (500 meters) with ultra-stable wireless technology. (Line of Sight)
• 2.4GHz Wireless DMX: Utilizes the reliable 2.4GHz frequency for smooth and consistent performance.
• Multi-Protocol Compatibility: Easily switch between multiple wireless DMX protocols, including Wi-DMX, WTRN, W-RCV, and Generic Protocol.
• True Wireless Operation: Battery-Powered design with no data or power cables required-delivers up to 80 hours of runtime in receiver mode, and 20 hours in transmitter mode.
• 3-Pin DMX I/O: Includes 3-pin DMX Input and Output ports for versatile system integration.
• Auto Transmit/Receive Switching: Seamlessly switch between transmit and receive modes with a single device.
• Includes: USB Power Cable, Transmit/Receive Converter, A/C to USB Power Adaptor, Manual
• Battery Type: Lithium Ion

This compact unit features a quick 2-hour charging time and offers exceptional battery life—up to 80 hours in receiver mode and 20 hours in transmitter mode—making it ideal for all-day or multi-day events. The included 3-pin DMX in/out converter allows for seamless integration with wired DMX systems.

Housed in a durable, travel-friendly form factor, the Wi-MAZ BP includes a USB power cable, AC to USB power adapter, transmit/receive converter, and manual. Its UL-listed lithium-ion battery ensures both safety and reliability in demanding environments.

Whether you’re a mobile DJ, lighting tech, or installer, the JMAZ Wi-MAZ BP provides a simple and powerful solution for wireless DMX control anywhere.

Specifications

• Control
  • Wired: 3-Pin DMX IN/OUT
  • Wireless DMX Protocol: WiDMX, W-TRN, W-RCV, Generic
  • Range: 1600ft (500 Meters) Line of Sight
• Electronics
  • Input Voltage: 100V – 240V AC, 50/60Hz
  • Power Consumption: 2W
  • Battery Voltage: 11.1V
  • Battery Capacity: 2500mAh, 28.86 Wh/Hour
  • Rechargeable Battery Type: Lithium Ion
  • Charging Time: 2 Hours
  • Battery Time (Receiver): 80 Hours
  • Battery Time (Transmitter): 20 Hours
  • Antenna Gain: 3dBi
  • Carrier Frequency: 2.4GHz
  • Modulation: GFSK
  • Sensitivity: -93dBm
• Body
  • Aluminum
• Physical
  • Cooling: Fanless
  • Theft Protection: Kensington Lock
  • Attachment System: M10 Thread for Clamp Connection
  • IP Rating: IP20
  • Certifications: RoHS, CE, FCC
  • Operating Temperature: -10° °C (14° F) to 60° C (140° F)
  • Dimensions: 5.5″ x 3.8″ x 2.2″
  • Weight: 1.8lbs (0.8kg)

What's included

• 1x A/C to USB Power Adaptor
• 1x Manual
