Elation SEVEN Batten 14 RGBAW+Line+UV LED Light

Model: SEVEN-BATTEN-14

Elation SEVEN Batten 14 RGBAW+Line+UV LED Light
Elation SEVEN Batten 14 RGBAW+Line+UV LED Light
Elation SEVEN Batten 14 RGBAW+Line+UV LED Light
Elation SEVEN Batten 14 RGBAW+Line+UV LED Light
Elation SEVEN Batten 14 RGBAW+Line+UV LED Light
Elation SEVEN Batten 14 RGBAW+Line+UV LED Light
Elation SEVEN Batten 14 RGBAW+Line+UV LED Light
  • Free Shipping!
  •  In Stock - Shipping Only
  • Not yet reviewed




About: Elation SEVEN Batten 14 RGBAW+Line+UV LED Light

The SEVEN Batten 14™ is a seven color 1.2 foot (0.4m) long batten wash luminaire with (12) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs. Features include individual hue, saturation, and intensity control, special RGB SEVEN 3 channel mode (RGB + dynamic white, amber, lime, and UV), 2 pixel mapping zones with pixel flip mode, smooth color mixing, 12 internal programs with speed and fade control, 64 unique 7-color macros, selectable dimming curve modes, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, DMX Art-Net, Kling-Net, and RDM (Remote Device Management) protocol support, 3/5pin DMX, RJ45 etherCON, and power in/out connections, a 220° manual tilt adjustable mounting bracket, OLED menu display with a 4-button control panel, a multi-voltage universal auto switching power supply (100-240v), a rugged powder coated die-cast aluminum exterior, and an integrated gel / frost filter slot.

Features

  • 1.2 Foot (0.4m) Seven Color Batten Wash Luminaire
  • (12) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs
  • Individual Hue, Saturation, and Intensity Control
  • Special RGB SEVEN 3 Channel Mode (RGB + Dynamic White, Amber, Lime, UV)
  • 2 Pixel Mapping Zones with Pixel Flip Mode
  • Smooth Color Mixing, Internal Programs with Speed and Fade Control
  • 64 Unique 7-Color Macros
  • Selectable 16-bit Dimming Curve Modes
  • DMX Adjustable LED Refresh Rate
  • Adjustable LED Gamma Brightness
  • Flicker Free Operation for TV and FILM
  • Art-Net, Kling-Net, and RDM Protocol Support

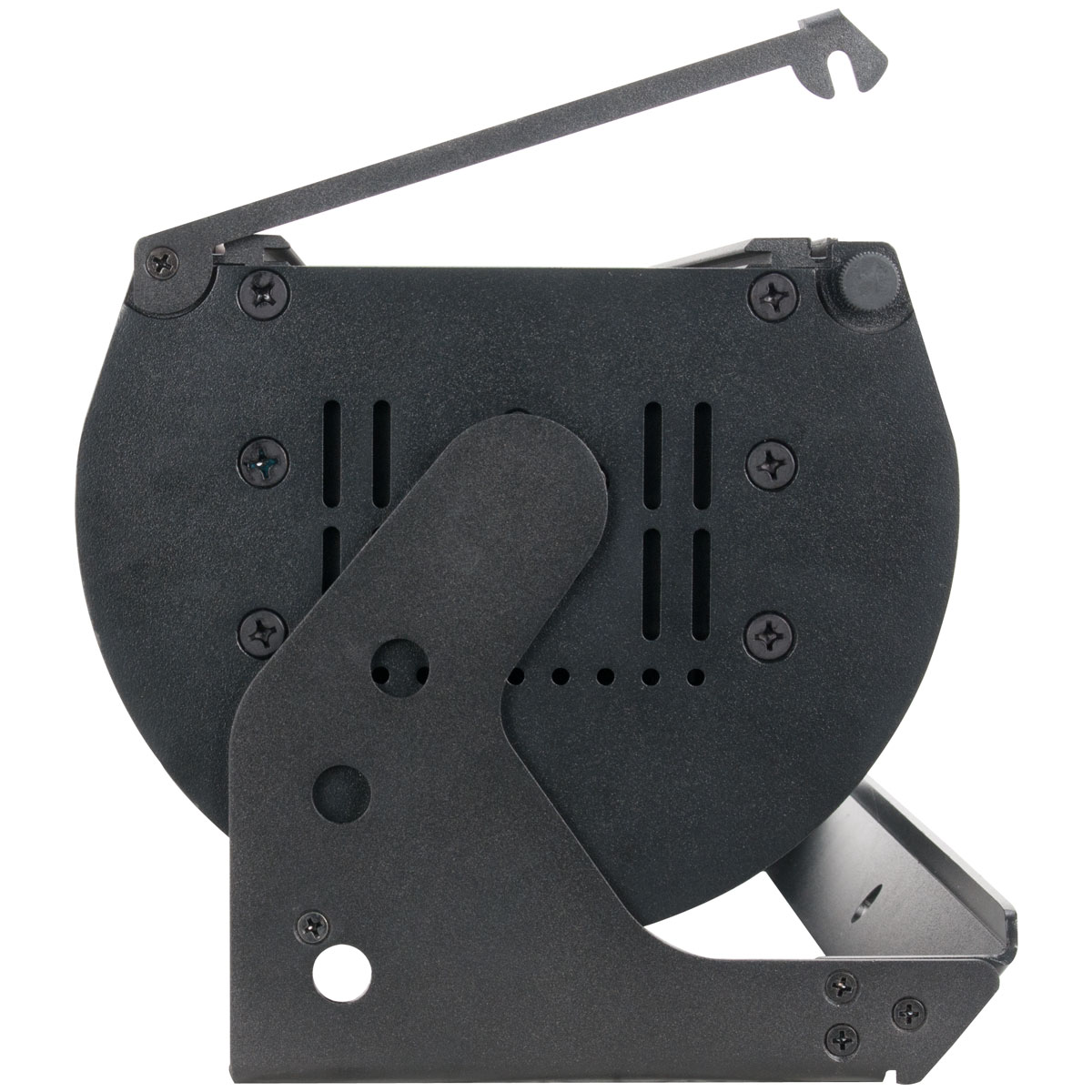

  • 220° Manual Tilt Adjustable Mounting Bracket
  • Rugged Powder Coated Die-Cast Aluminum Exterior

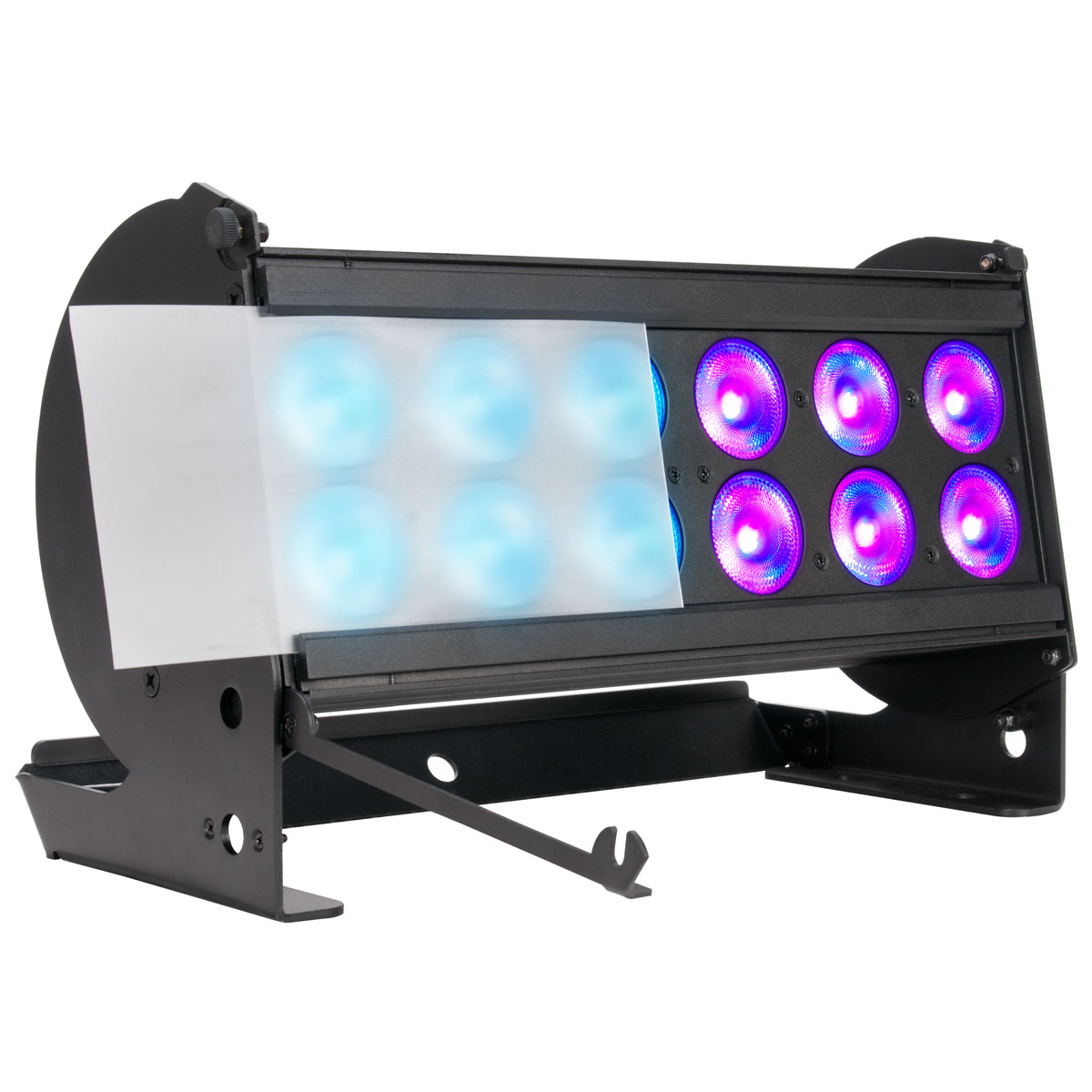

  • Integrated Gel / Frost Filter Slot

Specifications

SOURCE

  • (12) 25W 7-IN-1 RGBAW + Lime + UV LEDs
  • 50,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

EFFECTS

  • Individual Hue, Saturation, and Intensity Control
  • Special RGB SEVEN 3 Channel DMX Mode (RGB + Dynamic White, Amber, Lime, UV)
  • 2 Pixel Mapping Zones with Pixel Flip Mode
  • 12 Internal Program Macros with Speed and Fade Control
  • 64 Unique 7-Color Macros
  • Selectable 16-bit Dimming Curve Mode

COLOR

  • RGBAW + Lime + UV (395nm)

CONTROL / CONNECTIONS

  • 12 DMX Channel Modes (22 total channels)
  • DMX and Manual Control
  • 4 Button Control Panel
  • 180° Reversible OLED Menu Display
  • DMX Adjustable LED Refresh Rate (900-28,800 (Hz)
  • Adjustable LED Gamma Brightness (2.0, 2.2, 2.4, 2.8)
  • Art-Net, Kling-Net, and RDM Remote Device Management) Protocol Support

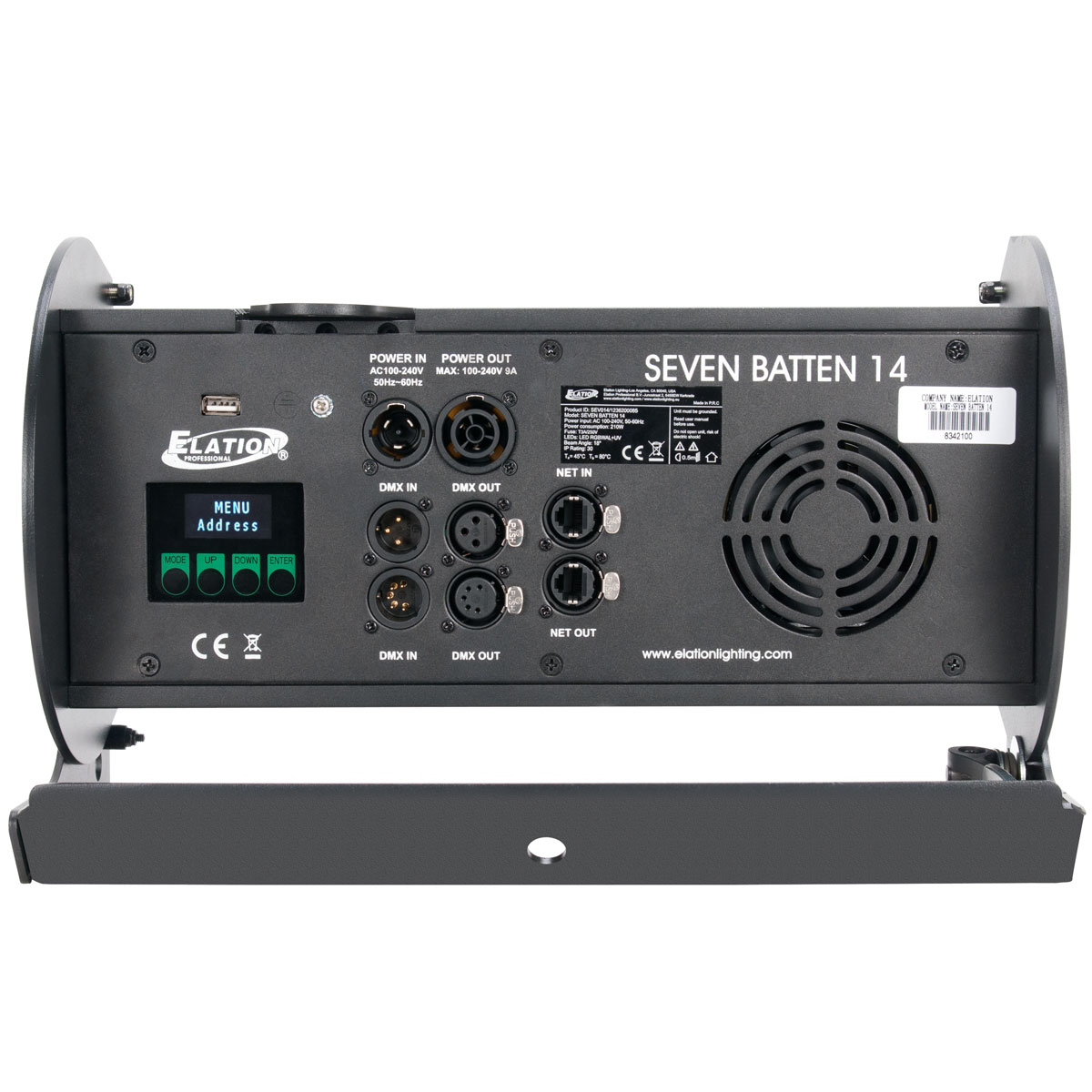

  • 3/5pin DMX, RJ45 etherCON, and Power In/Out
  • With Wired Digital Communication Network

SIZE / WEIGHT

  • Length: 14.0” (355.6mm)
  • Width: 4.5” (114.3mm)
  • Vertical Height: 9.0” (228.6mm)
  • Weight: 17.0 lbs. (7.7kg)

ELECTRICAL / THERMAL

  • AC 100-240V - 50/60Hz
  • 201W Max Power Consumption
  • 5°F to 113°F (-15°C to 45°C)

APPROVALS / RATINGS

  • CE | cETLus | IP20




UPC: 837874008418

Reviews: Elation SEVEN Batten 14 RGBAW+Line+UV LED Light

There are currently no product reviews.


Warranty: Elation SEVEN Batten 14 RGBAW+Line+UV LED Light

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

2 Year Warranty

Elation Professional Product Rechargeable Batteries: 6 months limited
Discharge lamps and all product accessories are not covered by a warranty
