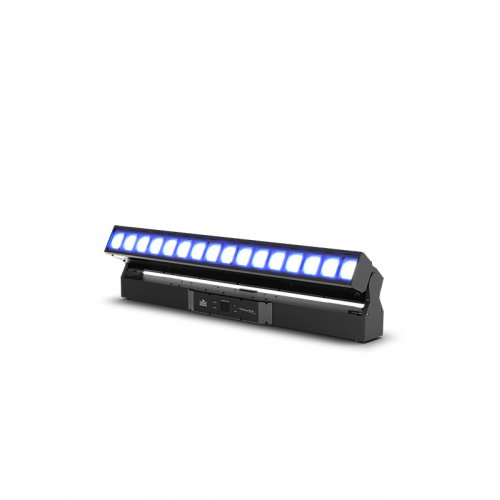

Chauvet Pro COLORado PXL Bar 16

About: Chauvet Pro COLORado PXL Bar 16

COLORado PXL Bar 16 is a motorized, outdoor-ready tilting batten with capabilities to zoom for tight and wide pixel-mappable looks. This bright, moving pixel bar also features seamless edge-to-edge mounting and includes virtual gobo and movement macros with separate foreground and background colour control for more design options than ever before. Slotted Omega brackets make it quick and easy to hang the fixture on truss. The COLORado PXL Bar 16 can also be positioned on the ground, which allows for a variety of different light angles. With two zones of control, the power is in your hands and the possibilities are endless!

AT A GLANCE

• IP65-rated motorized tilting batten with (16) 45 W RGBW LEDs with a 5.8 ° to 47.9° zoom range, maintains pixel pitch between fixtures.
• Quiet and quick operation of 200° tilt
• Quiet and quick operation of (2) section zoom
• Fully pixel mappable
• Several built-in effects including virtual gobos and movement macros with foreground and background colour control for easy pixel animation effects
• DMX, SACN, Art-Net, and Kling-Net control for full flexibility
• RDM Enabled for remote addressing and trouble shooting
• 5.8° - 47.9° zoom range for variable beam sizes
• TRUE1 compatible power input/output ports
• IP65-rated 5 pin DMX and TCP/IP input/output ports
• IP65-rated USBc software upload port
• Slotted Omega brackets for easy hanging on truss

SPECIFICATIONS

• OPTICAL
  • Light Source: 16 LEDs (quad-colour RGBW) 45 W, (3.0 A), 8875 K, 50,000 hours life expectancy.
  • Color Temperature (calibrated white): 6122 K
  • CRI: 61.6
  • Beam Angle: 5.8° to 30.4°
  • Beam Angle single cell: 4° to 29.9
  • Field Angle: 8.9° to 42.2°
  • Field Angle single cell: 5.4° to 42.3°
  • Cutoff Angle: 10° to 47.9°
  • Cutoff Angle single cell: 6.1° to 45.5°
  • Zoom Range: 5.8° to 47.9°
  • Zoom Range single cell: 4° to 45.5°
  • Lumens (43.3°): 8,959
  • Illuminance (5.7°): 27,415 lux @ 5 m
  • Illuminance (43.3°): 1,294 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
• DYNAMIC EFFECTS
  • Tilt: 200°
  • Tilt Ranges: 60°, 180°, 200°
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 20 Hz
  • Dim Modes: 2
  • Dim Curves: 4
• CONSTRUCTION / PHYSICAL
  • Dimensions: 39.37 x 5.47 x 10.75 in (1000 x 139 x 273 mm)
  • Weight: 45.6 lb (20.7 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum diecast, High-impact flame-retardant polymer
• CONNECTIONS
  • Power Connection: Bare end to Seetronic Powerkon IP65
• CONTROL
  • Control Protocol: Art-Net, Kling-Net, DMX, RDM, sACN
• ELECTRICAL
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 0 unit @ 120 V; 2 units @ 208 V; 2 units @ 230 V
  • Power and Current: 790 W, 6.60 A @ 120 V, 60 Hz
  • Power and Current: 771 W, 3.821 A @ 208 V, 60 Hz
  • Power and Current: 768 W, 3.485 A @ 230 V, 50 Hz
• CERTIFICATIONS / QUALIFICATIONS
  • CE, MET, FCC
  • IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

• COLORado PXL Bar 16
• Seetronic Powerkon IP65
• 2 Omega bracket with mounting hardware
