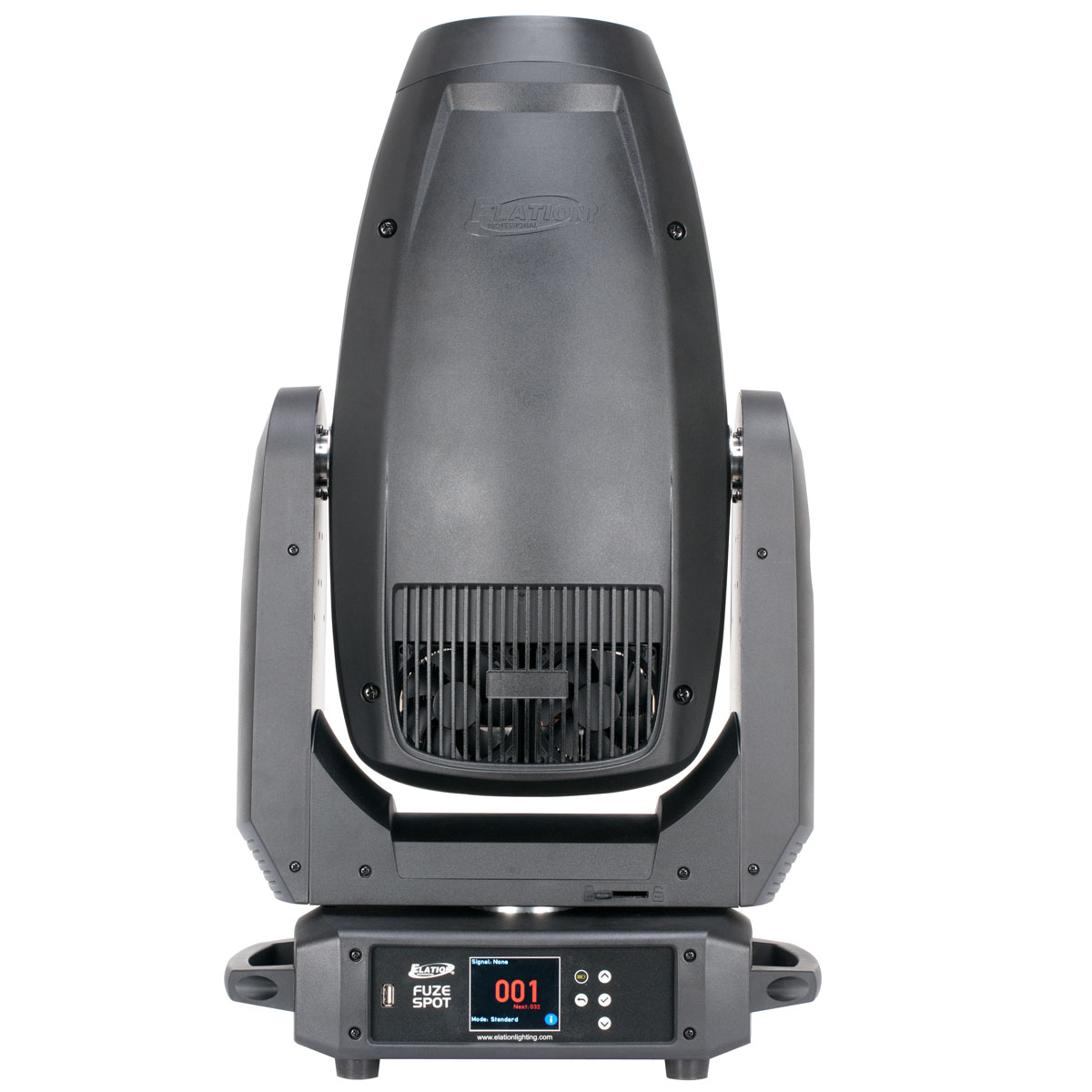

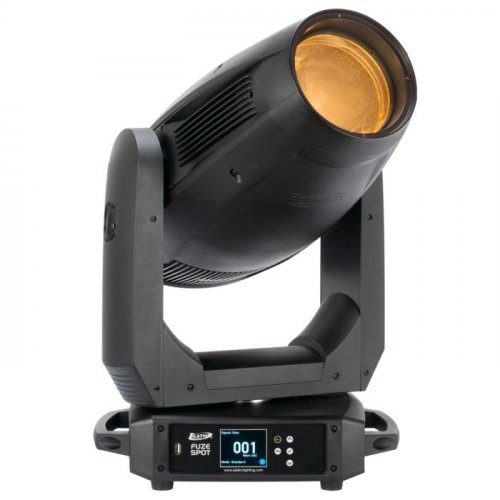

Elation FUZE SPOT LED Moving Head

About: Elation FUZE SPOT LED Moving Head

The FUZE SPOT™ is an automated LED spot fixture designed for theater, television and a wide array of other precision lighting applications.The 92 CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensures accurate color reproduction while delivering a powerful output of over 10,000 lumens. Virtual color temperature, Magenta / Green adjustment plus CMY emulation provide the designer with immediate access to the impressive LED color array.

The FUZE SPOT is designed for any application where an automated ellipsoidal fixture with outstanding and impactful color range and quality is required. Dual rotating gobo wheels, animation wheel, frost, prism and iris round out its comprehensive feature set in a compact, quiet and lightweight fixture.

Features

• Extended color RGBMA LED Engine, 92 CRI
• Two rotating Gobo Wheels plus Animation Wheel
• Iris, Prism, and Frost
• Wide Zoom Range from 7° to 42°

Specifications

SOURCE

• 305W 6,500K RGBMA LED Engine, 92 CRI
• 30,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.

PHOTOMETRIC DATA

• 10,000+ Total Lumen Output

EFFECTS

• 7° - 42° Motorized Zoom
• Variable Frost Filter
• 4 Facet Prism
• Motorized Iris
• Variable 16-bit Dimming Curve Modes
• High Speed Electronic Shutter and Strobe

COLOR

• RGBMA Color Array
• CMY Emulation
• Virtual Color Correction
• Green/Magenta Shift
• Virtual Gel Swatch Book

GOBOS

• 2x 6 Rotating / Indexing Interchangeable Glass Gobos
• Animation Wheel

CONTROL / CONNECTIONS

• 4 DMX Channel Modes (RGBMA 31 / 41) (CMY 29 / 37)
• 16-bit Pan, Tilt, and Dimming Control
• DMX Adjustable LED Frequency
• DMX, RDM Protocol Support
• 4 Button Touch Control Panel
• Full Color 180° Reversible LCD Menu Display
• Locking 5pin XLR Connector In/Out
• IP65 Locking Power Connector In/Out
• With Wired Digital Communication Network

SIZE / WEIGHT

• Length: 16.0” (407mm)
• Width: 10.1" (256mm)
• Vertical Height: 27.4" (698mm)
• Weight: 46.3 lbs. (21kg)

ELECTRICAL / THERMAL

• AC 100-240V - 50/60Hz
• 466W Max Power Consumption
• 14°F to 113°F (-10°C to 45°C)

APPROVALS / RATINGS

• CE | cETLus pending | IP20
