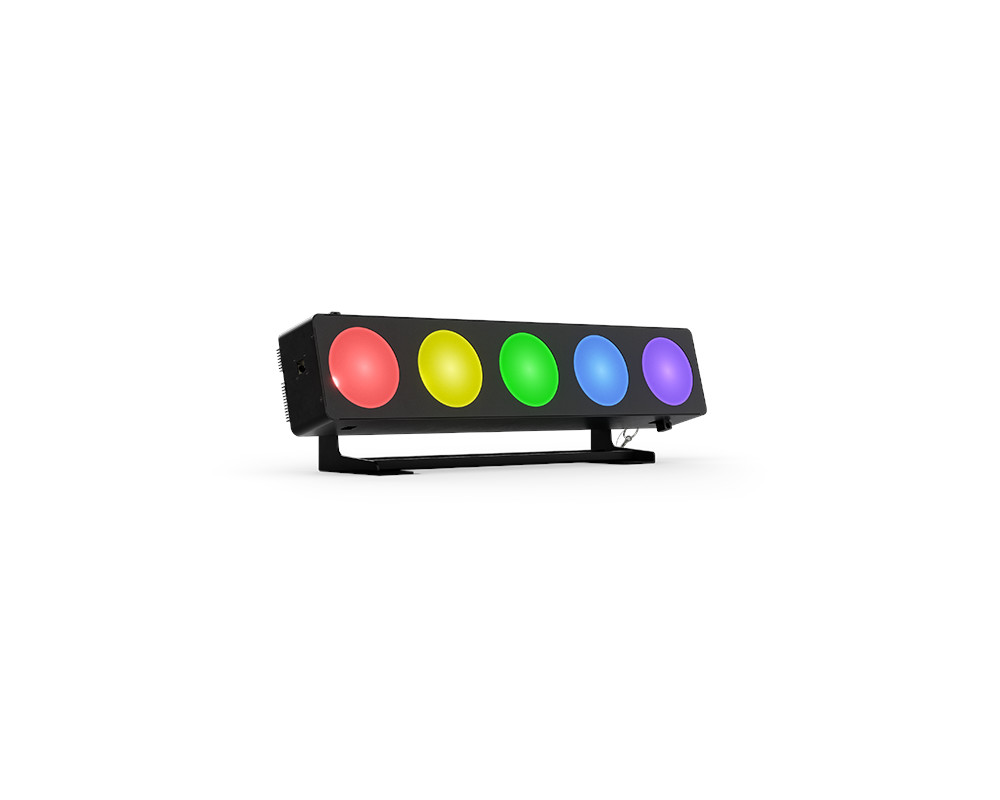

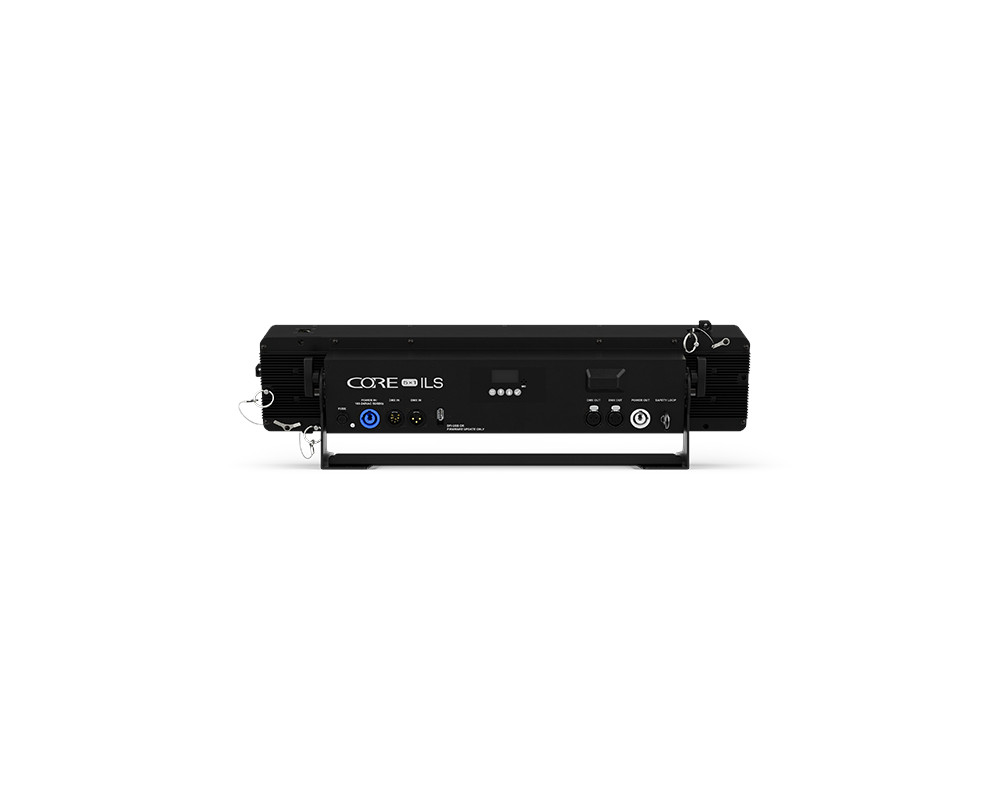

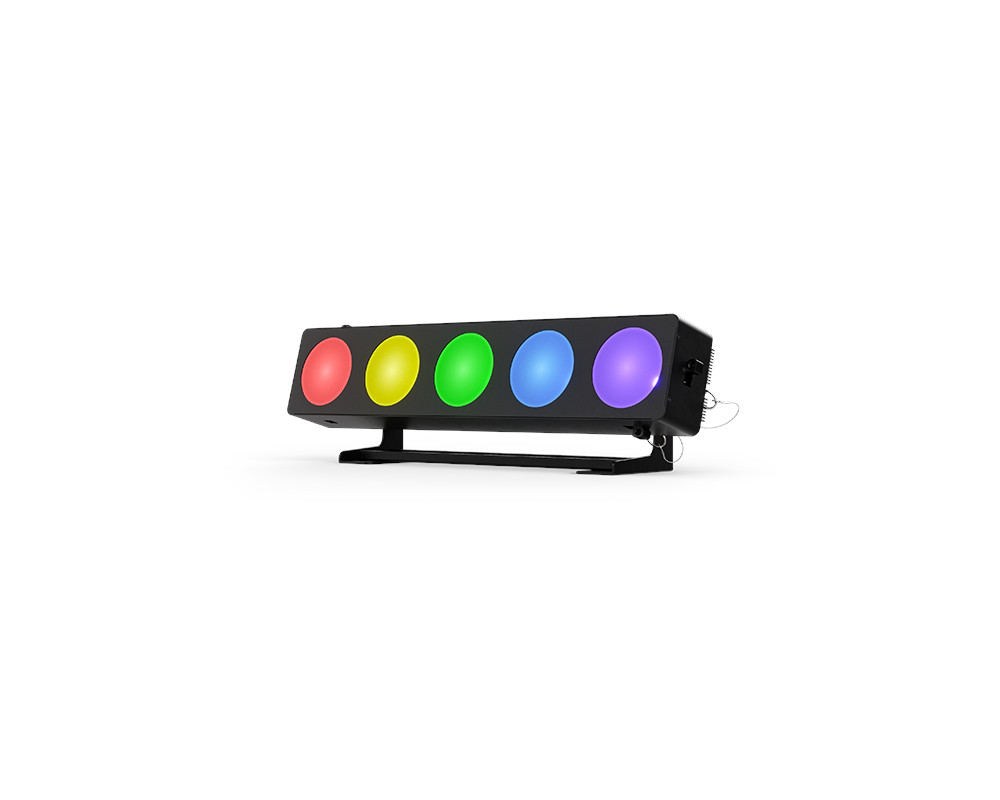

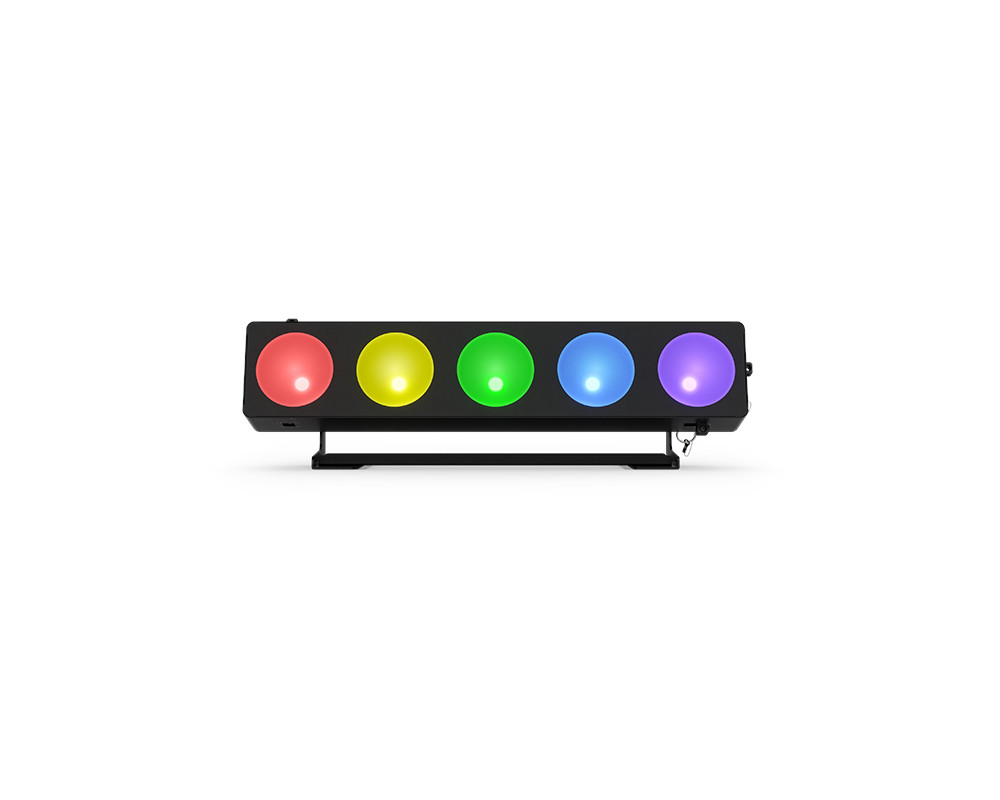

Chauvet DJ Core 5X1 ILS Linear Wash LED
Model: CORE5X1ILS
About: Chauvet DJ Core 5X1 ILS Linear Wash LED
Core 5X1 ILS projects smoothly saturated color with COB technology and a large reflector design ideal for bringing the most natural color tones to live setups. Create custom shapes with built-in tool-free connecting hardware. Add a D-Fi USB (sold separately) to wirelessly sync Core 5X1 ILS with multiple ILS fixtures of different types. Floor mount for a perfect uplight or attach multiple fixtures together for high-impact pixel-mapped looks, runway chase effects, blinder bursts or color washes.
- Multi-purpose effect light functions as a pixel-mapping effect, chase effect, blinder, or wash light.
- Attach multiple fixtures together using the built-in, toolless connecting hardware
- ILS compatibility for use in the ILS ecosystem (D-Fi USB sold separately)
- Connect up to 6 fixtures together vertically using the toolless linking hardware
- Generates a broad spectrum of colors and achieves natural-looking color temperatures with COB technology
- Withstand the harshness of traveling from gig to gig with a robust housing
- Offers multiple control options, including stand-alone, DMX, ILS, RF, or master/slave
Specifications
- DMX Channels: 4, 8, or 22
- DMX Connectors: 3- and 5-pin XLR
- Light Source: 5 LEDs (quad-color RGB+WW) 35W, (1.2A) 50,000 hours life expectancy
- Strobe Rate: 0 to 20 Hz
- Beam Angle: 54°
- Field Angle: 75°
- Illuminance: 953 lux @ 2 m
- Lumens: 2,875
- Power Linking: 6 units @ 120 V; 10 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 120 W, 1.8 A @ 120 V, 60 Hz
- Cable Length: 5 ft (1.52 m)
- Bracket Mounting Hole: 13 mm
- Optional Controllers: ILS Command, RFC, RFC-XL
- Approvals: CE, RoHS
- Size: 23.6 x 3.1 x 4.7 in (600 x 79 x 120 mm)
- Weight: 11 lbs (5 kg)
What's Included
- CORE 5X1 ILS
- Power cord
- Quick Reference Guide
UPC: 781462230241
Reviews: Chauvet DJ Core 5X1 ILS Linear Wash LED
Warranty: Chauvet DJ Core 5X1 ILS Linear Wash LED
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
2-year warranty on DMX controllable lighting fixtures
2-year warranty on DMX512 controllers
1-year warranty on effect fixtures and non-programmable controllers
1-year warranty on foggers and hazers
3-month warranty on laser diodes
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and Chauvet DJ do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
