Chauvet Pro WELL Fit X Wireless LED Wash Light 6-Pack w/ Charge Case

About: Chauvet Pro WELL Fit X Wireless LED Wash Light 6-Pack w/ Charge Case

The leading workhorse uplight in its class gets a host of upgrades that improve color mixing, size, weight and functionality. WELL FIT X offers increased lumen output, additional LEDs with improved optics and outstanding beam collimation, a filter pack for beam shaping, and a white metal slip cover for more décor matching possibilities. Roll into any production, indoors or out, with a road-worthy six-unit kit with built-in charging capability and the new ability to perform software updates to the fixtures while in their charging case.

ConnectFX delivers dynamic and reliable control solutions when paired with WELL CONNECT. Available for iOS® and Android in both phone and tablet versions.

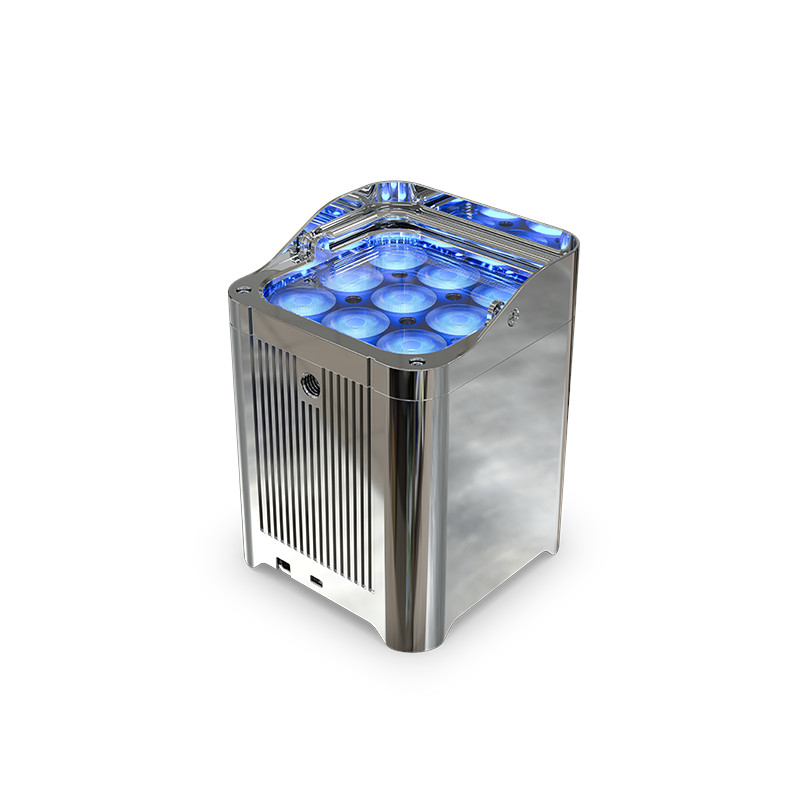

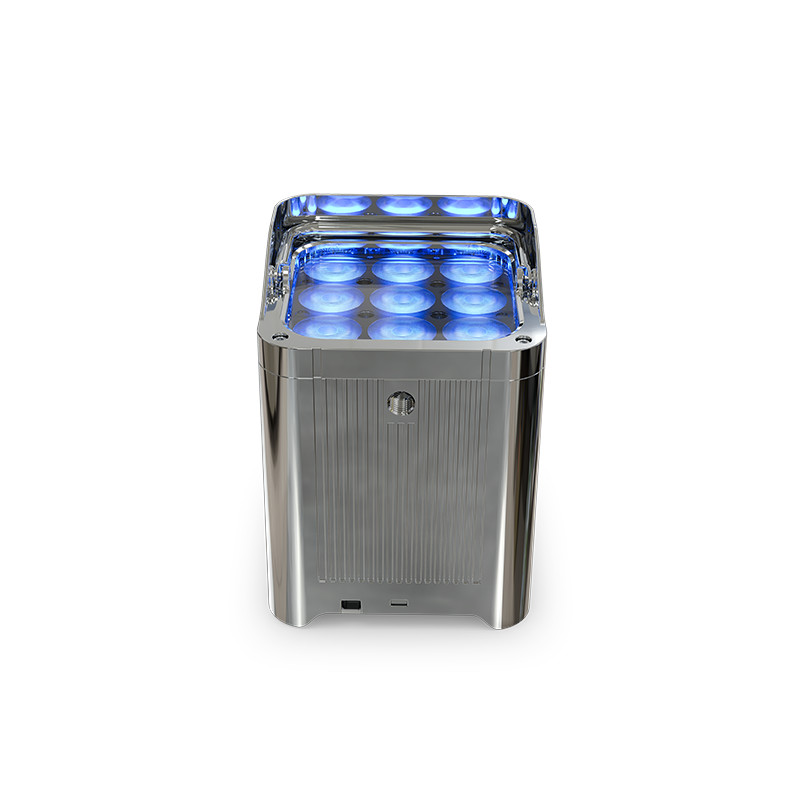

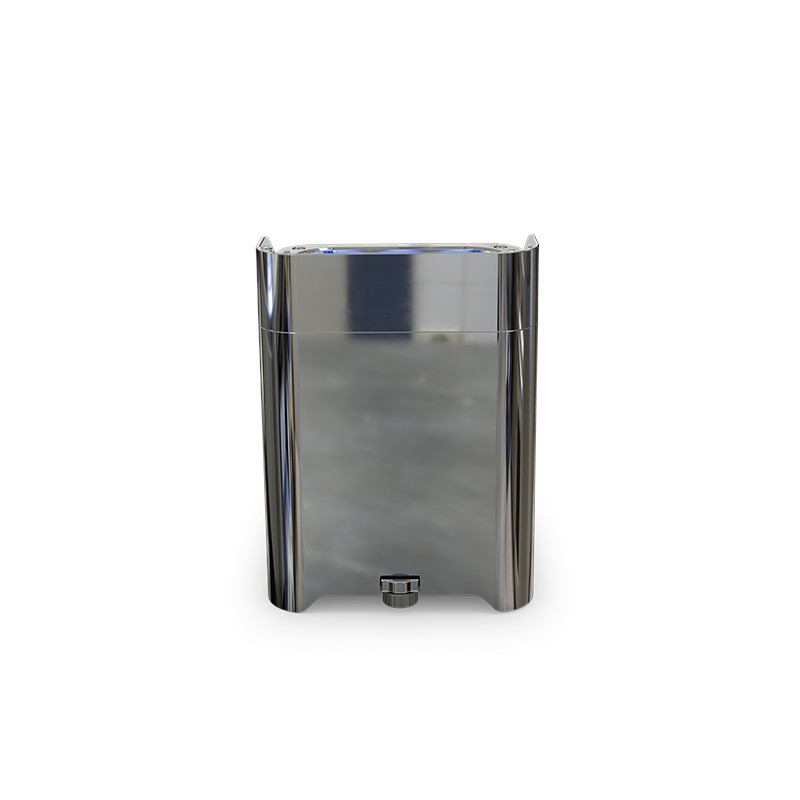

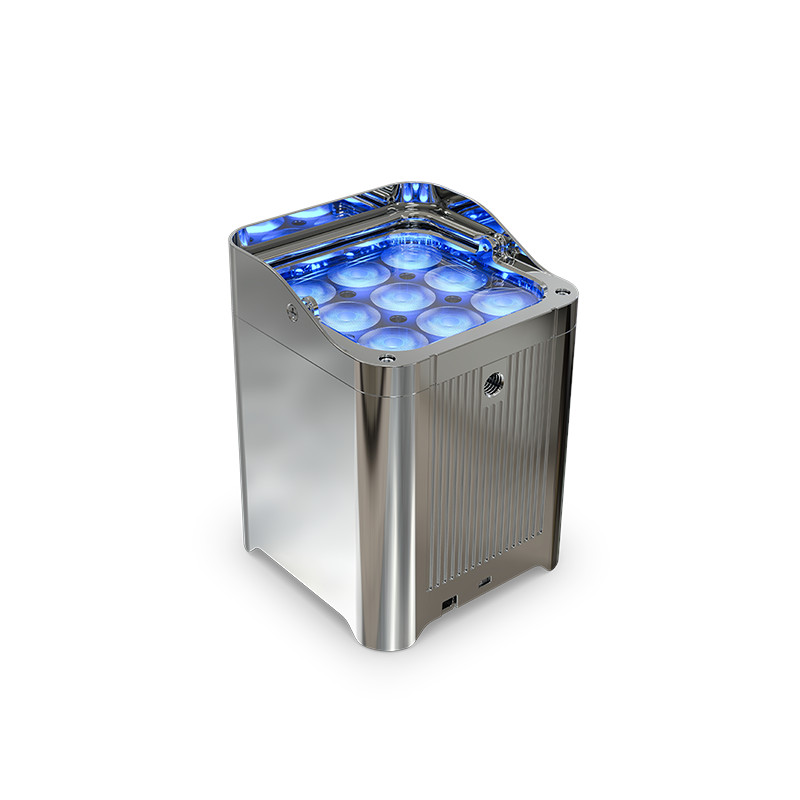

• A fully realized kit of (6) battery operated chrome IP65-rated uplight-style fixtures with (9) RGB warm white LEDs, and a beam angle of 11.3 degrees

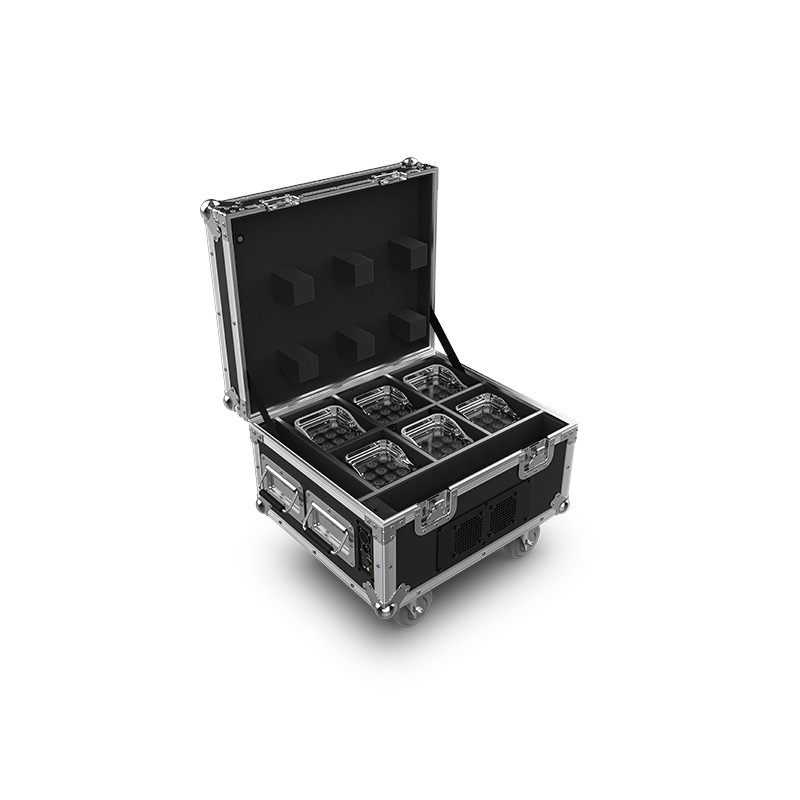

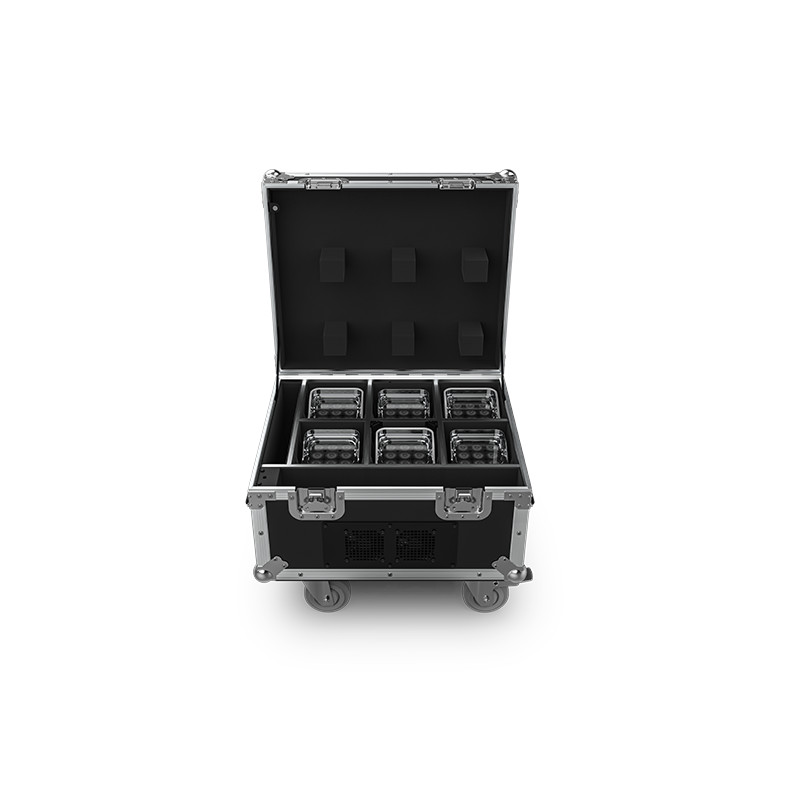

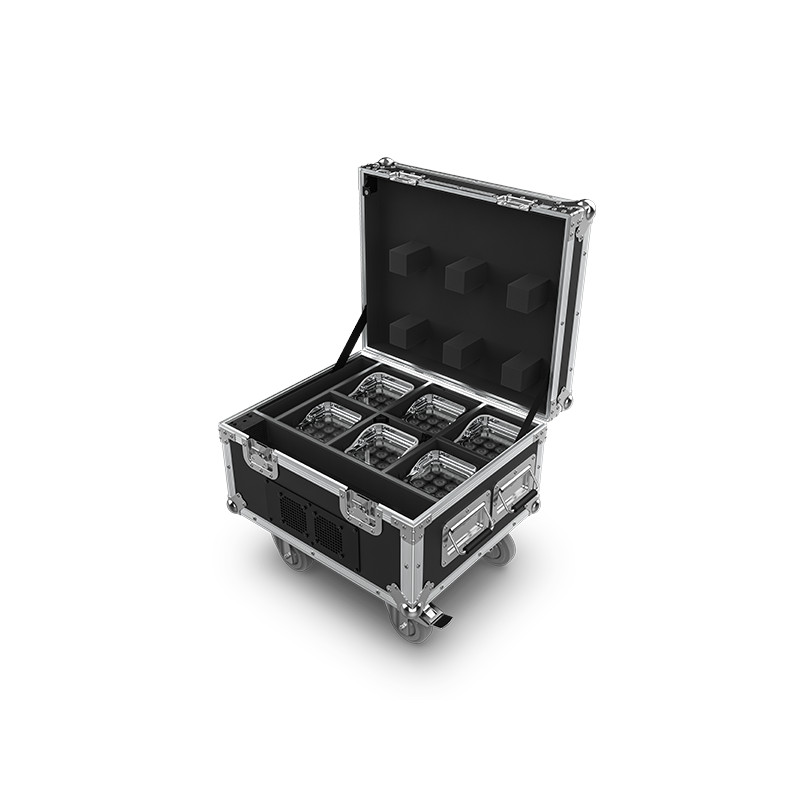

• Charging case designed to charge with the lid closed to save warehouse space
• Battery run time selections of 5, 8, 12, and 18 hours of operation at full output
• Built-in battery charger allows fixture to operate while charging
• Control over RDM, CRMX, or RF
• Easy connection to WELL CONNECT box and ConnectFX app
• USB-C port for convenient software updates
• Pressure equalizing M6 Gore valve
• Adjustable front foot for adjusting fixture angle
• Kensington lock position
• Built-in safety cable attachment point
• Easy-to-read OLED display
• Built-in theft alarm (audio and visual notification)
• Built-in PWM adjustment
• Included RF remote
• Included 6 pack charging case

Specifications

• Optical
  • Light Source: 9 LEDs (RGBWW) 13.2 W, (556 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2600 to 10,000K
  • Beam Angle: 11.5°
  • Field Angle: 21.1°
  • Lumens: 1762 lm (OFF battery setting)
  • Illuminance: 1087 lux @ 5 m (OFF battery setting)
  • Lumens: 1944 lm (5-hour battery setting)
  • Illuminance: 1205 lux @ 5 m (5-hour battery setting)
  • Lumens: 1233 lm (8-hour battery setting)
  • Illuminance: 764 lux @ 5 m (8-hour battery setting)
  • Lumens: 821 lm (12-hour battery setting)
  • Illuminance: 507 lux @ 5 m (12-hour battery setting)
  • Lumens: 550 lm (18-hour battery setting)
  • Illuminance: 339 lux @ 5 m (18-hour battery setting)
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz
• Dynamic Effects
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 30 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: No
• Construction / Physical
  • Dimensions - Fixture: 4.9 x 4.9 x 6.9 in (126 x 126 x 176 mm)
  • Dimensions – 6 pack case: 21.8 x 18.5 x13.5 in (554 x 470 x 345 mm)
  • Weight (single unit) 7.0 LB (3.2 kg)
  • Weight (shipping weight): 98.3 lbs (44.6 kg)
  • Exterior Color: Chrome
  • Housing Material: Aluminum diecast
• Connections
  • Power Connection: 5.5mm right-angle barrel jack
  • Cable Length (charger): 8.5 ft (2.6m) (sold separately)
  • Power Input (charging case): Seetronic TRUE1 IP65
  • Power Output (charging case): Seetronic TRUE1 IP65
  • Software Connection: USB-C
• Control
  • Control Protocol: RDM, CRMX, NFC, RF
  • DMX Channels: 5, 8, or 12
  • Modes/Personalities: 3 personalities (5Ch, 8Ch, 12Ch)
  • Wireless WDMX “G” Compatibility: G4S
  • Wireless Lumen Radio Compatibility: CRMX
• Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Single unit
    • Power and Current (single unit charging): 43 W, 0.74 A @ 100 V, 60 Hz
    • Power and Current (single unit charging): 42 W, 0.64 A @ 120 V, 60 Hz
    • Power and Current (single unit charging): 42 W, 0.52 A @ 208 V, 60 Hz
    • Power and Current (single unit charging): 42 W, 0.47 A @ 230 V, 50 Hz
    • Power and Current (single unit charging): 42 W, 0.47 A @ 240 V, 50 Hz
  • 6 Pack case
    • 3 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V
    • Power and Current:239W, 3.94A @ 100V
    • Power and Current: 238W, 3.44A @ 120V
    • Power and Current: 235W, 2.48A @ 208V
    • Power and Current: 235W, 2.32A @ 230V
    • Power and Current: 235W, 2.27A @ 240V
• Battery
  • Battery type: Lithium Ion
  • Rechargeable: Yes
  • Battery Charge Time: 1.6 hours
  • Battery Life: 3hr, 5hr, 8hr, 12hr
  • Battery Power: 25.9 V, 4.4 Ah
• Certifications / Qualifications
  • CE, FCC, UKCA
  • IP Rating: IP65, temporary outdoor/ wet use (fixture)
  • IP Rating: IP20 (case)
  • Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
  • Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)
• Optional Accessories
  • Clamps
  • WELL FIT X – 15° Filter Pack
  • WELL FIT X – 60° x 10° Filter Pack
  • WELL FIT X – Single Charger
  • WELL FIT X – Black Fixture Cover
  • W-DMX Micro T-1 TRX G6

What's Included

• 6x WELL FIT X
• 1x 6 slot charging case
• 1x basic RF controller
• 1x True 1 power cable
• 1x QRG
