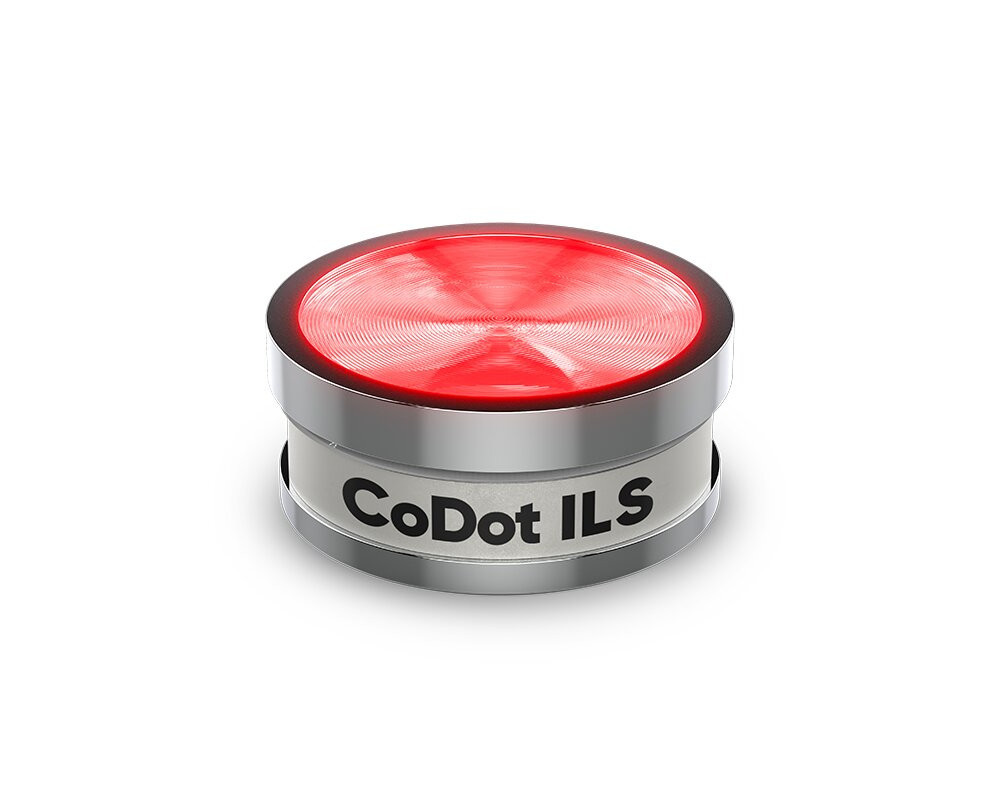

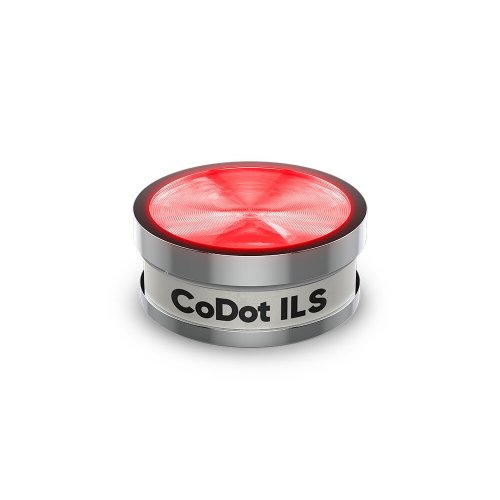

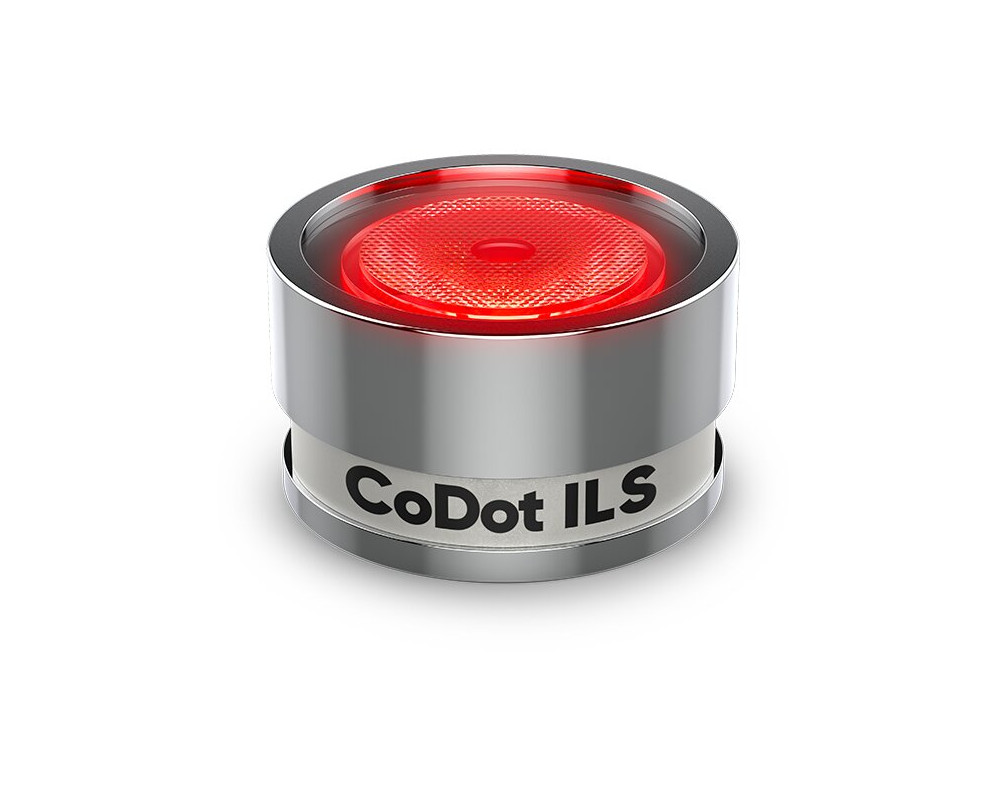

Chauvet DJ CoDot ILS LED Illuminator

Model: CODOT-ILS

Chauvet DJ CoDot ILS LED Illuminator
Chauvet DJ CoDot ILS LED Illuminator
Chauvet DJ CoDot ILS LED Illuminator
Chauvet DJ CoDot ILS LED Illuminator
Chauvet DJ CoDot ILS LED Illuminator
Chauvet DJ CoDot ILS LED Illuminator
  • Free Shipping!
  •  Available - Approx 5 Day Lead Time
  • Not yet reviewed



About: Chauvet DJ CoDot ILS LED Illuminator

Party lighting fits in the palm of your hand with CoDot ILS. This puck-sized LED illuminator is the perfect solution for small spaces where conventional fixtures can’t fit. Each CoDot ILS has 1 quad-color (RGBW) LED to suit a range of applications. With D-Fi, ILS, and RF compatibility, this fixture works with the lighting control that best suits your needs. Make any area of your venue shine with CoDot ILS.

  • Coin-sized LED illuminator designed for small applications where conventional fixtures won’t fit
  • Includes two lens options to meet different application criteria
  • Magnetic base easily mounts to metal surfaces
  • Threaded insert is compatible with camera tripods and accessories
  • ILS compatibility for use in the ILS ecosystem
  • Built-in DFI transceiver communicates DMX or ILS signals wirelessly
  • Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
  • Easy navigation and access all functions directly from the LED display

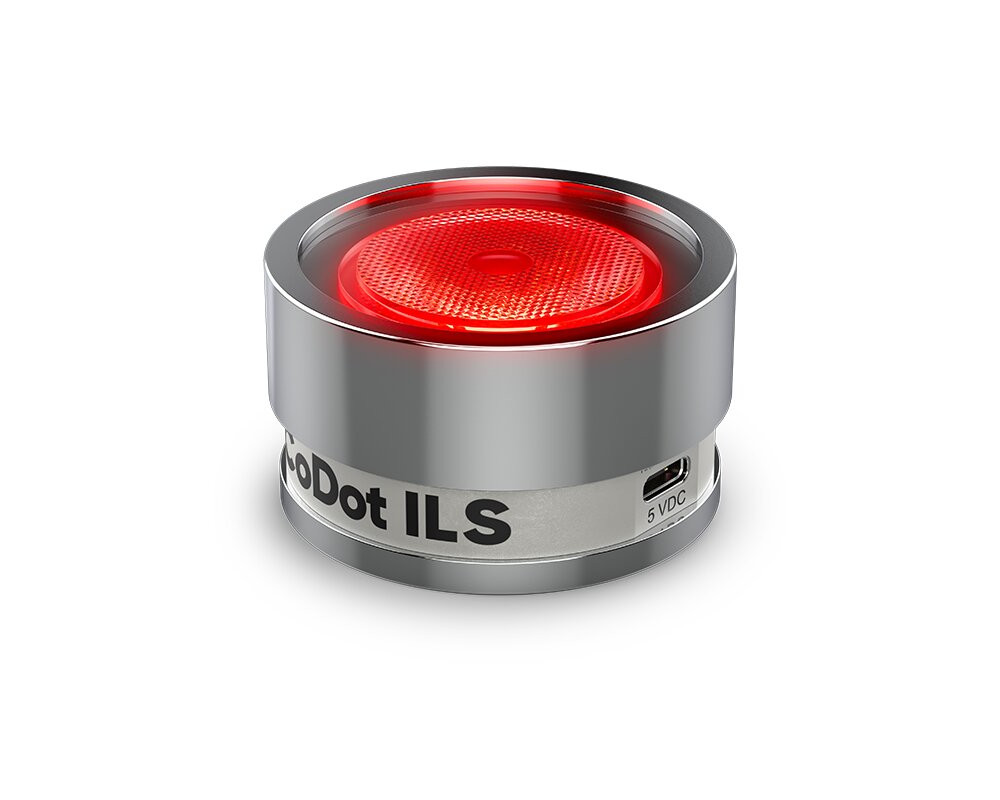

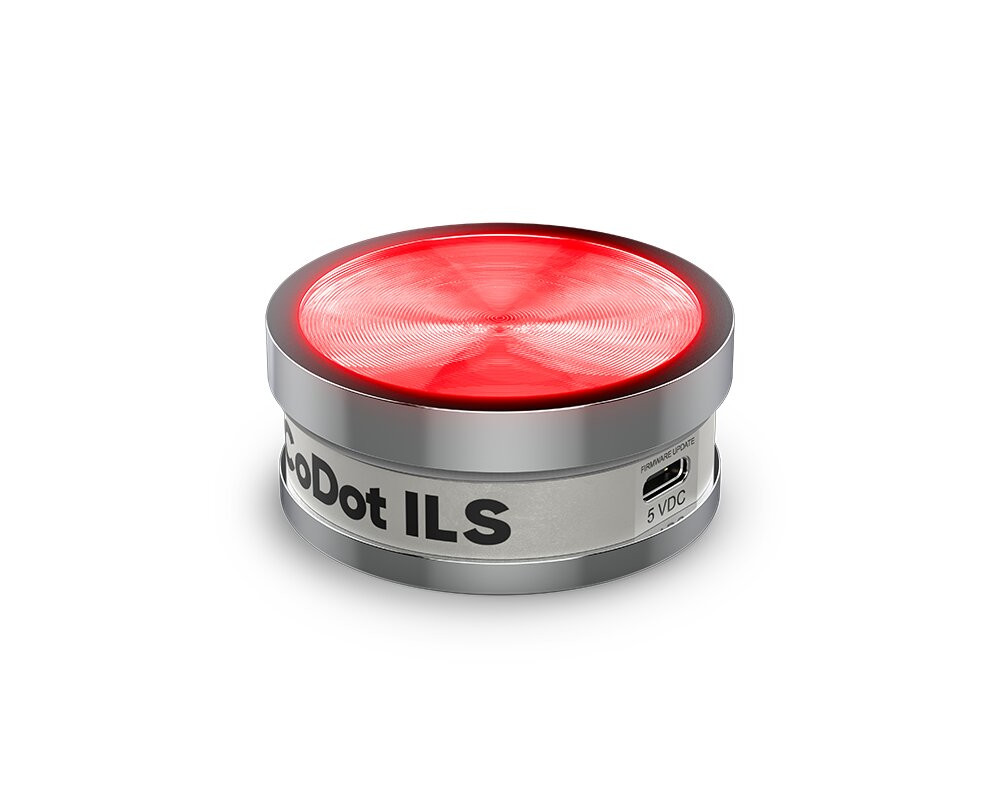

  • Power linking multiple units from the USB type-C in and out

Specifications

  • DMX Channels: 4 or 6
  • Max Unobstructed Distance: 600 ft (183 m)
  • Light Source: 1 LED (quad-color RGBW) 3 W, (0.8 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 20 Hz
  • Operating Frequency: 2.4 GHz
  • Power Linking: 4 units @ 120 V; 4 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Beam Angle (installed lens): 19°
  • Beam Angle (included lens): 14°
  • Illuminance (installed lens): 256 lux @ 2 m
  • Illuminance (included Lens): 442 lux @ 2 m
  • Operating Frequency: 2.4 GHz
  • Power and Current
    • 7 W, 0.1 A @ 120 V, 60 Hz
    • 7 W, 0.1 A @ 230 V, 50 Hz
  • Optional Controllers: ILS Command, RFC, RFC-XL
  • Weight: 0.2 lb (.1 kg)
  • Size: 2.2 x 2.1 x 0.9 in (57 x 54 x 24 mm)
  • Approvals: CE, ROHS, UKCA, FCC

What's Included

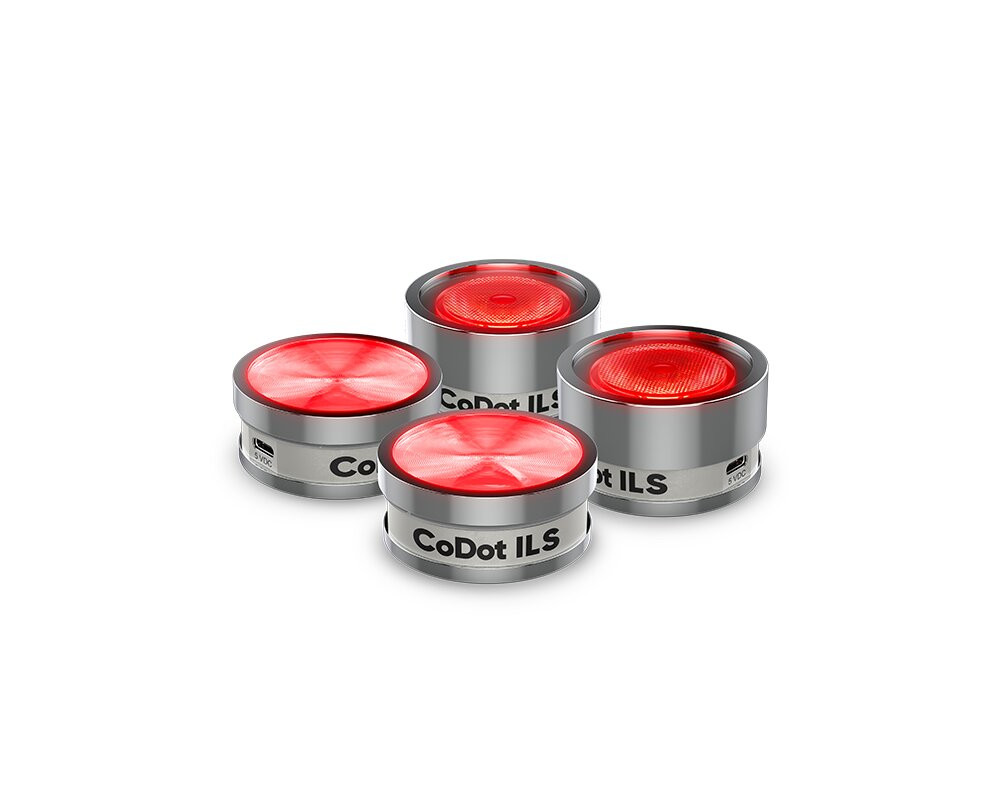

  • 4x CoDot ILS
  • 8x Lenses
  • 3x Short USB cables (0.5m)
  • 3x Long USB cables (2m)

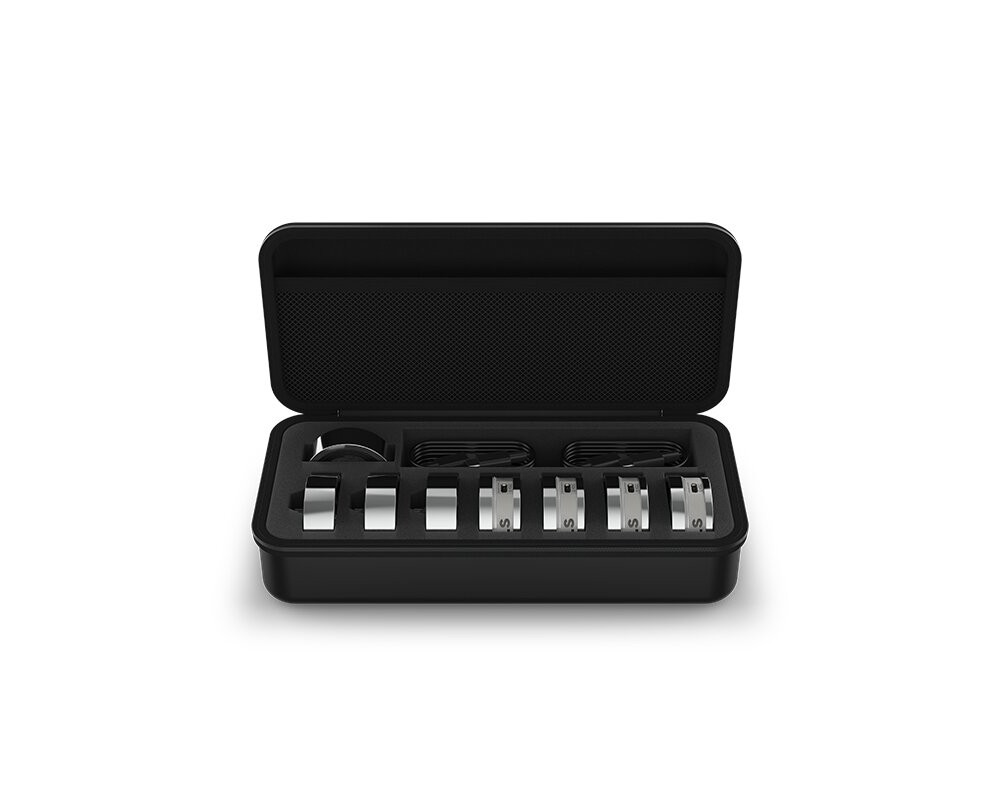

  • 1x Carry case
  • 1x External power supply
  • Quick Reference Guide

UPC: 781462227067

Reviews: Chauvet DJ CoDot ILS LED Illuminator

There are currently no product reviews.


Warranty: Chauvet DJ CoDot ILS LED Illuminator

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

2-year warranty on DMX controllable lighting fixtures
2-year warranty on DMX512 controllers
1-year warranty on effect fixtures and non-programmable controllers
1-year warranty on foggers and hazers
3-month warranty on laser diodes

Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
