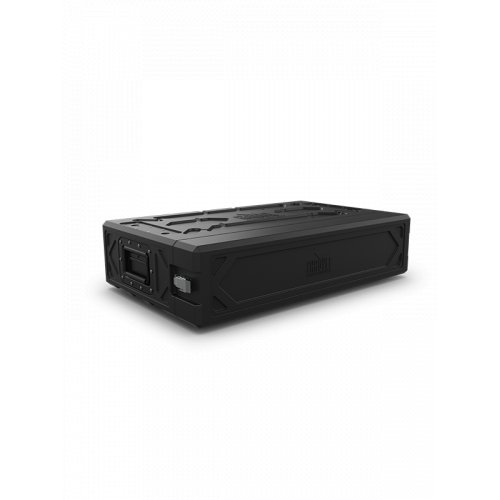

Chauvet Pro Amhaze Stadium 2X IP Outdoor Hazer in Case IP65

About: Chauvet Pro Amhaze Stadium 2X IP Outdoor Hazer in Case IP65

A rugged and compact outdoor-rated hazer in a self-contained flight case that stacks easily and conveniently packs all accessories in its removable cover. Amhaze Stadium 2X IP features a full-color display and precise manual or DMX adjustment of its variable haze output and blower speed. Floor mount or install into the rig with standard truss mounting brackets, and then direct haze flow with its adjustable output nozzle.

Amhaze Stadium 2X IP is built for the rigors of touring with a design that delivers reliability, longevity and easy serviceability. An innovative heater system produces continous output and minimizes maintenance, while a peristaltic pump eliminates contact with fluid, removing its risk of corrosion. A USB-C port for easy software upgrades in the field completes this fully featured professional unit.

• Compact, professional hazer gives high quality haze for live lighting applications
• Suitable for temporary outdoor/wet use
• Continuous operation produces haze for medium to large applications
• Our innovative, fully serviceable heater assembly is designed for maximum efficiency and longevity. Enjoy easy internal servicing and cleaning, ensuring optimal performance with minimal downtime. Plus, the replaceable heater core extends the product’s lifespan while reducing waste—delivering cost savings and sustainability without compromising on reliability.
• Our innovative heater design significantly reduces clogging, ensuring smooth operation, minimal maintenance, and enhanced reliability for long-term performance
• Adjustable vent louver for directional haze flow
• Ships in integrated, rugged flight case, suitable for rental/touring applications with removeable front cover with storage for accessories
• Designed for seamless compatibility, this unit utilizes Chauvet’s standard 140D Omega Mounting Brackets, allowing for easy integration with standard mounting hardware for quick and secure installation.
• Experience precise control with continuous variable haze output and adjustable blower speed, easily fine-tuned via DMX integration or intuitive manual knobs for seamless customization.

Specifications

• Fan Performance: 164 cfm
• Low Fluid Shutdown: Yes

Construction / Physical

• Dimensions: 26 x 16 x 6.75 in (660 x 406 x 171.45 mm)
• Weight: 48.8 lb (22.13 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy, Aluminum diecast, High-impact flame-retardant polymer, Steel
• Tank Capacity: 1.32 gal (5 l)
• Fluid Consumption: 9.5 ml/min
• Maximum Runtime: 8 hrs

Connections

• Power Connection: Edison (Local) plug to Seetronic Powerkon (powerCON Compatible)
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP65 XLR
• Cable Length (power): 5 ft (1.5 m)
• Firmware upgrades: USB type-C

Control

• Control Protocol: DMX, RDM
• DMX Channels: 2
• Modes/Personalities: 1 personality (2ch)
• On-Board Control: Yes

Electrical

• Input Voltage: 120 VAC, 60 Hz
• Input Voltage: 230 VAC, 50 Hz
• Power and Current: 511 W, 4.26 A @ 120 V, 60 Hz
• Heat-up Time: 6 min
• Fuse: F8 A, 250 V

Certifications / Qualifications

• CE, UKCA
• IP Rating: IP65, temporary outdoor/wet use
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

• Amhaze Stadium II IP
• Seetronic IP 65 Powerkon power cord
• 2x Mounting brackets
• Output nozzle assembly
• Front Cover

Required Accessories

• Accessories (required): Fog Fluid-PHF
• Compatible Mounting Options: M12 / ½” hole with mounting brackets (clamps)

Optional Accessories

• Neutrik powerKON cables
• DMX Cables
