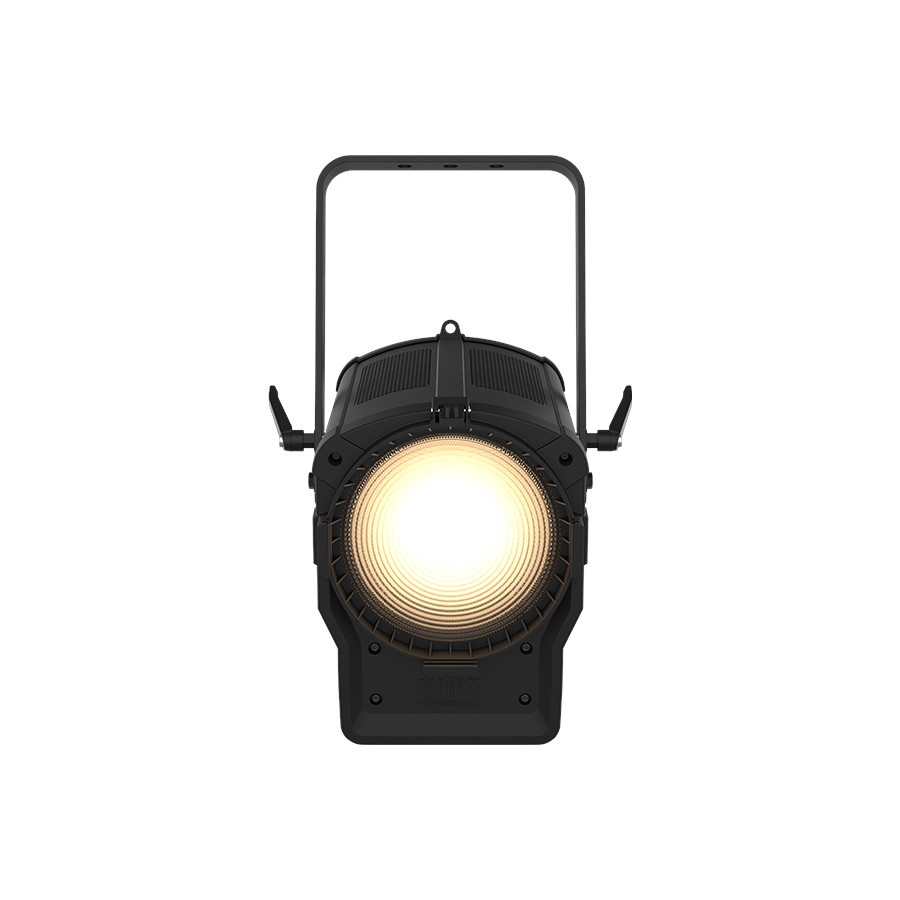

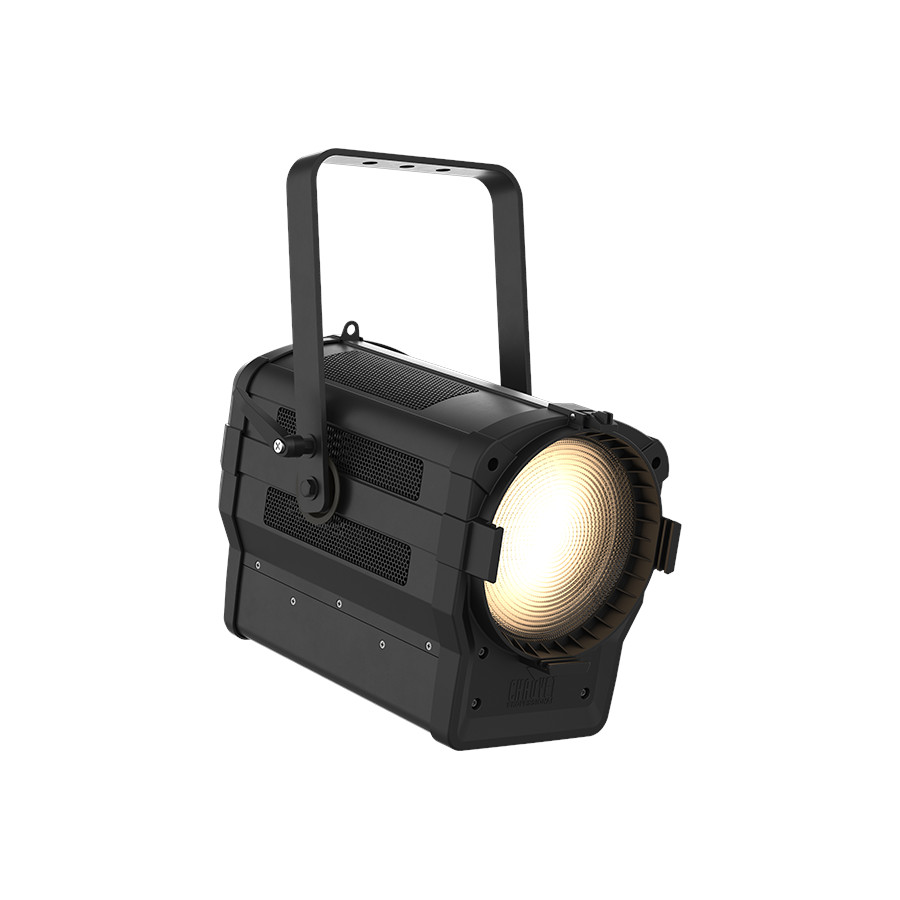

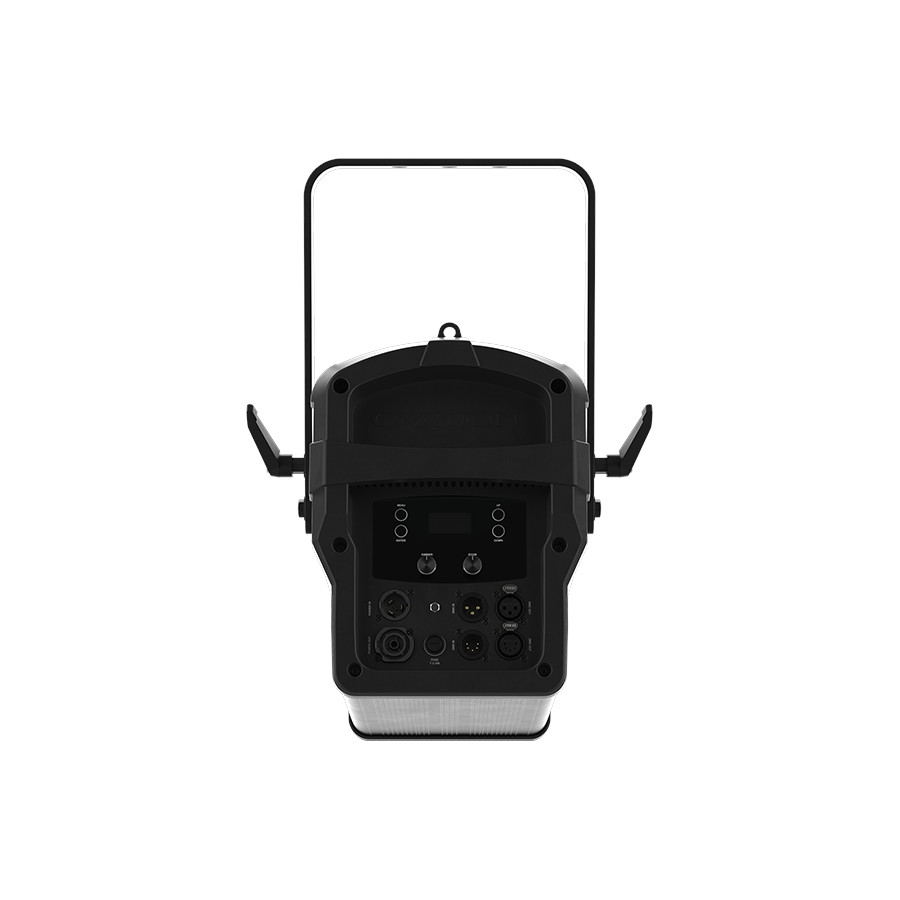

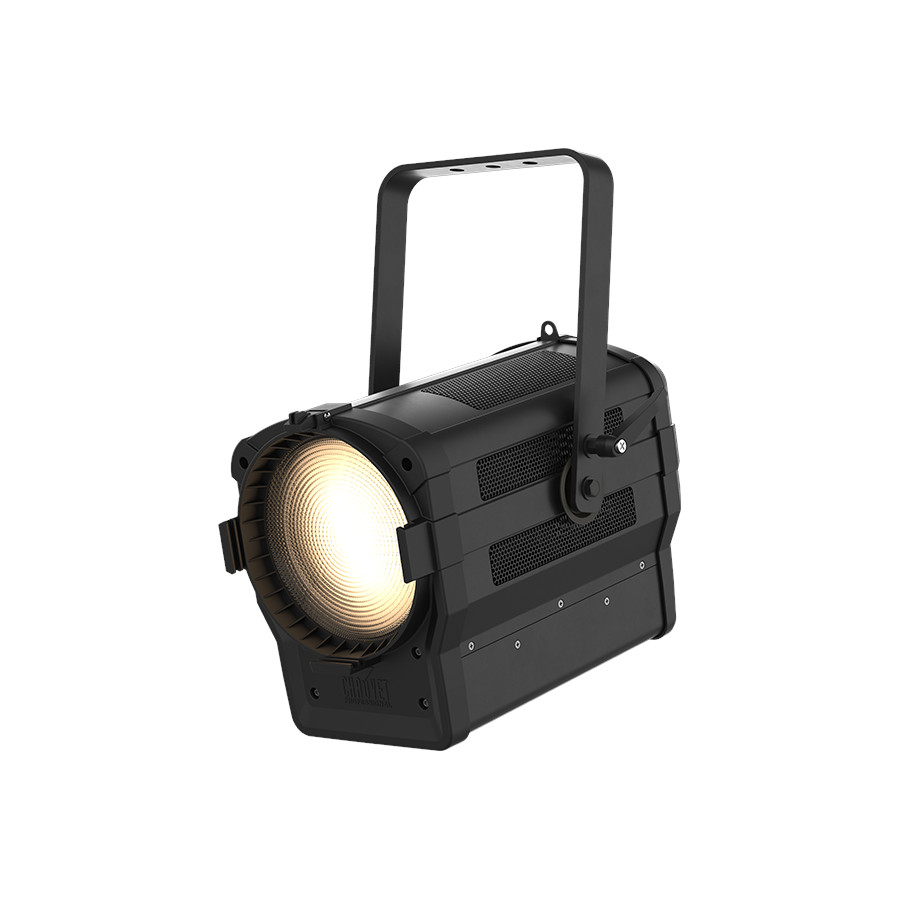

Chauvet Pro Ovation F-265WW Warm White LED Fresnel

About: Chauvet Pro Ovation F-265WW Warm White LED Fresnel

Ovation F-265WW is a high-power Fresnel-style fixture utilizing our efficient warm white LED system to project a bright, beautifully soft, high CRI (95+) field of light ideal for theatres and television studios. A motorized zoom with a 16°- 68° field range and the light output can be controlled via DMX, onboard dials, RDM, adjustable PWM and an easy to navigate OLED full text display.

• Warm white fresnel with output comparable to an 8”, 2,000 W Fresnel
• Soft and even field of light
• 16-bit dimming resolution for smooth fades
• Virtually silent operation for use in any situation
• Motorized zoom range between 16° to 68°, manually or via DMX

Specifications

• Optical
  • Light Source: 1 LED (WW) 230 W, (3.6 A), 50,000 hours life expectancy
  • Color Temperature (at full): 3142 K
  • CRI: 96
  • Beam Angle: 16° to 46°
  • Field Angle: 27° to 68°
  • Zoom Range: 16° to 68°
  • Lumens (27°): 9,283
  • Lumens (68°): 12,802
  • Illuminance (27°): 4,010 lux @ 5 m
  • Illuminance (68°): 1,162 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
• Dynamic Effects
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 30 Hz
  • Dim Modes: 4
• Connections
  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)
• Control
  • Protocol(s): DMX, RDM
  • DMX Channels: 1, 2, 2 or 5
  • Modes/Personalities: 4 personalities (1, 2, 2, 5)
• Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
  • Power and Current: 222 W, 1.84 A @ 120 V, 60 Hz
  • Power and Current: 230 W, 1.10 A @ 208 V, 60 Hz
  • Power and Current: 231 W, 1.01 A @ 230 V, 50 Hz
• ​Certifications / Qualifications
  • CE, MET, FCC
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
• Construction / Physical
  • Dimensions: 15.11 x 12.59 x 17.71 in (384 x 320 x 450 mm)
  • Weight: 17.2 lb (7.9 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 7.5 in (191 mm)
• Optional Accessories
  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Neutrik powerCON cables
  • 3-pin or 5-pin DMX Cables
  • Color Blending Filters: DF60X1D, DF20D
  • Ovation F7.5” Barndoor
  • Ovation Pole Operated Yoke 2 – 8”

What's Included

• Ovation F-265WW
• Seetronic Powerkon IP65 power cord
• Gel Frame
