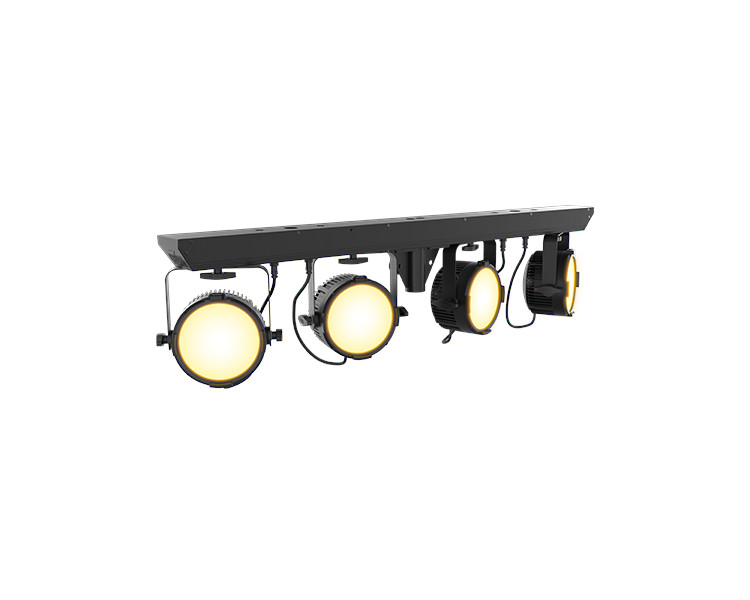

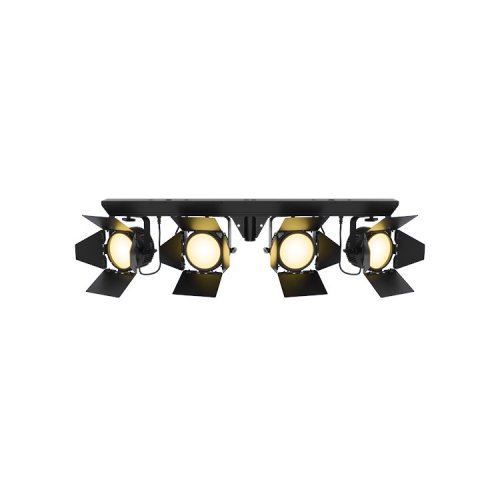

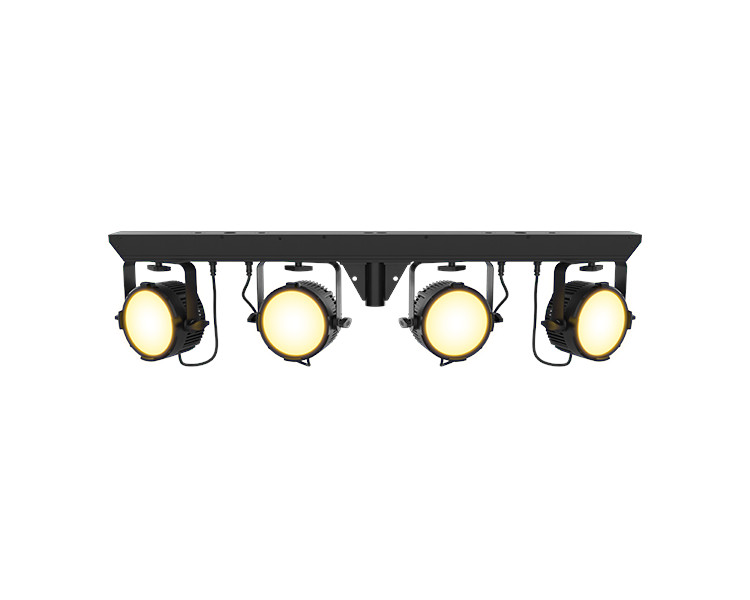

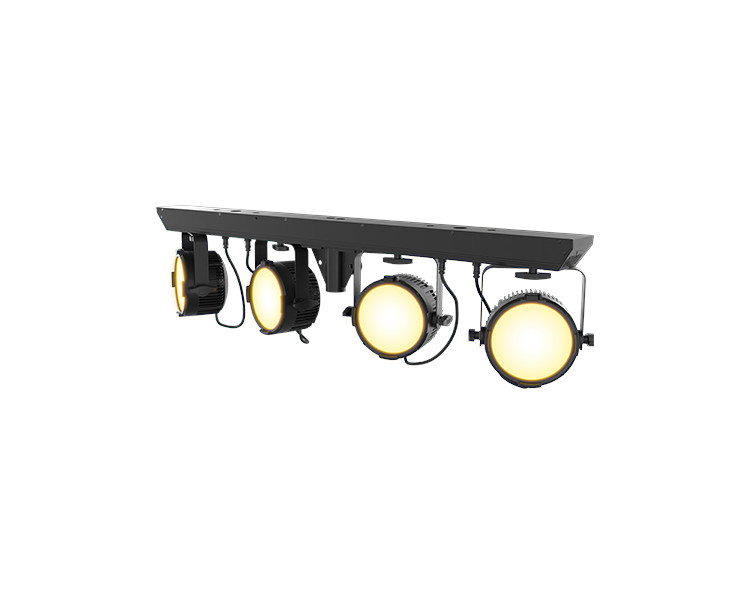

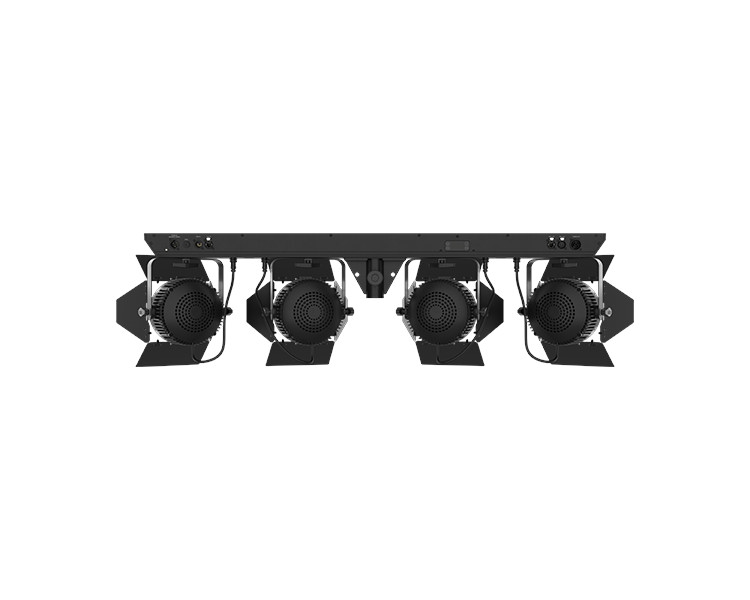

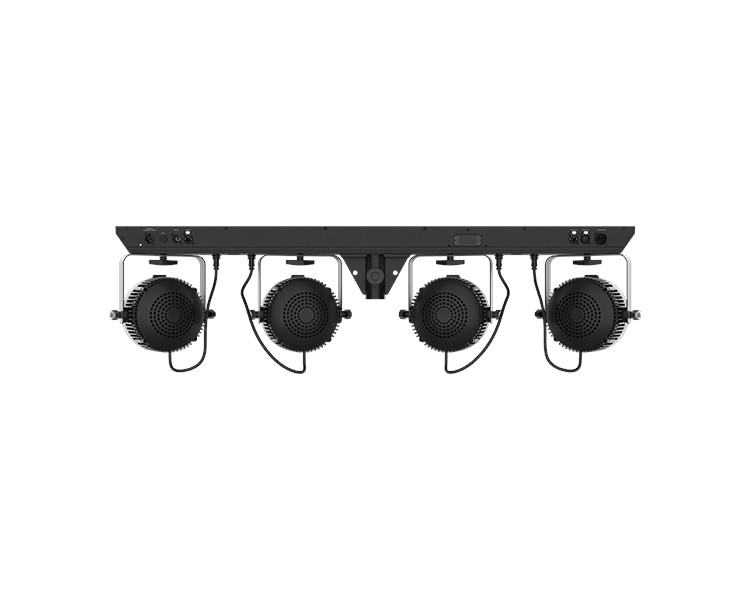

Chauvet Pro COLORdash PAR Bar 4-Head Wash Lighting Bar

About: Chauvet Pro COLORdash PAR Bar 4-Head Wash Lighting Bar

A complete wash light solution designed with convenience and versatility in mind for small theatres, events and multi-use spaces. COLORdash Par Bar 4 comes with all the features and accessories to shape light coverage to your needs. Independently focus each of four RGBAW-UV LED heads, change beam angles from 15° to 30° with the included wide filter, and keep light where it’s wanted with four-leaf barndoors. Selectable dimming curves mean fades are always smooth, and superior optics produce smooth color mixes. Advanced electronics with adjustable pulse width modulation make for flicker-free on-camera performance. Connect to DMX control via 5-pin XLR or with standard CAT6 Ethernet cable. A touchscreen interface and multiple mounting options complete this versatile package.

• Complete, 4-head wash lighting solution with high-power RGBAW-UV LED Arrays
• Multiple, convenient mounting options for maximum versatility
• Independently focusable heads allow for customizable stage coverage

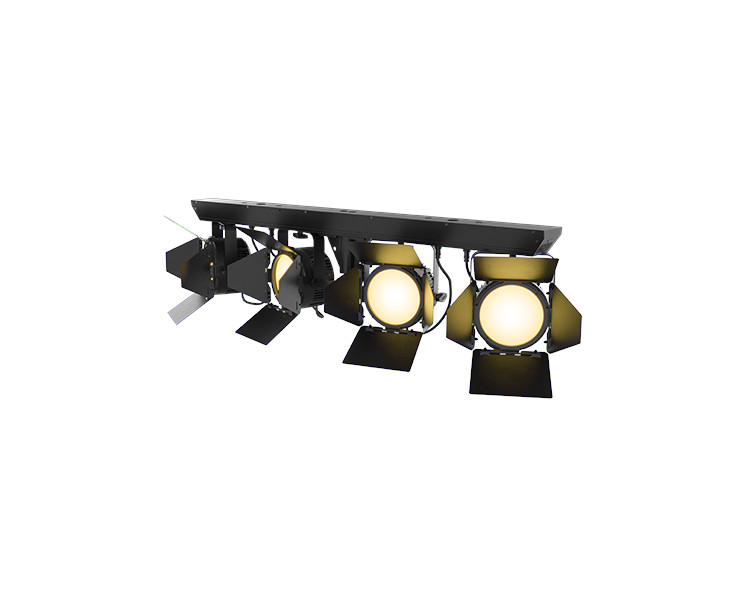

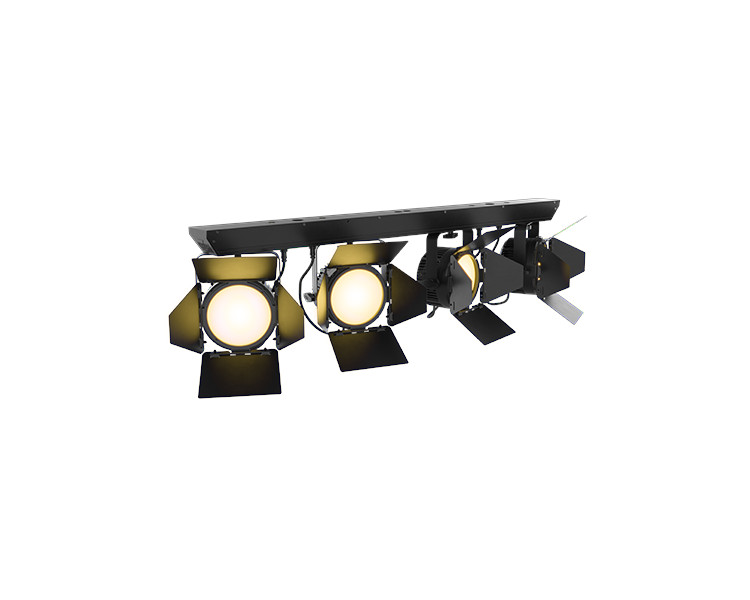

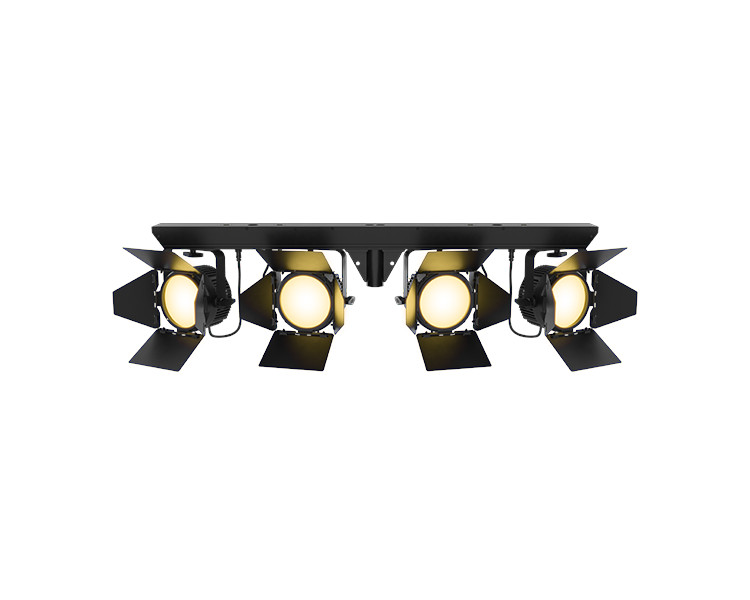

• Included barndoors for each head to cut light out of unwanted areas
• Easily connect to DMX control using standard CAT6 Ethernet cable
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• RDM (Remote Device Management) for added flexibility
• Selectable, smooth dimming curves for eliminating flicker and choppiness in fades
• Easy to read OLED display with password protection and touchscreen interface
• Advanced optics provide exceptional color mixing and high efficiency

Specifications

• Optical
  • Light Source: 1, RGBAW-UV LED Array (per head)
  • Beam Angle narrow (Single Par): 15.3°
  • Field Angle narrow (Single Par): 29.8°
  • Beam Angle wide (Single Par): 30.4°
  • Field Angle wide (Single Par): 49.4°
  • Lumens (Single Par): 4305 lm
  • Lumens (All Pars) : 17930 lm
  • Illuminance Narrow (Single Par): 1482 lux @ 5 m
  • Illuminance Wide (Single Par): 510 lux @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
• Dynamic Effects
  • Dimmer: Electronic
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes
• Construction / Physical
  • Dimensions: 45.3 x 5.16 x 11.08 in ( 1150.6 x 131 x 281.4 mm)
  • Weight: 28.8 lb (12 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum Alloy
• Connections
  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin XLR, Neutrik etherCON or Amphenol XLRnet (etherCON Compatible)
  • Cable Length (power): 5 ft (1.5 m)
• Control
  • Control Protocol: DMX, RDM
  • DMX Channels: 6,8,9,14,24,32,36,41
  • Modes/Personalities: 8 personalities (6,8,9,14,24,32,36,41)
• Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 2 units @ 100 V; 2 units @ 120V; 4 units @ 208 V; 4 units @ 230 V; 5 units @ 240 V
  • Power and Current: 557W, 5.55 A @ 100 V, 60 Hz
  • Power and Current: 551W, 4.63 A @ 120 V, 60 Hz
  • Power and Current: 546 W, 2.63 A @ 208 V, 60 Hz
  • Power and Current: 550W, 2.41 A @ 230 V, 50 Hz
  • Power and Current: 559W, 2.33 A @ 240 V, 50 Hz
• Certifications / Qualifications
  • CE, MET, FCC, UKCA
  • IP Rating: IP20, dry location
  • Temperature (Ambient): 32 °F to 104 °F (0 °C to 40 °C)

What's Included

• COLORdash Par Bar
• Seetronic Powercon IP65 power cord
• Wide Filter (4pc)
• Barndoors (4pc)
• Tripod mount
