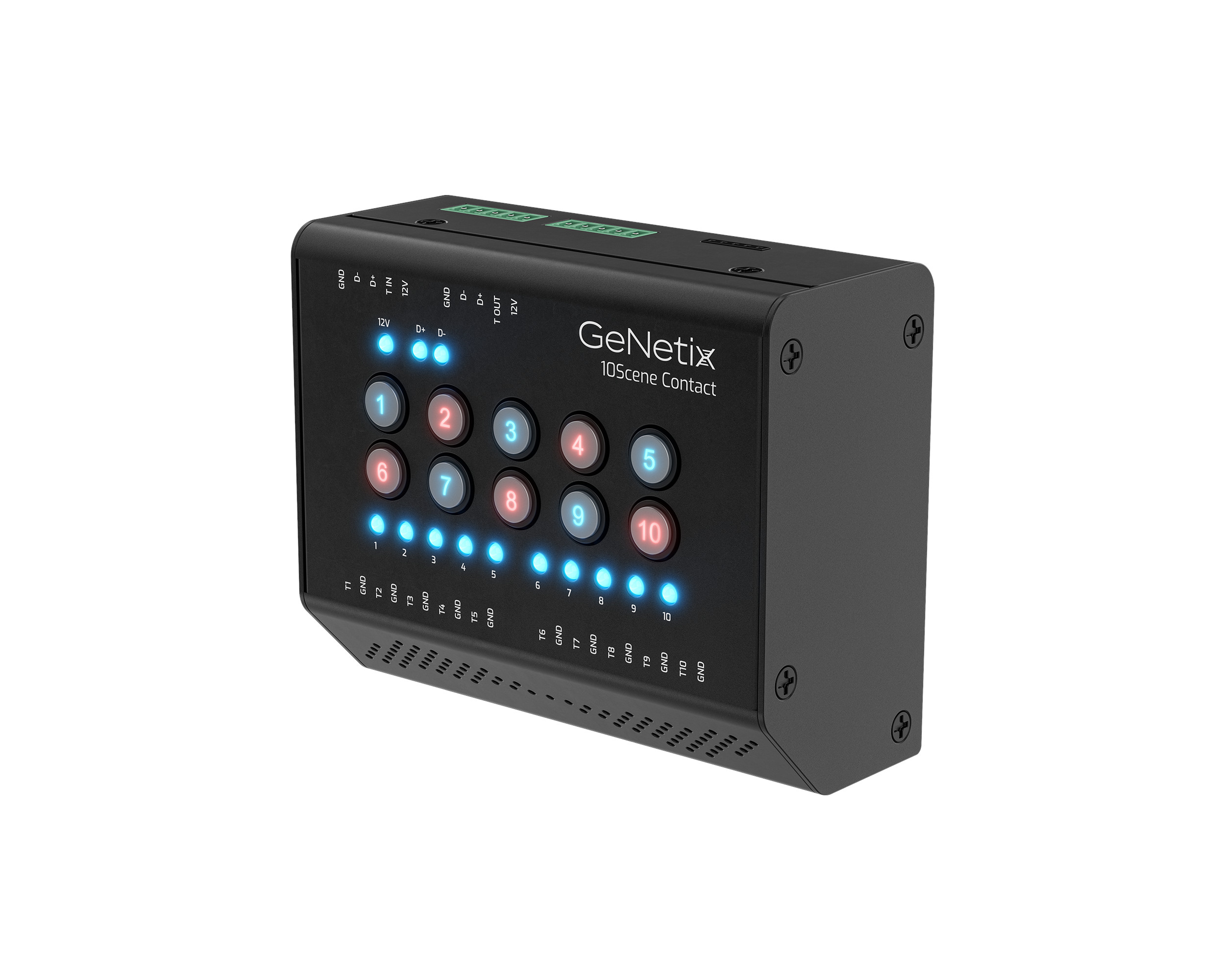

ChamSys Genetix 10Scene Contact
Model: GENETIX-10SCENE-CONTACT
About: ChamSys Genetix 10Scene Contact

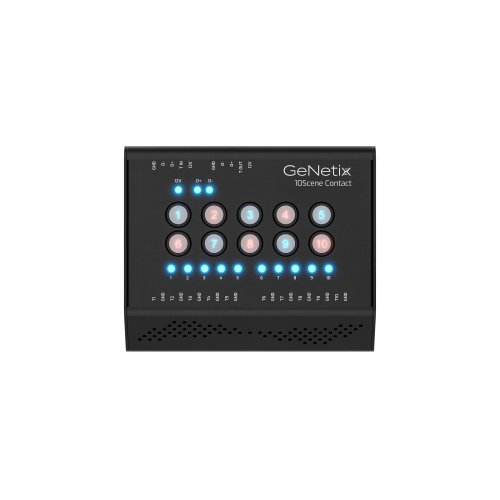

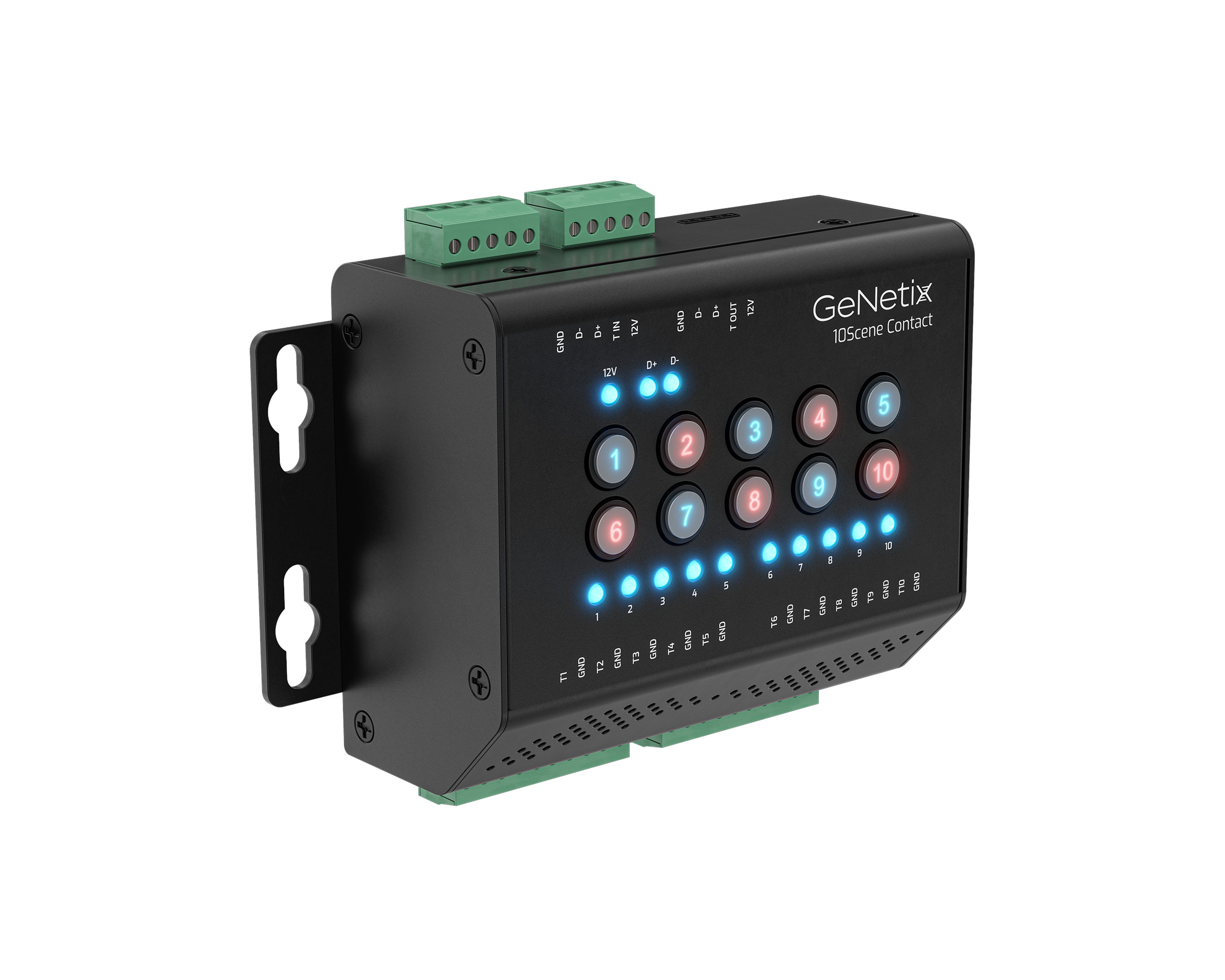

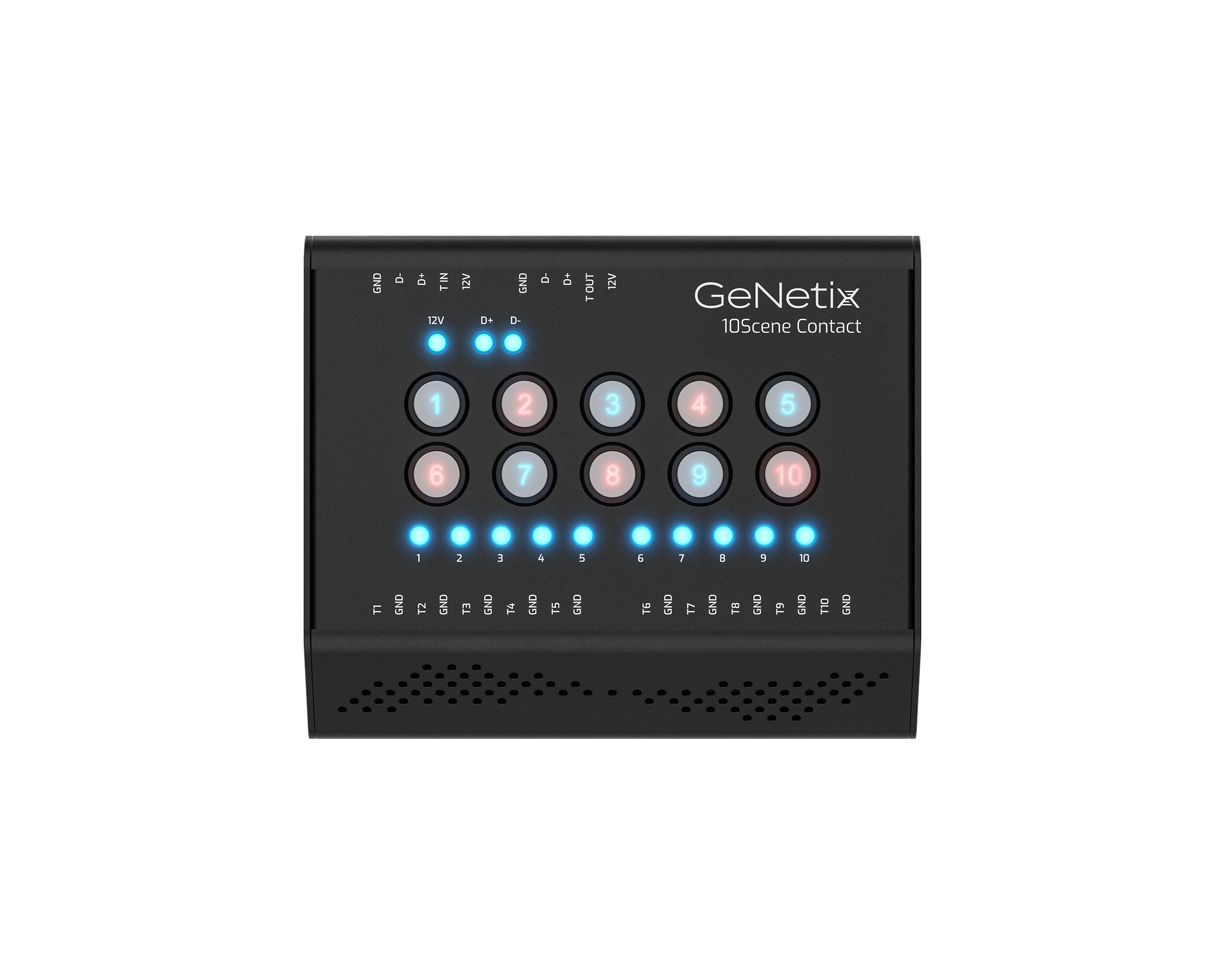

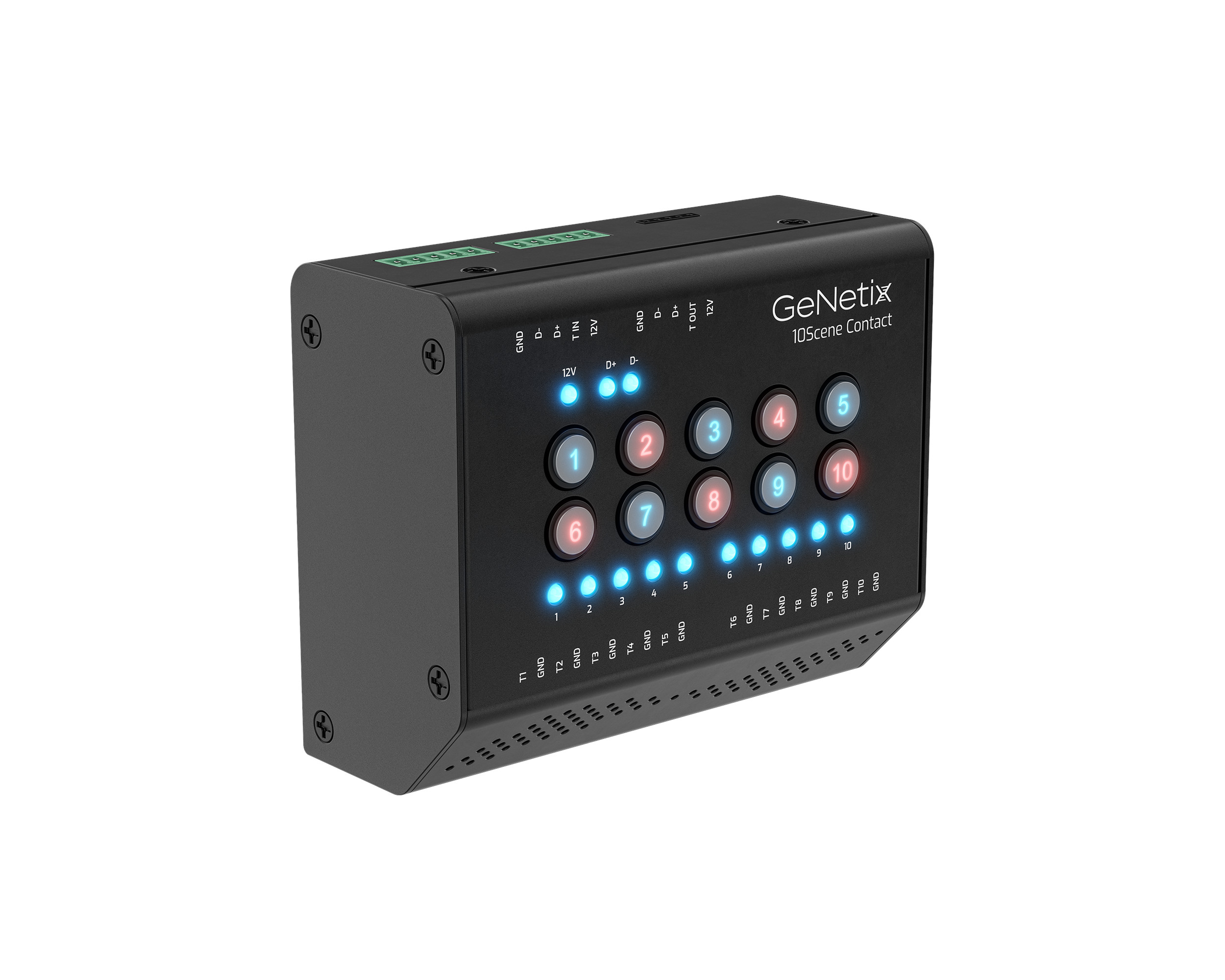

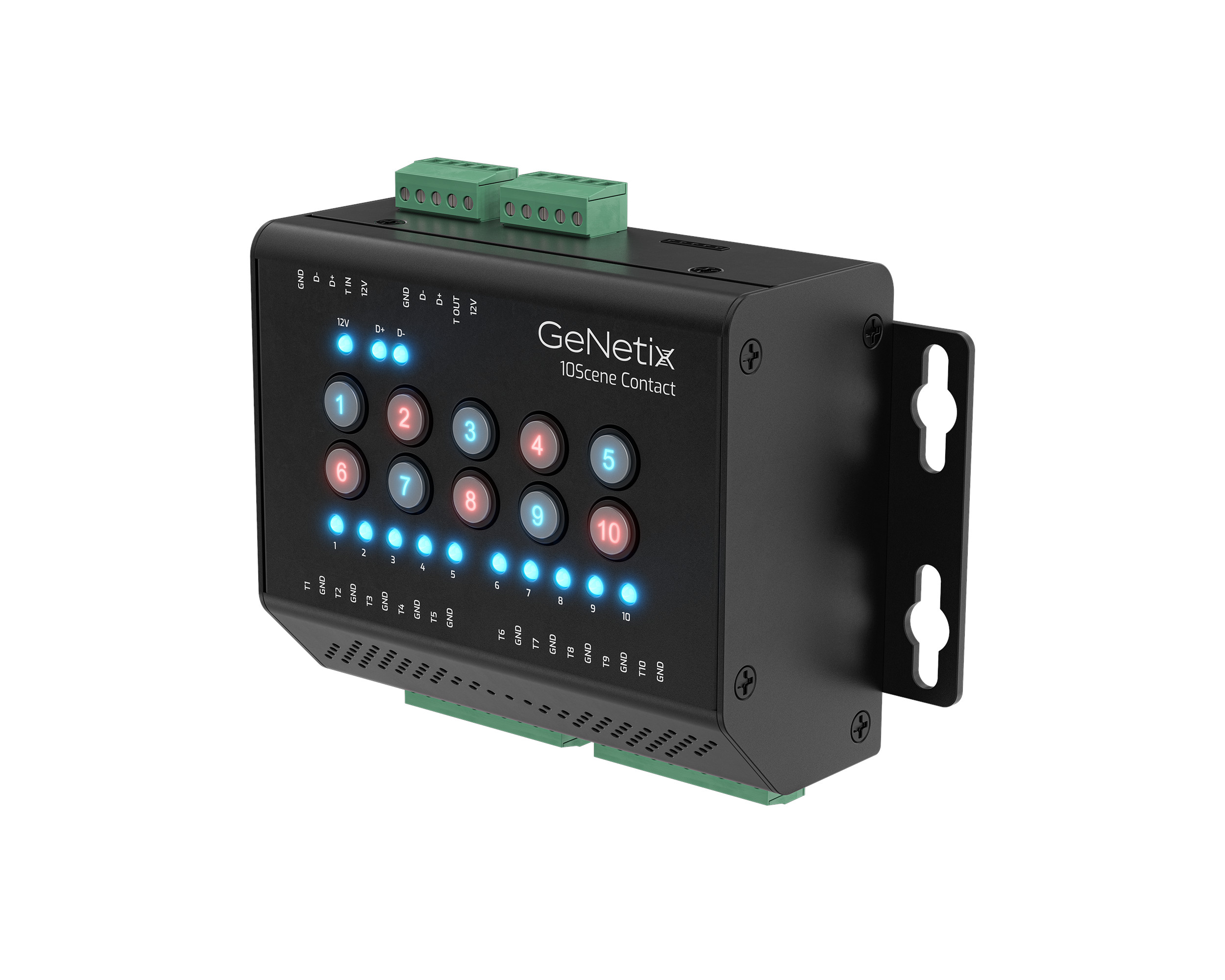

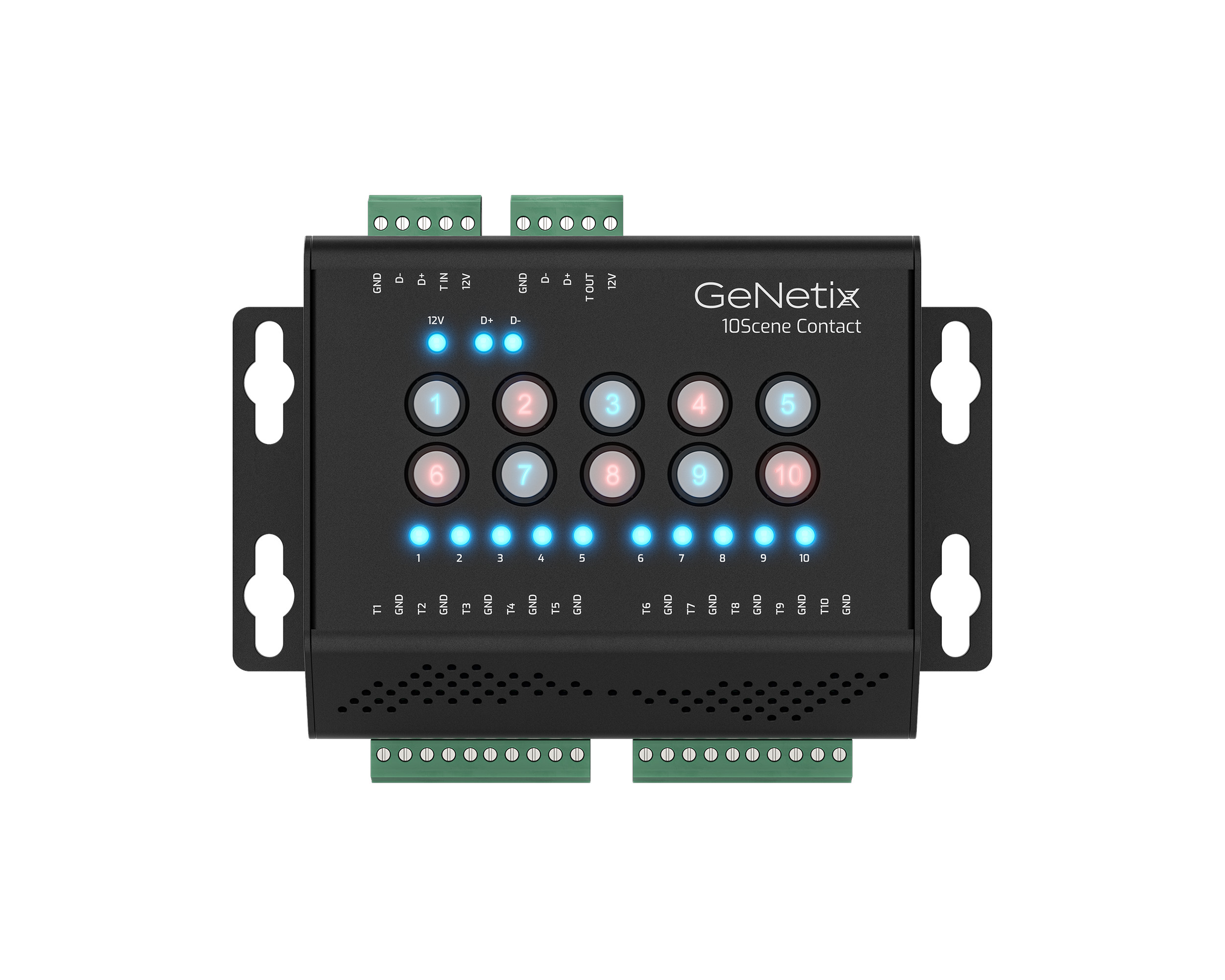

The GeNetix 10Scene Contact is a DIN rail mountable 10-input dry contact trigger interface that integrates ChamSys control solutions, enabling MagicQ and QuickQ Playbacks and Executes to be triggered by open/close contacts, as well as triggering scenes on GeNetix GN5 and GN10 nodes.
- 10 Open/Close Contact Trigger Inputs
- Compatible with MagicQ / QuickQ and GN5/GN10 GeNetix Nodes
- Connects via 10Scene Protocol
- Daisy chain together with 10Scene Wall Plates and 10Scene Contacts
- Triggers either Playbacks or Executes when connected to MagicQ or QuickQ Systems
- Triggers Scenes on GeNetix GN5/GN10 Nodes
Its two 10Scene Ports allow the interface to be daisy-chained with 10Scene Wall Plates and up to ten 10Scene Contacts per chain, all connected via the 10Scene Protocol that also powers the interface.
10Scene Contact provides a user-friendly and easily-integrated solution for adding external dry contact trigger remote control to MagicQ, QuickQ, and GeNetix systems.
Specifications
- Hardware
- Contact Trigger Inputs: 10
- 10Scene Ports: 2
- 10Scene Test Buttons: 10
- Max No of 10Scene Contact or 10Scene Wall Plates per chain: 10

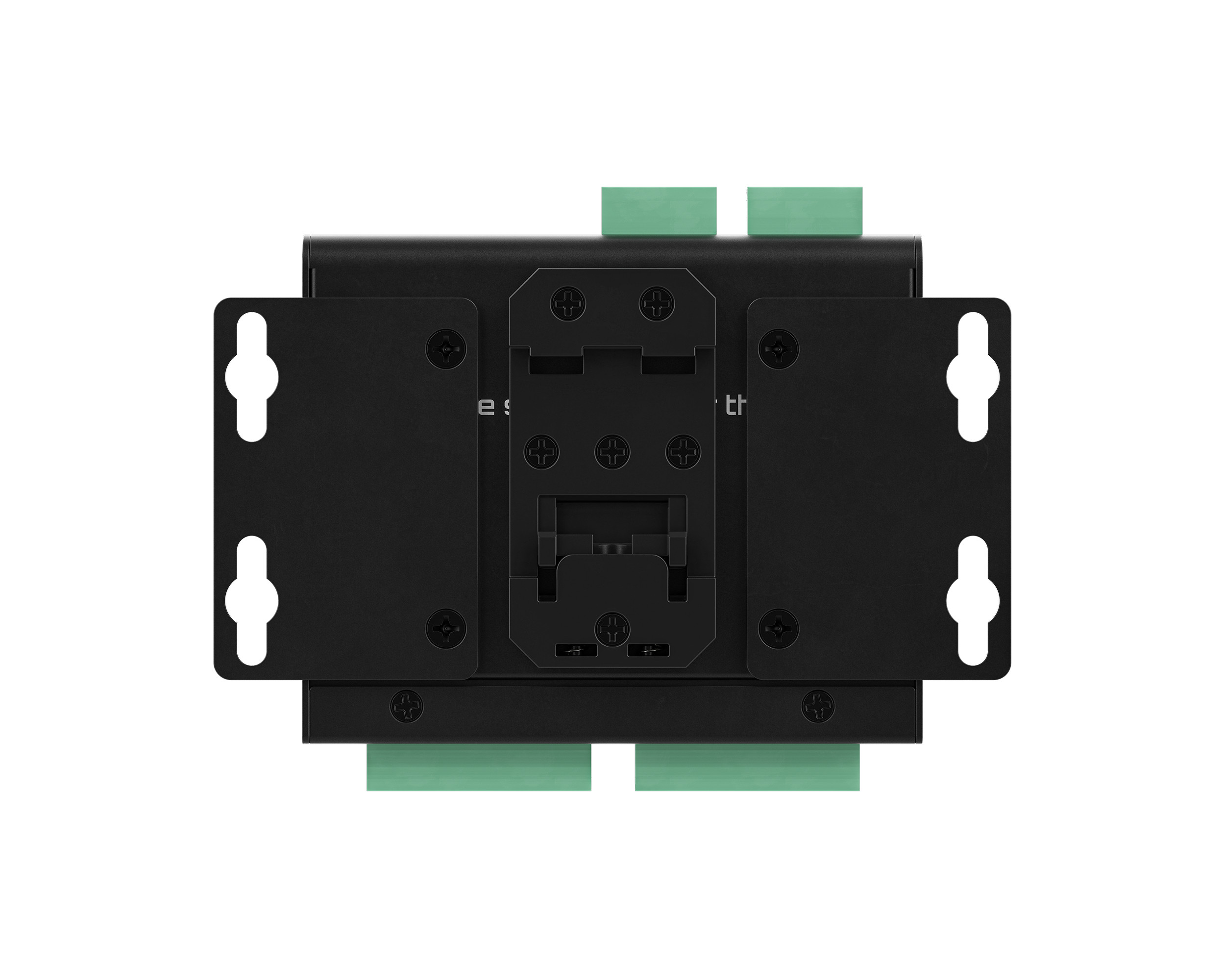

- DIN Rail Mounted: Yes
- Powered via 10Scene Protocol: Yes
- Software
- Compatible with QuickQ Consoles/Rack: Yes (via 10Scene connectors or via Gateway)
- Compatible with both MagicQ Consoles/Rack: Yes (via 10Scene connectors or via Gateway)
- Compatible with GN5/GN10/GN10P/GN10R: Yes
- Dimensions (WxDxH): 4.09 x 3.42 x 2.55 inch (104 x 87 x 65 mm)
- Weight: 0.88 lbs (0.4kg)
What's Included
- 1x DIN Rail Mount Clip
- 1x Quick Start Guide
UPC: 781462229627
