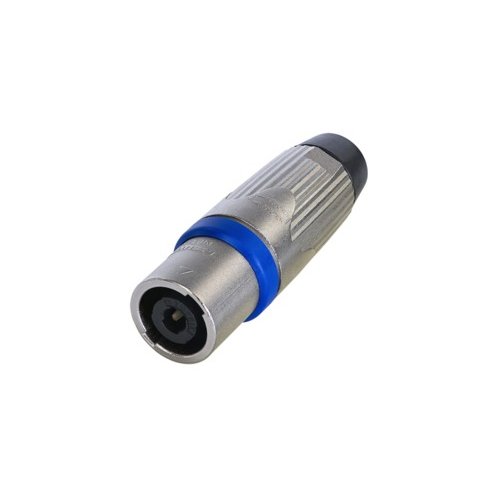

Neutrik NLT4MXX 4-Pole Male speakON Cable Connector
Model: NLT4MXX
About: Neutrik NLT4MXX 4-Pole Male speakON Cable Connector
4 pole male cable connector, metal housing, chuck type strain relief
This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.
The speakON STXX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STXX Series features an all metal housing.
Features & Benefits
- IEC 61984 certified, IEC 62368-1 compliant
- Uses precise “Quick Lock” system
- Weatherproof built-in gasket meets IP 54 protection class in mated condition
- Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
- Extra large solder contacts for up to 6 mm² (AWG 10) wires
Technical Information
- Electrical
- Contact resistance - < 2 mΩ
- Dielectric strength - 2.8 kVac
- Insulation resistance - >0.1 GΩ (after dampheat)
- Rated current per contact - 30 A rms continuous
- Rated voltage - 250 V ac
- Attention - speakON is NOT to be used as an AC mains or power supply connector!
- Mechanical
- Cable O.D. - 9 - 16 mm
- Lifetime - > 5000 mating cycles
- Wiresize - 6 mm²
- Wiresize - 10 AWG
- Termination - Solder contacts
- Locking device - Quick Lock
- Material
- Contact plating - Ag
- Contacts - Copper Alloy
- Shell - Zinc diecast, Ni plated
- Insert - Polyamide (PA 66)
- Strain relief - Polyacetal (POM)
- Environmental
- Temperature range - -30 °C to +80 °C
- Flammability - UL 94 V-0
- Protection class - IP 54 (mated condition)
- Solderability - Complies with IEC68-2-20
