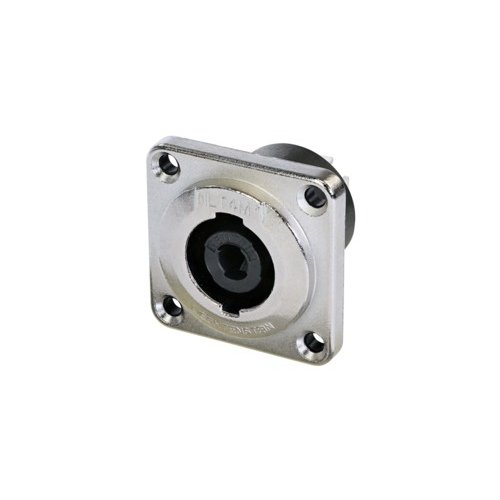

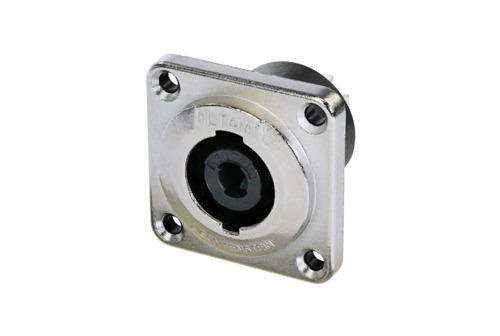

Neutrik NLT4MPXX 4 Pole Male speakON Chassis Connector
Model: NLT4MPXX
About: Neutrik NLT4MPXX 4 Pole Male speakON Chassis Connector
4 pole male chassis connector, metal housing, solder contacts or ¼“ flat tabs, countersunk thru holes
This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.
The speakON STXX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STXX Series features an all metal housing.
Features & Benefits
- IEC 61984 certified, IEC 62368-1 compliant
- Uses precise “Quick Lock” system
- Airtight design - optimized for speaker applications
- Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
- Weatherproof built-in gasket meets IP 54 protection class in mated condition
Technical Information
- Electrical
- Contact resistance - < 2 mΩ
- Dielectric strength - 2.8 kVac
- Insulation resistance - >0.1 GΩ (after dampheat)
- Rated current per contact - 30 A rms continuous
- Rated voltage - 250 V ac
- Attention - speakON is NOT to be used as an AC mains or power supply connector!
- Mechanical
- Lifetime - > 5000 mating cycles
- Termination - ¼" flat tabs
- Locking device - Quick Lock
- Mounting direction - Rear / front mounting
- Chassis shape - square G-size flange
- Layout - four thru holes
- Material
- Contact plating - Ag
- Contacts - Copper Alloy
- Shell - Zinc diecast, Ni plated
- Insert - Polyamide (PA 66)
- Environmental
- Temperature range - -30 °C to +80 °C
- Flammability - UL 94 V-0
- Protection class - IP 54 (mated condition)
